ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350

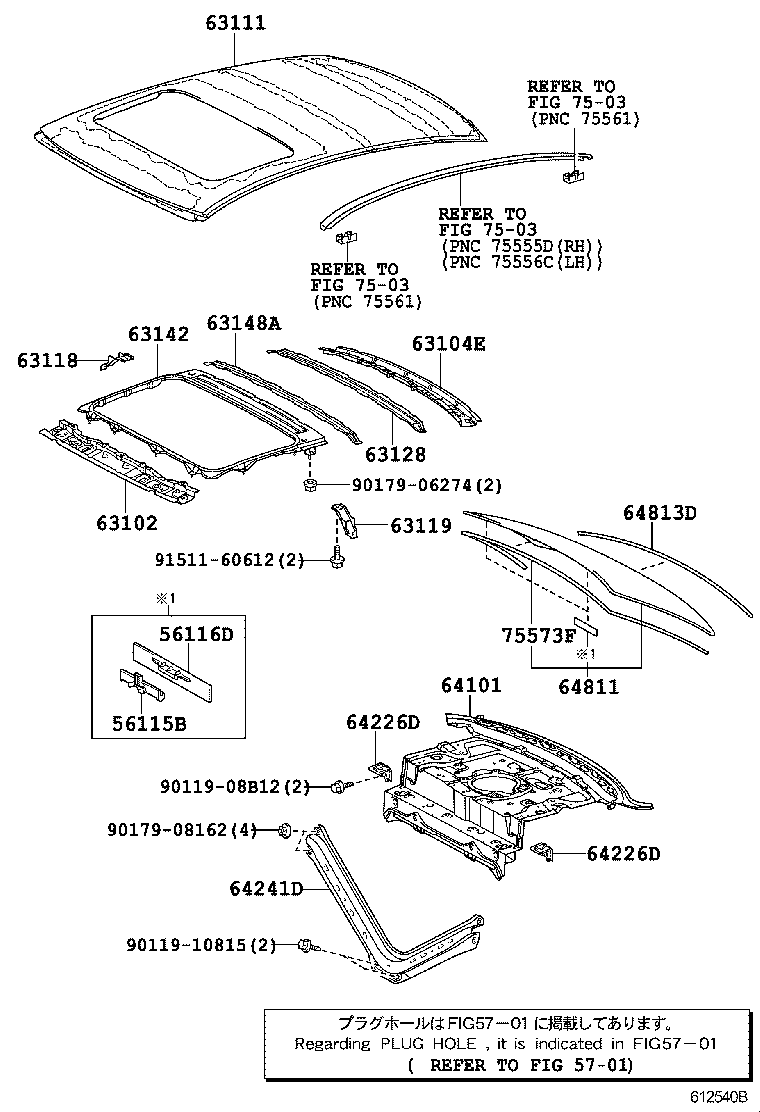

ILLUST NO. 1 OF 2(0605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-22010 |
ACV40,GSV40 |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
ACV40,GSV40 |
2 | ||
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-33903 |
ACV40;GSV40..GCC |
1 | ||
| 63102-33904 |
ACV40 MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63102-33904 |
ACV40 ULTRA LUXURY PACKAGE&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-33904 |
ACV40 ULTRA LUXURY PACKAGE&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63104-33904 |
ACV40 MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63104-33903 |
ACV40;GSV40..GCC |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-33280 |
ACV40 MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63111-33250 |
ACV40;GSV40..GCC |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-33040 |
ACV40;GSV40..GCC |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-33040 |
ACV40;GSV40..GCC |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-33010 |
ACV40;GSV40..GCC |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-33901 |
ACV40;GSV40..GCC |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-33040 |
ACV40;GSV40..GCC |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-33300 |
ACV40,GSV40 |
1 | ||
| 64226D - HANGER, REAR SEAT CUSHION SUPPORT, NO.2 | ||||
| 64226-33030 |
ACV40,GSV40 |
2 | ||
| 64226D - HANGER, REAR SEAT CUSHION SUPPORT, NO.2 | ||||
| 64226-33030 |
ACV40,GSV40 |
2 | ||
| 64241D - PANEL, ROOM PARTITION | ||||
| 64241-33030 |
ACV40,GSV40 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-33180 |
ACV40,GSV40 *UVCEHT,T=3.5,GREEN |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-33060 |
ACV40,GSV40 |
1 | ||
| 75573F - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-33030 |
ACV40,GSV40 |
1 | ||
| Common parts | ||||
| 90119-08B12 | ||||
| 90119-10815 | ||||
| 90179-06274 | ||||
| 90179-08162 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7503 | ||||

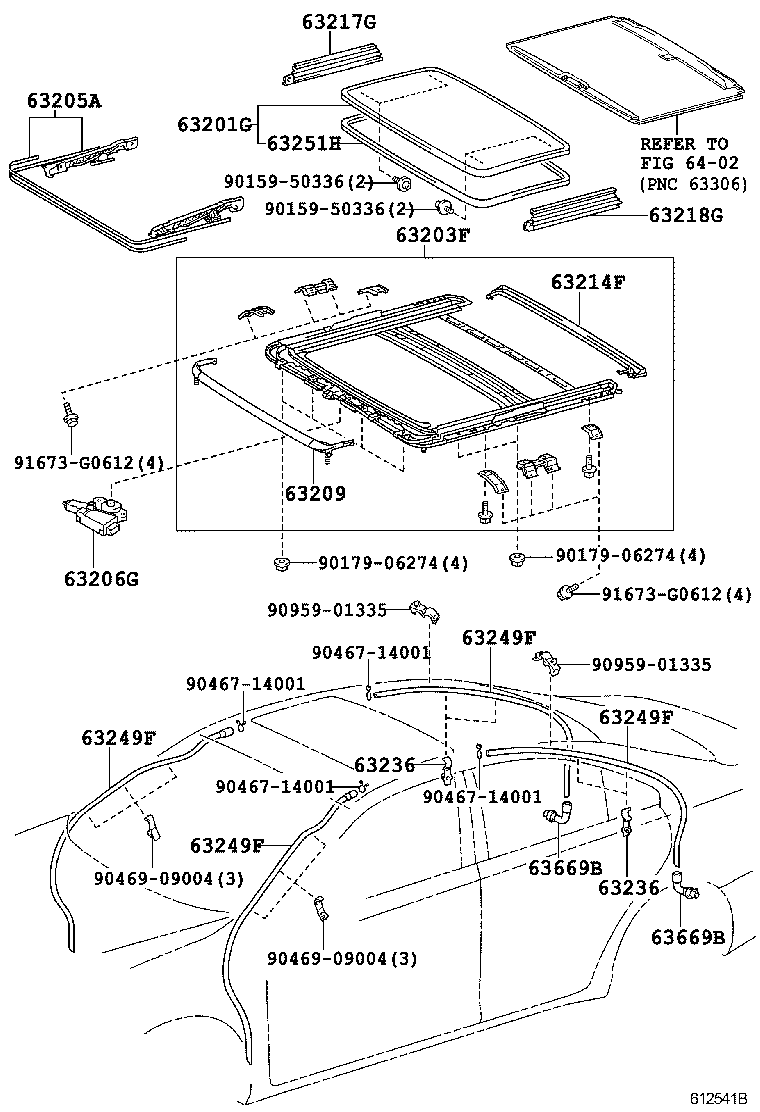

ILLUST NO. 2 OF 2(0605- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-33210 |
ACV40;GSV40..GCC *TEM,T=4.0,GRAY |
1 | ||
| 63201-30140 |
ACV40;GSV40..GCC *TEM,T=4.0,GRAY,MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63201-30140 |
ACV40;GSV40..GCC *TEM,T=4.0,GRAY |
1 | ||
| 63201-33210 |
ACV40;GSV40..GCC *TEM,T=4.0,GRAY,MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63201-30140 |
ACV40 *TEM,T=4.0,GRAY,ULTRA LUXURY PACKAGE |
1 | ||
| 63201-33210 |
ACV40 *TEM,T=4.0,GRAY,ULTRA LUXURY PACKAGE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-33070 |
ACV40;GSV40..GCC |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-48010 |
ACV40;GSV40..GCC |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-33080 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63260-33080 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63260-33080 |
ACV40 ULTRA LUXURY PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63260-33080 |
ACV40 MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63260-33080 |
ACV40 ULTRA LUXURY PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI*MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63260-33070 |
ACV40;GSV40..GCC |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-33120 |
ACV40;GSV40..GCC |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-48010 |
ACV40;GSV40..GCC |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-48030 |
ACV40 ULTRA LUXURY PACKAGE |
1 | ||
| 63217-48030 |
ACV40;GSV40..GCC MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63217-33060 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63217-48030 |
ACV40;GSV40..GCC |
1 | ||
| 63217-33060 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63217-33060 |
ACV40 MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63217-33060 |
ACV40 ULTRA LUXURY PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI*MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63217-33060 |
ACV40 ULTRA LUXURY PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-33050 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63218-48030 |
ACV40;GSV40..GCC MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63218-33050 |
ACV40 ULTRA LUXURY PACKAGE&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63218-33050 |
ACV40 ULTRA LUXURY PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI*MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63218-48030 |
ACV40 ULTRA LUXURY PACKAGE |
1 | ||
| 63218-48030 |
ACV40;GSV40..GCC |
1 | ||
| 63218-33050 |
ACV40 ULTRA LUXURY PACKAGE&MOON ROOF-WITH(GLASS ROOF)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS) |
1 | ||
| 63218-33050 |
ACV40 MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
ACV40;GSV40..GCC |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-30010 |
ACV40;GSV40..GCC |
4 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-33110 |
ACV40;GSV40..GCC REAR |
2 | ||
| 63249-33100 |
ACV40;GSV40..GCC FRONT |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-33110 |
ACV40;GSV40..GCC REAR |
2 | ||
| 63249-33100 |
ACV40;GSV40..GCC FRONT |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-33110 |
ACV40;GSV40..GCC REAR |
2 | ||
| 63249-33100 |
ACV40;GSV40..GCC FRONT |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-33110 |
ACV40;GSV40..GCC REAR |
2 | ||
| 63249-33100 |
ACV40;GSV40..GCC FRONT |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30100 |
ACV40;GSV40..GCC |
1 | ||
| 63251-30100 |
ACV40 ULTRA LUXURY PACKAGE |
1 | ||
| 63251-30100 |
ACV40;GSV40..GCC MOON ROOF-WITH(GLASS ROOF) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
ACV40;GSV40..GCC |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
ACV40;GSV40..GCC |
2 | ||
| Common parts | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90467-14001 | ||||
| 90469-09004 | ||||
| 90959-01335 | ||||
| 91673-G0612 | ||||
| Linked diagrams | ||||
| 6402 | ||||
