ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

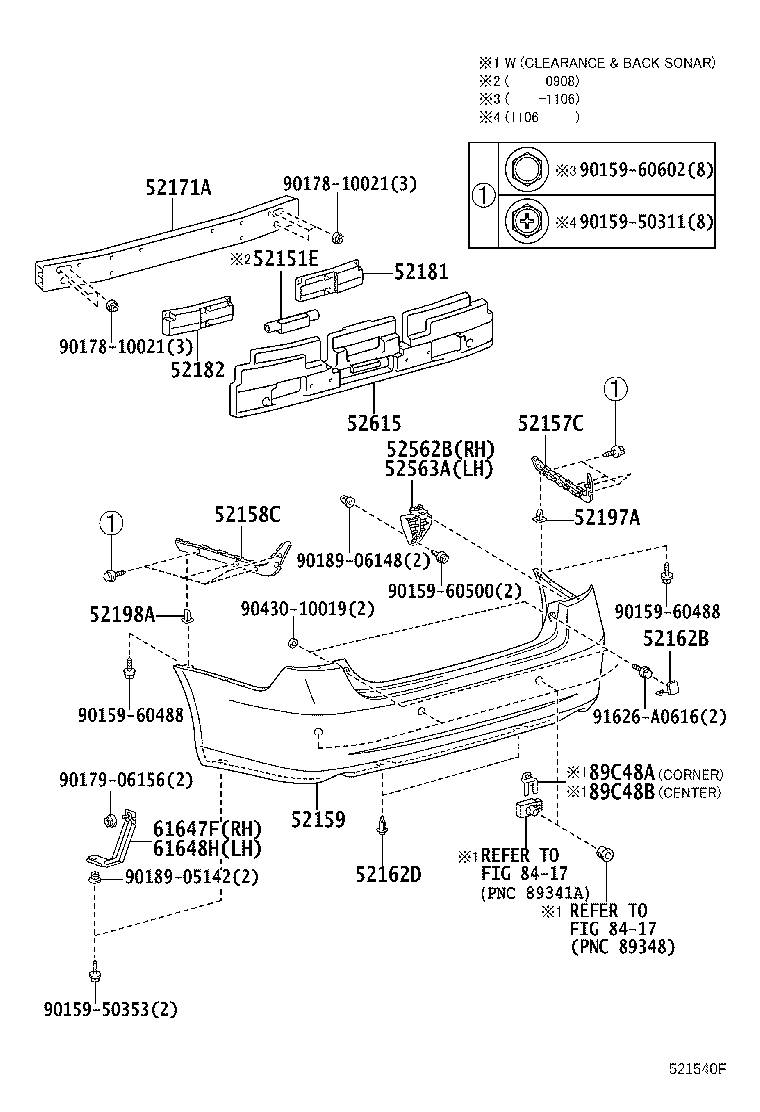

Click highlighted areas on diagram

diagram 52151E 52157C 52158C 52159 52162B 52162D 52171A 52181 52182 52197A 52198A 52562B 52563A 52615 61647F 61648H 8417 8417 89C48A 89C48B 9015950311 9015950353 9015960488 9015960488 9015960500 9015960602 9017810021 9017810021 9017906156 9018905142 9018906148 9043010019 91626A0616
Part # Description Qty Price
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-33020

ACV40,GSV40

 1
52157-33021

ACV40,GSV40

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-33021

ACV40,GSV40

 1
52158-33020

ACV40,GSV40

 1
52159 - COVER, REAR BUMPER
52159-33937

ACV40

PAINT REQ.

 1
52159-33938

ACV40

PAINT REQ.,CLEARANCE SONER-WITH

 1
52159-33938

ACV40

PAINT REQ.

 1
52162B - PLATE, REAR BUMPER, NO.1
52162-30911

ACV40,GSV40

 2
52162D - PIECE, REAR BUMPER
52161-16010

ACV40,GSV40

 2
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-33140

ACV40,GSV40

 1
52181 - ARM, REAR BUMPER, RH
52181-33040

ACV40,GSV40

 1
52182 - ARM, REAR BUMPER, LH
52182-33010

ACV40,GSV40

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-22020

ACV40,GSV40

 1
52198A - BRACKET, REAR BUMPER SEAL, LH
52197-22020

ACV40,GSV40

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-33030

ACV40,GSV40

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-33030

ACV40,GSV40

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-33130

ACV40,GSV40

 1
61647F - REINFORCEMENT, WHEEL HOUSE, RH
61647-33050

ACV40,GSV40

 1
61648H - REINFORCEMENT, WHEEL HOUSE, LH
61648-33050

ACV40,GSV40

 1
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-33020

ACV40

 2
89348-33020

ACV40

CLEARANCE SONER-WITH

 2
89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER
89348-33020

ACV40

CLEARANCE SONER-WITH

 2
89348-33020

ACV40

 2
Common parts
90159-50311
90159-50353
90159-60488
90159-60500
90159-60602
90178-10021
90179-06156
90189-05142
90189-06148
90430-10019
91626-A0616
Linked diagrams
8417
