ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

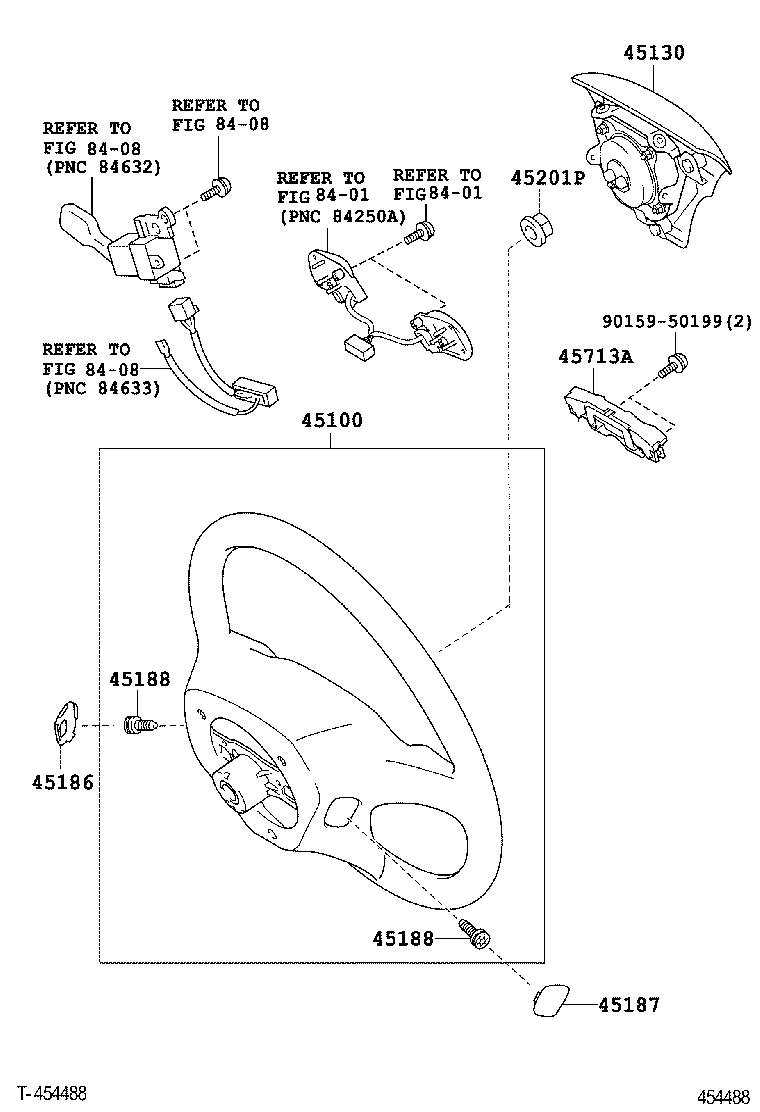

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45187 45188 45188 45201P 45713A 8401 8401 8408 8408 8408 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-33760E0

ACV40

3-SPOKE,WOOD&LEATHER,ULTRA LUXURY PACKAGE,ORCHID BROWN & MD.BROWN,TRIM00

 1
45100-33760C0

ACV40

3-SPOKE,WOOD&LEATHER,ULTRA LUXURY PACKAGE,BLACK & MD.BROWN,TRIM10,20

 1
45100-33750C0

ACV40

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

 1
45100-33760C1

ACV40

3-SPOKE,WOOD&LEATHER,ULTRA LUXURY PACKAGE,BLACK & DK.BROWN,TRIM11,21

 1
45100-33760C0

ACV40

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & MD.BROWN,TRIM10,20

 1
45100-33760E0

ACV40

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN & MD.BROWN,TRIM00

 1
45100-33750E0

ACV40

3-SPOKE,LEATHER,ORCHID BROWN,TRIM0#

 1
45100-33760E1

ACV40

3-SPOKE,WOOD&LEATHER,ULTRA LUXURY PACKAGE,ORCHID BROWN & DK.BROWN,TRIM01

 1
45100-33760E1

ACV40

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-3-SPOKE WOOD & LEATHER,ORCHID BROWN & DK.BROWN,TRIM01

 1
45100-33760C1

ACV40

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-3-SPOKE WOOD & LEATHER,BLACK & DK.BROWN,TRIM11,21

 1
45130 - BUTTON ASSY, HORN
45130-33500E0

ACV40,GSV40

ORCHID BROWN,TRIM0#

 1
45130-33500C0

ACV40,GSV40

BLACK,TRIM1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33090E0

ACV40,GSV40

ORCHID BROWN,TRIM0#

 1
45186-33090C0

ACV40,GSV40

BLACK,TRIM1#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-33060C0

ACV40,GSV40

BLACK,TRIM1#,2#

 1
45187-33060E0

ACV40,GSV40

ORCHID BROWN,TRIM0#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ACV40,GSV40

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

ACV40,GSV40

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ACV40,GSV40

 1
45713A - DAMPER, STEERING SHAKE
45713-28060

ACV40

 1
Common parts
90159-50199
Linked diagrams
8401
8408
