ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0605- )

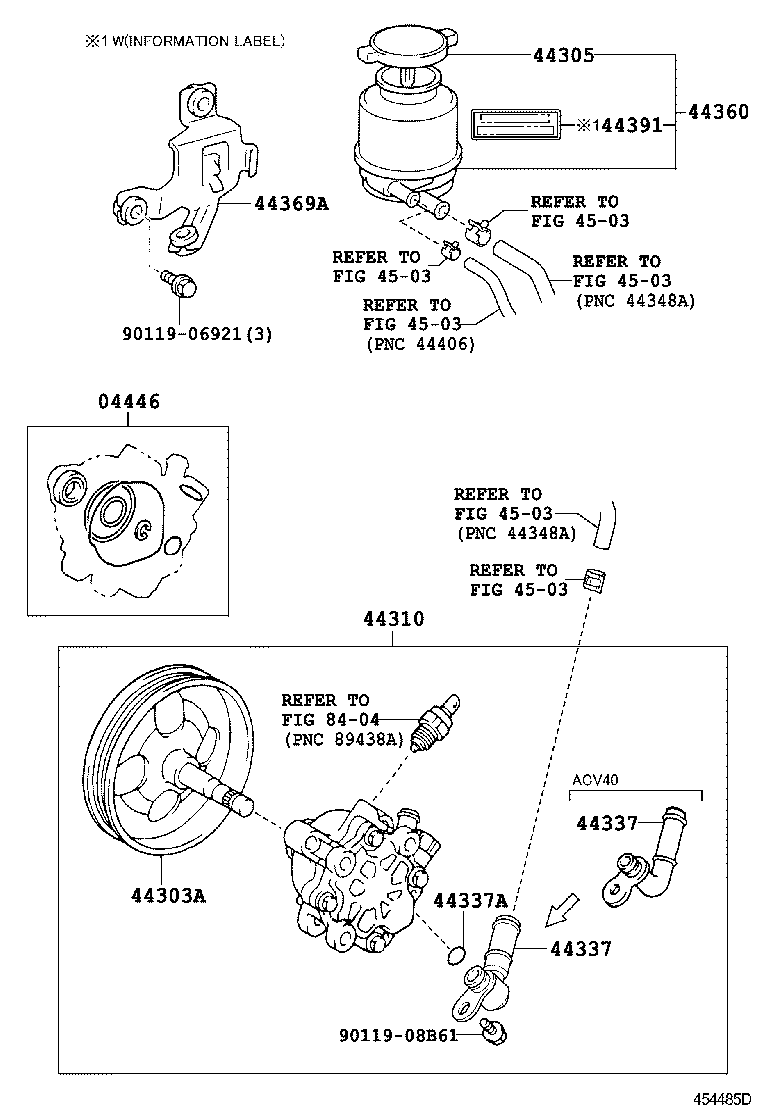

Click highlighted areas on diagram

diagram 04446 44303A 44305 44310 44337 44337 44337A 44360 44369A 44391 4503 4503 4503 4503 4503 4503 8404 9011906921 9011908B61
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050

ACV40,GSV40

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-28010

ACV40,GSV40

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28060

ACV40,GSV40

 1
44310 - PUMP ASSY, VANE
44310-33150

ACV40

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-32110

ACV40

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-32110

ACV40

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020

ACV40,GSV40

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-33040

ACV40,GSV40

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-33021

ACV40,GSV40

 1
Common parts
90119-06921
90119-08B61
Linked diagrams
4503
8404
