ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

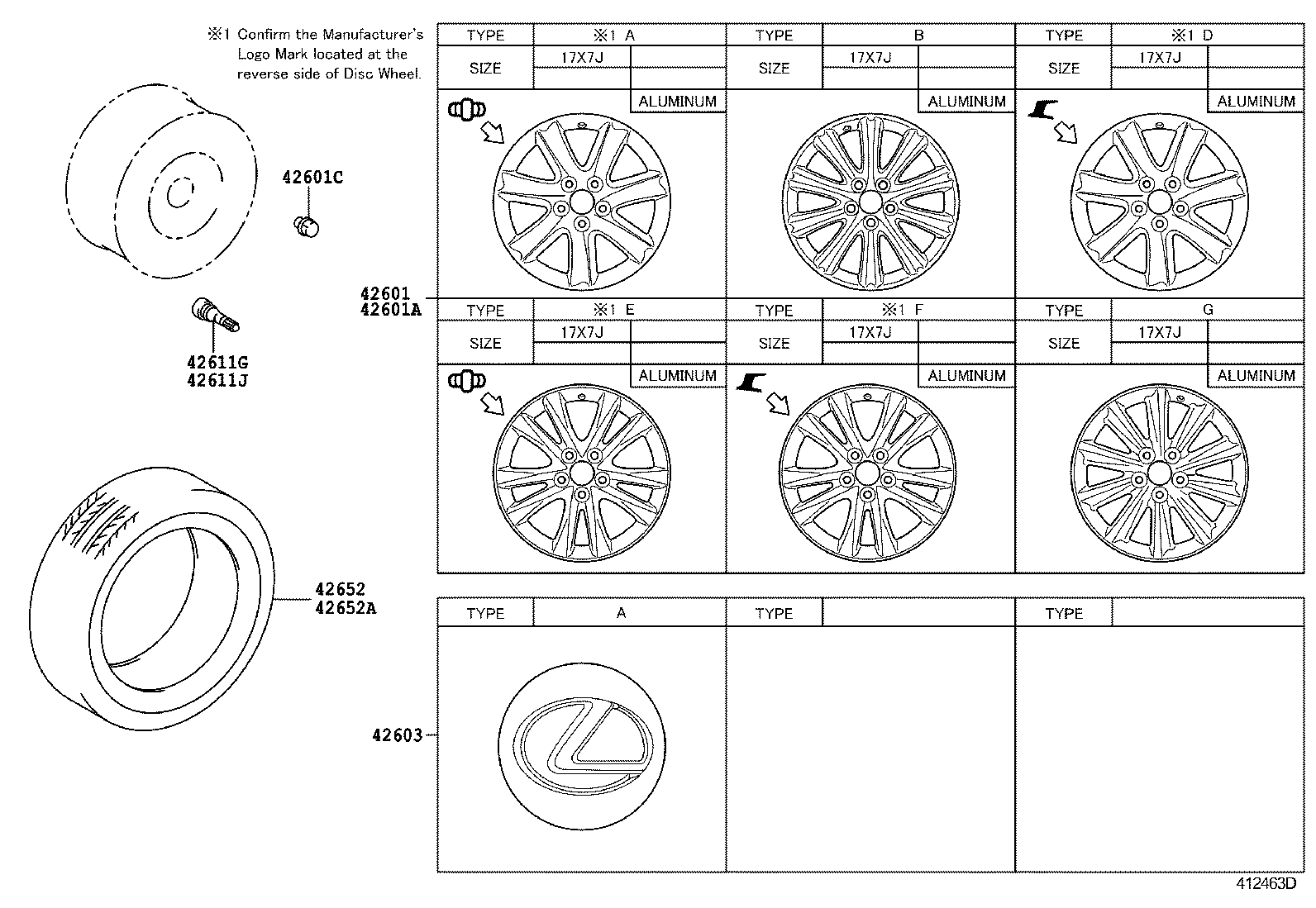

ILLUST NO. 1 OF 2(0605- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42603 42611G 42611J 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-33710

ACV40

17X7J,#,TYPE E:REFER ILLUST.

 4
42611-33720

ACV40

17X7J,#,TYPE F:REFER ILLUST.

 4
4261A-33050

ACV40

17X7J,#,ULTRA LUXURY PACKAGE,TYPE G:REFER ILLUST.

 4
4261A-33060

ACV40

17X7J,#,ULTRA LUXURY PACKAGE,TYPE G:REFER ILLUST.

 4
42611-33700

ACV40

17X7J,#,TYPE E:REFER ILLUST.

 4
42611-33730

ACV40

17X7J,#,TYPE F:REFER ILLUST.

 4
42611-33720

ACV40

17X7J,#,TAIWAN SPEC,TYPE F:REFER ILLUST.

 4
42611-33700

ACV40

17X7J,#,TAIWAN SPEC,TYPE E:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-33700

ACV40

17X7J,#,TYPE E:REFER ILLUST.

 1
4261A-33050

ACV40

17X7J,#,ULTRA LUXURY PACKAGE,TYPE G:REFER ILLUST.

 1
42611-33730

ACV40

17X7J,#,TYPE F:REFER ILLUST.

 1
42611-33720

ACV40

17X7J,#,TYPE F:REFER ILLUST.

 1
42611-33710

ACV40

17X7J,#,TYPE E:REFER ILLUST.

 1
42611-33720

ACV40

17X7J,#,TAIWAN SPEC,TYPE F:REFER ILLUST.

 1
4261A-33060

ACV40

17X7J,#,ULTRA LUXURY PACKAGE,TYPE G:REFER ILLUST.

 1
42611-33700

ACV40

17X7J,#,TAIWAN SPEC,TYPE E:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

ACV40,GSV40

 20
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-30590

ACV40

*CHR,TIRE & DISC WHEEL-215/55R17 SUMMER TIRE GCC ALUMINUM,TYPE A:REFER ILLUST.

 4
42603-50300

ACV40;GSV40..GCC

*ALU,TYPE A:REFER ILLUST.

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05028

ACV40,GSV40

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05028

ACV40,GSV40

 1
42652 - TIRE
42652-33671

ACV40,GSV40..CHI

215/55R17,*B/S

 4
42652-AA050

ACV40

P215/55R17 93V,*T/Y,TAIWAN SPEC

 4
42652A - TIRE (FOR SPARE)
42652-33671

ACV40,GSV40..CHI

215/55R17,*B/S

 1
42652-AA050

ACV40

P215/55R17 93V,*T/Y,TAIWAN SPEC

 1

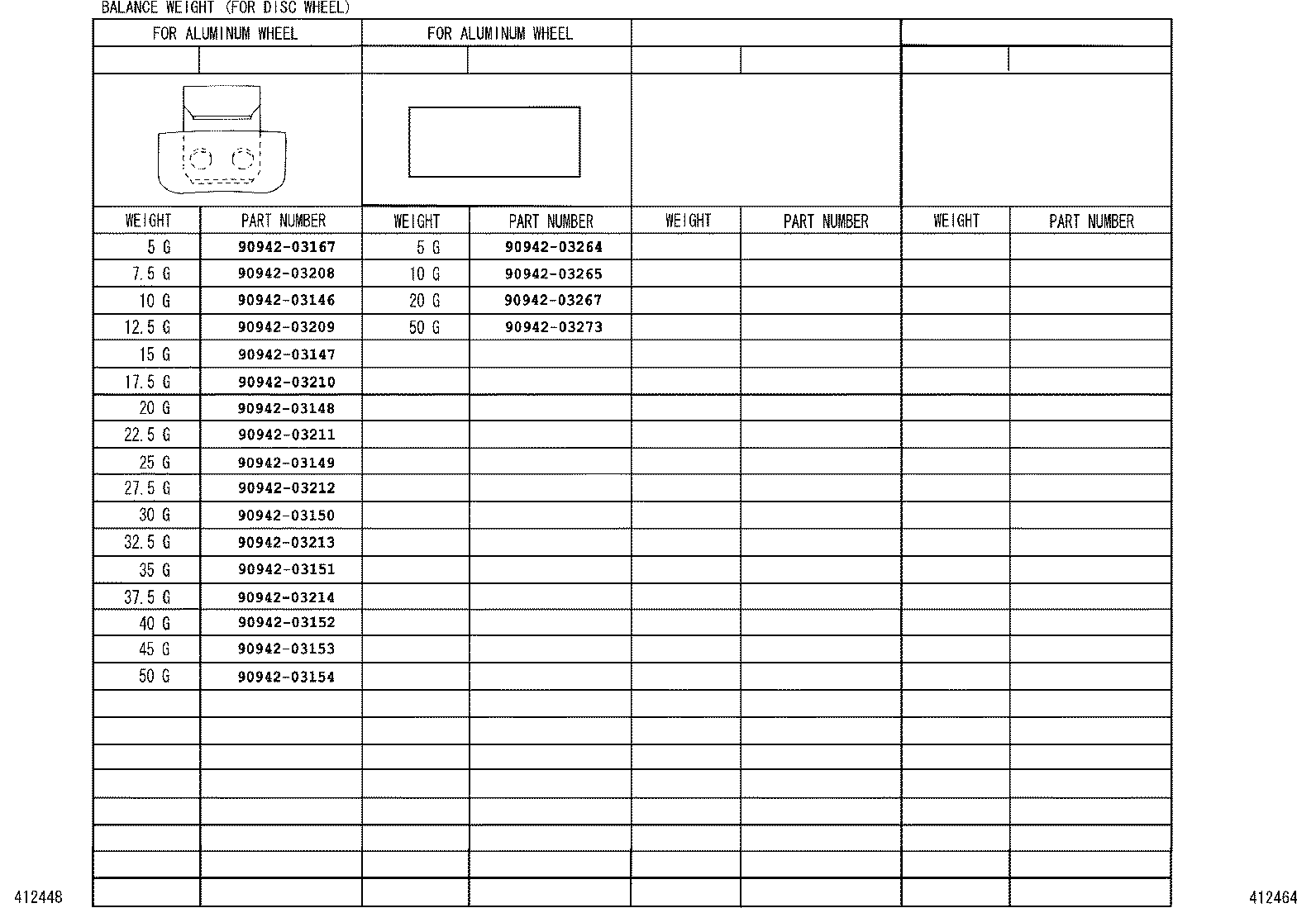

ILLUST NO. 2 OF 2(0605- )

Click highlighted areas on diagram

diagram 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
