ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )2AZFE

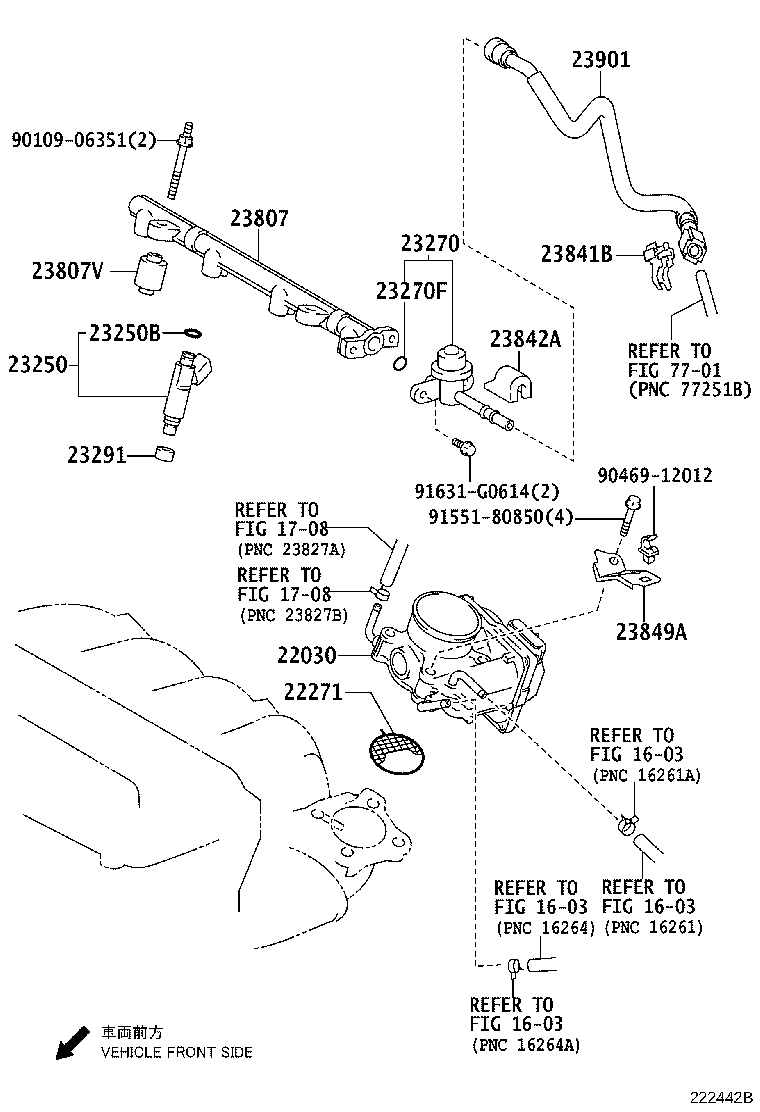

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1708 1708 22030 22271 23250 23250B 23270 23270F 23291 23807 23807V 23841B 23842A 23849A 23901 7701 9010906351 9046912012 9155180850 91631G0614
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-28071

2AZFE..ACV40

 1
22271 - GASKET, THROTTLE BODY
22271-75031

2AZFE..ACV40

 1
23250 - INJECTOR ASSY, FUEL
23209-28080

2AZFE..ACV40

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2AZFE..ACV40

 4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28052

2AZFE..ACV40

 1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

2AZFE..ACV40

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

2AZFE..ACV40

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-28031

2AZFE..ACV40

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08053

2AZFE..ACV40

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

2AZFE..ACV40

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-28010

2AZFE..ACV40

 1
23849A - SUPPORT, FUEL PIPE
23849-28050

2AZFE..ACV40

 1
23901 - TUBE SUB-ASSY, FUEL
23901-28320

2AZFE..ACV40

 1
Common parts
90109-06351
90469-12012
91551-80850
91631-G0614
Linked diagrams
1603
1708
7701
