ACV40L-BEAGKC (2009)
Toyota Lexus Es240/350
Production
Aug 2009
-
Jun 2012
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )2AZFE

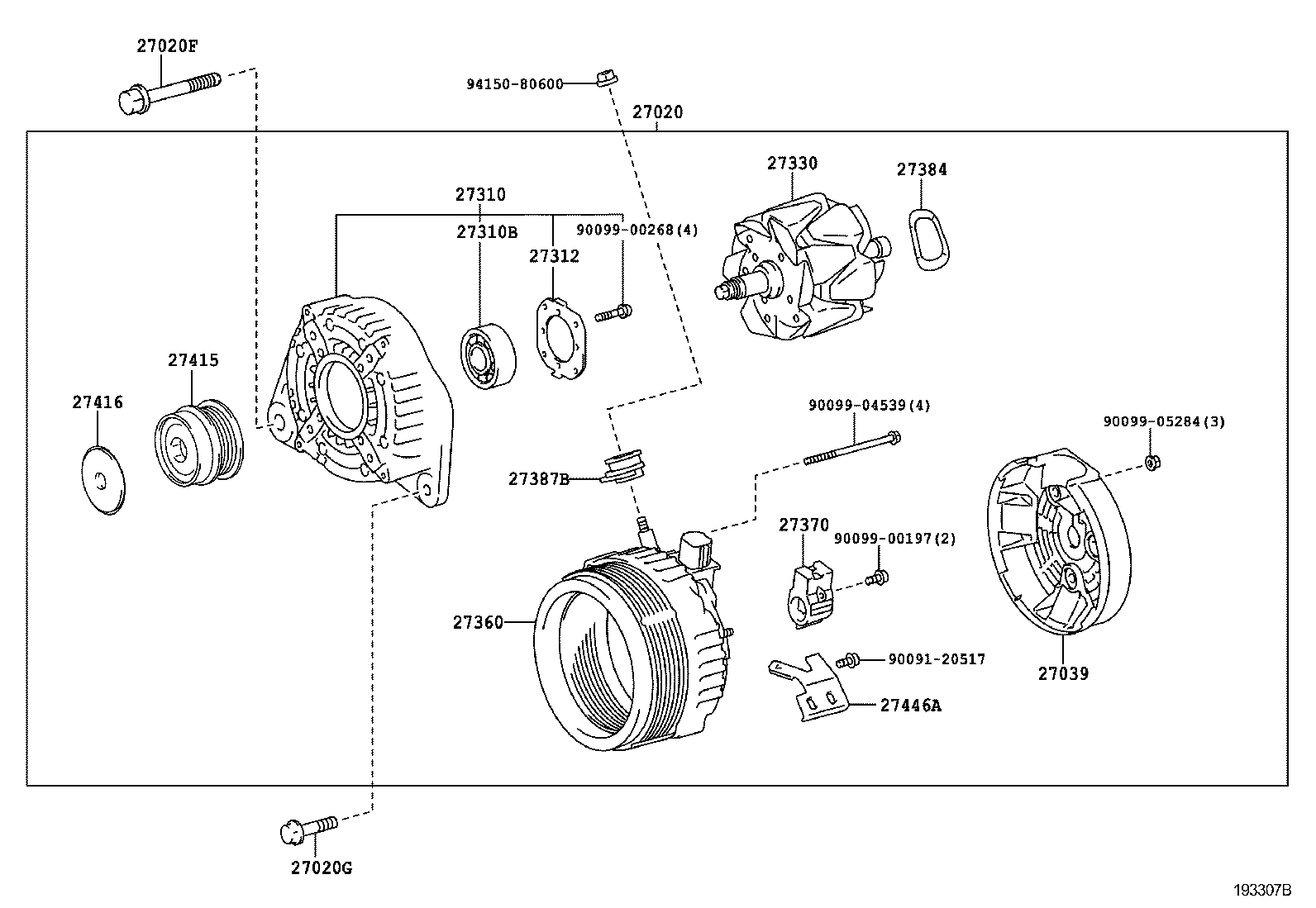

Click highlighted areas on diagram
12V 130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-28370 |
2AZFE..ACV40 12V 130A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 91512-81085 |
2AZFE..ACV40 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91551-80840 |
2AZFE..ACV40 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-31390 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-28120 |
2AZFE..ACV40 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33090 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-28320 |
2AZFE..ACV40 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
2AZFE..ACV40 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-20130 |
2AZFE,2GRFE..ACV40,GSV40 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W041 |
2AZFE..ACV40 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
2AZFE..ACV40 |
1 | ||
| 27446A - CLAMP | ||||
| 27446-28120 |
2AZFE..ACV40 |
1 | ||
| Common parts | ||||
| 90091-20517 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 94150-80600 | ||||
