ACV40L-BEAGKC (2009)

Toyota Lexus Es240/350

Production Aug 2009 - Jun 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )2AZFE

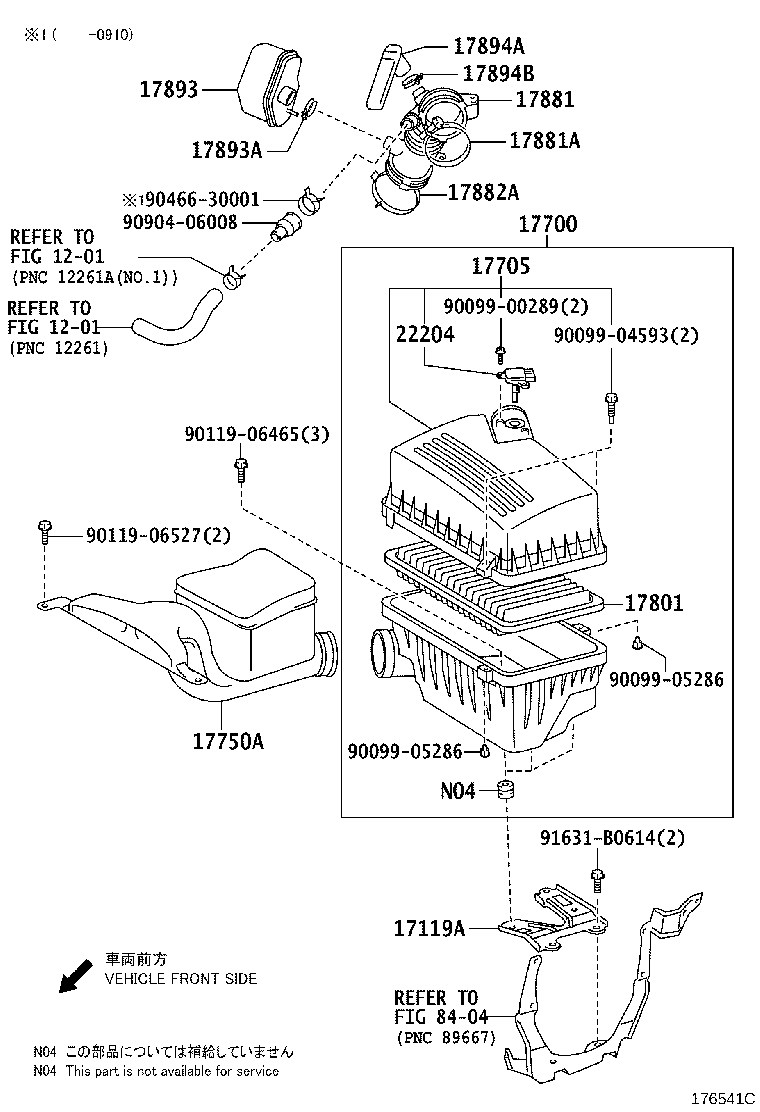

Click highlighted areas on diagram

diagram 1201 1201 17119A 17700 17705 17750A 17801 17881 17881A 17882A 17893 17893A 17894A 17894B 22204 8404 9009900289 9009904593 9009905286 9009905286 9011906465 9011906527 9046630001 9090406008 91631B0614
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-28060

2AZFE..ACV40

 1
17700 - CLEANER ASSY, AIR
17700-28411

2AZFE..ACV40

 1
17700-28410

2AZFE..ACV40

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-28351

2AZFE..ACV40

 1
17705-28350

2AZFE..ACV40

 1
17750A - INLET ASSY, AIR CLEANER
17750-28060

2AZFE..ACV40

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-28030

2AZFE..ACV40

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-28250

2AZFE..ACV40

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10880

2AZFE..ACV40

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002

2AZFE..ACV40

 1
17893 - RESONATOR, INTAKE AIR
17893-28050

2AZFE..ACV40

 1
17893A - CLAMP, HOSE
96111-10430

2AZFE..ACV40

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-28100

2AZFE..ACV40

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10400

2AZFE..ACV40

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-31020

2AZFE..ACV40

 1
22204-0T010

2AZFE..ACV40

MARK 22204-0T010

 1
22204-31020

2AZFE..ACV40

MARK 22204-31020

 1
22204-0P010

2AZFE..ACV40

MARK 22204-0P010

 1
22204-0H010

2AZFE..ACV40

MARK 22204-0H010

 1
Common parts
90099-00289
90099-04593
90099-05286
90119-06465
90119-06527
90466-30001
90904-06008
91631-B0614
Linked diagrams
1201
8404
