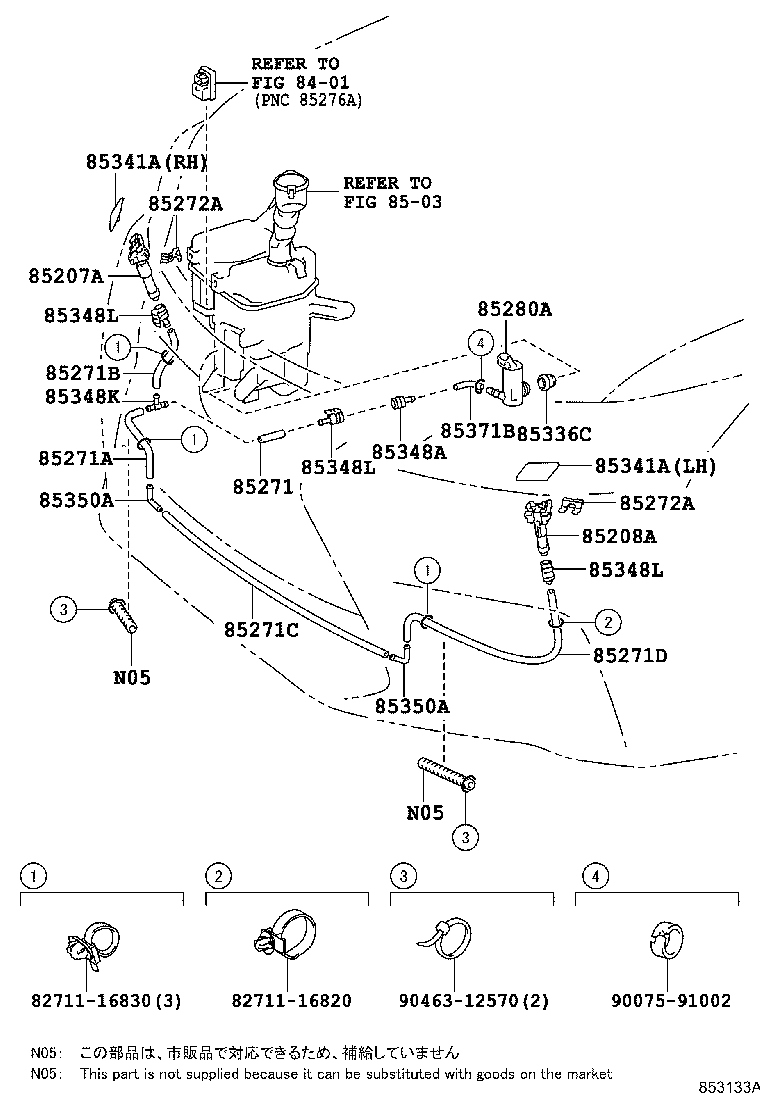

ZWA10R-AHXBBQ (2013)
Toyota Lexus Ct200h
(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-76020 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 85207-76030 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85207-76030 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-76020 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 85208-76030 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85208-76030 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15053 |
ZWA10..ARL L=35,HEADLAMP-LED |
1 | ||
| 90075-15053 |
ZWA10..ARL L=35,HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15053 |
ZWA10..E L=35,HEADLAMP-LED |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15095 |
ZWA10..E L=280,HEADLAMP-LED |
1 | ||
| 90075-15095 |
ZWA10..ARL L=280,HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15095 |
ZWA10..ARL L=280,HEADLAMP-LED |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15062 |
ZWA10..ARL L=240,HEADLAMP-LED |
1 | ||
| 90075-15062 |
ZWA10..ARL L=240,HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15062 |
ZWA10..E L=240,HEADLAMP-LED |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15090 |
ZWA10..ARL L=850,HEADLAMP-LED |
1 | ||
| 90075-15090 |
ZWA10..E L=850,HEADLAMP-LED |
1 | ||
| 90075-15090 |
ZWA10..ARL L=850,HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90075-15084 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 90075-15084 |
ZWA10..E HEADLAMP-LED |
1 | ||
| 90075-15084 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-75050 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| 85272-75050 |
ZWA10..ARL HEADLAMP-LED |
2 | ||
| 85272-75050 |
ZWA10..E HEADLAMP-LED |
2 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85272-75050 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| 85272-75050 |
ZWA10..ARL HEADLAMP-LED |
2 | ||
| 85272-75050 |
ZWA10..E HEADLAMP-LED |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
ZWA10..ARL COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..E HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..E COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..E COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85280-47010 |
ZWA10..ARL COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85280-47010 |
ZWA10..ARL REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..E REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 85280-47010 |
ZWA10..ARL REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85280-47010 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 90099-32089 |
ZWA10..B..(ARL,CHI) COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90099-32089 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90099-32089 |
ZWA10..E HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..E COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..ARL REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90099-32089 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..E COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..ARL COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90099-32089 |
ZWA10..ARL REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..ARL COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..E REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90099-32089 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90099-32089 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-76020F0 |
ZWA10..ARL HEADLAMP-LED,FLARE YELLOW M.M.,2LP ,5B1,RH |
1 | ||
| 85354-76020A0 |
ZWA10..ARL HEADLAMP-LED,WHITE PEARL CS.,077 ,2LH,LH |
1 | ||
| 85353-76020A0 |
ZWA10..ARL HEADLAMP-LED,WHITE PEARL CS.,077 ,2LH,RH |
1 | ||
| 85354-76020F0 |
ZWA10..ARL HEADLAMP-LED,FLARE YELLOW M.M.,2LP ,5B1,LH |
1 | ||
| 85353-76020C1 |
ZWA10..ARL HEADLAMP-LED,BLACK OPAL MC.,214,RH |
1 | ||
| 85354-76020J0 |
ZWA10..ARL HEADLAMP-LED,BLUE ME.,2LQ ,8U1,LH |
1 | ||
| 85354-76020B1 |
ZWA10..ARL HEADLAMP-LED,PLATINUM SILVER ME.,1J4 ,2LK ,2LL,LH |
1 | ||
| 85353-76020E0 |
ZWA10..ARL HEADLAMP-LED,FIRE AGATE M.M.,4V3,RH |
1 | ||
| 85354-76020C1 |
ZWA10..ARL HEADLAMP-LED,BLACK OPAL MC.,214,LH |
1 | ||
| 85353-76020B1 |
ZWA10..ARL HEADLAMP-LED,PLATINUM SILVER ME.,1J4 ,2LK ,2LL,RH |
1 | ||
| 85353-76020J0 |
ZWA10..ARL HEADLAMP-LED,BLUE ME.,2LQ ,8U1,RH |
1 | ||
| 85354-76020E0 |
ZWA10..ARL HEADLAMP-LED,FIRE AGATE M.M.,4V3,LH |
1 | ||
| 85353-76020E1 |
ZWA10..ARL HEADLAMP-LED,AMBER CS.,2PW ,4X2,RH |
1 | ||
| 85354-76020J2 |
ZWA10..ARL HEADLAMP-LED,SPARKLING METEOR ME.,2PX ,8X9,LH |
1 | ||
| 85353-76020J2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SPARKLING METEOR ME.,2PX ,8X9,RH |
1 | ||
| 85354-76020E1 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),AMBER CS.,2PW ,4X2,LH |
1 | ||
| 85353-76020E1 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),AMBER CS.,2PW ,4X2,RH |
1 | ||
| 85354-76020J2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SPARKLING METEOR ME.,2PX ,8X9,LH |
1 | ||
| 85354-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED,LAVA ORANGE CS.,2QE ,4W7,LH |
1 | ||
| 85353-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED,LAVA ORANGE CS.,2QE ,4W7,RH |
1 | ||
| 85353-76020J2 |
ZWA10..ARL HEADLAMP-LED,SPARKLING METEOR ME.,2PX ,8X9,RH |
1 | ||
| 85353-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),LAVA ORANGE CS.,2QE ,4W7,RH |
1 | ||
| 85354-76020E1 |
ZWA10..ARL HEADLAMP-LED,AMBER CS.,2PW ,4X2,LH |
1 | ||
| 85354-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),LAVA ORANGE CS.,2QE ,4W7,LH |
1 | ||
| 85353-76020D1 |
ZWA10..ARL HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,RH |
1 | ||
| 85353-76020C0 |
ZWA10..ARL HEADLAMP-LED,BLACK,212 ,2PZ,RH |
1 | ||
| 85354-76020D2 |
ZWA10..ARL HEADLAMP-LED,SOLID RED,2LN ,3T2,LH |
1 | ||
| 85354-76020B0 |
ZWA10..ARL HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,LH |
1 | ||
| 85354-76020A1 |
ZWA10..ARL HEADLAMP-LED,WHITE NOVA GF.,083 ,2LJ,LH |
1 | ||
| 85353-76020A1 |
ZWA10..ARL HEADLAMP-LED,WHITE NOVA GF.,083 ,2LJ,RH |
1 | ||
| 85353-76020D2 |
ZWA10..ARL HEADLAMP-LED,SOLID RED,2LN ,3T2,RH |
1 | ||
| 85354-76020C0 |
ZWA10..ARL HEADLAMP-LED,BLACK,212 ,2PZ,LH |
1 | ||
| 85353-76020J1 |
ZWA10..ARL HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,RH |
1 | ||
| 85353-76020C3 |
ZWA10..ARL HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,RH |
1 | ||
| 85353-76020A2 |
ZWA10..ARL HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,RH |
1 | ||
| 85353-76020B0 |
ZWA10..ARL HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,RH |
1 | ||
| 85354-76020D1 |
ZWA10..ARL HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,LH |
1 | ||
| 85354-76020B2 |
ZWA10..ARL HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,LH |
1 | ||
| 85353-76020A1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),WHITE NOVA GF.,083 ,2LJ,RH |
1 | ||
| 85353-76020A2 |
ZWA10..E HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,RH |
1 | ||
| 85354-76020J1 |
ZWA10..ARL HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,LH |
1 | ||
| 85353-76020B0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MERCURY GRAY MC.,1H9 ,2LL,RH |
1 | ||
| 85353-76020B0 |
ZWA10..E HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,RH |
1 | ||
| 85353-76020B2 |
ZWA10..ARL HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,RH |
1 | ||
| 85353-76020A2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC QUARTZ,085 ,2MP ,2QB ,2QC,RH |
1 | ||
| 85354-76020C3 |
ZWA10..ARL HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,LH |
1 | ||
| 85353-76020D1 |
ZWA10..E HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,RH |
1 | ||
| 85353-76020C3 |
ZWA10..E HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,RH |
1 | ||
| 85353-76020D1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),RED MC.CS.,2LM ,2QA ,3R1,RH |
1 | ||
| 85353-76020B2 |
ZWA10..E HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,RH |
1 | ||
| 85353-76020B2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC TITANIUM,1J7 ,2MN,RH |
1 | ||
| 85353-76020D2 |
ZWA10..E HEADLAMP-LED,SOLID RED,2LN ,3T2,RH |
1 | ||
| 85353-76020C3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),GRAPHITE BLACK GF.,223 ,2PZ,RH |
1 | ||
| 85353-76020C0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLACK,212 ,2PZ,RH |
1 | ||
| 85354-76020A2 |
ZWA10..E HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,LH |
1 | ||
| 85353-76020J1 |
ZWA10..E HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,RH |
1 | ||
| 85354-76020A2 |
ZWA10..ARL HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,LH |
1 | ||
| 85353-76020C0 |
ZWA10..E HEADLAMP-LED,BLACK,212 ,2PZ,RH |
1 | ||
| 85354-76020A1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),WHITE NOVA GF.,083 ,2LJ,LH |
1 | ||
| 85354-76020A2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC QUARTZ,085 ,2MP ,2QB ,2QC,LH |
1 | ||
| 85353-76020J3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),HEAT BLUE CONTRAST LAYERI,2QF ,8X1,RH |
1 | ||
| 85354-76020B2 |
ZWA10..E HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,LH |
1 | ||
| 85353-76020J3 |
ZWA10..ARL HEADLAMP-LED,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,RH |
1 | ||
| 85354-76020B0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MERCURY GRAY MC.,1H9 ,2LL,LH |
1 | ||
| 85354-76020D2 |
ZWA10..E HEADLAMP-LED,SOLID RED,2LN ,3T2,LH |
1 | ||
| 85354-76020C0 |
ZWA10..E HEADLAMP-LED,BLACK,212 ,2PZ,LH |
1 | ||
| 85354-76020J1 |
ZWA10..E HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,LH |
1 | ||
| 85354-76020B2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC TITANIUM,1J7 ,2MN,LH |
1 | ||
| 85354-76020C0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLACK,212 ,2PZ,LH |
1 | ||
| 85354-76020C3 |
ZWA10..E HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,LH |
1 | ||
| 85353-76020D2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SOLID RED,2LN ,3T2,RH |
1 | ||
| 85354-76020D1 |
ZWA10..E HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,LH |
1 | ||
| 85354-76020J3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),HEAT BLUE CONTRAST LAYERI,2QF ,8X1,LH |
1 | ||
| 85353-76020J1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),DEEP BLUE MC.,2PK ,8X5,RH |
1 | ||
| 85354-76020J3 |
ZWA10..ARL HEADLAMP-LED,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,LH |
1 | ||
| 85353-76020G0 |
ZWA10..ARL HEADLAMP-LED,TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 85354-76020J1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),DEEP BLUE MC.,2PK ,8X5,LH |
1 | ||
| 85353-76020E3 |
ZWA10..ARL HEADLAMP-LED,BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 85354-76020D1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),RED MC.CS.,2LM ,2QA ,3R1,LH |
1 | ||
| 85354-76020C3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),GRAPHITE BLACK GF.,223 ,2PZ,LH |
1 | ||
| 85354-76020D2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SOLID RED,2LN ,3T2,LH |
1 | ||
| 85354-76020J4 |
ZWA10..ARL HEADLAMP-LED,CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 85353-76020G0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 85354-76020B0 |
ZWA10..E HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,LH |
1 | ||
| 85353-76020J4 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 85354-76020G0 |
ZWA10..ARL HEADLAMP-LED,TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 85353-76020J4 |
ZWA10..ARL HEADLAMP-LED,CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 85353-76020E3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 85354-76020G0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 85354-76020J4 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 85354-76020E3 |
ZWA10..ARL HEADLAMP-LED,BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 85354-76020E3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-76020F0 |
ZWA10..ARL HEADLAMP-LED,FLARE YELLOW M.M.,2LP ,5B1,RH |
1 | ||
| 85354-76020A0 |
ZWA10..ARL HEADLAMP-LED,WHITE PEARL CS.,077 ,2LH,LH |
1 | ||
| 85353-76020A0 |
ZWA10..ARL HEADLAMP-LED,WHITE PEARL CS.,077 ,2LH,RH |
1 | ||
| 85354-76020F0 |
ZWA10..ARL HEADLAMP-LED,FLARE YELLOW M.M.,2LP ,5B1,LH |
1 | ||
| 85353-76020C1 |
ZWA10..ARL HEADLAMP-LED,BLACK OPAL MC.,214,RH |
1 | ||
| 85354-76020J0 |
ZWA10..ARL HEADLAMP-LED,BLUE ME.,2LQ ,8U1,LH |
1 | ||
| 85354-76020B1 |
ZWA10..ARL HEADLAMP-LED,PLATINUM SILVER ME.,1J4 ,2LK ,2LL,LH |
1 | ||
| 85353-76020E0 |
ZWA10..ARL HEADLAMP-LED,FIRE AGATE M.M.,4V3,RH |
1 | ||
| 85354-76020C1 |
ZWA10..ARL HEADLAMP-LED,BLACK OPAL MC.,214,LH |
1 | ||
| 85353-76020B1 |
ZWA10..ARL HEADLAMP-LED,PLATINUM SILVER ME.,1J4 ,2LK ,2LL,RH |
1 | ||
| 85353-76020J0 |
ZWA10..ARL HEADLAMP-LED,BLUE ME.,2LQ ,8U1,RH |
1 | ||
| 85354-76020E0 |
ZWA10..ARL HEADLAMP-LED,FIRE AGATE M.M.,4V3,LH |
1 | ||
| 85353-76020E1 |
ZWA10..ARL HEADLAMP-LED,AMBER CS.,2PW ,4X2,RH |
1 | ||
| 85354-76020J2 |
ZWA10..ARL HEADLAMP-LED,SPARKLING METEOR ME.,2PX ,8X9,LH |
1 | ||
| 85353-76020J2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SPARKLING METEOR ME.,2PX ,8X9,RH |
1 | ||
| 85354-76020E1 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),AMBER CS.,2PW ,4X2,LH |
1 | ||
| 85353-76020E1 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),AMBER CS.,2PW ,4X2,RH |
1 | ||
| 85354-76020J2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SPARKLING METEOR ME.,2PX ,8X9,LH |
1 | ||
| 85354-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED,LAVA ORANGE CS.,2QE ,4W7,LH |
1 | ||
| 85353-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED,LAVA ORANGE CS.,2QE ,4W7,RH |
1 | ||
| 85353-76020J2 |
ZWA10..ARL HEADLAMP-LED,SPARKLING METEOR ME.,2PX ,8X9,RH |
1 | ||
| 85353-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),LAVA ORANGE CS.,2QE ,4W7,RH |
1 | ||
| 85354-76020E1 |
ZWA10..ARL HEADLAMP-LED,AMBER CS.,2PW ,4X2,LH |
1 | ||
| 85354-76020E2 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),LAVA ORANGE CS.,2QE ,4W7,LH |
1 | ||
| 85353-76020D1 |
ZWA10..ARL HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,RH |
1 | ||
| 85353-76020C0 |
ZWA10..ARL HEADLAMP-LED,BLACK,212 ,2PZ,RH |
1 | ||
| 85354-76020D2 |
ZWA10..ARL HEADLAMP-LED,SOLID RED,2LN ,3T2,LH |
1 | ||
| 85354-76020B0 |
ZWA10..ARL HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,LH |
1 | ||
| 85354-76020A1 |
ZWA10..ARL HEADLAMP-LED,WHITE NOVA GF.,083 ,2LJ,LH |
1 | ||
| 85353-76020A1 |
ZWA10..ARL HEADLAMP-LED,WHITE NOVA GF.,083 ,2LJ,RH |
1 | ||
| 85353-76020D2 |
ZWA10..ARL HEADLAMP-LED,SOLID RED,2LN ,3T2,RH |
1 | ||
| 85354-76020C0 |
ZWA10..ARL HEADLAMP-LED,BLACK,212 ,2PZ,LH |
1 | ||
| 85353-76020J1 |
ZWA10..ARL HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,RH |
1 | ||
| 85353-76020C3 |
ZWA10..ARL HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,RH |
1 | ||
| 85353-76020A2 |
ZWA10..ARL HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,RH |
1 | ||
| 85353-76020B0 |
ZWA10..ARL HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,RH |
1 | ||
| 85354-76020D1 |
ZWA10..ARL HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,LH |
1 | ||
| 85354-76020B2 |
ZWA10..ARL HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,LH |
1 | ||
| 85353-76020A1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),WHITE NOVA GF.,083 ,2LJ,RH |
1 | ||
| 85353-76020A2 |
ZWA10..E HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,RH |
1 | ||
| 85354-76020J1 |
ZWA10..ARL HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,LH |
1 | ||
| 85353-76020B0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MERCURY GRAY MC.,1H9 ,2LL,RH |
1 | ||
| 85353-76020B0 |
ZWA10..E HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,RH |
1 | ||
| 85353-76020B2 |
ZWA10..ARL HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,RH |
1 | ||
| 85353-76020A2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC QUARTZ,085 ,2MP ,2QB ,2QC,RH |
1 | ||
| 85354-76020C3 |
ZWA10..ARL HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,LH |
1 | ||
| 85353-76020D1 |
ZWA10..E HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,RH |
1 | ||
| 85353-76020C3 |
ZWA10..E HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,RH |
1 | ||
| 85353-76020D1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),RED MC.CS.,2LM ,2QA ,3R1,RH |
1 | ||
| 85353-76020B2 |
ZWA10..E HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,RH |
1 | ||
| 85353-76020B2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC TITANIUM,1J7 ,2MN,RH |
1 | ||
| 85353-76020D2 |
ZWA10..E HEADLAMP-LED,SOLID RED,2LN ,3T2,RH |
1 | ||
| 85353-76020C3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),GRAPHITE BLACK GF.,223 ,2PZ,RH |
1 | ||
| 85353-76020C0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLACK,212 ,2PZ,RH |
1 | ||
| 85354-76020A2 |
ZWA10..E HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,LH |
1 | ||
| 85353-76020J1 |
ZWA10..E HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,RH |
1 | ||
| 85354-76020A2 |
ZWA10..ARL HEADLAMP-LED,SONIC QUARTZ,085 ,2MP ,2QB ,2QC,LH |
1 | ||
| 85353-76020C0 |
ZWA10..E HEADLAMP-LED,BLACK,212 ,2PZ,RH |
1 | ||
| 85354-76020A1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),WHITE NOVA GF.,083 ,2LJ,LH |
1 | ||
| 85354-76020A2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC QUARTZ,085 ,2MP ,2QB ,2QC,LH |
1 | ||
| 85353-76020J3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),HEAT BLUE CONTRAST LAYERI,2QF ,8X1,RH |
1 | ||
| 85354-76020B2 |
ZWA10..E HEADLAMP-LED,SONIC TITANIUM,1J7 ,2MN,LH |
1 | ||
| 85353-76020J3 |
ZWA10..ARL HEADLAMP-LED,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,RH |
1 | ||
| 85354-76020B0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),MERCURY GRAY MC.,1H9 ,2LL,LH |
1 | ||
| 85354-76020D2 |
ZWA10..E HEADLAMP-LED,SOLID RED,2LN ,3T2,LH |
1 | ||
| 85354-76020C0 |
ZWA10..E HEADLAMP-LED,BLACK,212 ,2PZ,LH |
1 | ||
| 85354-76020J1 |
ZWA10..E HEADLAMP-LED,DEEP BLUE MC.,2PK ,8X5,LH |
1 | ||
| 85354-76020B2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SONIC TITANIUM,1J7 ,2MN,LH |
1 | ||
| 85354-76020C0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLACK,212 ,2PZ,LH |
1 | ||
| 85354-76020C3 |
ZWA10..E HEADLAMP-LED,GRAPHITE BLACK GF.,223 ,2PZ,LH |
1 | ||
| 85353-76020D2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SOLID RED,2LN ,3T2,RH |
1 | ||
| 85354-76020D1 |
ZWA10..E HEADLAMP-LED,RED MC.CS.,2LM ,2QA ,3R1,LH |
1 | ||
| 85354-76020J3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),HEAT BLUE CONTRAST LAYERI,2QF ,8X1,LH |
1 | ||
| 85353-76020J1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),DEEP BLUE MC.,2PK ,8X5,RH |
1 | ||
| 85354-76020J3 |
ZWA10..ARL HEADLAMP-LED,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,LH |
1 | ||
| 85353-76020G0 |
ZWA10..ARL HEADLAMP-LED,TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 85354-76020J1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),DEEP BLUE MC.,2PK ,8X5,LH |
1 | ||
| 85353-76020E3 |
ZWA10..ARL HEADLAMP-LED,BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 85354-76020D1 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),RED MC.CS.,2LM ,2QA ,3R1,LH |
1 | ||
| 85354-76020C3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),GRAPHITE BLACK GF.,223 ,2PZ,LH |
1 | ||
| 85354-76020D2 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),SOLID RED,2LN ,3T2,LH |
1 | ||
| 85354-76020J4 |
ZWA10..ARL HEADLAMP-LED,CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 85353-76020G0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 85354-76020B0 |
ZWA10..E HEADLAMP-LED,MERCURY GRAY MC.,1H9 ,2LL,LH |
1 | ||
| 85353-76020J4 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 85354-76020G0 |
ZWA10..ARL HEADLAMP-LED,TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 85353-76020J4 |
ZWA10..ARL HEADLAMP-LED,CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 85353-76020E3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 85354-76020G0 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 85354-76020J4 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 85354-76020E3 |
ZWA10..ARL HEADLAMP-LED,BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 85354-76020E3 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17012 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..B..(ARL,CHI) COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-17012 |
ZWA10..B..(ARL,CHI) HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-17012 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..ARL REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..E HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-17012 |
ZWA10..ARL COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-17012 |
ZWA10..ARL COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..E COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..E COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..ARL COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-17012 |
ZWA10..E REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-17012 |
ZWA10..ARL REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17010 |
ZWA10..E HEADLAMP-LED |
1 | ||
| 90075-17010 |
ZWA10..ARL HEADLAMP-LED |
1 | ||
| 90075-17010 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17011 |
ZWA10..E HEADLAMP-LED |
3 | ||
| 90075-17011 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
3 | ||
| 90075-17011 |
ZWA10..ARL HEADLAMP-LED |
3 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17011 |
ZWA10..E HEADLAMP-LED |
3 | ||
| 90075-17011 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
3 | ||
| 90075-17011 |
ZWA10..ARL HEADLAMP-LED |
3 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17011 |
ZWA10..E HEADLAMP-LED |
3 | ||
| 90075-17011 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
3 | ||
| 90075-17011 |
ZWA10..ARL HEADLAMP-LED |
3 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17013 |
ZWA10..E HEADLAMP-LED |
2 | ||
| 90075-17013 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| 90075-17013 |
ZWA10..ARL HEADLAMP-LED |
2 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17013 |
ZWA10..E HEADLAMP-LED |
2 | ||
| 90075-17013 |
ZWA10..ARL HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
2 | ||
| 90075-17013 |
ZWA10..ARL HEADLAMP-LED |
2 | ||
| 85371B - HOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT) | ||||
| 90075-15059 |
ZWA10..ARL L=80,COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..B..(ARL,CHI) L=80,HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15059 |
ZWA10..B..(ARL,CHI) L=80,COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15059 |
ZWA10..E L=80,COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..E L=80,COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..E L=80,REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,COLD AREA SPEC&REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,COLD AREA SPEC&HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..E L=80,HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,REAR WINDOW WIPER-WITH&HEADLAMP-LED |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,REAR WINDOW WIPER-WITH&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,COLD AREA SPEC&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 90075-15059 |
ZWA10..ARL L=80,HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 90075-91002 | ||||
| 90463-12570 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
