ZWA10L-AHXBBV (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

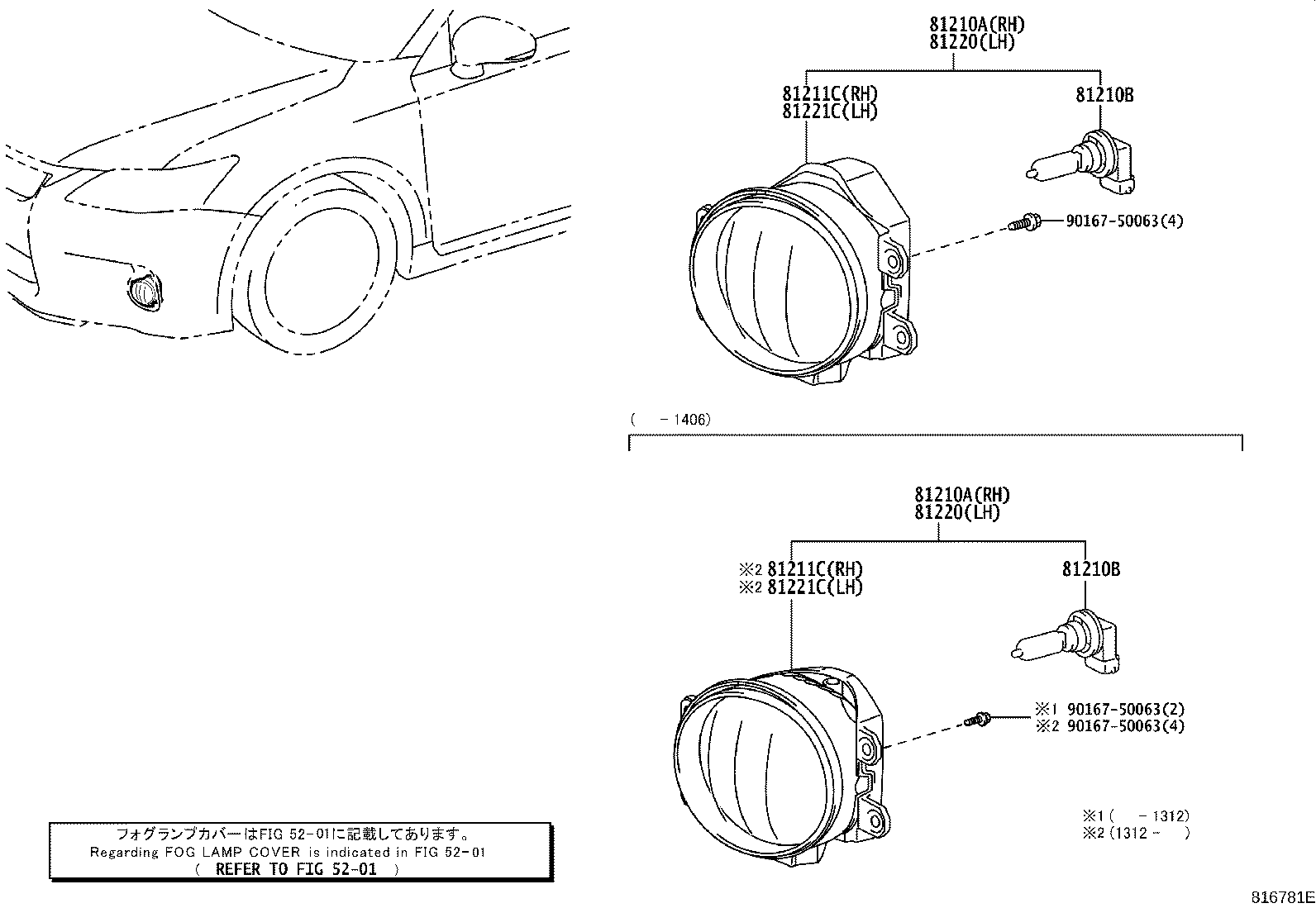

Click highlighted areas on diagram

BULB TYPE

diagram 5201 81210A 81210A 81210B 81210B 81211C 81211C 81220 81220 81221C 81221C 9016750063 9016750063 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-0W050

ZWA10

BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH

 1
81210-0W050

ZWA10

FRONT FOG & DRIVING LAMP-WITH

 1
81210A - LAMP ASSY, FOG, RH
81210-0W050

ZWA10

BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH

 1
81210-0W050

ZWA10

FRONT FOG & DRIVING LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-13075

ZWA10

12V 55W,HALOGEN,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH,PHILIPS

 2
90981-13081

ZWA10

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,OSRAM

 2
90981-13075

ZWA10

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,PHILIPS

 2
90981-13081

ZWA10

12V 55W,HALOGEN,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH,OSRAM

 2
81210B - BULB, FOG LAMP
90981-13075

ZWA10

12V 55W,HALOGEN,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH,PHILIPS

 2
90981-13081

ZWA10

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,OSRAM

 2
90981-13075

ZWA10

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,PHILIPS

 2
90981-13081

ZWA10

12V 55W,HALOGEN,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH,OSRAM

 2
81220 - LAMP ASSY, FOG, LH
81220-0W040

ZWA10

FRONT FOG & DRIVING LAMP-WITH

 1
81220-0W040

ZWA10

BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH

 1
81220 - LAMP ASSY, FOG, LH
81220-0W040

ZWA10

FRONT FOG & DRIVING LAMP-WITH

 1
81220-0W040

ZWA10

BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH

 1
Common parts
90167-50063
Linked diagrams
5201
