ZWA10L-AHXBBV (2010)
Toyota Lexus Ct200h
Production
Dec 2010
-
Dec 2013
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1012- )LHD

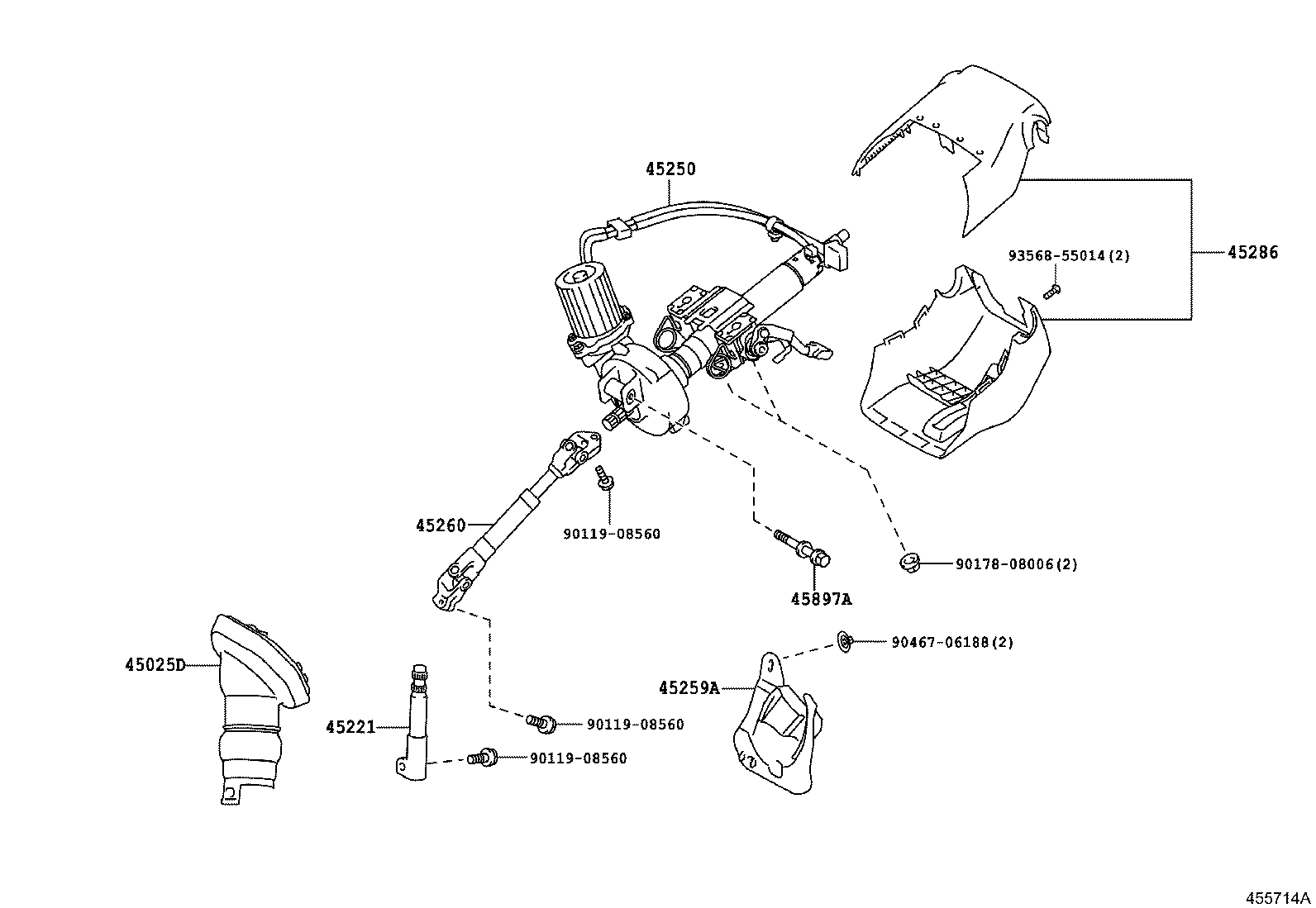

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-12300 |
ZWA10 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12330 |
ZWA10 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-76050 |
ZWA10 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-47030 |
ZWA10 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-76010 |
ZWA10 |
1 | ||
| 45260-76020 |
ZWA10 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-76901 |
ZWA10 |
1 | ||
| 45286-76901C0 |
ZWA10 BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ZWA10 |
1 | ||
| 90119-10980 |
ZWA10 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-08006 | ||||
| 90467-06188 | ||||
| 93568-55014 | ||||
