ZWA10L-AHXBBV (2010)

Toyota Lexus Ct200h

Production Dec 2010 - Dec 2013
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1012- )

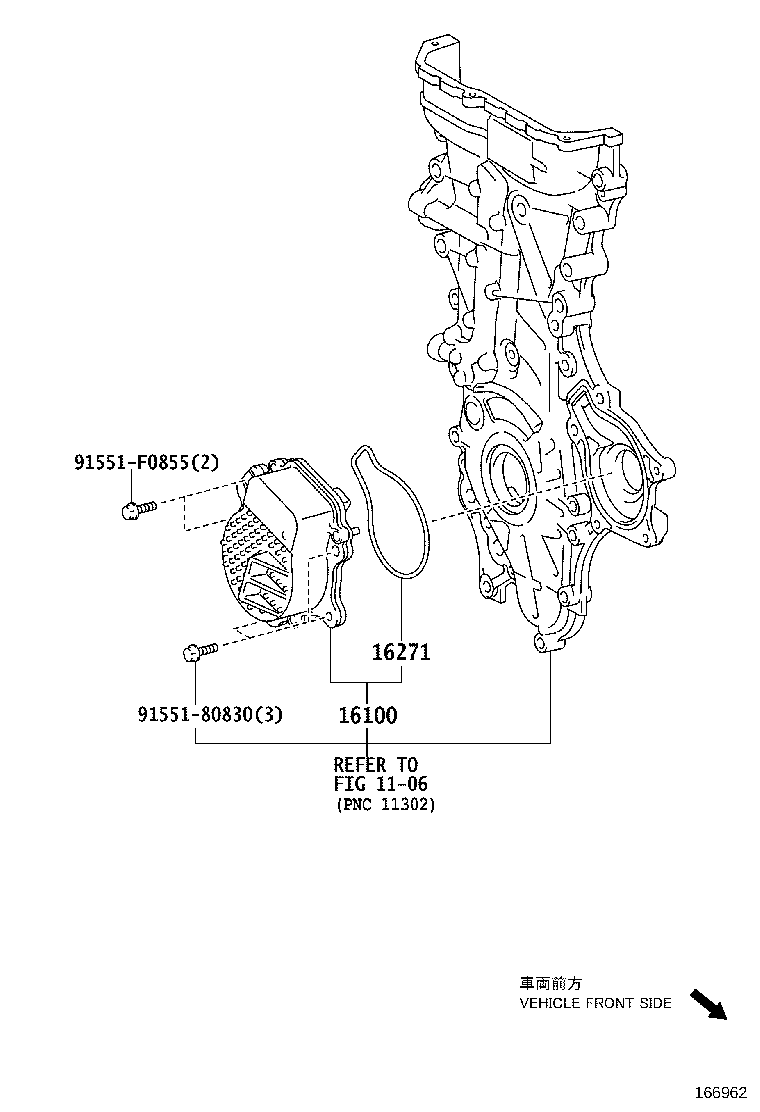

Click highlighted areas on diagram

diagram 1106 16100 16271 9155180830 91551F0855
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
161A0-29015

2ZRFXE..ZWA10

 1
161A0-39015

2ZRFXE..ZWA10

 1
16271 - GASKET, WATER PUMP
16271-37020

2ZRFXE..ZWA10

 1
Common parts
91551-80830
91551-F0855
Linked diagrams
1106
