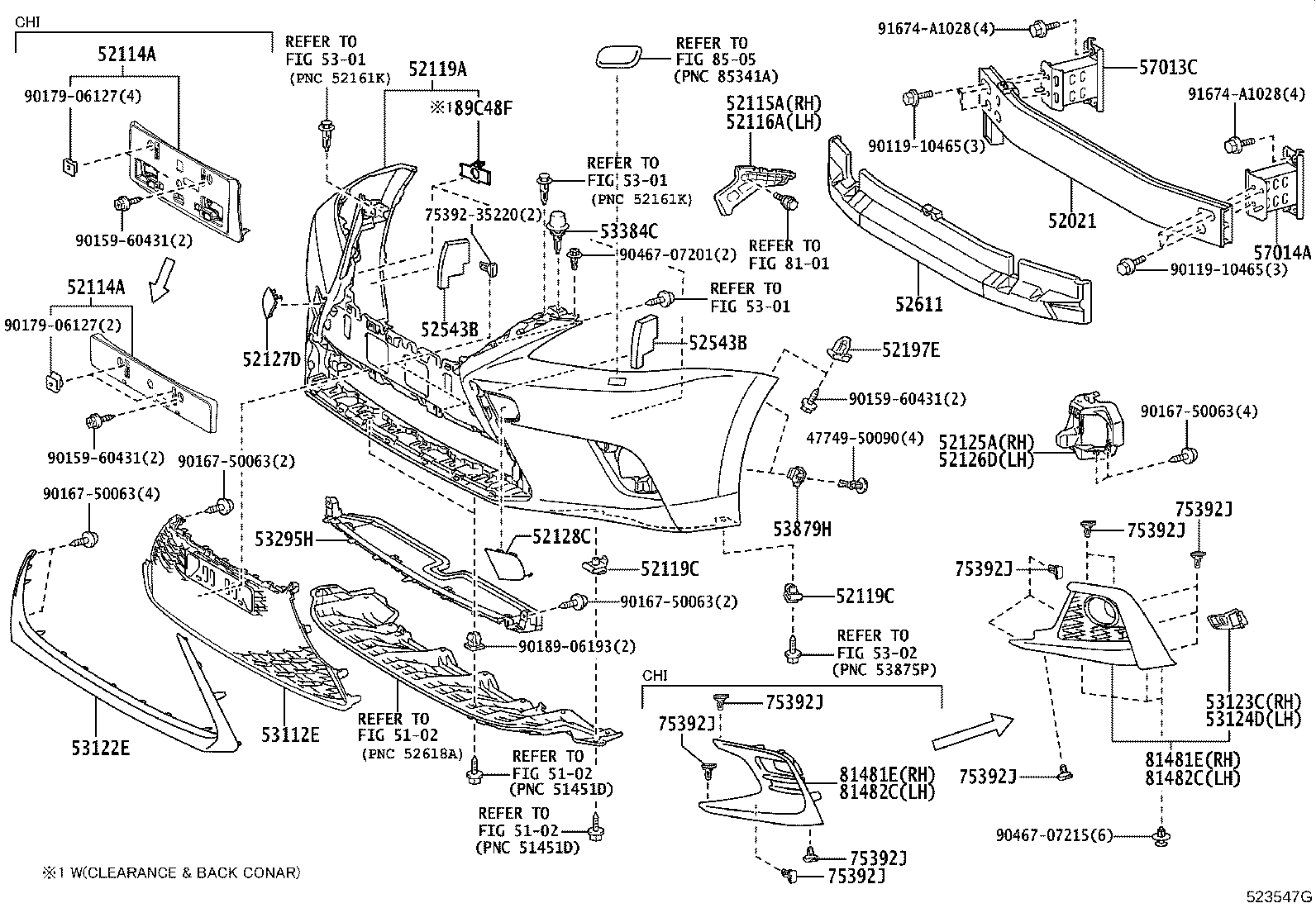

ZWA10L-AHXBBC (2013)
Toyota Lexus Ct200h
(1312-1708)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-76080 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52021-76080 |
ZWA10..B..CHI |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-76040 |
ZWA10..ARL,CHI FRONT FOG LAMP-WITH(BULB) |
1 | ||
| 52112-76050 |
ZWA10 |
1 | ||
| 52112-76060 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-76040 |
ZWA10..ARL,CHI FRONT FOG LAMP-WITH(BULB) |
1 | ||
| 52112-76050 |
ZWA10 |
1 | ||
| 52112-76060 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-76040 |
ZWA10..ARL,CHI FRONT FOG LAMP-WITH(BULB) |
1 | ||
| 52113-76060 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 52113-76050 |
ZWA10 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-76040 |
ZWA10..ARL,CHI FRONT FOG LAMP-WITH(BULB) |
1 | ||
| 52113-76060 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 52113-76050 |
ZWA10 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52115-76011 |
ZWA10..B..CHI |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-76011 |
ZWA10..B..CHI |
1 | ||
| 52116-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-76924 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76922 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76946 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76925 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT |
1 | ||
| 52119-76923 |
ZWA10..B..CHI PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52119-76937 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76923 |
ZWA10..ARL,CHI PAINT REQ. |
1 | ||
| 52119-76944 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76934 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76952 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76955 |
ZWA10..B..CHI HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76949 |
ZWA10..B..CHI |
1 | ||
| 52119-76950 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 52119-76950 |
ZWA10..B..CHI HEADLAMP-LED |
1 | ||
| 52119-76949 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-76924 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76922 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76946 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76925 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT |
1 | ||
| 52119-76923 |
ZWA10..B..CHI PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52119-76937 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76923 |
ZWA10..ARL,CHI PAINT REQ. |
1 | ||
| 52119-76944 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76934 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76952 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76955 |
ZWA10..B..CHI HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76949 |
ZWA10..B..CHI |
1 | ||
| 52119-76950 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 52119-76950 |
ZWA10..B..CHI HEADLAMP-LED |
1 | ||
| 52119-76949 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52125-76030 |
ZWA10..B..CHI |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52126-76030 |
ZWA10..B..CHI |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52127-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52127-76904 |
ZWA10..B..CHI |
1 | ||
| 52127-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52128-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52128-76904 |
ZWA10..B..CHI |
1 | ||
| 52128-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
ZWA10..B..CHI |
2 | ||
| 52197-30040 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-76040 |
ZWA10..B..CHI |
1 | ||
| 52611-76040 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 53112-76090 |
ZWA10..E |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76180 |
ZWA10..E |
1 | ||
| 53102-76060 |
ZWA10..E |
1 | ||
| 53112-76070 |
ZWA10..B..CHI |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76170 |
ZWA10..B..CHI |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(MIDNIGHT) |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53102-76050 |
ZWA10..B..CHI |
1 | ||
| 53122E - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-76010 |
ZWA10..B..CHI |
1 | ||
| 53122-76050 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = BLACK PLATING |
1 | ||
| 53122-76020 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76020 |
ZWA10..E;ZWA10..ARL,GCC BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295H - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295-76010 |
ZWA10..B..CHI |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-75010 |
ZWA10..B..CHI |
2 | ||
| 53384-75010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 53879-30040 |
ZWA10..B..CHI |
4 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-76010 |
ZWA10..B..CHI |
1 | ||
| 57013-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-76010 |
ZWA10..B..CHI |
1 | ||
| 57014-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 89346B - ADJUSTER, ULTRASONIC SENSOR | ||||
| 89346-33010 |
ZWA10..B CLEARANCE & BACK SONAR-WITH |
16 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-33110 |
ZWA10..B CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-78020 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 90119-10465 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90189-06193 | ||||
| 90467-07201 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7601 | ||||
| 8101 | ||||
| 8505 | ||||

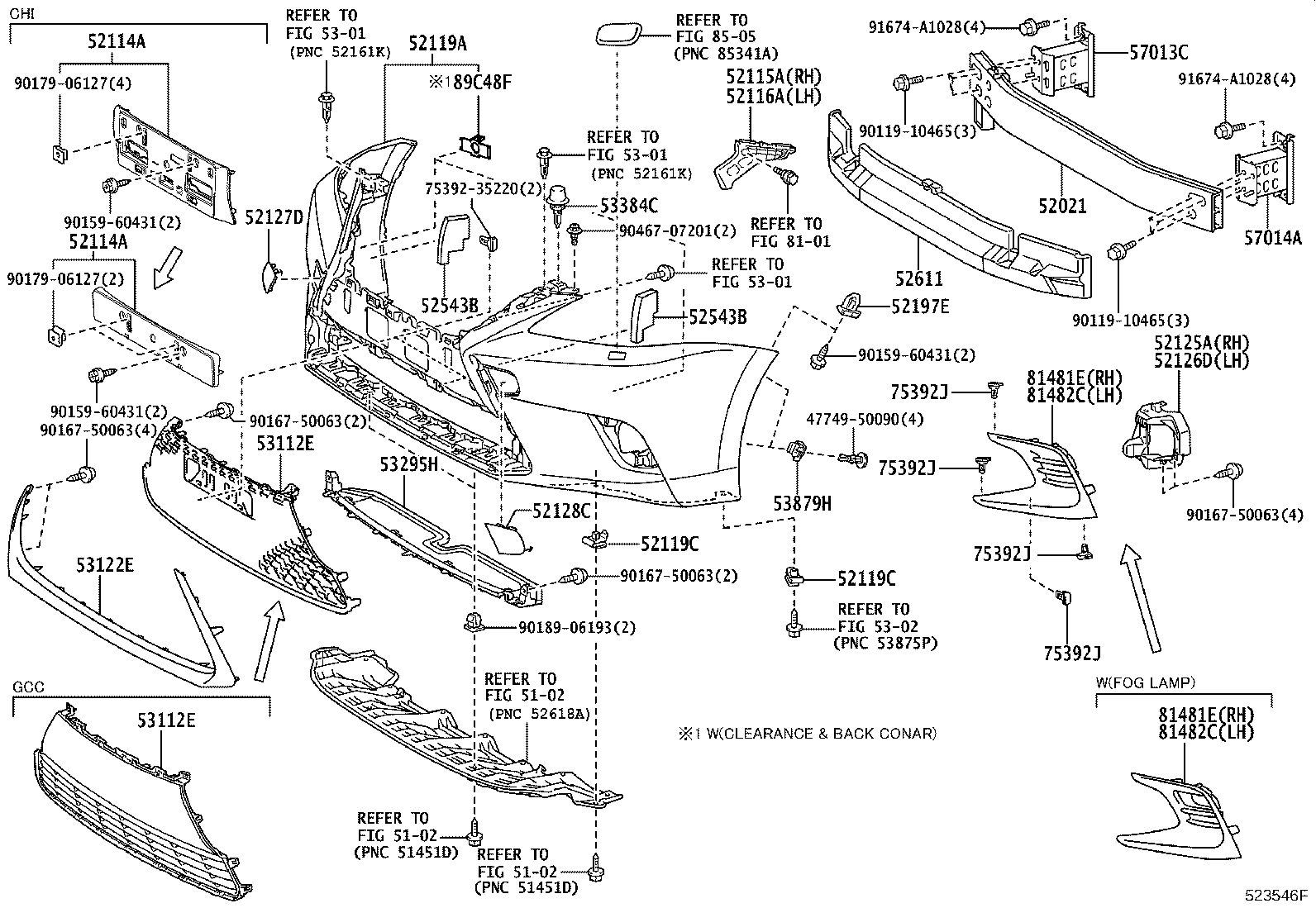

(1312-1708)B
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-76080 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52021-76080 |
ZWA10..B..CHI |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-76040 |
ZWA10..ARL,CHI FRONT FOG LAMP-WITH(BULB) |
1 | ||
| 52112-76050 |
ZWA10 |
1 | ||
| 52112-76060 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-76040 |
ZWA10..ARL,CHI FRONT FOG LAMP-WITH(BULB) |
1 | ||
| 52113-76060 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 52113-76050 |
ZWA10 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52115-76011 |
ZWA10..B..CHI |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-76011 |
ZWA10..B..CHI |
1 | ||
| 52116-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-76924 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76922 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76946 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76925 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT |
1 | ||
| 52119-76923 |
ZWA10..B..CHI PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52119-76937 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76923 |
ZWA10..ARL,CHI PAINT REQ. |
1 | ||
| 52119-76944 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76934 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76952 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76955 |
ZWA10..B..CHI HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76949 |
ZWA10..B..CHI |
1 | ||
| 52119-76950 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 52119-76950 |
ZWA10..B..CHI HEADLAMP-LED |
1 | ||
| 52119-76949 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-76924 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76922 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76946 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76925 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT |
1 | ||
| 52119-76923 |
ZWA10..B..CHI PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52119-76937 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76923 |
ZWA10..ARL,CHI PAINT REQ. |
1 | ||
| 52119-76944 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76934 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76952 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76955 |
ZWA10..B..CHI HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76949 |
ZWA10..B..CHI |
1 | ||
| 52119-76950 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 52119-76950 |
ZWA10..B..CHI HEADLAMP-LED |
1 | ||
| 52119-76949 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52125-76030 |
ZWA10..B..CHI |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52126-76030 |
ZWA10..B..CHI |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52127-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52127-76904 |
ZWA10..B..CHI |
1 | ||
| 52127-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52128-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52128-76904 |
ZWA10..B..CHI |
1 | ||
| 52128-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
ZWA10..B..CHI |
2 | ||
| 52197-30040 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-76040 |
ZWA10..B..CHI |
1 | ||
| 52611-76040 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 53112-76090 |
ZWA10..E |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76180 |
ZWA10..E |
1 | ||
| 53102-76060 |
ZWA10..E |
1 | ||
| 53112-76070 |
ZWA10..B..CHI |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76170 |
ZWA10..B..CHI |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(MIDNIGHT) |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53102-76050 |
ZWA10..B..CHI |
1 | ||
| 53122E - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-76010 |
ZWA10..B..CHI |
1 | ||
| 53122-76050 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = BLACK PLATING |
1 | ||
| 53122-76020 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76020 |
ZWA10..E;ZWA10..ARL,GCC BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295H - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295-76010 |
ZWA10..B..CHI |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-75010 |
ZWA10..B..CHI |
2 | ||
| 53384-75010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 53879-30040 |
ZWA10..B..CHI |
4 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-76010 |
ZWA10..B..CHI |
1 | ||
| 57013-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-76010 |
ZWA10..B..CHI |
1 | ||
| 57014-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 89346B - ADJUSTER, ULTRASONIC SENSOR | ||||
| 89346-33010 |
ZWA10..B CLEARANCE & BACK SONAR-WITH |
16 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-33110 |
ZWA10..B CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-78020 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 90119-10465 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90189-06193 | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 8101 | ||||
| 8505 | ||||

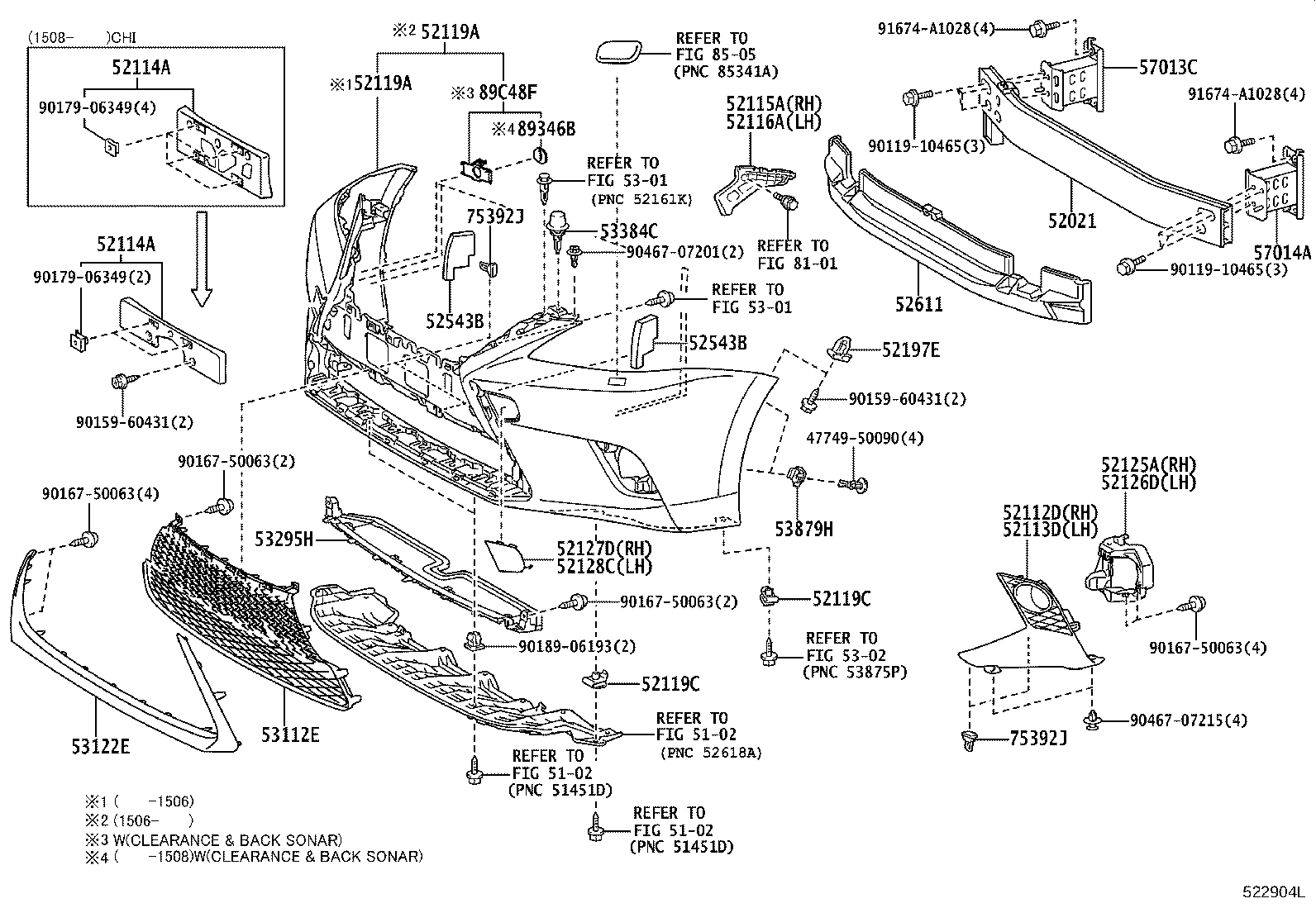

(1708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-76080 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52021-76080 |
ZWA10..B..CHI |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52115-76011 |
ZWA10..B..CHI |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-76011 |
ZWA10..B..CHI |
1 | ||
| 52116-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-76924 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76922 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76946 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76925 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT |
1 | ||
| 52119-76923 |
ZWA10..B..CHI PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52119-76937 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76923 |
ZWA10..ARL,CHI PAINT REQ. |
1 | ||
| 52119-76944 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76934 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76952 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76955 |
ZWA10..B..CHI HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76949 |
ZWA10..B..CHI |
1 | ||
| 52119-76950 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 52119-76950 |
ZWA10..B..CHI HEADLAMP-LED |
1 | ||
| 52119-76949 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52125-76030 |
ZWA10..B..CHI |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52126-76030 |
ZWA10..B..CHI |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52127-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52127-76904 |
ZWA10..B..CHI |
1 | ||
| 52127-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52128-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52128-76904 |
ZWA10..B..CHI |
1 | ||
| 52128-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
ZWA10..B..CHI |
2 | ||
| 52197-30040 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-76040 |
ZWA10..B..CHI |
1 | ||
| 52611-76040 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 53112-76090 |
ZWA10..E |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76180 |
ZWA10..E |
1 | ||
| 53102-76060 |
ZWA10..E |
1 | ||
| 53112-76070 |
ZWA10..B..CHI |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76170 |
ZWA10..B..CHI |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(MIDNIGHT) |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53102-76050 |
ZWA10..B..CHI |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 53112-76090 |
ZWA10..E |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76180 |
ZWA10..E |
1 | ||
| 53102-76060 |
ZWA10..E |
1 | ||
| 53112-76070 |
ZWA10..B..CHI |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76170 |
ZWA10..B..CHI |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(MIDNIGHT) |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53102-76050 |
ZWA10..B..CHI |
1 | ||
| 53122E - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-76010 |
ZWA10..B..CHI |
1 | ||
| 53122-76050 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = BLACK PLATING |
1 | ||
| 53122-76020 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76020 |
ZWA10..E;ZWA10..ARL,GCC BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295H - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295-76010 |
ZWA10..B..CHI |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-75010 |
ZWA10..B..CHI |
2 | ||
| 53384-75010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 53879-30040 |
ZWA10..B..CHI |
4 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-76010 |
ZWA10..B..CHI |
1 | ||
| 57013-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-76010 |
ZWA10..B..CHI |
1 | ||
| 57014-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81481-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81481-76010 |
ZWA10..B..CHI |
1 | ||
| 81481-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81481-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81481-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81481-76010 |
ZWA10..B..CHI |
1 | ||
| 81481-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81481-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81482-76010 |
ZWA10..B..CHI |
1 | ||
| 81482-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81482-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81482-76010 |
ZWA10..B..CHI |
1 | ||
| 81482-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81482-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-33110 |
ZWA10..B CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-78020 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 75392-35220 | ||||
| 90119-10465 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90467-07201 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 8101 | ||||
| 8505 | ||||
(1708- )B..ARL,CHI
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-76080 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52021-76080 |
ZWA10..B..CHI |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76050 |
ZWA10..CHI |
1 | ||
| 52114-76080 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76200 |
ZWA10..CHI |
1 | ||
| 52114-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76230 |
ZWA10..B..CHI F SPORT |
1 | ||
| 52114-76100 |
ZWA10..CHI |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52115-76011 |
ZWA10..B..CHI |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-76011 |
ZWA10..B..CHI |
1 | ||
| 52116-76011 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-76924 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76922 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76946 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76925 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT |
1 | ||
| 52119-76923 |
ZWA10..B..CHI PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52119-76937 |
ZWA10..B..(ARL,CHI) PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76923 |
ZWA10..ARL,CHI PAINT REQ. |
1 | ||
| 52119-76944 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76934 |
ZWA10..B..(ARL,CHI) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI VERSION L&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76952 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76950 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM) |
1 | ||
| 52119-76955 |
ZWA10..B..CHI F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76955 |
ZWA10..B..CHI HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-76949 |
ZWA10..B..CHI |
1 | ||
| 52119-76950 |
ZWA10..E;ZWA10..ARL HEADLAMP-LED |
1 | ||
| 52119-76950 |
ZWA10..B..CHI HEADLAMP-LED |
1 | ||
| 52119-76949 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 90467-05114 |
ZWA10..B..CHI |
4 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52125-76030 |
ZWA10..B..CHI |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-76030 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 52126-76030 |
ZWA10..B..CHI |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52127-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52127-76904 |
ZWA10..B..CHI |
1 | ||
| 52127-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-76904 |
ZWA10..B..CHI CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT |
1 | ||
| 52128-76904 |
ZWA10..ARL,CHI |
1 | ||
| 52128-76904 |
ZWA10..B..(ARL,CHI) F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52128-76904 |
ZWA10..B..CHI |
1 | ||
| 52128-76904 |
ZWA10..E;ZWA10..ARL |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
ZWA10..B..CHI |
2 | ||
| 52197-30040 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52543B - SEAL, FRONT BUMPER | ||||
| 52543-76010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 52543-76010 |
ZWA10..B..CHI |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-76040 |
ZWA10..B..CHI |
1 | ||
| 52611-76040 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(CHOCOLATE) |
1 | ||
| 53112-76090 |
ZWA10..E |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76110 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76180 |
ZWA10..E |
1 | ||
| 53102-76060 |
ZWA10..E |
1 | ||
| 53112-76070 |
ZWA10..B..CHI |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53112-76170 |
ZWA10..B..CHI |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH) |
1 | ||
| 53102-76100 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53112-76210 |
ZWA10..B..CHI NO PAINT REQ.,CHINA SPECIAL EDITION(MIDNIGHT) |
1 | ||
| 53112-76190 |
ZWA10..B..CHI F SPORT |
1 | ||
| 53102-76050 |
ZWA10..B..CHI |
1 | ||
| 53122E - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-76010 |
ZWA10..B..CHI |
1 | ||
| 53122-76050 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = BLACK PLATING |
1 | ||
| 53122-76020 |
ZWA10..B..CHI BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76020 |
ZWA10..E;ZWA10..ARL,GCC BUMPER & GRILLE GARNISH-FRONT LOWER MOUL = PLATING |
1 | ||
| 53122-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295H - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 53295-76010 |
ZWA10..B..CHI |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-75010 |
ZWA10..E;ZWA10..ARL,GCC |
2 | ||
| 53384-75010 |
ZWA10..B..CHI |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30040 |
ZWA10..E;ZWA10..ARL,GCC |
4 | ||
| 53879-30040 |
ZWA10..B..CHI |
4 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-76010 |
ZWA10..B..CHI |
1 | ||
| 57013-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-76010 |
ZWA10..B..CHI |
1 | ||
| 57014-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
ZWA10..B..CHI |
8 | ||
| 75392-35220 |
ZWA10..B..(ARL,CHI) FRONT FOG LAMP-WITH(BULB) & F SPORT |
4 | ||
| 75392-35220 |
ZWA10..E;ZWA10..ARL,GCC |
8 | ||
| 75392-35220 |
ZWA10 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81481-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81481-76010 |
ZWA10..B..CHI |
1 | ||
| 81481-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81481-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81481-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81481-76010 |
ZWA10..B..CHI |
1 | ||
| 81481-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81481-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81482-76010 |
ZWA10..B..CHI |
1 | ||
| 81482-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81482-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-76020 |
ZWA10..E;ZWA10..ARL,GCC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 81482-76030 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(BULB) & F SPORT |
1 | ||
| 81482-76010 |
ZWA10..B..CHI |
1 | ||
| 81482-76010 |
ZWA10..E;ZWA10..ARL,GCC |
1 | ||
| 81482-76020 |
ZWA10..B..CHI FRONT FOG LAMP-WITH(LED) |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-33110 |
ZWA10..B CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-78020 |
ZWA10..B..CHI CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 75392-35220 | ||||
| 90119-10465 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 8101 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
