Toyota Lexus ct200h ZWA10 MOUNTING

ZWA10L-AHXBBC (2013)

Toyota Lexus Ct200h

Production Dec 2013 - Sep 9999

Engine 5ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1012-2004)

Click highlighted areas on diagram

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37161	5ZRFXE..ZWA10	06/2020 - 05/2021	1
12305-37160	2ZRFXE,5ZRFXE..ZWA10	12/2013 - 05/2020	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37090	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12311-37090	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37100	5ZRFXE..ZWA10..B	01/2018 - 05/2021	1
12315-37030	2ZRFXE,5ZRFXE..ZWA10	12/2013 - 01/2018	1
12315-37100	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	01/2018 - 12/2999	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37060	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12321-37060	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-37070	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12325-37070	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12351B - DAMPER, ENGINE MOUNTING
12351-23010	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12351-23010	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37150	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12361-37150	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37360	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12371-37360	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-37190	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12372-37190	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
Common parts
90105-10301
90105-10494
90105-10550
90105-12339
90105-14174
90116-12053
90119-12402
90178-10029
90179-08068
90179-10108
90179-14073
91552-81080
91552-K1025
91552-L1230
91552-L1255
91553-L1230
91672-L1230
94151-21241
94151-80800

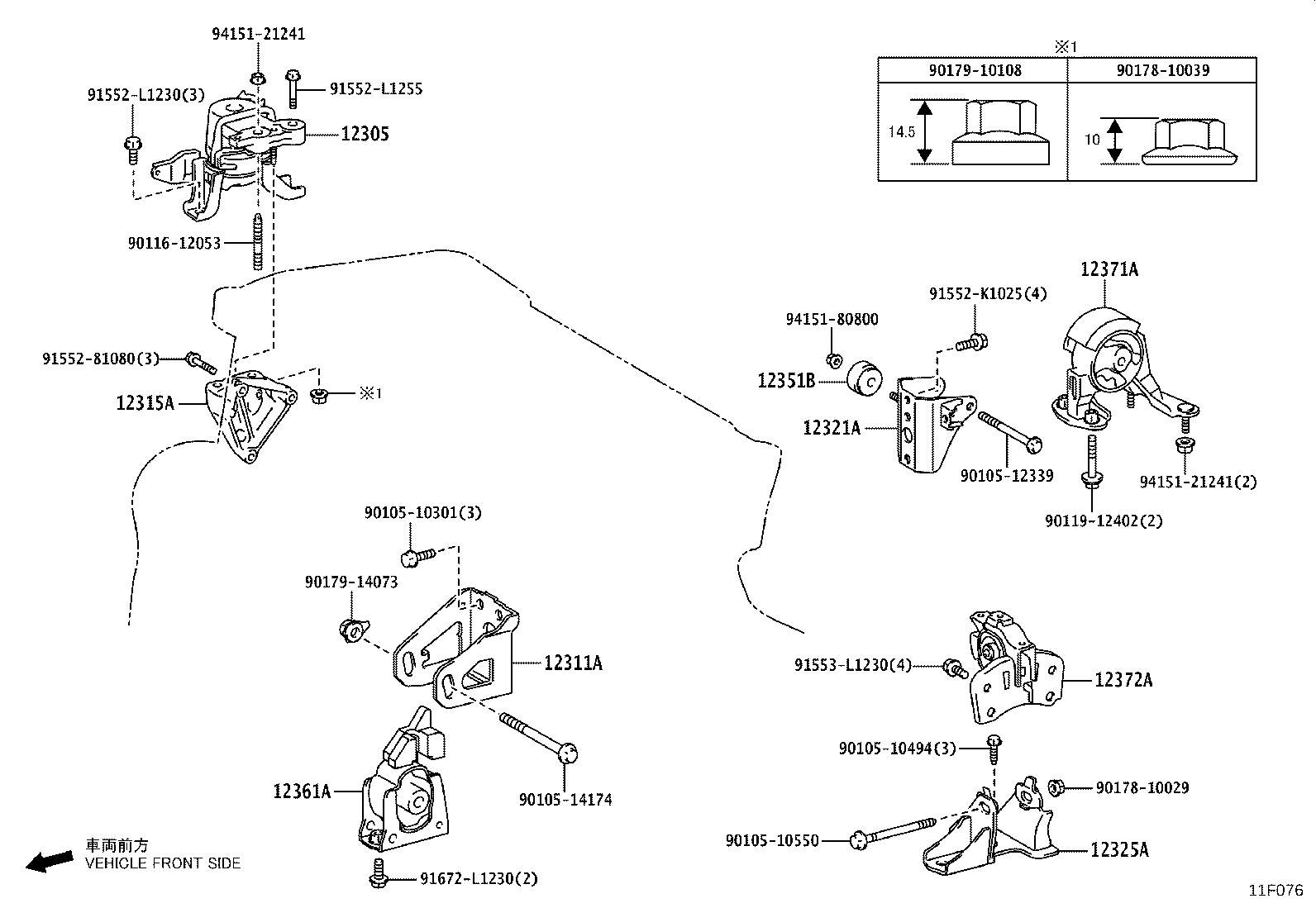

(2004- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37161	5ZRFXE..ZWA10	06/2020 - 05/2021	1
12305-37160	2ZRFXE,5ZRFXE..ZWA10	12/2013 - 05/2020	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37090	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12311-37090	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37100	5ZRFXE..ZWA10..B	01/2018 - 05/2021	1
12315-37030	2ZRFXE,5ZRFXE..ZWA10	12/2013 - 01/2018	1
12315-37100	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	01/2018 - 12/2999	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37060	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12321-37060	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-37070	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12325-37070	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12351B - DAMPER, ENGINE MOUNTING
12351-23010	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12351-23010	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37150	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12361-37150	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37360	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12371-37360	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-37190	2ZRFXE..ZWA10;5ZRFXE..ZWA10..E	12/2013 - 12/2999	1
12372-37190	5ZRFXE..ZWA10..B	12/2013 - 05/2021	1
Common parts
90105-10301
90105-10494
90105-10550
90105-12339
90105-14174
90116-12053
90119-12402
90178-10029
90178-10039
90179-10108
90179-14073
91552-81080
91552-K1025
91552-L1230
91552-L1255
91553-L1230
91672-L1230
94151-21241
94151-80800

ZWA10L-AHXBBC (2013)

(1012-2004)

(2004- )
