ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

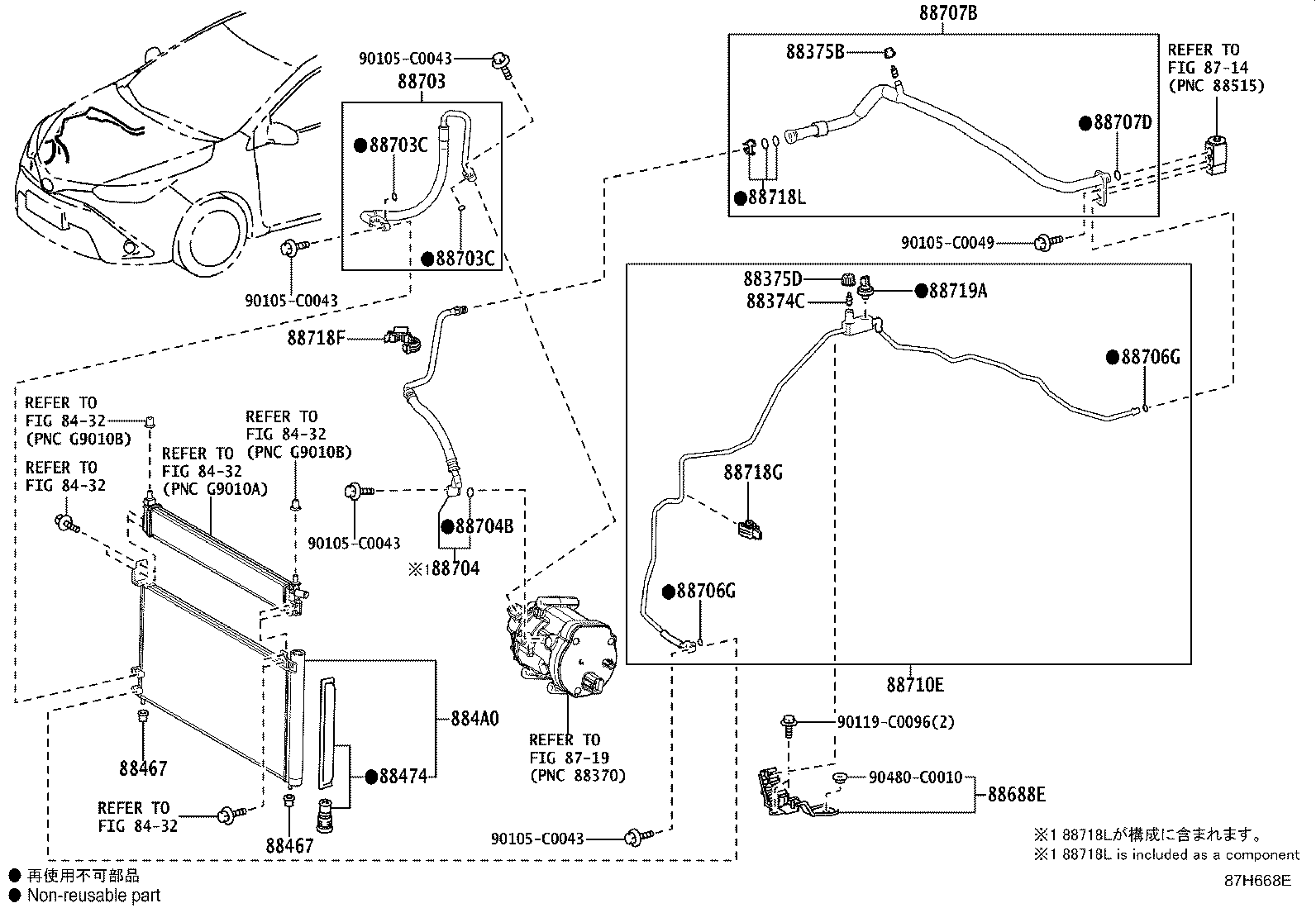

Click highlighted areas on diagram

diagram 8432 8432 8432 8432 8432 8714 8719 88374C 88375B 88375D 88467 88467 88474 884A0 88688E 88703 88703C 88703C 88704 88704B 88706G 88706G 88707B 88707D 88710E 88718F 88718G 88718L 88719A 90105C0043 90105C0043 90105C0043 90105C0043 90105C0049 90119C0096 90480C0010
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

ZWE183

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZWE183

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-0D010

ZWE183

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-0F020

ZWE183

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-0F020

ZWE183

 2
88474 - DRYER, COOLER
88474-12020

ZWE183

 1
884A0 - CONDENSER ASSY, COOLER
884A0-02270

ZWE183

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-02E30

ZWE183

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02E10

ZWE183

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

ZWE183

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

ZWE183

ID=10.8,OD=15.6

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-02E30

ZWE183

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

ZWE183

ID=13.4,OD=18.2

 1
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

ZWE183

ID=6.7,OD=10.3

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

ZWE183

ID=6.7,OD=10.3

 2
88707B - TUBE SUB-ASSY, SUCTION, B
88707-02720

ZWE183

 1
88707D - RING, O(FOR SUCTION TUBE)
90099-14121

ZWE183

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-02G10

ZWE183

 1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-02780

ZWE183

 1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-02A70

ZWE183

 1
88718L - CLAMP, PIPING
88718-52280

ZWE183

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

ZWE183

 1
Common parts
90105-C0043
90105-C0049
90119-C0096
90480-C0010
