ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

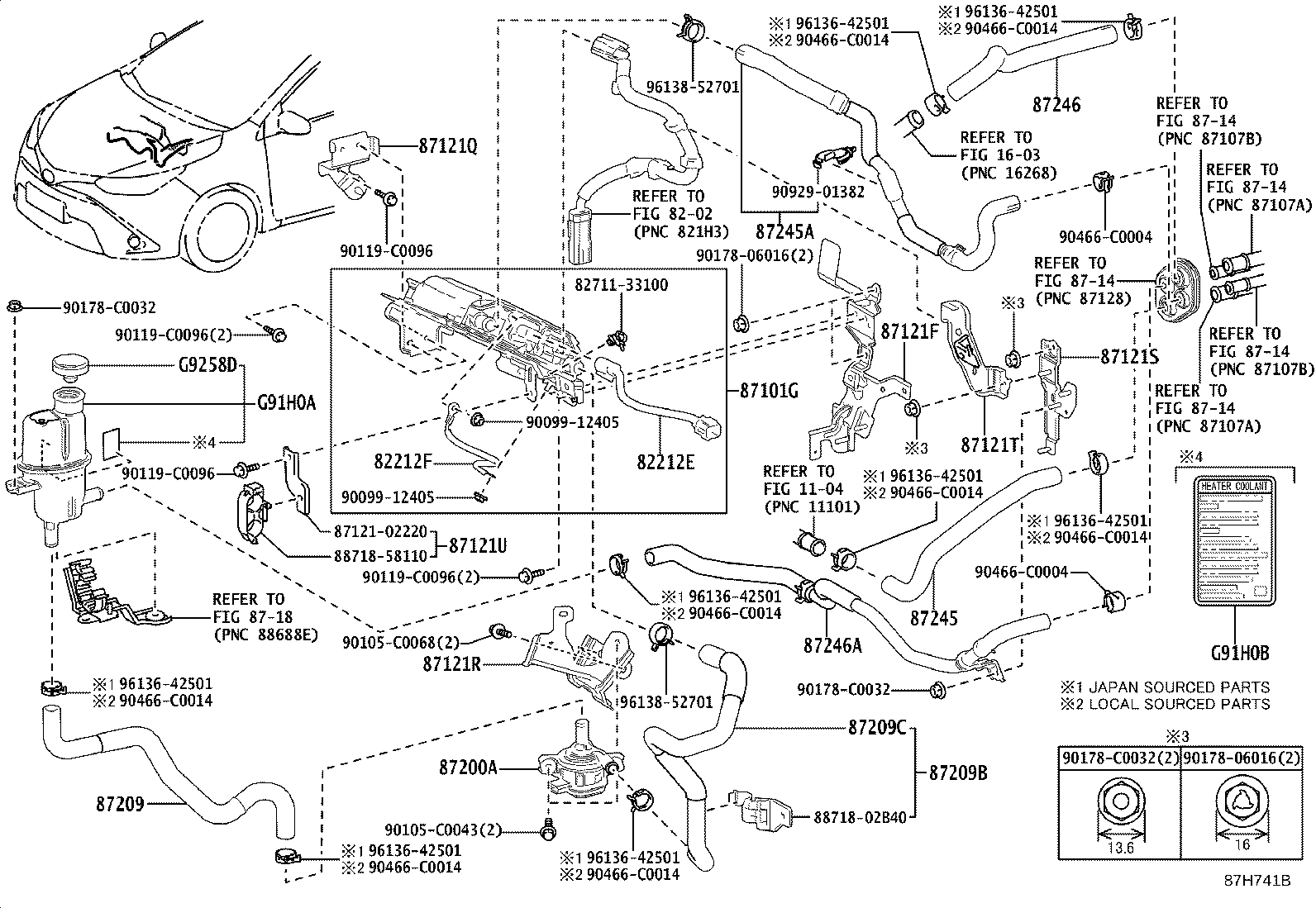

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82212E - HARNESS, AIR CONDITIONER NO.1 | ||||
| 82212-F4080 |
ZWE183 |
1 | ||
| 82212-12170 |
ZWE183 |
1 | ||
| 82212F - HARNESS, AIR CONDITIONER NO.2 | ||||
| 82212-02700 |
ZWE183 |
1 | ||
| 82212-12180 |
ZWE183 |
1 | ||
| 87101G - HEATER SUB-ASSY, ELECTRIC | ||||
| 87101-12160 |
ZWE183 |
1 | ||
| 87101-02180 |
ZWE183 |
1 | ||
| 87121F - BRACKET, HEATER | ||||
| 87121-02160 |
ZWE183 |
1 | ||
| 87121Q - BRACKET, HEATER NO.2 | ||||
| 87121-02170 |
ZWE183 |
1 | ||
| 87121R - BRACKET, HEATER NO.3 | ||||
| 87121-02180 |
ZWE183 |
1 | ||
| 87121S - BRACKET, HEATER NO.4 | ||||
| 87121-02190 |
ZWE183 |
1 | ||
| 87121T - BRACKET, HEATER NO.5 | ||||
| 87121-02200 |
ZWE183 |
1 | ||
| 87121U - BRACKET, HEATER NO.6 | ||||
| 87121-02210 |
ZWE183 |
1 | ||
| 87200A - PUMP ASSY, WATER(FOR HEATER) | ||||
| G9040-52020 |
ZWE183 |
1 | ||
| G9040-52020 |
ZWE183 JAPAN SOURCED PARTS |
1 | ||
| G9040-02040 |
ZWE183 LOCAL SOURCED PARTS |
1 | ||
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87209-02530 |
ZWE183 |
1 | ||
| 87209B - HOSE SUB-ASSY, WATER, B | ||||
| 87209-02520 |
ZWE183 |
1 | ||
| 87209C - HOSE SUB-ASSY, WATER, C | ||||
| 87209-02650 |
ZWE183 |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-02U10 |
ZWE183 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87209-02540 |
ZWE183 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-02U20 |
ZWE183 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87209-02510 |
ZWE183 |
1 | ||
| G91H0A - TANK ASSY, HEATER RESERVE | ||||
| G91H0-02090 |
ZWE183 |
1 | ||
| G91H0B - LABEL, COOLANT SYSTEM INFORMATION | ||||
| 11285-0T050 |
ZWE183 |
1 | ||
| G9258D - CAP, HEATER RESERVE TANK | ||||
| 16475-28140 |
ZWE183 |
1 | ||
| Common parts | ||||
| 82711-33100 | ||||
| 87121-02220 | ||||
| 88718-02B40 | ||||
| 88718-58110 | ||||
| 90099-12405 | ||||
| 90105-C0043 | ||||
| 90105-C0068 | ||||
| 90119-C0096 | ||||
| 90178-06016 | ||||
| 90178-C0032 | ||||
| 90466-C0004 | ||||
| 90466-C0014 | ||||
| 90929-01382 | ||||
| 96136-42501 | ||||
| 96138-52701 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8202 | ||||
| 8714 | ||||
| 8718 | ||||
