ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

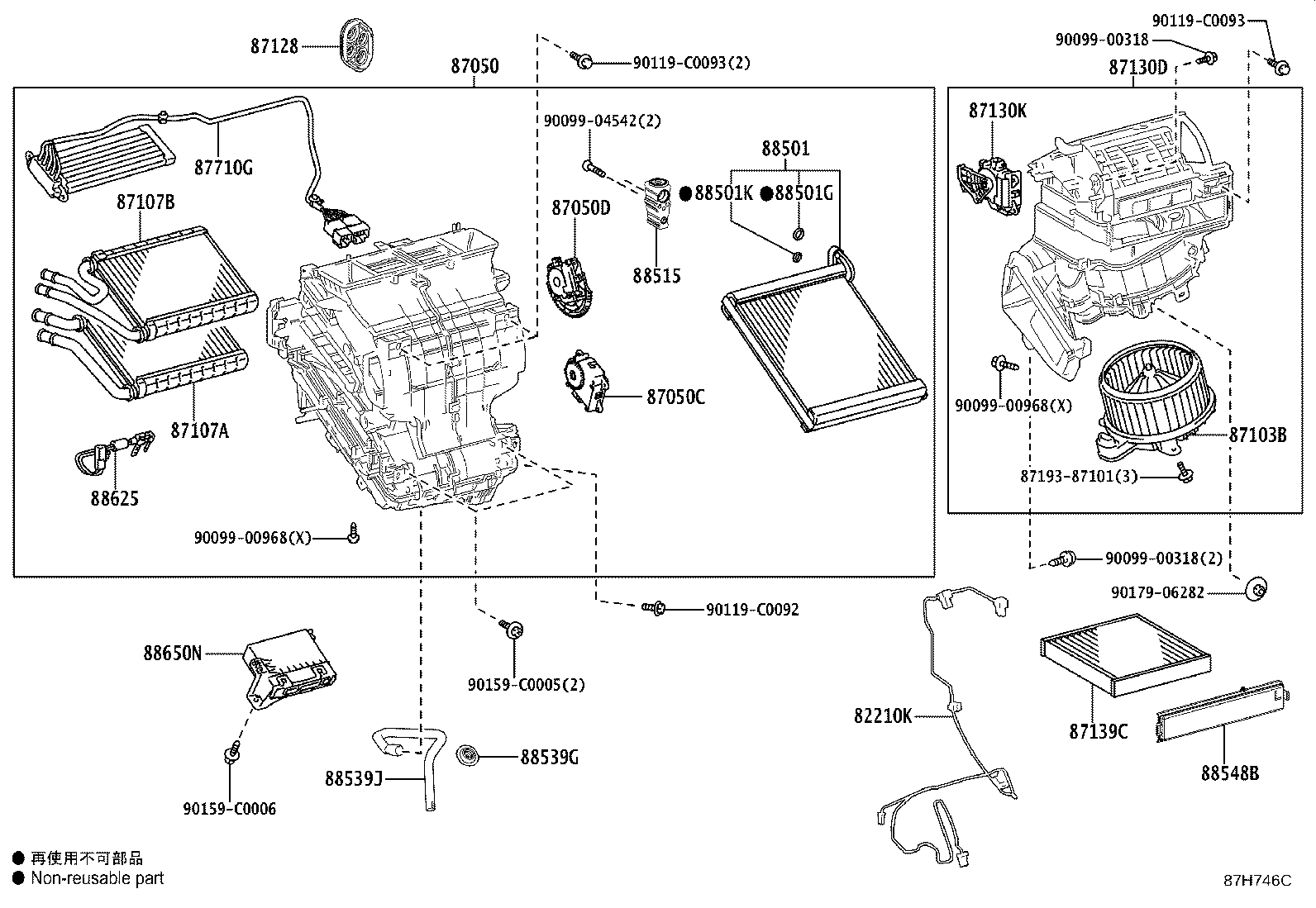

Click highlighted areas on diagram

diagram 82210K 87050 87050C 87050D 87103B 87107A 87107B 87128 87130D 87130K 87139C 8719387101 87710G 88501 88501G 88501K 88515 88539G 88539J 88548B 88625 88650N 9009900318 9009900318 9009900968 9009900968 9009904542 90119C0092 90119C0093 90119C0093 90159C0005 90159C0006 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-02180

ZWE183

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0ZG90

ZWE183

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-02600

ZWE183

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-0F040

ZWE183

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02570

ZWE183

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02310

ZWE183

 1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-02320

ZWE183

 1
87128 - GROMMET, HEATER
87128-02170

ZWE183

 1
87130D - BLOWER ASSY
87130-02B50

ZWE183

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-0F050

ZWE183

 1
87139C - FILTER, CLEAN AIR
87139-06140

ZWE183

MICRO DUST FILTER,OE PART

 1
87139-50100

ZWE183

POLLEN DEODORANT

 1
87710G - QUICK HEATER ASSY
87710-02130

ZWE183

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02350

ZWE183

 1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121

ZWE183

ID=13.4,OD=18.2

 1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90099-14120

ZWE183

ID=10.8,OD=15.6

 1
88515 - VALVE, COOLER EXPANSION
88515-02820

ZWE183

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26030

ZWE183

 1
88539J - HOSE, DRAIN COOLER
88539-02400

ZWE183

 1
88548B - CASE, AIR FILTER
88548-0F040

ZWE183

 1
88625 - THERMISTOR, COOLER, NO.1
88625-0D100

ZWE183

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02M00

ZWE183

 1
Common parts
87193-87101
90099-00318
90099-00968
90099-04542
90119-C0092
90119-C0093
90159-C0005
90159-C0006
90179-06282
