ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

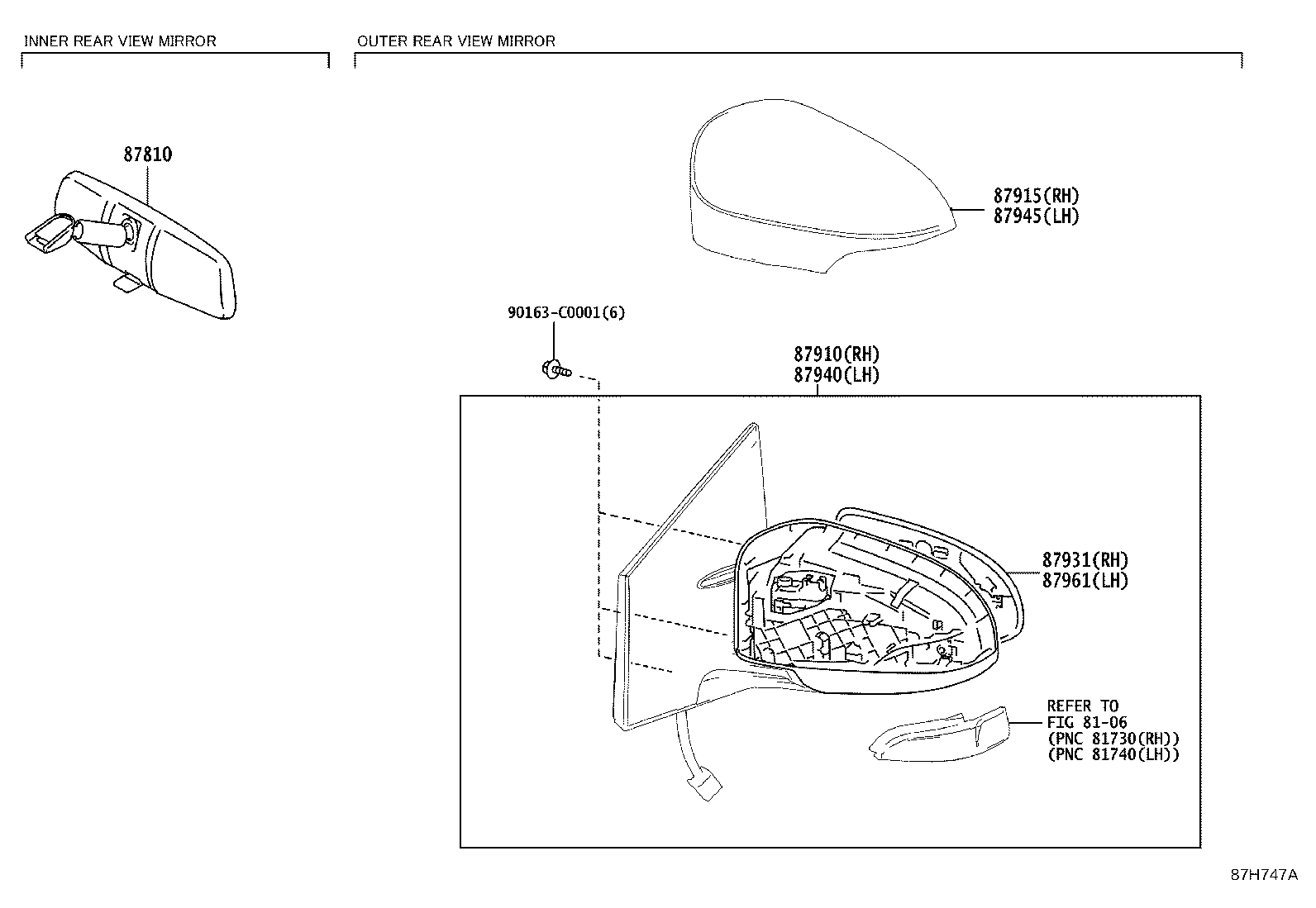

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0D070 |
ZWE183 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-02E50J1 |
ZWE183 BLUE ME.,8X7 |
1 | ||
| 87910-02E50A0 |
ZWE183 WHITE PEARL CS.,070 |
1 | ||
| 87910-02E50D0 |
ZWE183 RED M.M.,3R3 |
1 | ||
| 87910-02E50B0 |
ZWE183 SILVER ME.,1D4 |
1 | ||
| 87910-02E50H0 |
ZWE183 SPIRITED AQUA ME.,791 |
1 | ||
| 87910-02E50C0 |
ZWE183 ATTITUDE BLACK MC.,218 |
1 | ||
| 87910-02E50C1 |
ZWE183 BLACK MC.,209 |
1 | ||
| 87910-02E50A1 |
ZWE183 PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87910-02E50K0 |
ZWE183 DEEP AMETHYST M.M.,9AH |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-02931 |
ZWE183 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-02E50 |
ZWE183 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-02K00J1 |
ZWE183 BLUE ME.,8X7 |
1 | ||
| 87940-02K00C0 |
ZWE183 ATTITUDE BLACK MC.,218 |
1 | ||
| 87940-02K00A0 |
ZWE183 WHITE PEARL CS.,070 |
1 | ||
| 87940-02K00D0 |
ZWE183 RED M.M.,3R3 |
1 | ||
| 87940-02K00C1 |
ZWE183 BLACK MC.,209 |
1 | ||
| 87940-02K00A1 |
ZWE183 PLATINUM WHITE PEARL MC.,089 |
1 | ||
| 87940-02K00K0 |
ZWE183 DEEP AMETHYST M.M.,9AH |
1 | ||
| 87940-02K00B0 |
ZWE183 SILVER ME.,1D4 |
1 | ||
| 87940-02K00H0 |
ZWE183 SPIRITED AQUA ME.,791 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-02931 |
ZWE183 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-02K00 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90163-C0001 | ||||
| Linked diagrams | ||||
| 8106 | ||||
