ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

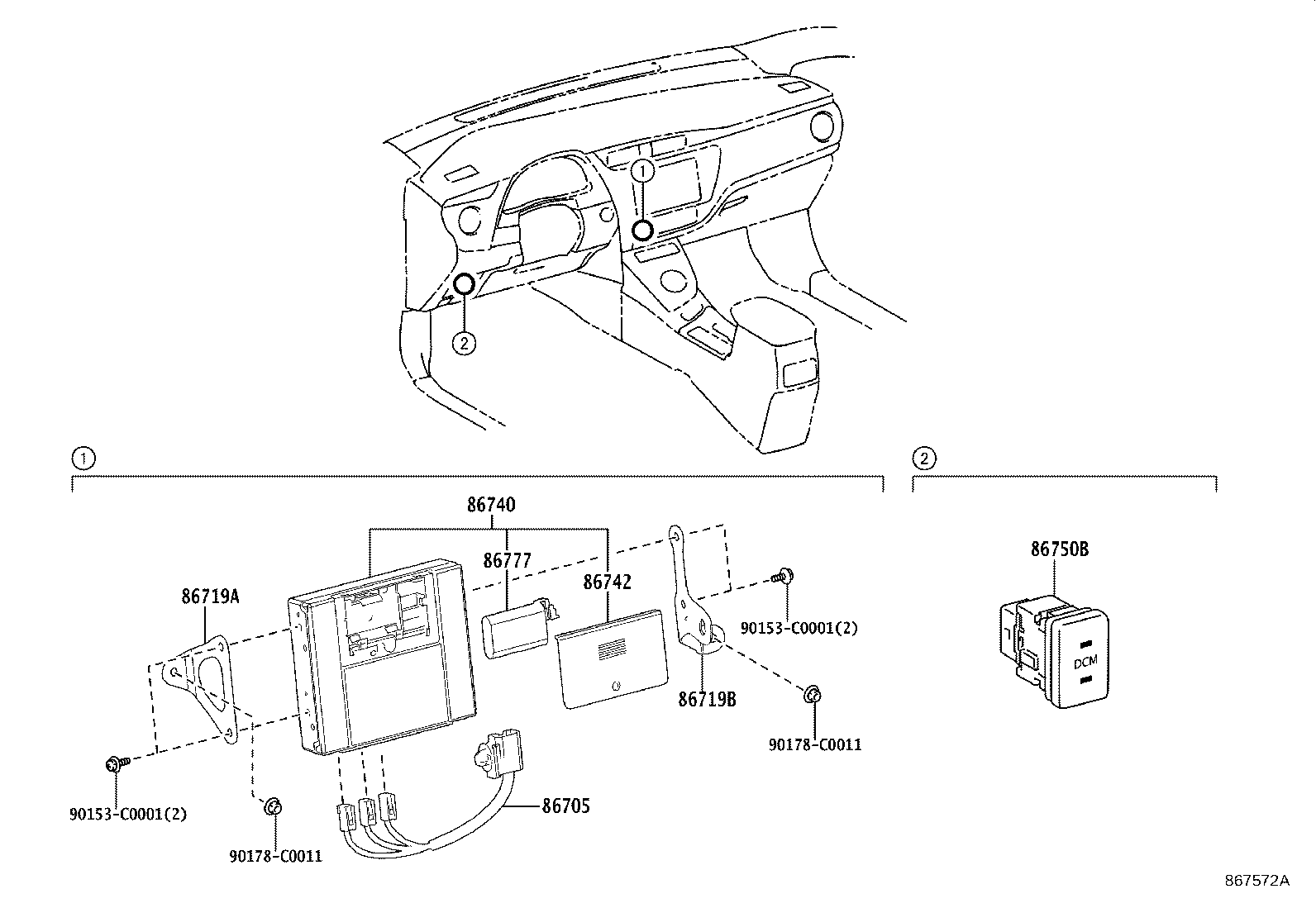

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86705 - CORD SUB-ASSY, TELEPHONE ANTENNA | ||||
| 86705-02110 |
ZWE183 |
1 | ||
| 86719A - BRACKET, TELEPHONE NO.1 | ||||
| 86719-02080 |
ZWE183 |
1 | ||
| 86719B - BRACKET, TELEPHONE NO.2 | ||||
| 86719-02090 |
ZWE183 |
1 | ||
| 86740 - TRANSCEIVER ASSY, TELEPHONE | ||||
| 86740-02101 |
ZWE183 |
1 | ||
| 86742 - COVER, TRANSCEIVER | ||||
| 86742-02030 |
ZWE183 |
1 | ||
| 86750B - INDICATOR ASSY, TELEMATICS | ||||
| 86750-02030 |
ZWE183 |
1 | ||
| 86777 - BATTERY, MAYDAY | ||||
| 86777-02020 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90153-C0001 | ||||
| 90178-C0011 | ||||
