ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

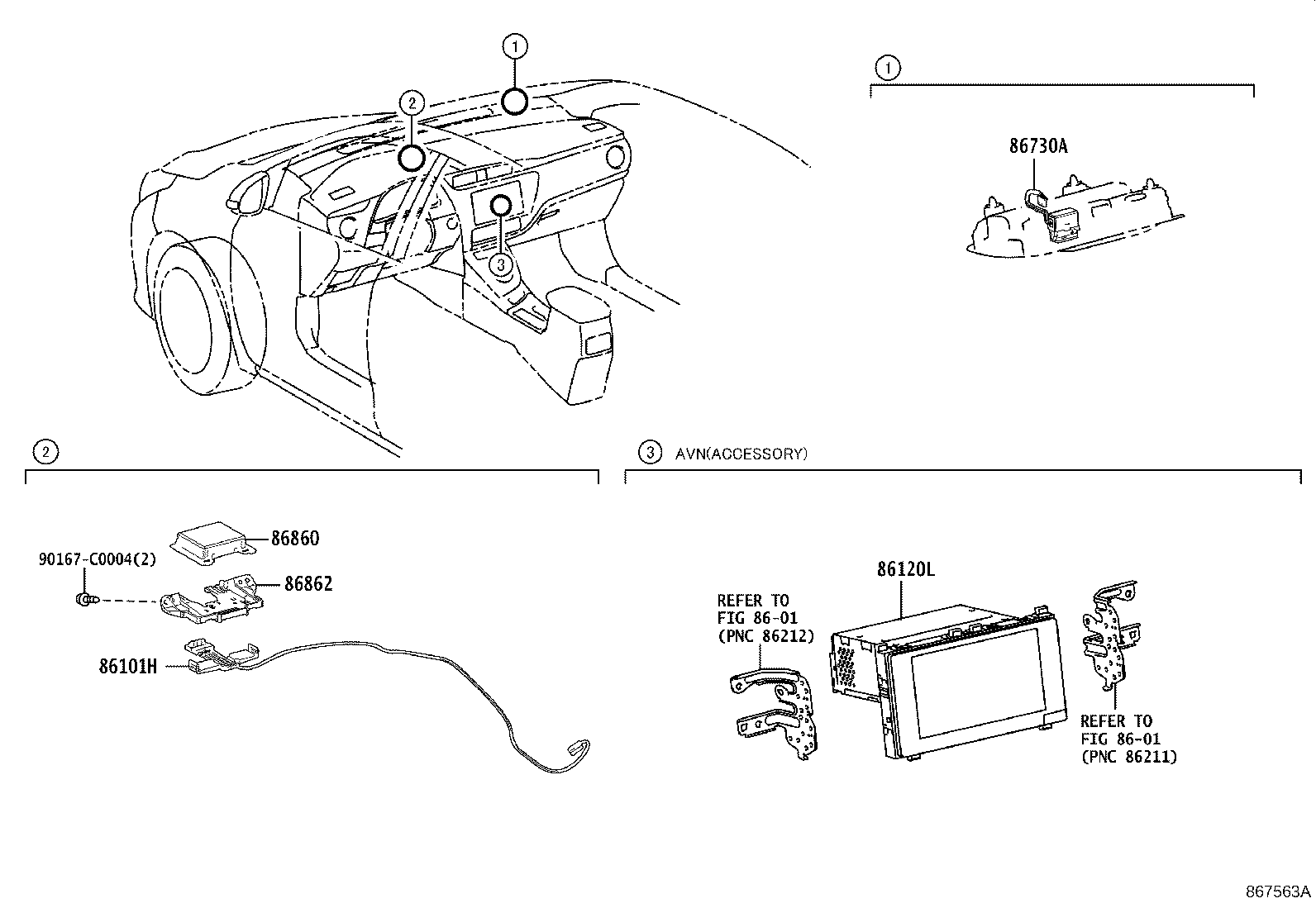

Click highlighted areas on diagram

diagram 8601 8601 86101H 86120L 86730A 86860 86862 90167C0004
Part # Description Qty Price
86101H - CORD SUB-ASSY, ANTENNA
86101-02G60

ZWE183

 1
86120L - RECEIVER ASSY, NAVIGATION
86100-YY190

ZWE183..G,V

DENSO TEN,AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-06020

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-47090

ZWE183

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-78010

ZWE183

 1
Common parts
90167-C0004
Linked diagrams
8601
