ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

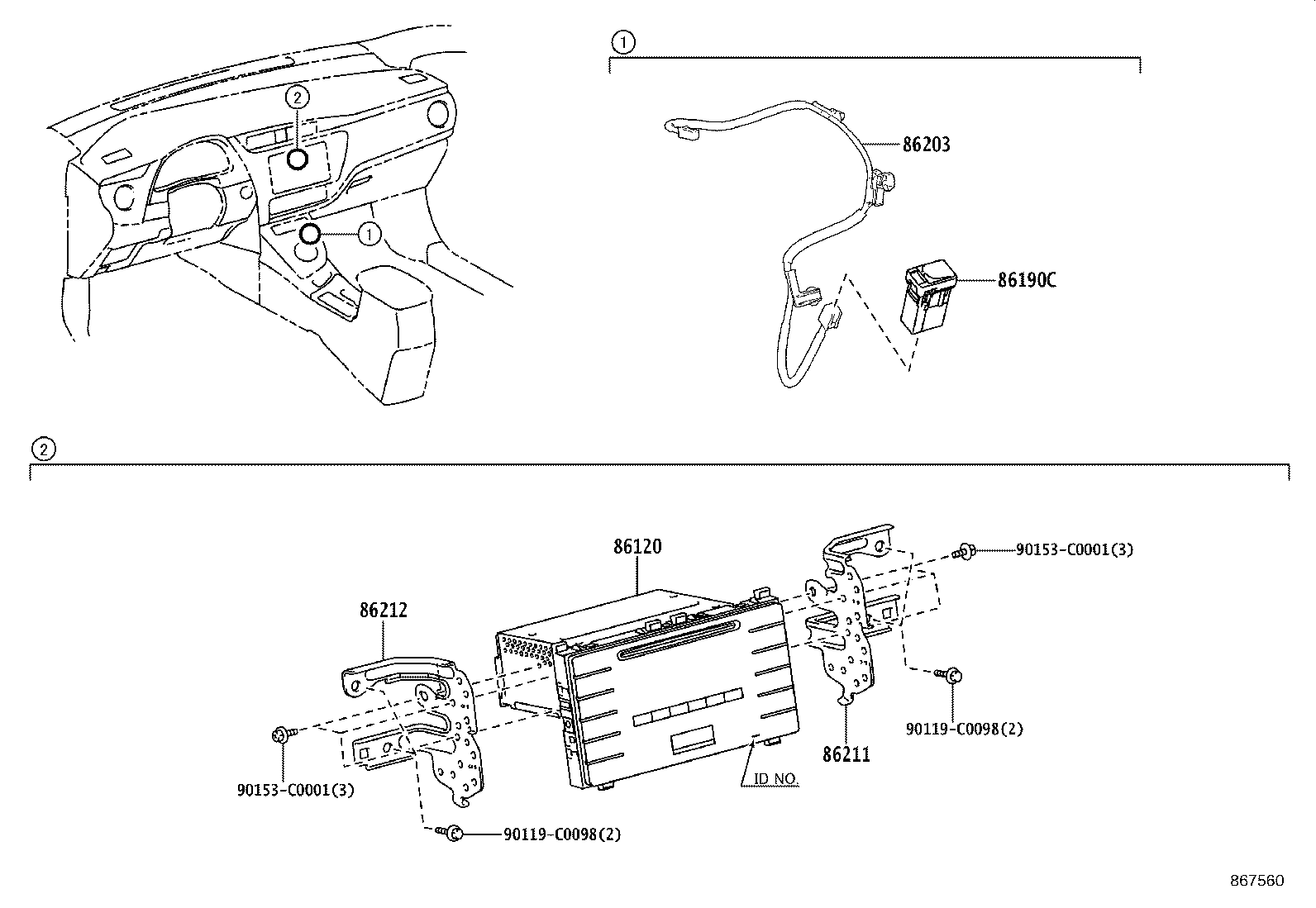

ILLUST NO. 1 OF 2(1904- )

Click highlighted areas on diagram

RECEIVER & STEREO JACK ADAPTER

diagram 86120 86190C 86203 86211 86212 90119C0098 90119C0098 90153C0001 90153C0001
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02K81

ZWE183..E

PANASONIC,ID=510241,AUDIO-WITHOUT(AUDIO LESS COVER)

 1
86120-02K81

ZWE183..V

PANASONIC,ID=510241,AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

 1
86120-02K81

ZWE183

PANASONIC,ID=510241

 1
86120-02K81

ZWE183..G,V

PANASONIC,ID=510241,AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-02040

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86203 - WIRE, RADIO
86203-02150

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-02530

ZWE183

 1
86212 - BRACKET, RADIO, NO.2
86212-02530

ZWE183

 1
Common parts
90119-C0098
90153-C0001

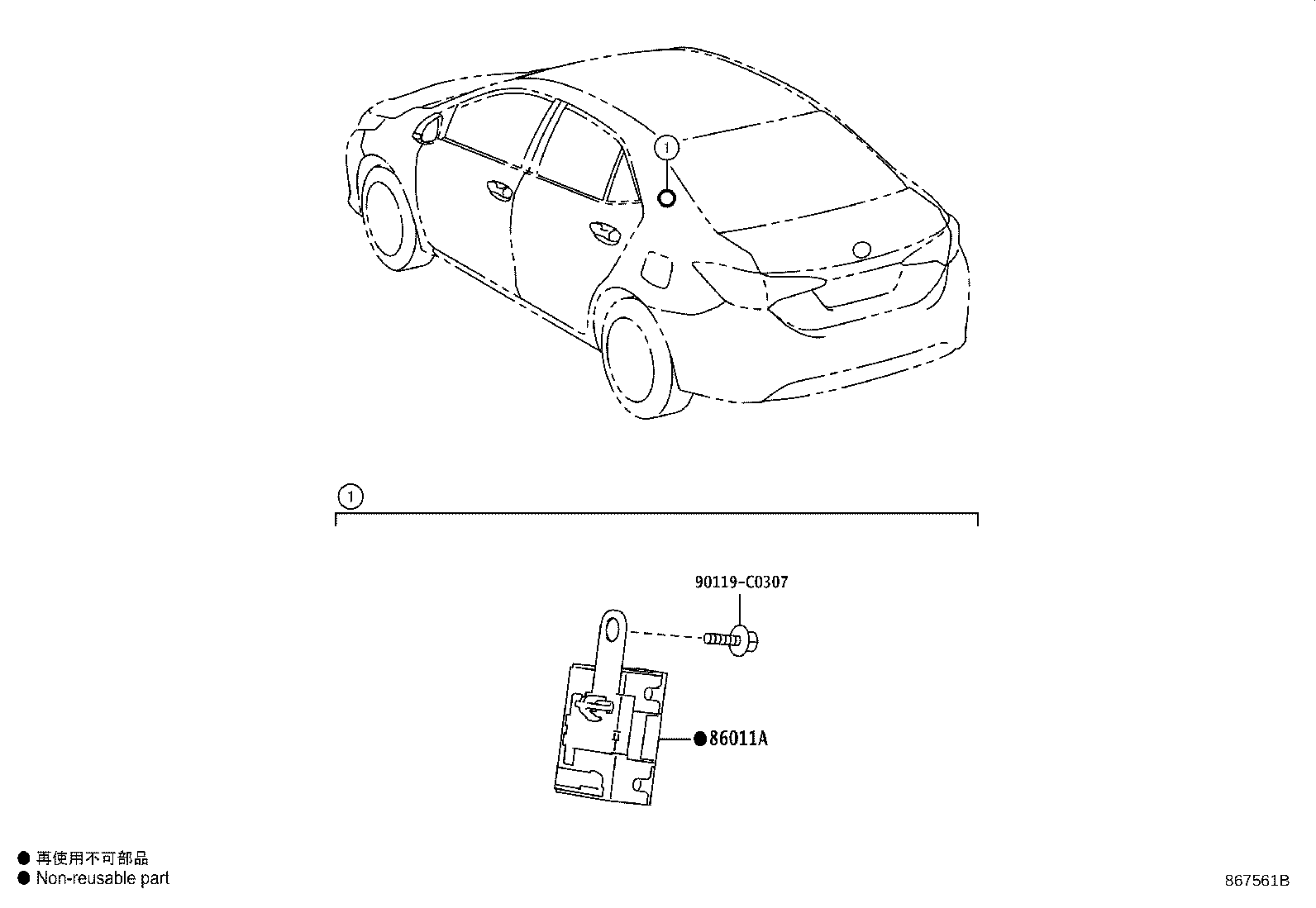

ILLUST NO. 2 OF 2(1904- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 90119C0307
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04204

ZWE183

 1
Common parts
90119-C0307
