ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

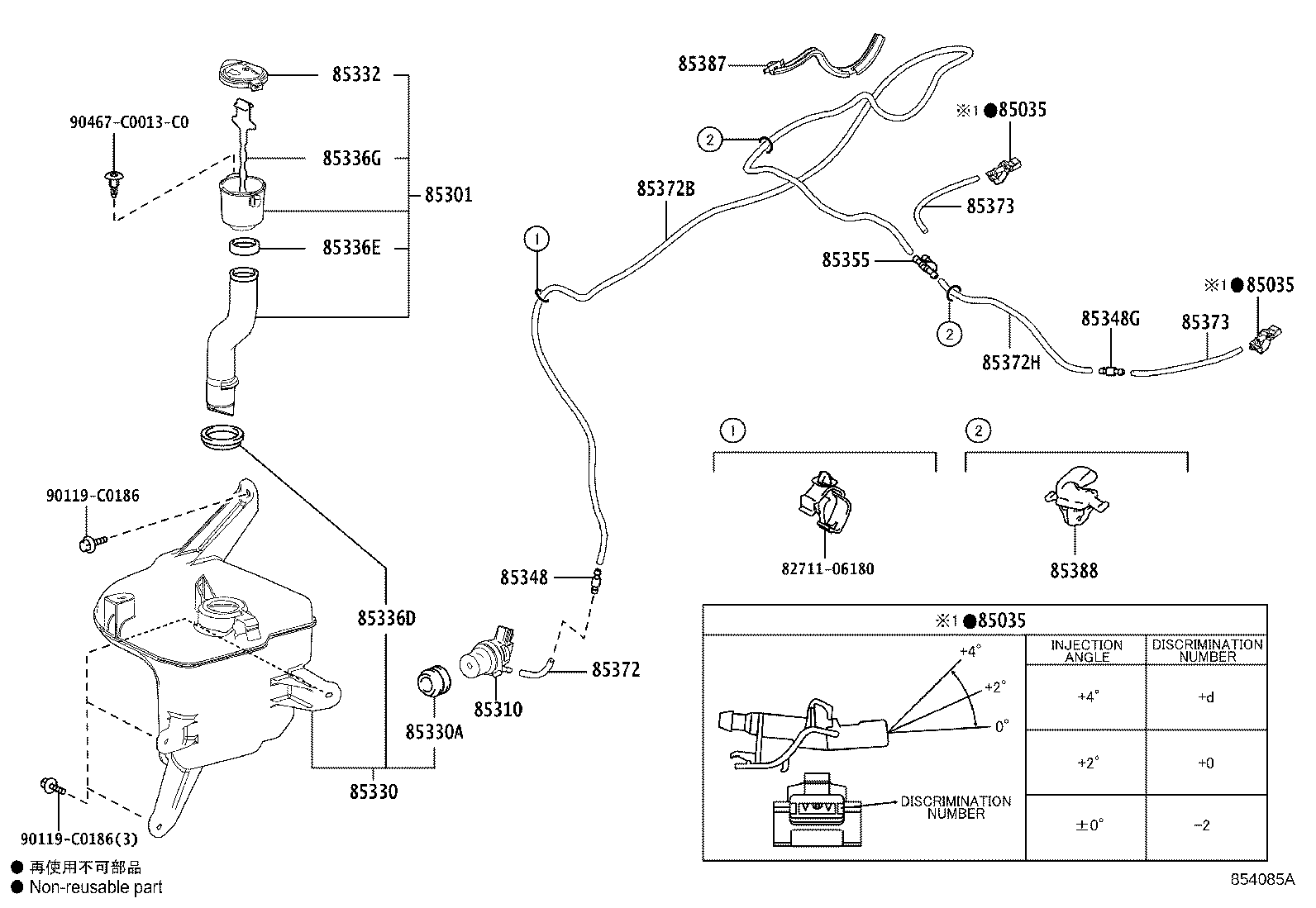

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ZWE183 ANGLE 0 |
2 | ||
| 85381-12420 |
ZWE183 ANGLE +2 |
2 | ||
| 85381-12430 |
ZWE183 ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ZWE183 ANGLE 0 |
2 | ||
| 85381-12420 |
ZWE183 ANGLE +2 |
2 | ||
| 85381-12430 |
ZWE183 ANGLE +4 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12400 |
ZWE183 ANGLE 0 |
2 | ||
| 85381-12420 |
ZWE183 ANGLE +2 |
2 | ||
| 85381-12430 |
ZWE183 ANGLE +4 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-02150 |
ZWE183 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-21010 |
ZWE183 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-02460 |
ZWE183 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
ZWE183 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-02440 |
ZWE183 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
ZWE183 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-42320 |
ZWE183 |
1 | ||
| 85336G - GAGE, WATER LEVEL | ||||
| 85312-0P010 |
ZWE183 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-0E140 |
ZWE183 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-0E140 |
ZWE183 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ZWE183 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33232 |
ZWE183 L=60 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59132 |
ZWE183 L=2100 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-59133 |
ZWE183 L=360 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33231 |
ZWE183 L=170 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33231 |
ZWE183 L=170 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85388-02510 |
ZWE183 |
1 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 85371-12040 |
ZWE183 |
2 | ||
| Common parts | ||||
| 82711-06180 | ||||
| 90119-C0186 | ||||
| 90467-C0013C0 | ||||
