ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

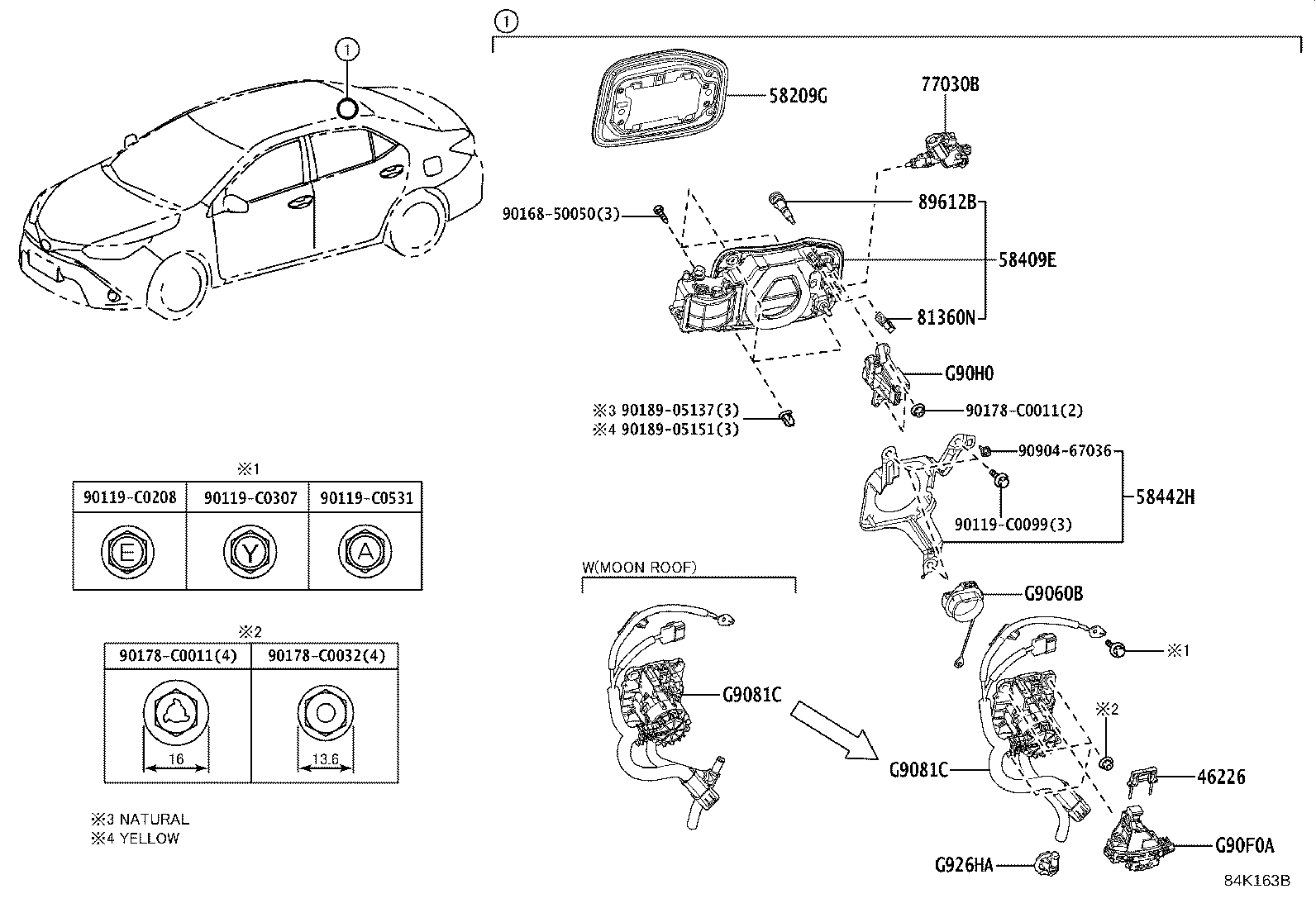

ILLUST NO. 1 OF 2(1904- )
Click highlighted areas on diagram
BATTERY CHARGER LID
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46226 - PIN, CONNECTOR | ||||
| 46226-47010 |
ZWE183 |
1 | ||
| 58209G - COVER SUB-ASSY, BATTERY BOX | ||||
| 58209-12060 |
ZWE183 |
1 | ||
| 58409E - LID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING | ||||
| 58409-12030 |
ZWE183 |
1 | ||
| 58442H - REINFORCEMENT, BATTERY SERVICE HOLE COVER | ||||
| 58442-02020 |
ZWE183 |
1 | ||
| 77030B - LOCK ASSY, CHARGE LID W/MOTOR | ||||
| 77030-02060 |
ZWE183 |
1 | ||
| 81360N - LAMP ASSY, SPOT | ||||
| 81360-47010 |
ZWE183 |
1 | ||
| 89612B - LIFTER, PUSH | ||||
| 89612-12010 |
ZWE183 |
1 | ||
| G9060B - COVER, CONNECTOR | ||||
| 82821-02290 |
ZWE183 |
1 | ||
| G9081C - CABLE, AC CHARGER INLET | ||||
| G9081-02030 |
ZWE183..E |
1 | ||
| G9081-02040 |
ZWE183..G,V |
1 | ||
| G9081C - CABLE, AC CHARGER INLET | ||||
| G9081-02030 |
ZWE183..E |
1 | ||
| G9081-02040 |
ZWE183..G,V |
1 | ||
| G90F0A - LOCK ASSY, CABLE EV CHARGER | ||||
| G90F0-02020 |
ZWE183 |
1 | ||
| G90H0 - INDICATOR ASSY, EV CHARGER LID | ||||
| G90H0-12010 |
ZWE183 |
1 | ||
| G90H0-12011 |
ZWE183 |
1 | ||
| G926HA - GROMMET, EV CHARGER | ||||
| G926H-47010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0099 | ||||
| 90119-C0208 | ||||
| 90119-C0307 | ||||
| 90119-C0531 | ||||
| 90168-50050 | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| 90189-05137 | ||||
| 90189-05151 | ||||
| 90904-67036 | ||||

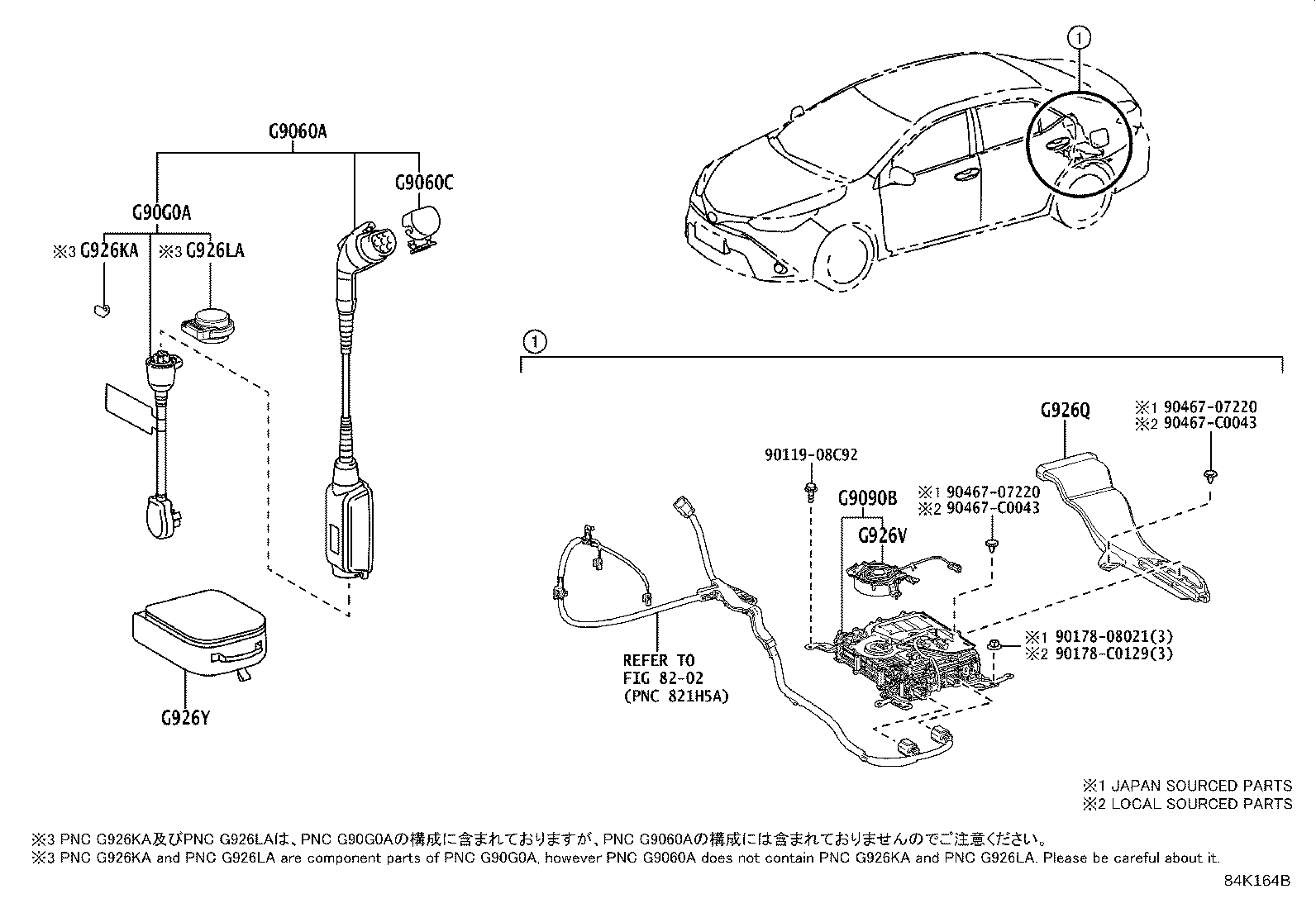

ILLUST NO. 2 OF 2(1904- )
Click highlighted areas on diagram
EV CHARGER & EV CHARGER CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9060A - CABLE ASSY, ELECTRIC VEHICLE CHARGER | ||||
| G9060-F4010 |
ZWE183 |
1 | ||
| G9060-12020 |
ZWE183 |
1 | ||
| G9060C - COVER, CONNECTOR, NO.2 | ||||
| 82821-12730 |
ZWE183 |
1 | ||
| 82821-F4040 |
ZWE183 |
1 | ||
| G9090B - CHARGER ASSY, ELECTRIC VEHICLE | ||||
| G9090-02010 |
ZWE183 |
1 | ||
| G90G0A - PLUG ASSY, CABLE EV CHARGER | ||||
| G90G0-12010 |
ZWE183 |
1 | ||
| G926KA - KEY, PLUG CABLE EV CHARGER | ||||
| G926K-47020 |
ZWE183 |
1 | ||
| G926LA - COVER, PLUG CABLE EV CHARGER | ||||
| G926L-47020 |
ZWE183 |
1 | ||
| G926Q - DUCT, EV CHARGER | ||||
| G926Q-02020 |
ZWE183 |
1 | ||
| G926V - BLOWER, CHARGER COOLING | ||||
| G926V-02010 |
ZWE183 |
1 | ||
| G926Y - BAG, CABLE EV CHARGER | ||||
| G926Y-12010 |
ZWE183 |
1 | ||
| G926Y-02010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-08C92 | ||||
| 90178-08021 | ||||
| 90178-C0129 | ||||
| 90467-07220 | ||||
| 90467-C0043 | ||||
| Linked diagrams | ||||
| 8202 | ||||
