ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

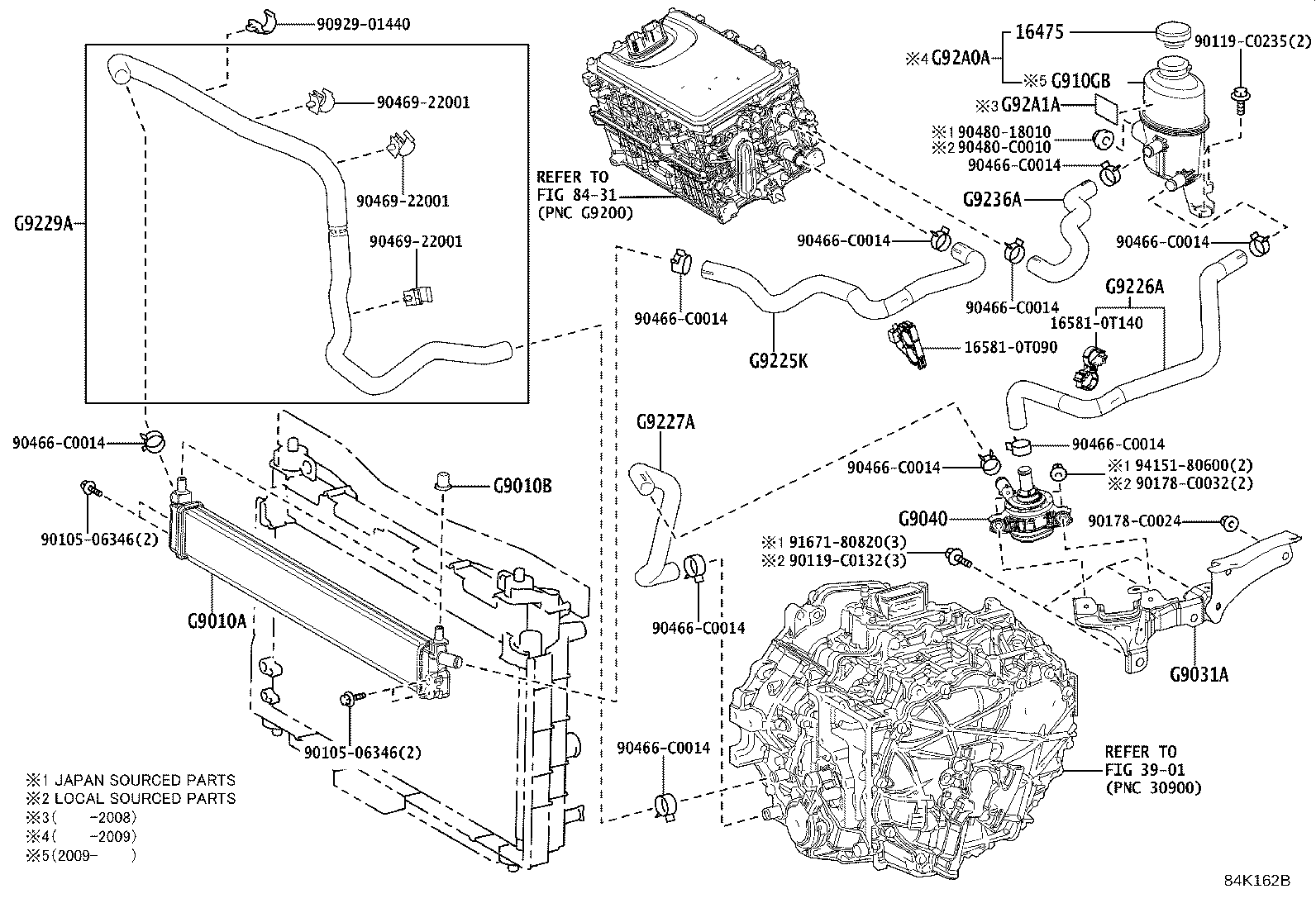

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16475 - CAP, RESERVE TANK | ||||
| 16475-28140 |
8ZRFXE..ZWE183 |
1 | ||
| 16475-0T081 |
8ZRFXE..ZWE183 LOCAL SOURCED PARTS |
1 | ||
| 16475-28140 |
8ZRFXE..ZWE183 JAPAN SOURCED PARTS |
1 | ||
| G9010A - RADIATOR ASSY | ||||
| G9010-12010 |
ZWE183 |
1 | ||
| G9010B - CUSHION, INVERTER RADIATOR | ||||
| 16716-37010 |
ZWE183 |
2 | ||
| G9031A - BRACKET SUB-ASSY, HV WATER PUMP | ||||
| G9031-02020 |
ZWE183 |
1 | ||
| G9040 - INVERTER WATER PUMP ASSY(W/MOTOR) | ||||
| G9040-02040 |
ZWE183 LOCAL SOURCED PARTS |
1 | ||
| G9040-52020 |
ZWE183 JAPAN SOURCED PARTS |
1 | ||
| G9040-52020 |
ZWE183 |
1 | ||
| G910GB - TANK SUB-ASSY, INVERTER RESERVE W/O CAP | ||||
| G910G-02030 |
ZWE183 |
1 | ||
| G9225K - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-02030 |
ZWE183 |
1 | ||
| G9226A - HOSE, INVERTER COOLING, NO.2 | ||||
| G9226-02030 |
ZWE183 |
1 | ||
| G9227A - HOSE, INVERTER COOLING, NO.3 | ||||
| G9227-02030 |
ZWE183 |
1 | ||
| G9229A - HOSE, INVERTER COOLING, NO.5 | ||||
| G9229-02020 |
ZWE183 |
1 | ||
| G9236A - HOSE, INVERTER COOLING, NO.6 | ||||
| G9236-02020 |
ZWE183 |
1 | ||
| G92A0A - TANK ASSY, INVERTER RESERVE | ||||
| G91H0-02040 |
ZWE183 |
1 | ||
| G92A1A - LABEL, HYBRID COOLANT SYSTEM INFORMATION | ||||
| G92A1-76010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 16581-0T090 | ||||
| 16581-0T140 | ||||
| 90105-06346 | ||||
| 90119-C0132 | ||||
| 90119-C0235 | ||||
| 90178-C0024 | ||||
| 90178-C0032 | ||||
| 90466-C0014 | ||||
| 90469-22001 | ||||
| 90480-18010 | ||||
| 90480-C0010 | ||||
| 90929-01440 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 3901 | ||||
| 8431 | ||||
