ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

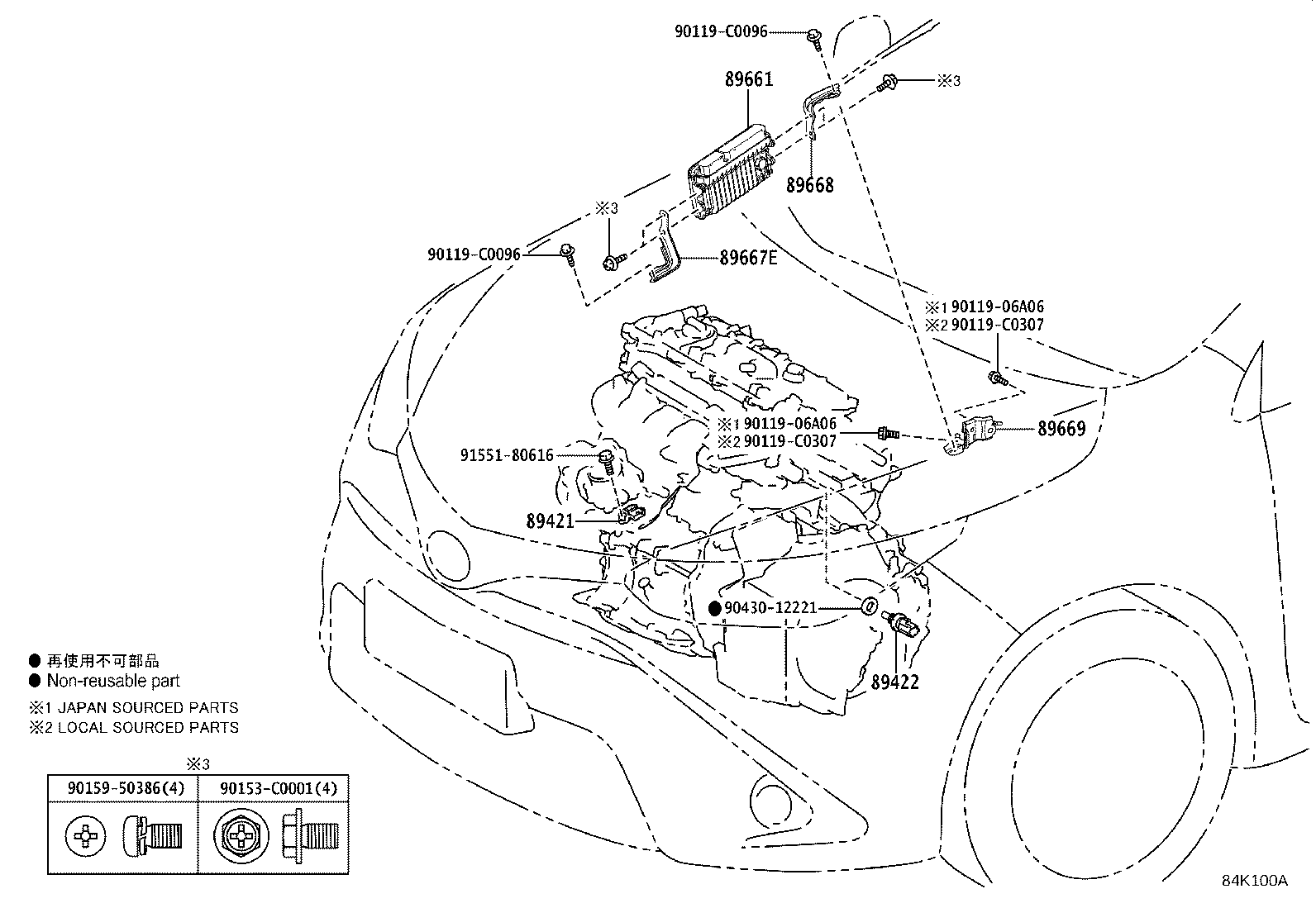

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 89669 9011906A06 9011906A06 90119C0096 90119C0096 90119C0307 90119C0307 90153C0001 9015950386 9043012221 9155180616
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-47010

ZWE183

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-0D010

ZWE183

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02520

ZWE183

DENSO

 1
89666-02530

ZWE183

DENSO,EXHAUST EMISSION CONTROL-CHINA 5

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-02440

ZWE183

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02420

ZWE183

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-02120

ZWE183

 1
Common parts
90119-06A06
90119-C0096
90119-C0307
90153-C0001
90159-50386
90430-12221
91551-80616
