ZWE183L-CEXVBC (2019)
Toyota Levin

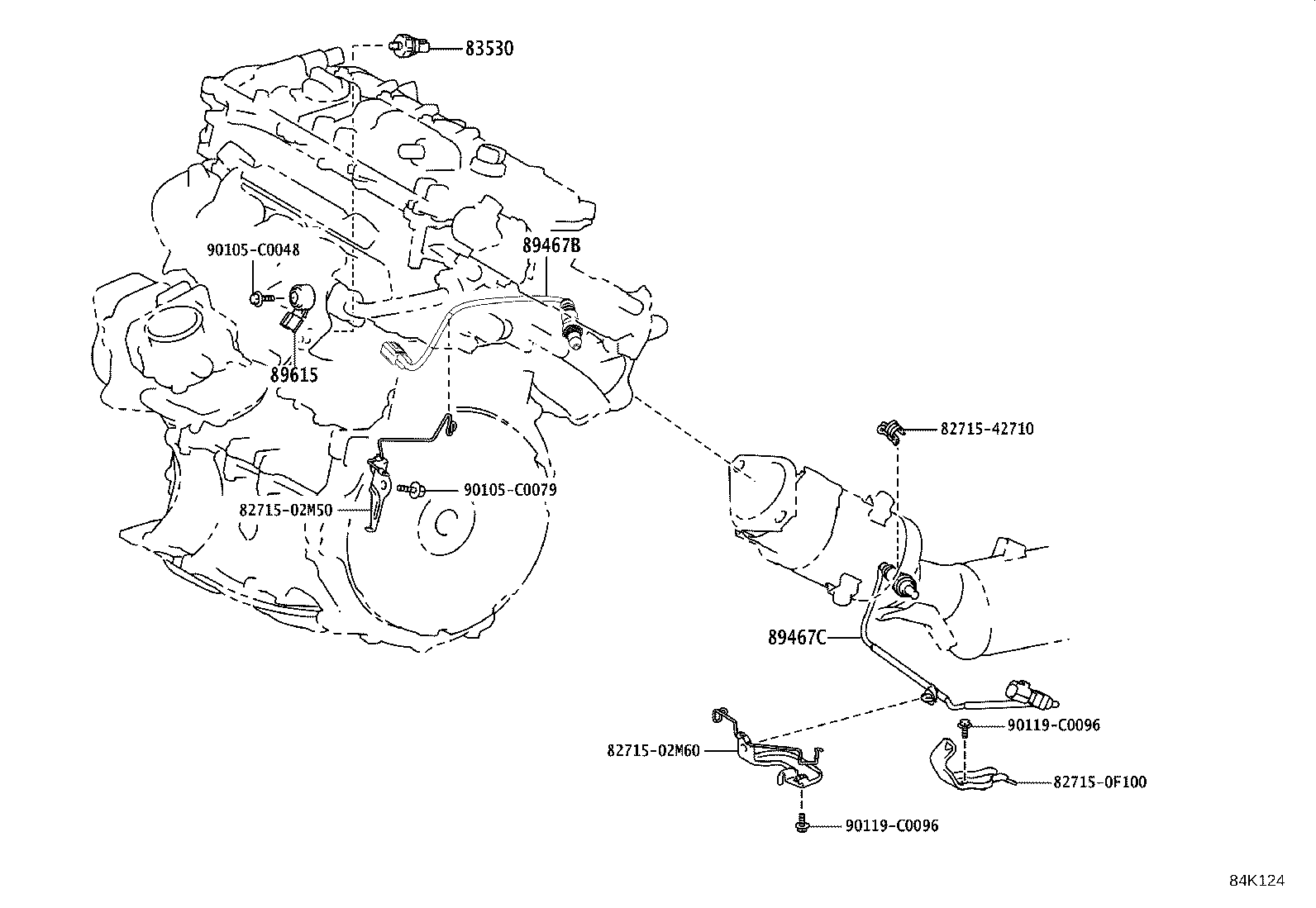

ILLUST NO. 1 OF 6(1904- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZWE183 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0R070 |
ZWE183 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89465-02440 |
ZWE183 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZWE183 |
1 | ||
| Common parts | ||||
| 82715-02M50 | ||||
| 82715-02M60 | ||||
| 82715-0F100 | ||||
| 82715-42710 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90119-C0096 | ||||

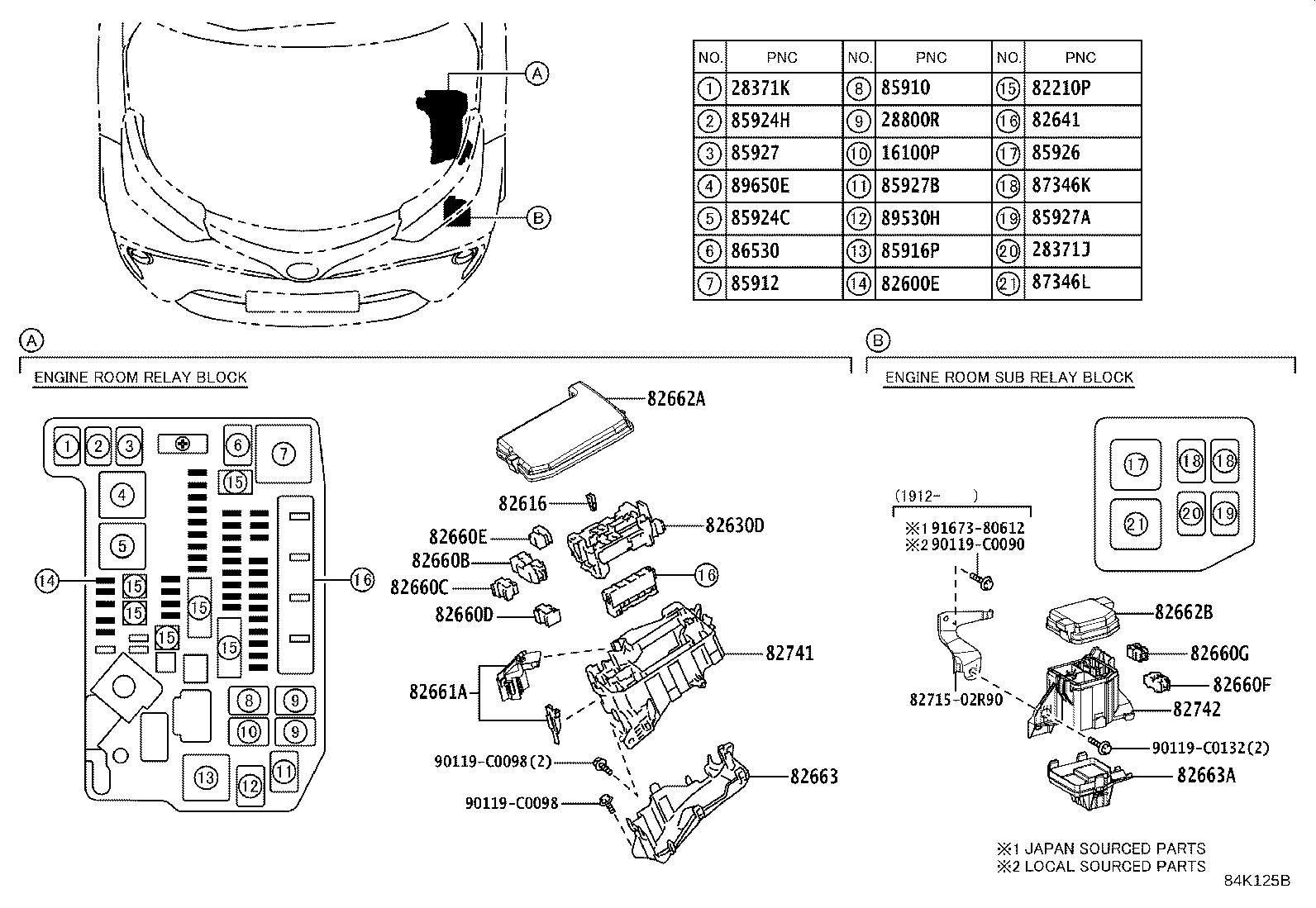

ILLUST NO. 2 OF 6(1904- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
8ZRFXE..ZWE183 (J) |
1 | ||
| 90987-T2005 |
8ZRFXE..ZWE183 (L) |
1 | ||
| 28371J - RELAY, IGB | ||||
| 90987-02027 |
8ZRFXE..ZWE183 (J) |
1 | ||
| 90987-T2005 |
8ZRFXE..ZWE183 (L) |
1 | ||
| 28371K - RELAY, PC | ||||
| 90987-04004 |
8ZRFXE..ZWE183 (J) |
1 | ||
| 90987-T4001 |
8ZRFXE..ZWE183 (L) |
1 | ||
| 28800R - RELAY, BATTERY FAN | ||||
| 90987-T2005 |
8ZRFXE..ZWE183 (L) |
2 | ||
| 90987-02027 |
8ZRFXE..ZWE183 (J) |
2 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
ZWE183 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08300 |
ZWE183 50A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
ZWE183 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ZWE183 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08308 |
ZWE183 40A-30A-30A,FEMALE |
1 | ||
| 90982-08297 |
ZWE183 125A,PINK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
ZWE183 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZWE183 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZWE183 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ZWE183 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
ZWE183 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZWE183 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZWE183 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZWE183 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-02110 |
ZWE183 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ZWE183 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-08010 |
ZWE183 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
ZWE183 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
ZWE183 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
ZWE183 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-60120 |
ZWE183 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
ZWE183 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-02080 |
ZWE183 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02E00 |
ZWE183 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02E10 |
ZWE183 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02080 |
ZWE183 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-02110 |
ZWE183 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02080 |
ZWE183 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-02110 |
ZWE183 |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-T2005 |
ZWE183 (L) |
1 | ||
| 90987-02027 |
ZWE183 (J) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T4002 |
ZWE183 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
ZWE183 |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-T2004 |
ZWE183 (L) |
1 | ||
| 90987-02025 |
ZWE183 (J) |
1 | ||
| 85924H - RELAY, IGCT-SCENE | ||||
| 90987-T2005 |
ZWE183 (L) |
1 | ||
| 90987-02027 |
ZWE183 (J) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2004 |
ZWE183 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T4001 |
ZWE183 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2005 |
ZWE183 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-T4001 |
ZWE183 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
ZWE183 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-T2005 |
ZWE183 |
2 | ||
| 87346L - RELAY, PTC HEATER | ||||
| 90987-T2004 |
ZWE183 |
1 | ||
| 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL | ||||
| 90987-T2005 |
ZWE183 (L) |
1 | ||
| 90987-02027 |
ZWE183 (J) |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-T2004 |
ZWE183 |
1 | ||
| Common parts | ||||
| 82715-02R90 | ||||
| 90119-C0090 | ||||
| 90119-C0098 | ||||
| 90119-C0132 | ||||
| 91673-80612 | ||||

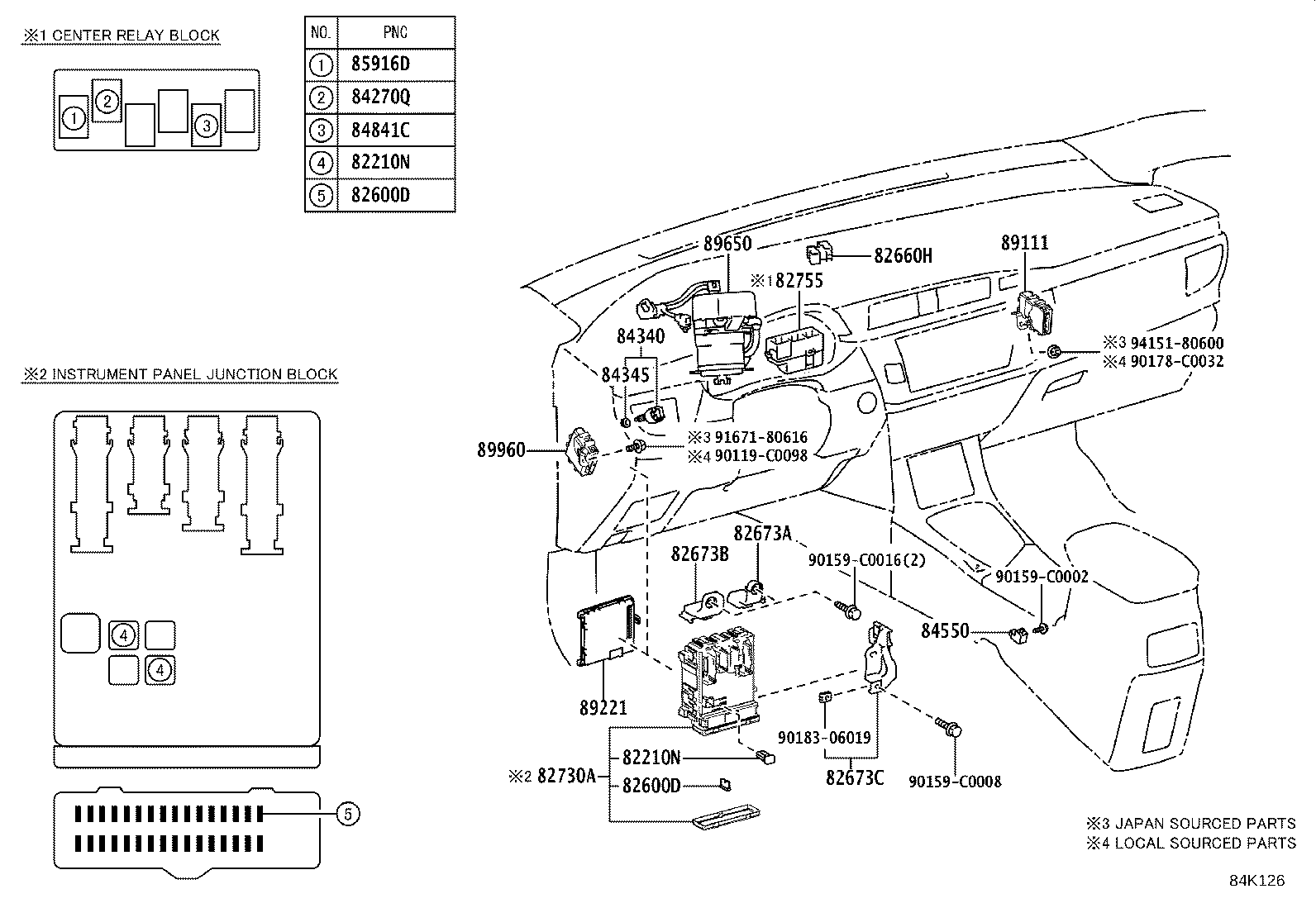

ILLUST NO. 3 OF 6(1904- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZWE183 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZWE183 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ZWE183 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZWE183 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZWE183 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZWE183 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ZWE183 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZWE183 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ZWE183 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZWE183 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZWE183 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZWE183 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ZWE183 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZWE183 25A,MINI FUSE |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
ZWE183 |
2 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02170 |
ZWE183 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02180 |
ZWE183 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-02190 |
ZWE183 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0Z150 |
ZWE183 |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-02060 |
ZWE183 |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-T2005 |
ZWE183 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09240 |
ZWE183 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
ZWE183 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ZWE183 |
1 | ||
| 84841C - RELAY, FUEL LID OPENER | ||||
| 90987-02027 |
ZWE183 (J) |
1 | ||
| 90987-T2005 |
ZWE183 (L) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
ZWE183 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-02111 |
ZWE183 |
1 | ||
| 89100-02113 |
ZWE183 |
1 | ||
| 89100-02112 |
ZWE183 |
1 | ||
| 89100-02110 |
ZWE183 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02N00 |
ZWE183 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12G50 |
ZWE183 DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-12780 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 90159-C0002 | ||||
| 90159-C0008 | ||||
| 90159-C0016 | ||||
| 90178-C0032 | ||||
| 90183-06019 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||

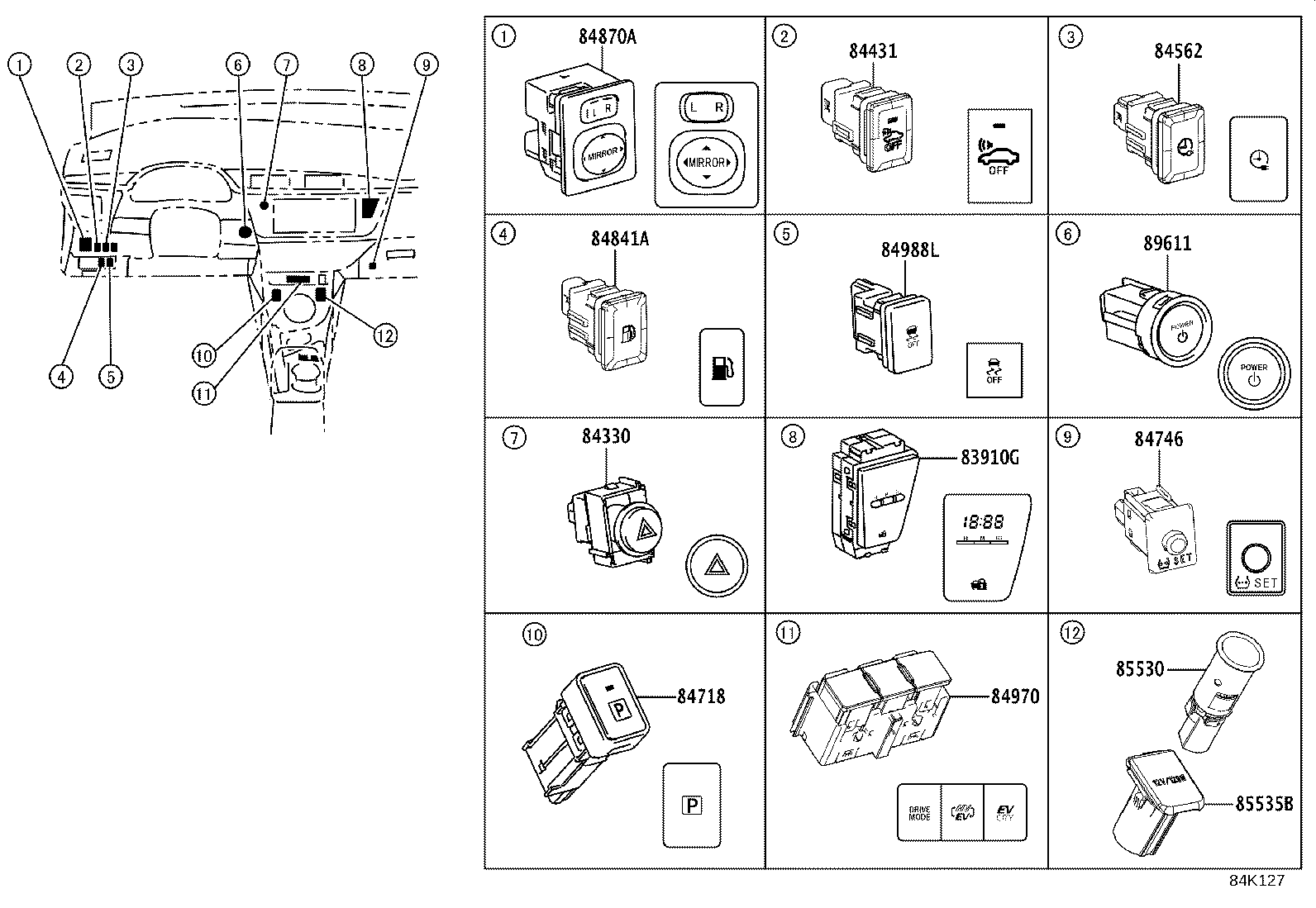

ILLUST NO. 4 OF 6(1904- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02340 |
ZWE183 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02370 |
ZWE183 |
1 | ||
| 84431 - SWITCH, VEHICLE APPROACHING SPEAKER | ||||
| 84431-02020 |
ZWE183 |
1 | ||
| 84562 - SWITCH, FUEL CONTROL | ||||
| 84562-02020 |
ZWE183 |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-02050 |
ZWE183 |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
ZWE183 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-0E051 |
ZWE183 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02230 |
ZWE183 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02280 |
ZWE183 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-02061 |
ZWE183 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0E070 |
ZWE183 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-02100 |
ZWE183 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02162 |
ZWE183 |
1 | ||

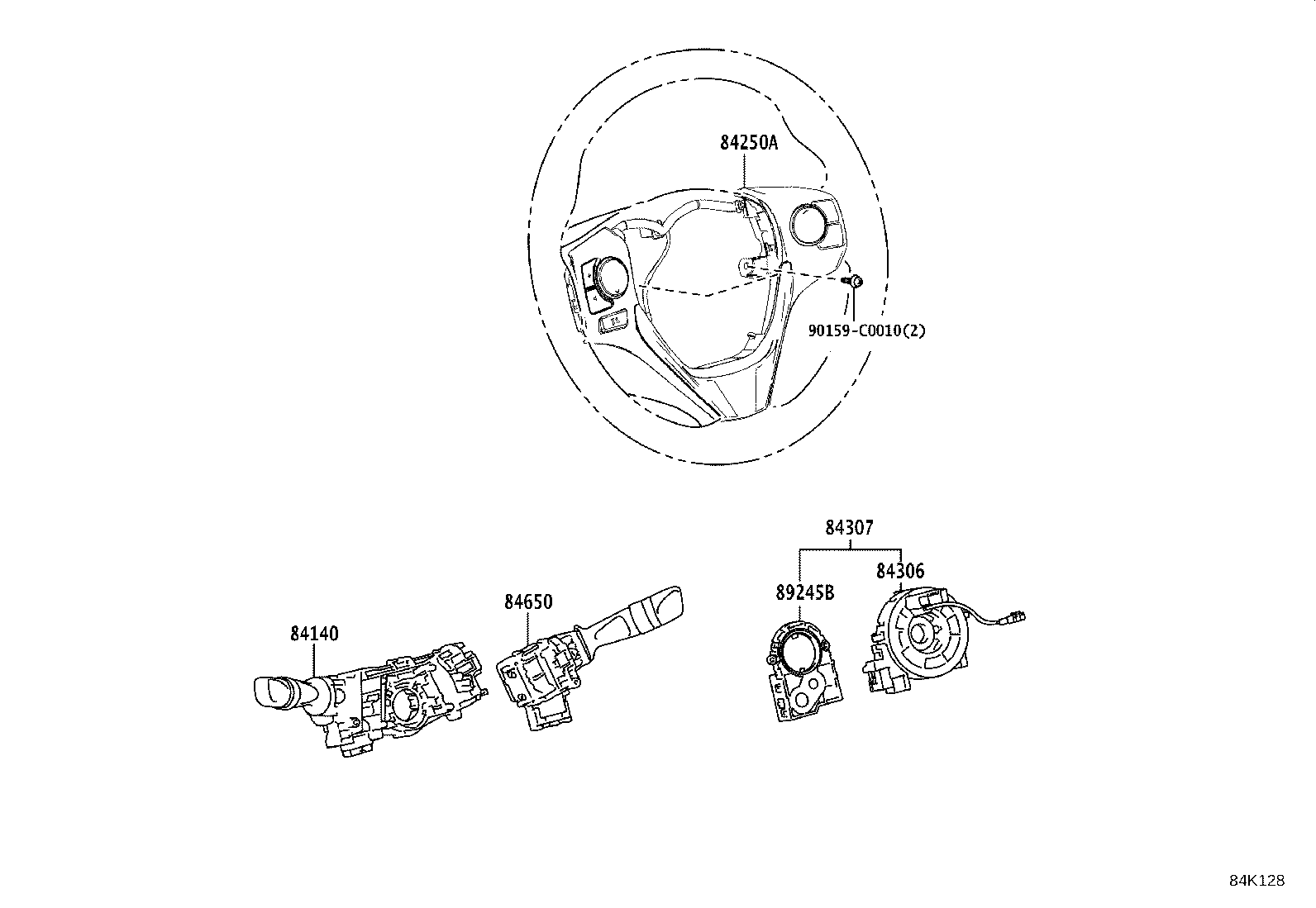

ILLUST NO. 5 OF 6(1904- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0R071 |
ZWE183 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02B70C0 |
ZWE183..V AUDIO-AVN(ACCESSORY) & 4SPEAKER,BLACK,TRIM0#,2#,4# |
1 | ||
| 84250-02B80C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02020 |
ZWE183 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-02320 |
ZWE183 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02880 |
ZWE183 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0N010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90159-C0010 | ||||

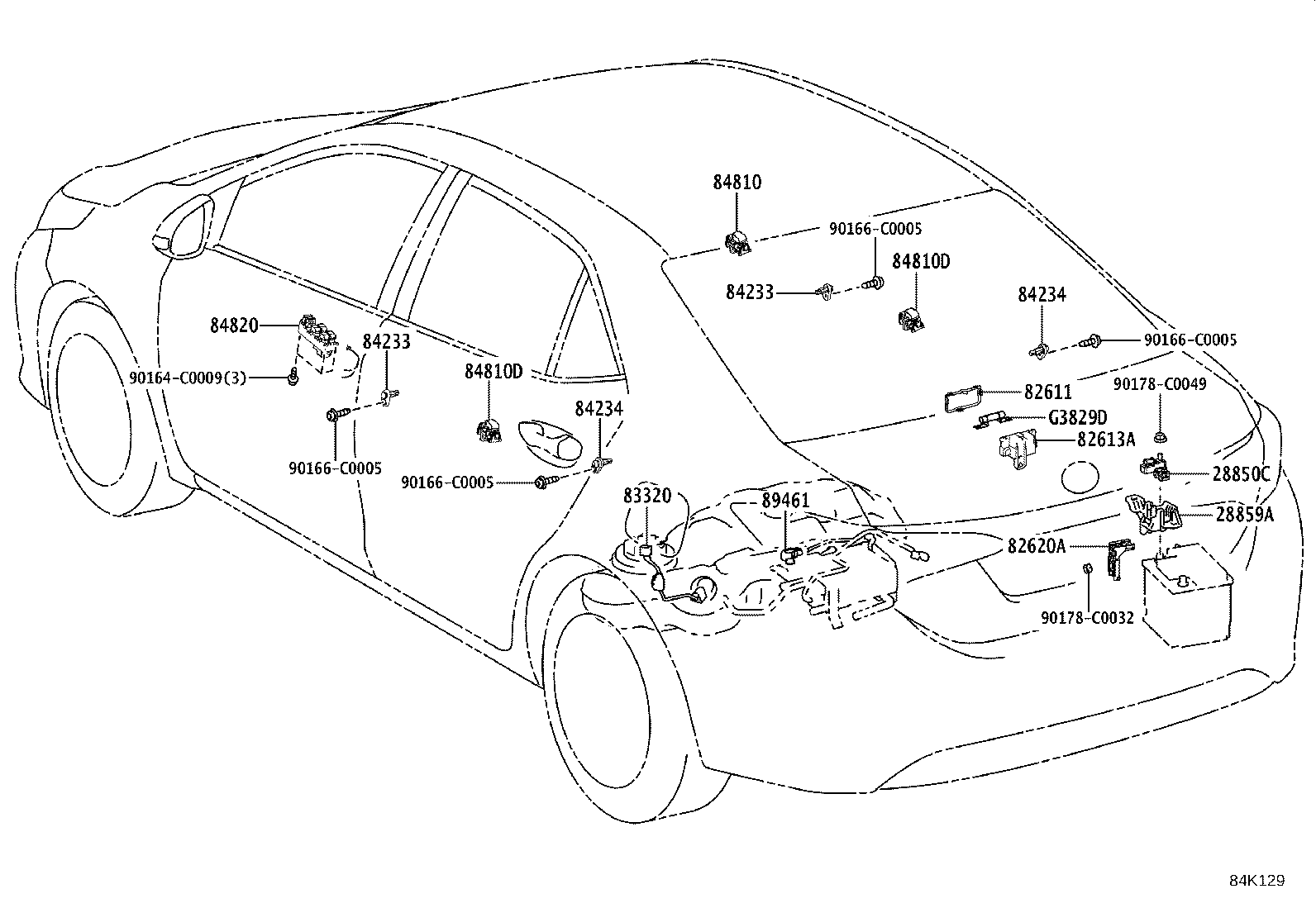

ILLUST NO. 6 OF 6(1904- )
DOOR,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-F0030 |
8ZRFXE..ZWE183 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-0T080 |
8ZRFXE..ZWE183 |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-02040 |
ZWE183 |
1 | ||
| 82613A - BLOCK, FUSE BASE | ||||
| 82613-02010 |
ZWE183 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
ZWE183 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02330 |
ZWE183 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZWE183 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZWE183 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ZWE183 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0R010 |
ZWE183 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06060 |
ZWE183 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06060 |
ZWE183 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06060 |
ZWE183 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02390 |
ZWE183 |
1 | ||
| 89461 - SENSOR, VAPOR PRESSURE | ||||
| 89461-48020 |
ZWE183 |
1 | ||
| G3829D - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90164-C0009 | ||||
| 90166-C0005 | ||||
| 90178-C0032 | ||||
| 90178-C0049 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
