ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 9(1904- )
Click highlighted areas on diagram

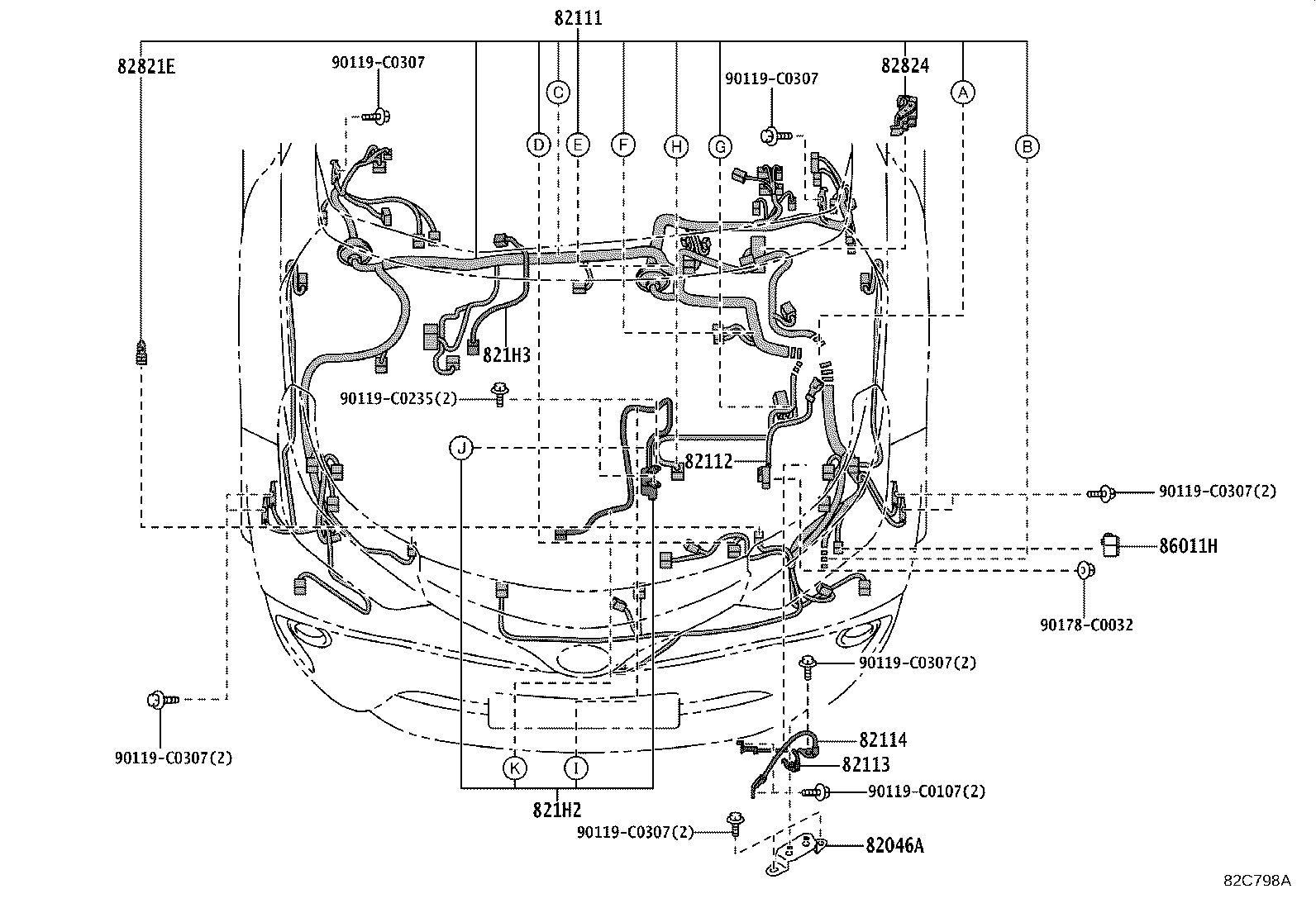

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-02020 |
ZWE183 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-F2281 |
ZWE183 |
1 | ||
| 82115-F2280 |
ZWE183 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-02060 |
ZWE183 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-02050 |
ZWE183 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-02040 |
ZWE183 |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-02120 |
ZWE183 |
1 | ||
| 821H3 - WIRE, HV BATTERY PACK | ||||
| 821H3-02040 |
ZWE183 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-42040 |
ZWE183 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12E30 |
ZWE183 |
1 | ||
| 86011H - FILTER, NOISE | ||||
| 90980-05383 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90119-C0235 | ||||
| 90119-C0307 | ||||
| 90178-C0032 | ||||
ILLUST NO. 1 OF 9(1904- )
Click highlighted areas on diagram

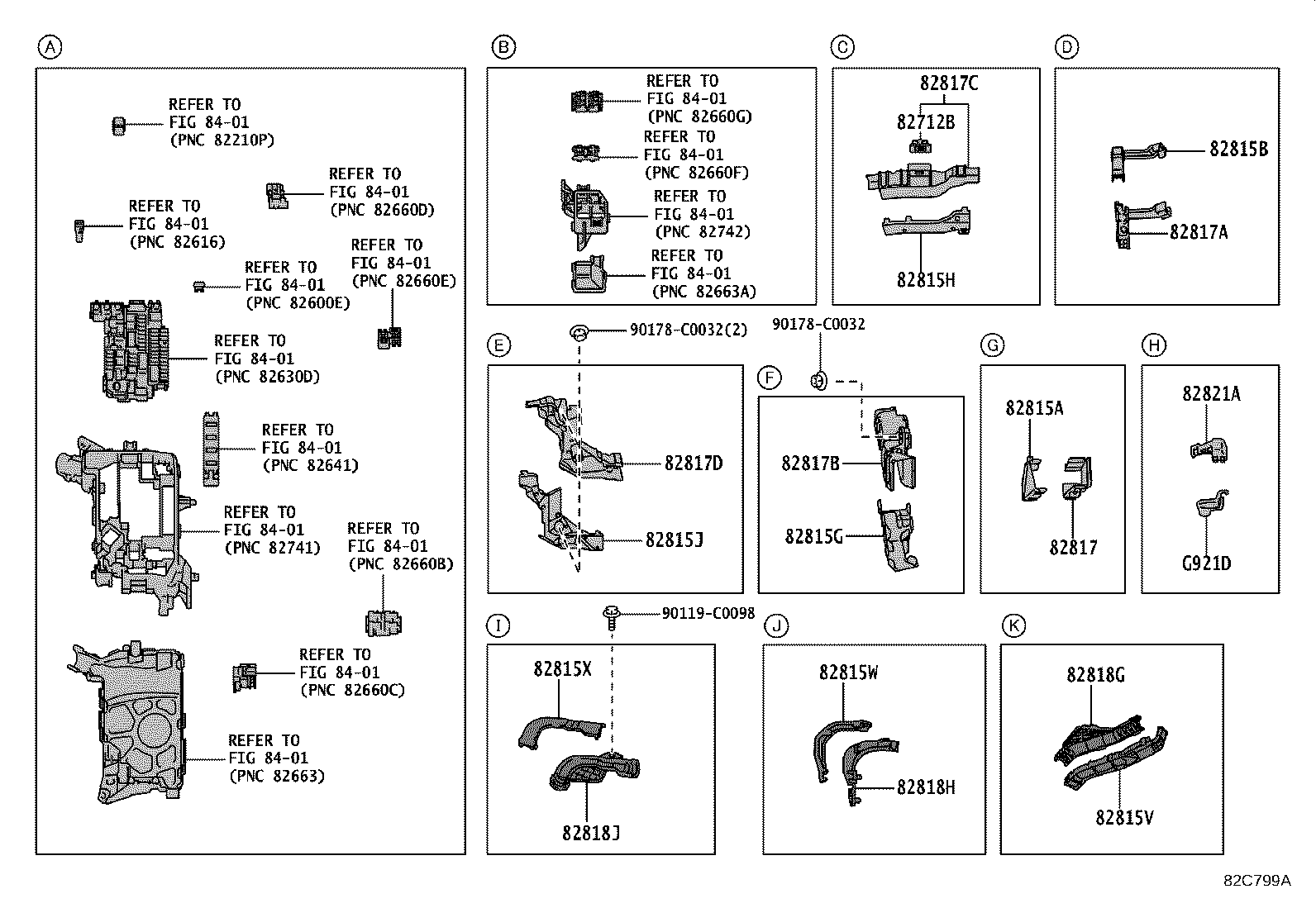

ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82712B - SUPPORT, WIRING HARNESS | ||||
| 82712-47270 |
ZWE183 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47390 |
ZWE183 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47560 |
ZWE183 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-47600 |
ZWE183 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47620 |
ZWE183 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-75050 |
ZWE183 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-02410 |
ZWE183 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-02630 |
ZWE183 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47470 |
ZWE183 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-47620 |
ZWE183 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47800 |
ZWE183 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47850 |
ZWE183 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47870 |
ZWE183 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-75140 |
ZWE183 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02D40 |
ZWE183 |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-02K60 |
ZWE183 |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47700 |
ZWE183 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-47430 |
ZWE183 |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(1904- )
Click highlighted areas on diagram

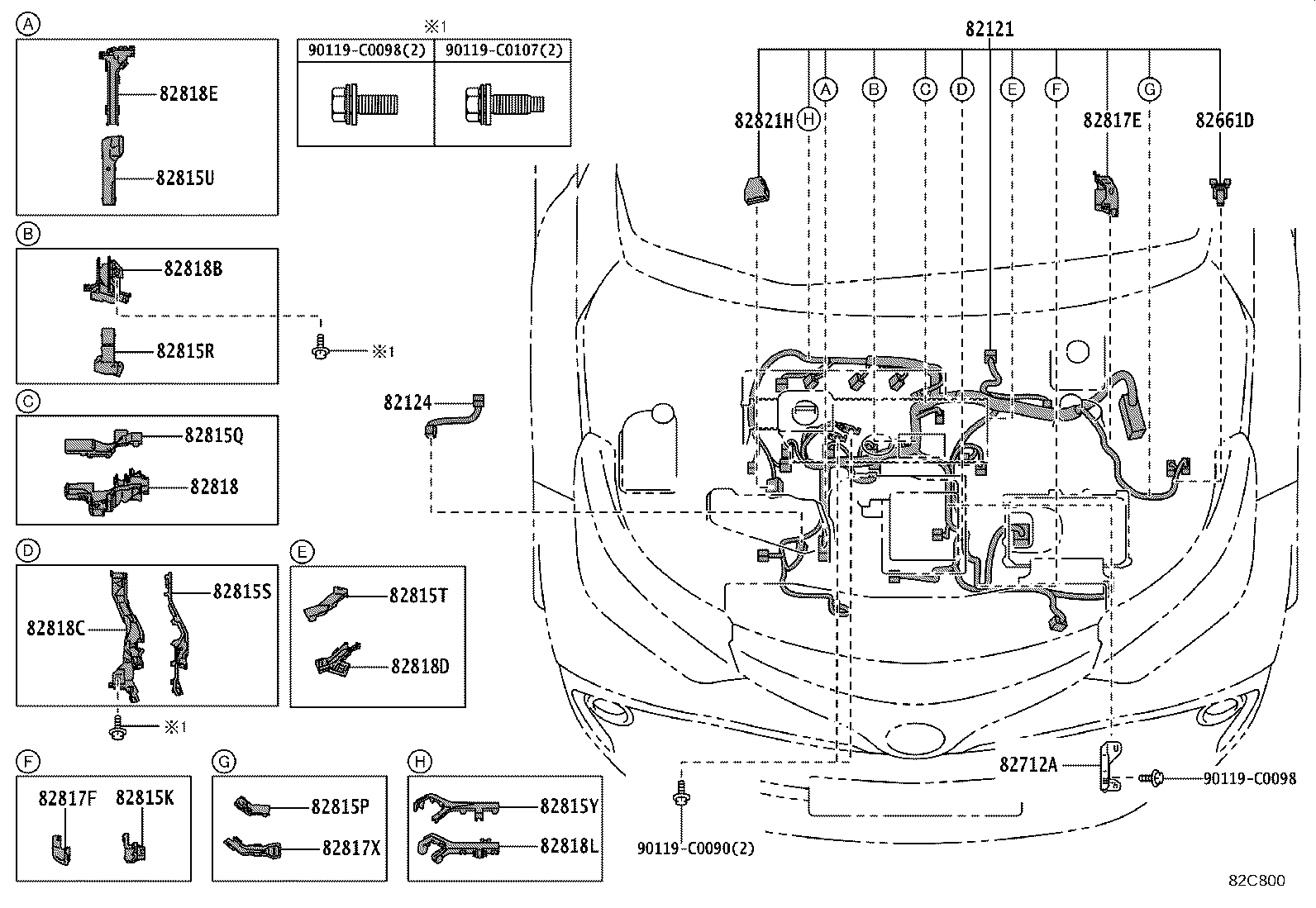

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0ZQ70 |
ZWE183 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02100 |
ZWE183 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-02060 |
ZWE183 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-47340 |
ZWE183 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-02610 |
ZWE183 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-02620 |
ZWE183 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47480 |
ZWE183 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-47490 |
ZWE183 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-47510 |
ZWE183 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-47520 |
ZWE183 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-47541 |
ZWE183 |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-02B50 |
ZWE183 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-02K30 |
ZWE183 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-02K40 |
ZWE183 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-02K50 |
ZWE183 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47720 |
ZWE183 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47730 |
ZWE183 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47750 |
ZWE183 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47760 |
ZWE183 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47781 |
ZWE183 |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02Q10 |
ZWE183 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-20410 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0090 | ||||
| 90119-C0098 | ||||
| 90119-C0107 | ||||
ILLUST NO. 3 OF 9(1904- )
Click highlighted areas on diagram

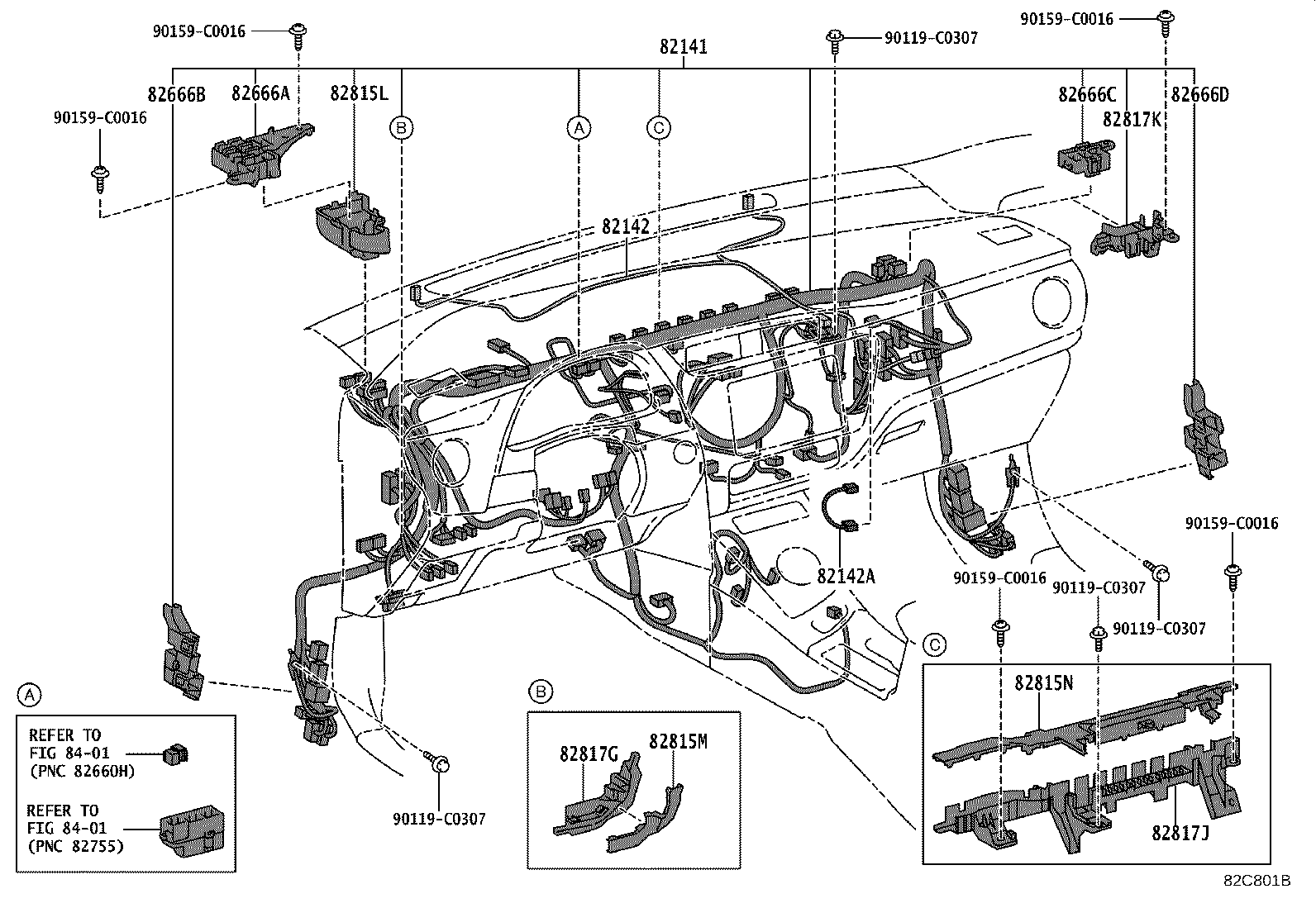

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-F2091 |
ZWE183..E,G |
1 | ||
| 82145-F2090 |
ZWE183..E,G |
1 | ||
| 82145-F2111 |
ZWE183..V AUDIO-AVN(ACCESSORY) & 4SPEAKER |
1 | ||
| 82145-F2110 |
ZWE183..V AUDIO-AVN(ACCESSORY) & 4SPEAKER |
1 | ||
| 82145-F2101 |
ZWE183..V |
1 | ||
| 82145-F2100 |
ZWE183..V |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02D80 |
ZWE183 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02490 |
ZWE183 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02570 |
ZWE183 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02580 |
ZWE183 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02590 |
ZWE183 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02600 |
ZWE183 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02550 |
ZWE183 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-02560 |
ZWE183 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-02570 |
ZWE183 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02G20 |
ZWE183 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-02G30 |
ZWE183 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-02G40 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0307 | ||||
| 90159-C0016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(1904- )
Click highlighted areas on diagram

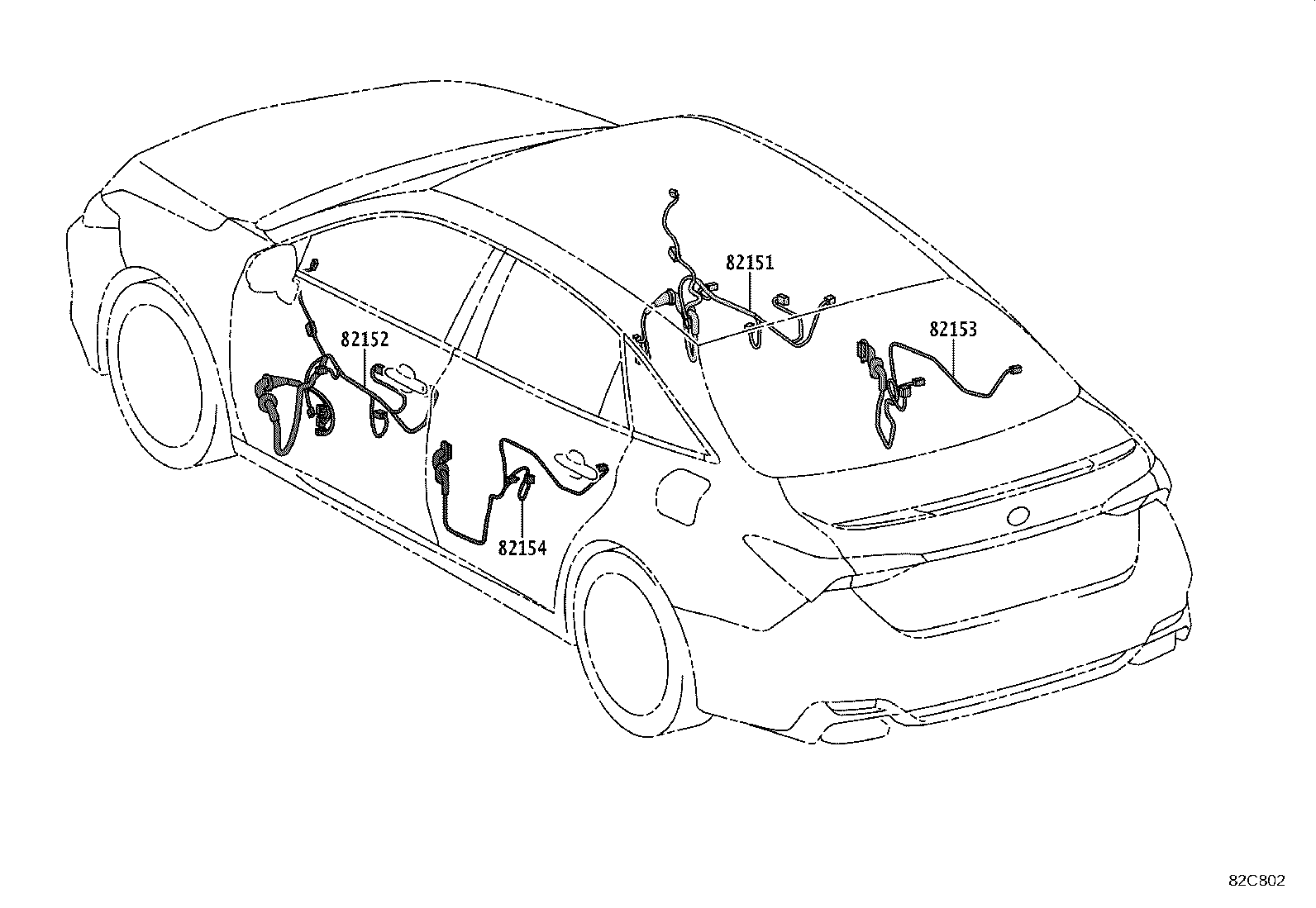

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0ZF30 |
ZWE183..V |
1 | ||
| 82151-0ZF20 |
ZWE183..E,G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0ZD20 |
ZWE183..E,G |
1 | ||
| 82152-0ZE20 |
ZWE183..V |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02D00 |
ZWE183 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02B30 |
ZWE183 |
1 | ||
ILLUST NO. 5 OF 9(1904- )
Click highlighted areas on diagram

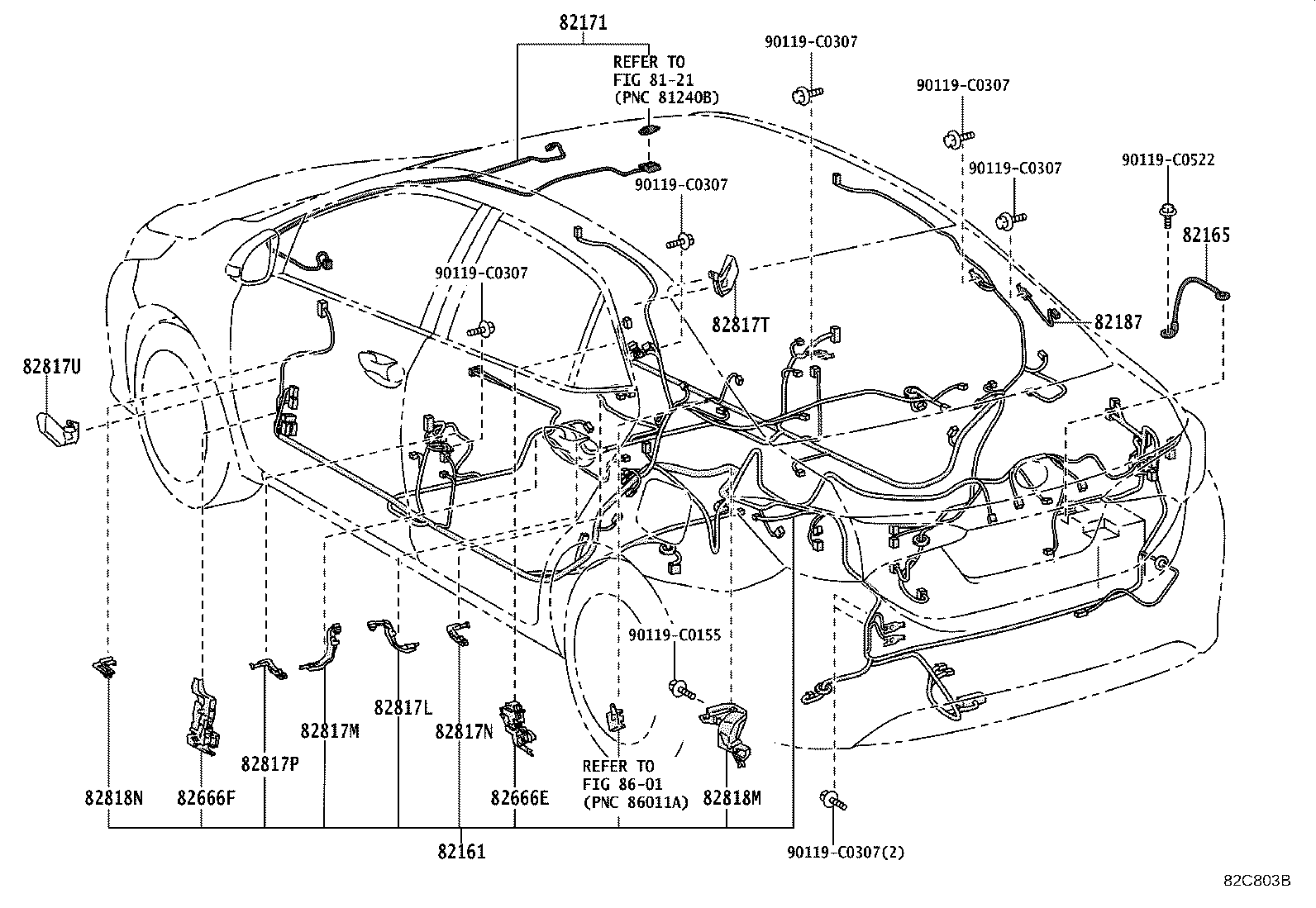

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F2S40 |
ZWE183..G,V |
1 | ||
| 82199-0ZS60 |
ZWE183..G,V AUDIO-AVN(ACCESSORY) & 4SPEAKER |
1 | ||
| 82199-0ZS70 |
ZWE183..E |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-02140 |
ZWE183 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0Z791 |
ZWE183..E |
1 | ||
| 82171-0ZA00 |
ZWE183..G,V AUDIO-AVN(ACCESSORY) & 4SPEAKER |
1 | ||
| 82171-0Z791 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 82171-0Z890 |
ZWE183..G,V |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02280 |
ZWE183 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02610 |
ZWE183 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02620 |
ZWE183 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02G70 |
ZWE183 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02G80 |
ZWE183 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-02J40 |
ZWE183 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-02J20 |
ZWE183 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-02F10 |
ZWE183 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-02F20 |
ZWE183 |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-02P40 |
ZWE183 |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-02T90 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0155 | ||||
| 90119-C0307 | ||||
| 90119-C0522 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
ILLUST NO. 6 OF 9(1904- )
Click highlighted areas on diagram

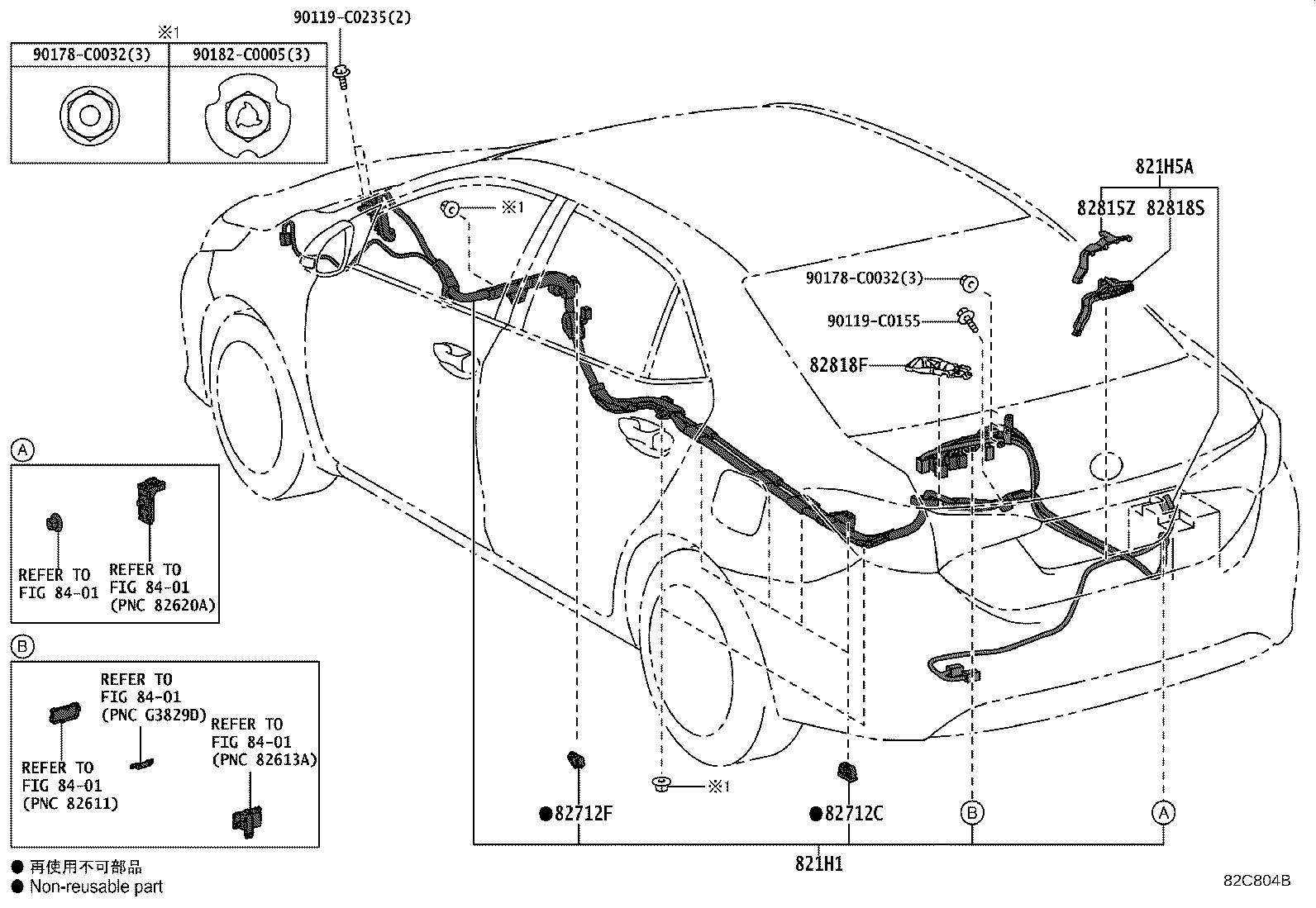

HIGH TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-02120 |
ZWE183 |
1 | ||
| 821H5A - WIRE, HV BATTERY CHARGER | ||||
| 821H5-02020 |
ZWE183 |
1 | ||
| 82712C - SUPPORT, WIRING HARNESS, NO.1 | ||||
| 82712-47270 |
ZWE183 |
4 | ||
| 82712F - SUPPORT, WIRING HARNESS | ||||
| 82712-33190 |
ZWE183 |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-02J80 |
ZWE183 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-02P50 |
ZWE183 |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-02U10 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0155 | ||||
| 90119-C0235 | ||||
| 90178-C0032 | ||||
| 90182-C0005 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 9(1904- )
Click highlighted areas on diagram

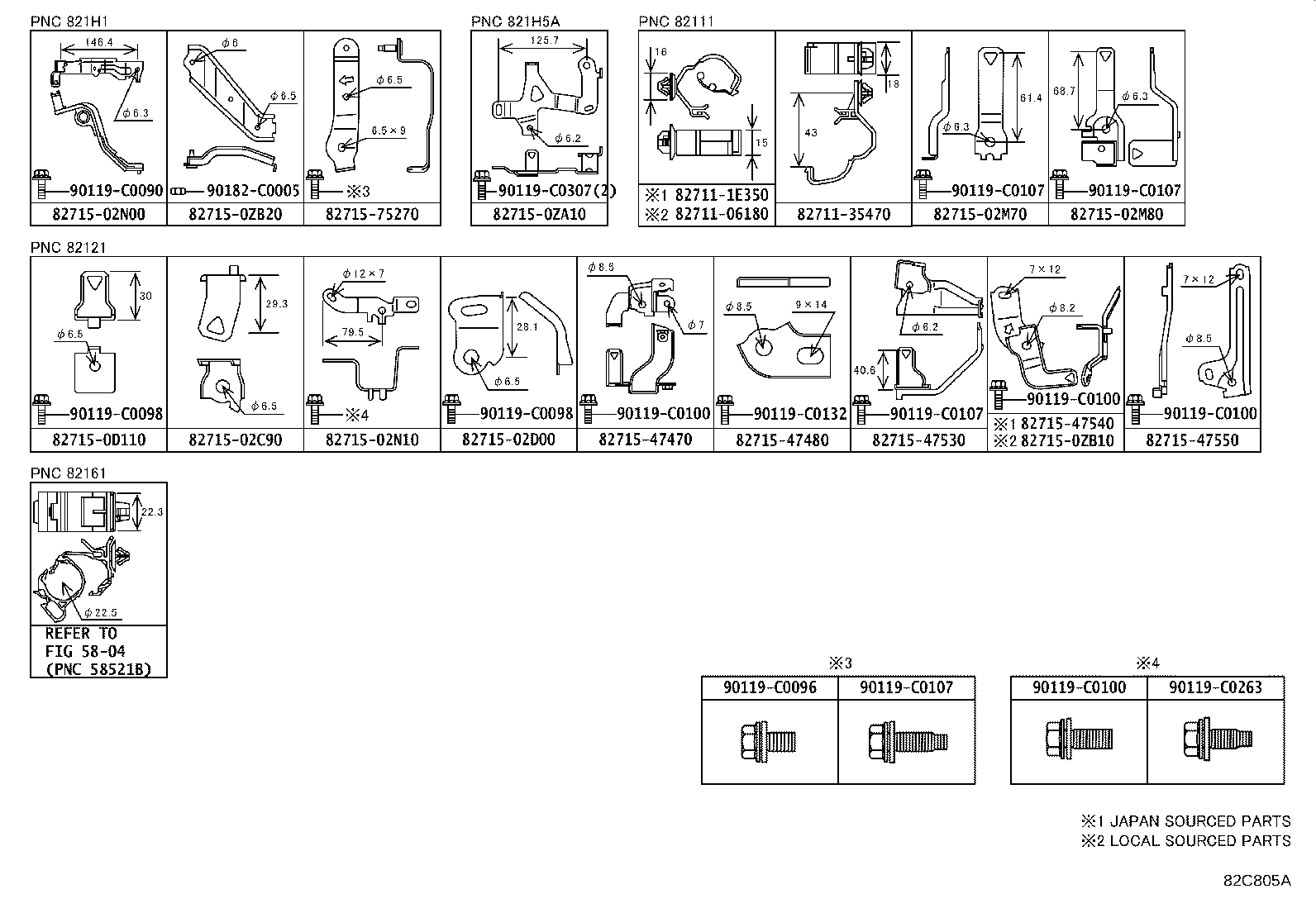

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-06180 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-02C90 | ||||
| 82715-02D00 | ||||
| 82715-02M70 | ||||
| 82715-02M80 | ||||
| 82715-02N00 | ||||
| 82715-02N10 | ||||
| 82715-0D110 | ||||
| 82715-0ZA10 | ||||
| 82715-0ZB10 | ||||
| 82715-0ZB20 | ||||
| 82715-47470 | ||||
| 82715-47480 | ||||
| 82715-47530 | ||||
| 82715-47540 | ||||
| 82715-47550 | ||||
| 82715-75270 | ||||
| 90119-C0090 | ||||
| 90119-C0096 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 90119-C0263 | ||||
| 90119-C0307 | ||||
| 90182-C0005 | ||||
| Linked diagrams | ||||
| 5804 | ||||

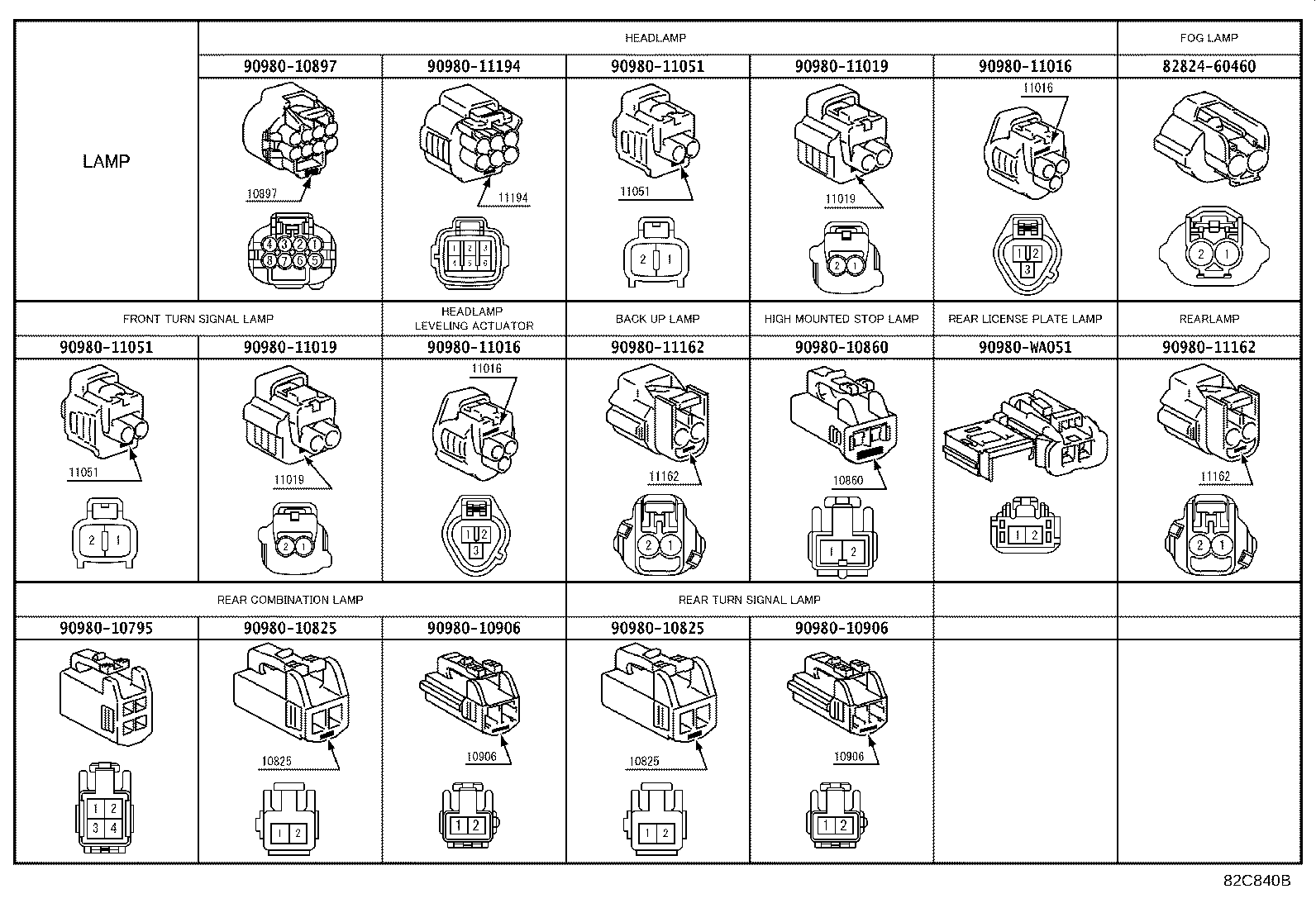

ILLUST NO. 8 OF 9(1904- )
Click highlighted areas on diagram
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10906 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11051 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-WA051 | ||||
ILLUST NO. 9 OF 9(1904- )
Click highlighted areas on diagram
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12490 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12B01 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
