ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

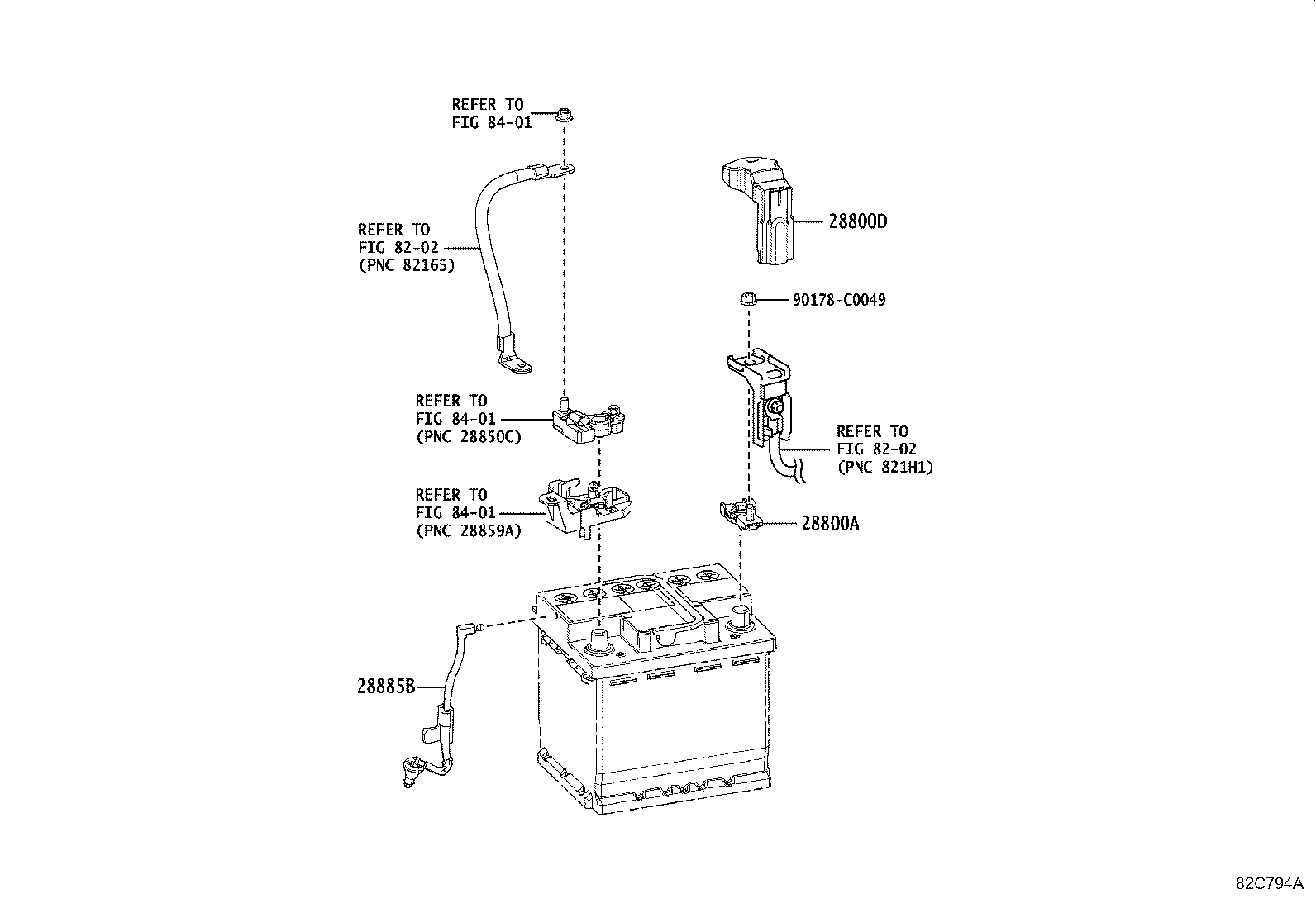

ILLUST NO. 1 OF 4(1904- )
Click highlighted areas on diagram
12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05061 |
8ZRFXE..ZWE183 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-47110 |
8ZRFXE..ZWE183 |
1 | ||
| 28885B - HOSE, BATTERY | ||||
| 28885-0T020 |
8ZRFXE..ZWE183 |
1 | ||
| Common parts | ||||
| 90178-C0049 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

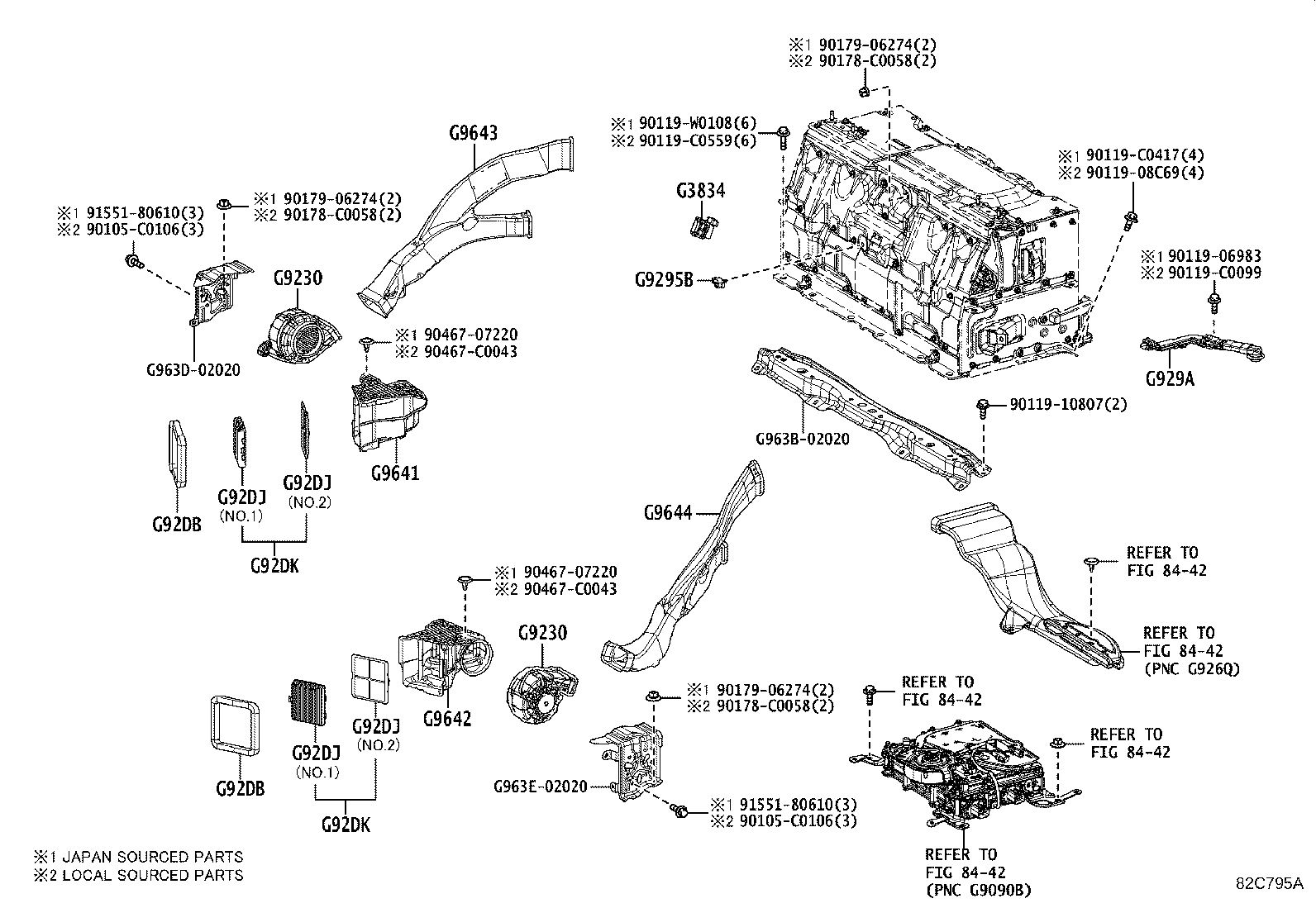

ILLUST NO. 2 OF 4(1904- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-02010 |
ZWE183 |
1 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-06010 |
ZWE183 |
2 | ||
| G9230-33050 |
ZWE183 |
2 | ||
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-06010 |
ZWE183 |
2 | ||
| G9230-33050 |
ZWE183 |
2 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-02010 |
ZWE183 |
1 | ||
| G929A - HOSE, HV BATTERY, NO.1 | ||||
| G9651-02020 |
ZWE183 |
1 | ||
| G92DB - SEAL, HYBRID BATTERY, NO.1 | ||||
| G92DB-02060 |
ZWE183 |
2 | ||
| G92DB - SEAL, HYBRID BATTERY, NO.1 | ||||
| G92DB-02060 |
ZWE183 |
2 | ||
| G92DJ - FILTER, HV BATTERY INTAKE, NO.2 | ||||
| G92DJ-02050 |
ZWE183 NO.2 |
2 | ||
| G92DJ-02040 |
ZWE183 NO.1 |
2 | ||
| G92DJ - FILTER, HV BATTERY INTAKE, NO.2 | ||||
| G92DJ-02050 |
ZWE183 NO.2 |
2 | ||
| G92DJ-02040 |
ZWE183 NO.1 |
2 | ||
| G92DJ - FILTER, HV BATTERY INTAKE, NO.2 | ||||
| G92DJ-02050 |
ZWE183 NO.2 |
2 | ||
| G92DJ-02040 |
ZWE183 NO.1 |
2 | ||
| G92DJ - FILTER, HV BATTERY INTAKE, NO.2 | ||||
| G92DJ-02050 |
ZWE183 NO.2 |
2 | ||
| G92DJ-02040 |
ZWE183 NO.1 |
2 | ||
| G92DK - FILTER, HV BATTERY INTAKE, NO.3 | ||||
| G92DK-02010 |
ZWE183 |
2 | ||
| G92DK - FILTER, HV BATTERY INTAKE, NO.3 | ||||
| G92DK-02010 |
ZWE183 |
2 | ||
| G9641 - DUCT, TRACTION BATTERY, NO.1 | ||||
| G9641-02020 |
ZWE183 |
1 | ||
| G9642 - DUCT, TRACTION BATTERY, NO.2 | ||||
| G9642-02020 |
ZWE183 |
1 | ||
| G9643 - DUCT, TRACTION BATTERY, NO.3 | ||||
| G9643-02020 |
ZWE183 |
1 | ||
| G9644 - DUCT, TRACTION BATTERY, NO.4 | ||||
| G9644-02020 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0106 | ||||
| 90119-06983 | ||||
| 90119-08C69 | ||||
| 90119-10807 | ||||
| 90119-C0099 | ||||
| 90119-C0417 | ||||
| 90119-C0559 | ||||
| 90119-W0108 | ||||
| 90178-C0058 | ||||
| 90179-06274 | ||||
| 90467-07220 | ||||
| 90467-C0043 | ||||
| 91551-80610 | ||||
| G963B-02020 | ||||
| G963D-02020 | ||||
| G963E-02020 | ||||
| Linked diagrams | ||||
| 8442 | ||||

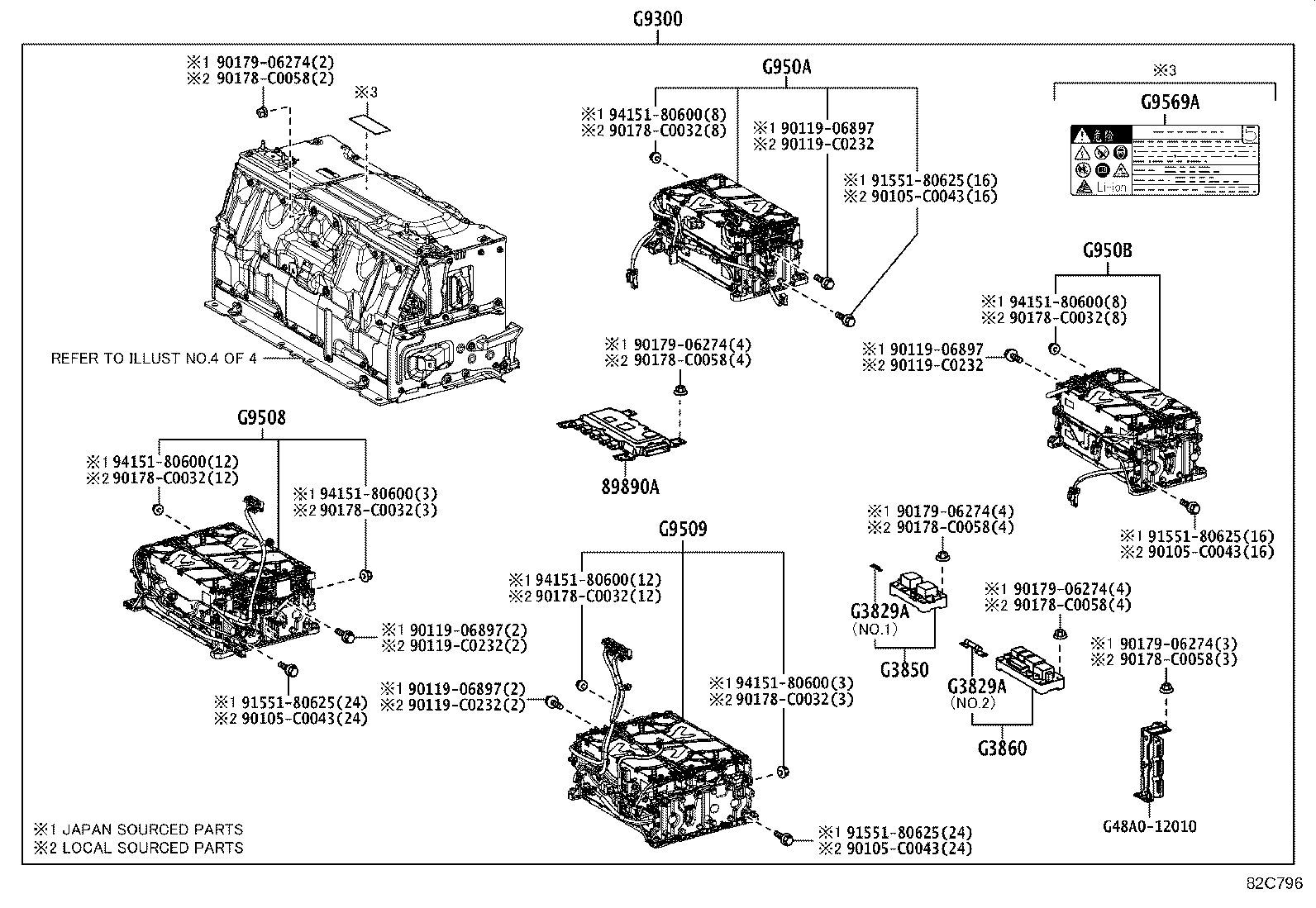

ILLUST NO. 3 OF 4(1904- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89890A - COMPUTER ASSY, BATTERY | ||||
| 89890-12010 |
ZWE183 DENSO |
1 | ||
| 89890-12011 |
ZWE183 DENSO |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZWE183 30A,NO.1 |
1 | ||
| G3829-12010 |
ZWE183 185A,NO.2 |
1 | ||
| G3829A - FUSE, ELECTRIC VEHICLE | ||||
| G3829-48010 |
ZWE183 30A,NO.1 |
1 | ||
| G3829-12010 |
ZWE183 185A,NO.2 |
1 | ||
| G3850 - BOX ASSY, TRACTION BATTERY DEVICE, NO.1 | ||||
| G3850-02020 |
ZWE183 |
1 | ||
| G3860 - BOX ASSY, TRACTION BATTERY DEVICE, NO.2 | ||||
| G3860-02020 |
ZWE183 |
1 | ||
| G9300 - BATTERY ASSY, TRACTION SUPPLY | ||||
| G9300-02010 |
ZWE183 |
1 | ||
| G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1 | ||||
| G9301-02010 |
ZWE183 |
1 | ||
| G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2 | ||||
| G9302-02010 |
ZWE183 |
1 | ||
| G950A - STACK SUB-ASSY, HV SUPPLY, NO.3 | ||||
| G9303-02010 |
ZWE183 |
1 | ||
| G950B - STACK SUB-ASSY, HV SUPPLY, NO.4 | ||||
| G9304-02010 |
ZWE183 |
1 | ||
| G9569A - LABEL, LITHIUM ION BATTERY CAUTION | ||||
| G9569-11010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0043 | ||||
| 90119-06897 | ||||
| 90119-C0232 | ||||
| 90178-C0032 | ||||
| 90178-C0058 | ||||
| 90179-06274 | ||||
| 91551-80625 | ||||
| 94151-80600 | ||||
| G48A0-12010 | ||||

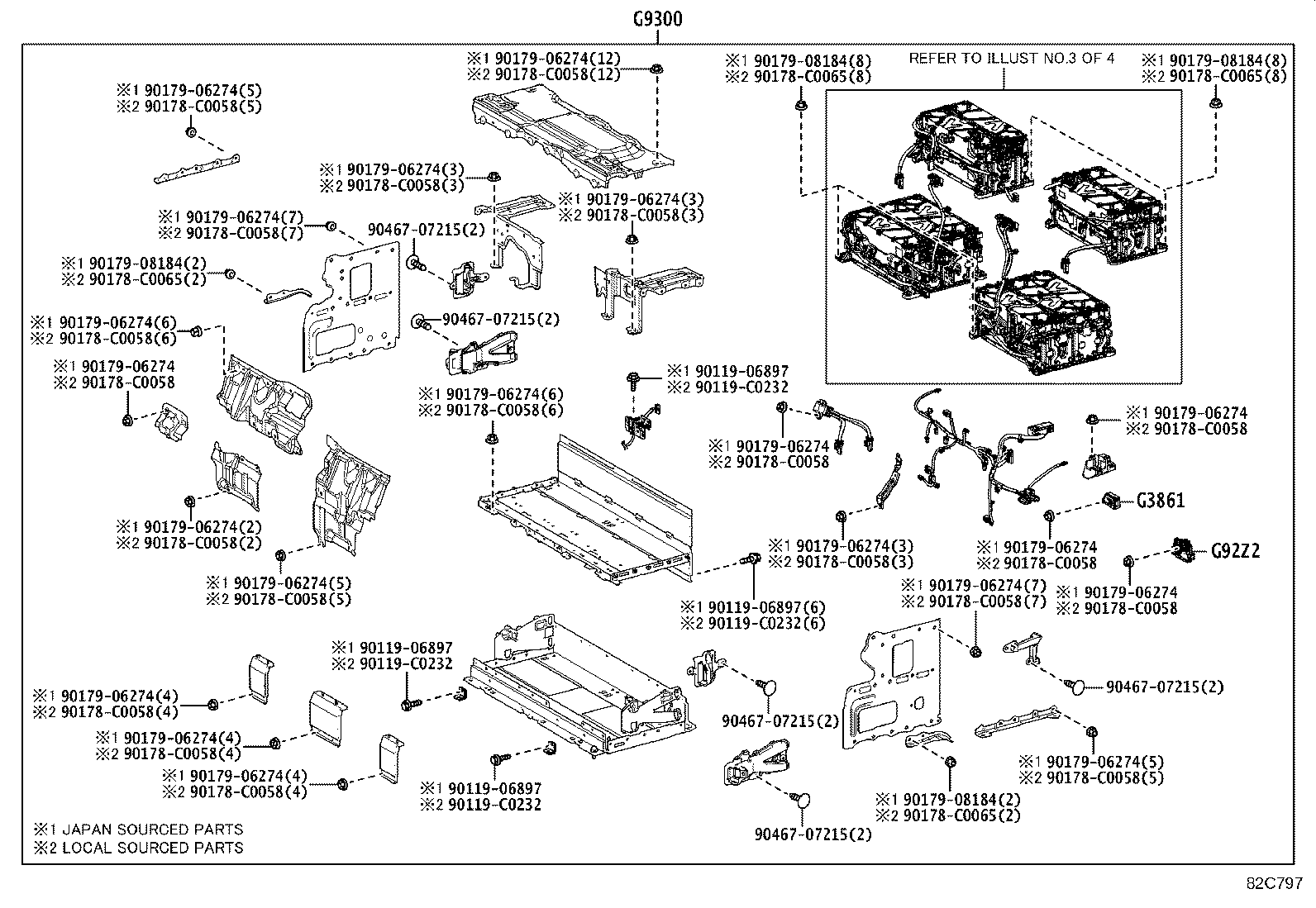

ILLUST NO. 4 OF 4(1904- )
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G3861 - RELAY, HV BATTERY HEATER | ||||
| G96J1-12010 |
ZWE183 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-12010 |
ZWE183 |
1 | ||
| G9300 - BATTERY ASSY, TRACTION SUPPLY | ||||
| G9300-02010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-06897 | ||||
| 90119-C0232 | ||||
| 90178-C0058 | ||||
| 90178-C0065 | ||||
| 90179-06274 | ||||
| 90179-08184 | ||||
| 90467-07215 | ||||
