ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

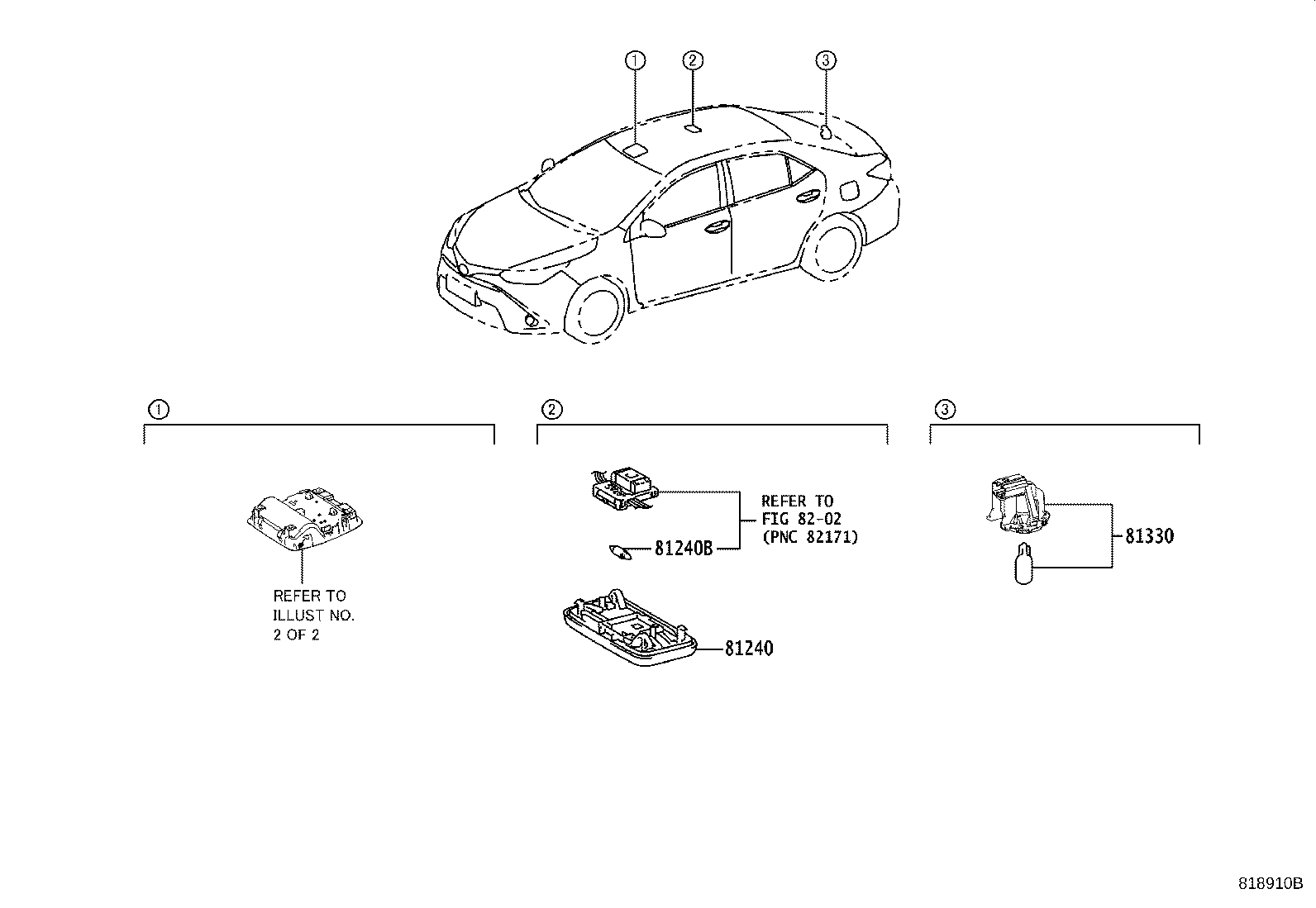

ILLUST NO. 1 OF 2(1904- )

Click highlighted areas on diagram

diagram 81240 81240B 81330 8202
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-60060B0

ZWE183

LT.GRAY,TRIM2#,4#

 1
81240-12100B0

ZWE183

LT.GRAY,TRIM2#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

ZWE183

12V 8W

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-0D040

ZWE183

 1
Linked diagrams
8202

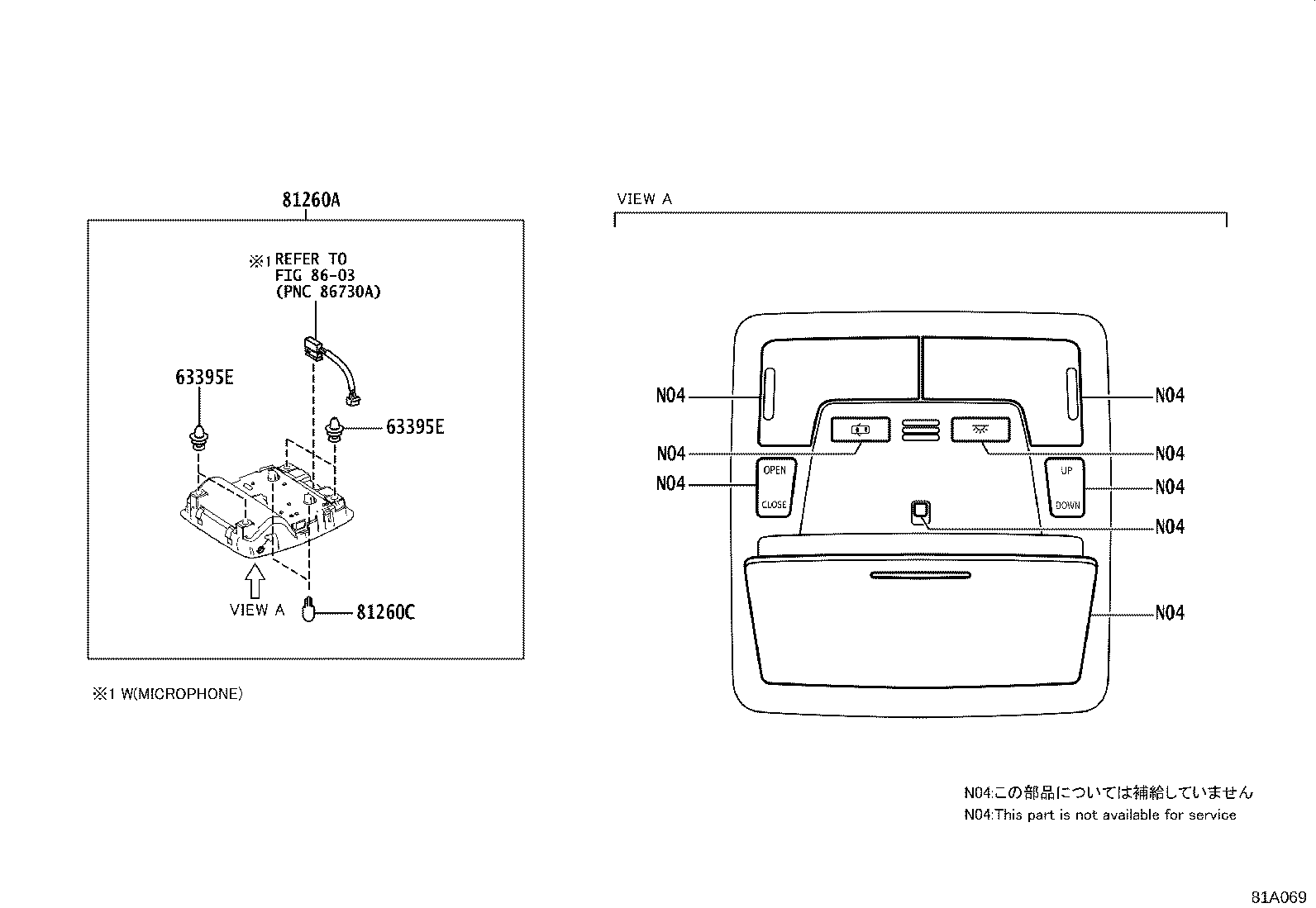

ILLUST NO. 2 OF 2(1904- )

Click highlighted areas on diagram

diagram 63395E 63395E 81260A 81260C 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-A0033

ZWE183

 4
63395E - CLIP(FOR MAP LAMP)
90467-A0033

ZWE183

 4
81260A - LAMP ASSY, MAP
81260-02A20B0

ZWE183..G,V

LT.GRAY,TRIM2#,4#

 1
81260-02700B0

ZWE183..E

LT.GRAY,TRIM2#,4#

 1
81260-02790B0

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER,LT.GRAY,TRIM2#,4#

 1
81260-02D90B0

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER,LT.GRAY,TRIM2#,4#

 1
81260-02630B0

ZWE183..E

LT.GRAY,TRIM2#,4#

 1
81260-02780B0

ZWE183..G,V

LT.GRAY,TRIM2#,4#

 1
81260-02700B0

ZWE183..G,V

MOON ROOF-WITHOUT,LT.GRAY,TRIM2#,4#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

ZWE183

12V 5W

 2
Linked diagrams
8603
