ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

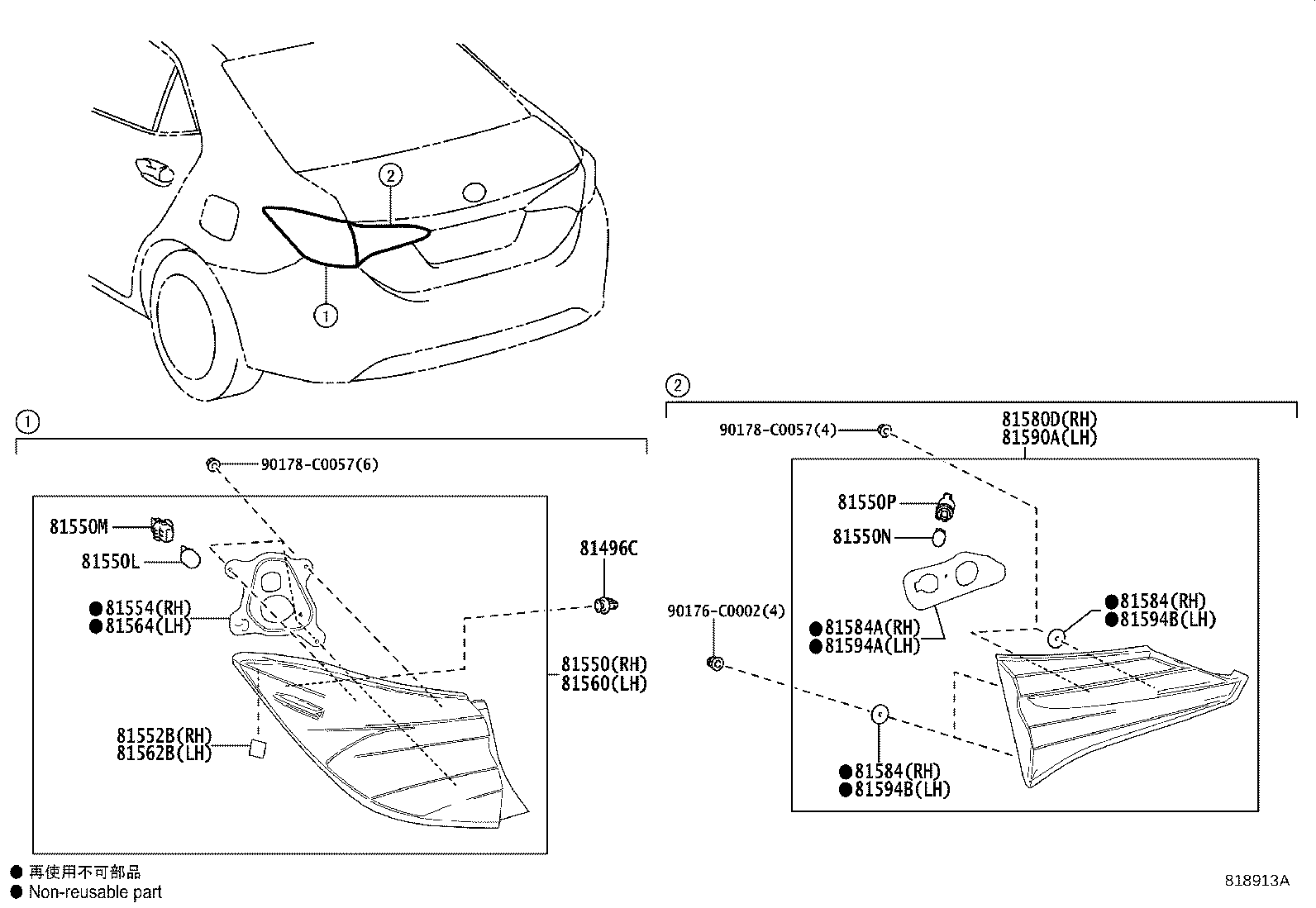

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 90467-C0019 |
ZWE183 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-02A40 |
ZWE183 |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-CD005 |
ZWE183 12V 21W |
2 | ||
| 81550M - SOCKET, REAR TURN SIGNAL LAMP | ||||
| 90069-81100 |
ZWE183 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-CB002 |
ZWE183 12V 21W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90069-81101 |
ZWE183 |
2 | ||
| 81552B - PACKING, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-02880 |
ZWE183 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-02A40 |
ZWE183 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-02A40 |
ZWE183 |
1 | ||
| 81562B - PACKING, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-02880 |
ZWE183 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81552-02A40 |
ZWE183 |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-02840 |
ZWE183 |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81588-02780 |
ZWE183 |
3 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81588-02780 |
ZWE183 |
3 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-02780 |
ZWE183 |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-02840 |
ZWE183 |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-02780 |
ZWE183 |
1 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81588-02780 |
ZWE183 |
3 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81588-02780 |
ZWE183 |
3 | ||
| Common parts | ||||
| 90176-C0002 | ||||
| 90178-C0057 | ||||
