ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

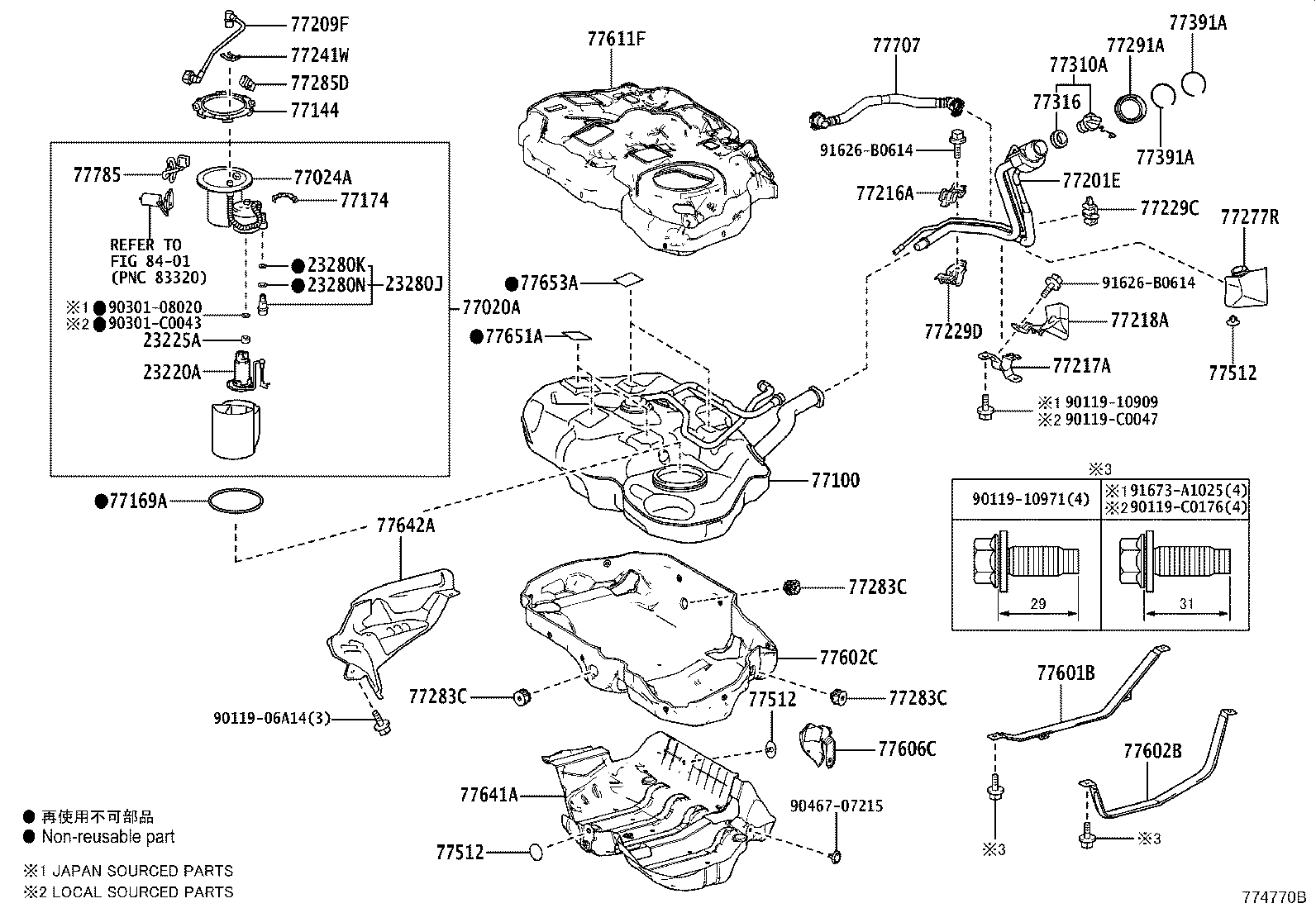

ILLUST NO. 1 OF 4(1904- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-0M070 |
8ZRFXE..ZWE183 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
8ZRFXE..ZWE183 (J) |
1 | ||
| 23225-0H020 |
8ZRFXE..ZWE183 (L) |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
8ZRFXE..ZWE183 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8ZRFXE..ZWE183 |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
8ZRFXE..ZWE183 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02C70 |
ZWE183 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02560 |
ZWE183 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02B10 |
ZWE183 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4020 |
ZWE183 |
1 | ||
| 77144-F4010 |
ZWE183 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
ZWE183 (J) |
1 | ||
| 77169-F4050 |
ZWE183 |
1 | ||
| 77169-0K030 |
ZWE183 (L) |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0F010 |
ZWE183 (L) |
1 | ||
| 77174-75010 |
ZWE183 (J) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02570 |
ZWE183 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02360 |
ZWE183 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-06120 |
ZWE183 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02170 |
ZWE183 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02040 |
ZWE183 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-02060 |
ZWE183 |
1 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-02050 |
ZWE183 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02020 |
ZWE183 |
1 | ||
| 77241-33011 |
ZWE183 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-47050 |
ZWE183 |
1 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-47010 |
ZWE183 |
3 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-47010 |
ZWE183 |
3 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-47010 |
ZWE183 |
3 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47090 |
ZWE183 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02230 |
ZWE183 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-06110 |
ZWE183 |
1 | ||
| 77300-11010 |
ZWE183 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
ZWE183 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZWE183 |
2 | ||
| 77391-12020 |
ZWE183 (J) |
2 | ||
| 77391-0R080 |
ZWE183 (L) |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ZWE183 |
2 | ||
| 77391-12020 |
ZWE183 (J) |
2 | ||
| 77391-0R080 |
ZWE183 (L) |
2 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ZWE183 |
2 | ||
| 77512-06040 |
ZWE183 (L) |
2 | ||
| 77512-35140 |
ZWE183 (J) |
2 | ||
| 77512-35140 |
ZWE183 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ZWE183 |
2 | ||
| 77512-06040 |
ZWE183 (L) |
2 | ||
| 77512-35140 |
ZWE183 (J) |
2 | ||
| 77512-35140 |
ZWE183 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ZWE183 |
2 | ||
| 77512-06040 |
ZWE183 (L) |
2 | ||
| 77512-35140 |
ZWE183 (J) |
2 | ||
| 77512-35140 |
ZWE183 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-02190 |
ZWE183 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-02170 |
ZWE183 |
1 | ||
| 77602C - COVER SUB-ASSY, FUEL TANK, LOWER | ||||
| 77602-47080 |
ZWE183 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-47040 |
ZWE183 |
1 | ||
| 77611F - COVER, FUEL TANK, UPPER | ||||
| 77611-47060 |
ZWE183 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-47050 |
ZWE183 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77641-02260 |
ZWE183 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
ZWE183 |
3 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
ZWE183 |
2 | ||
| 77653-02020 |
ZWE183 |
2 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-02040 |
ZWE183 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12010 |
ZWE183 (J) |
1 | ||
| 77785-0F031 |
ZWE183 (L) |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90119-10909 | ||||
| 90119-10971 | ||||
| 90119-C0047 | ||||
| 90119-C0176 | ||||
| 90301-08020 | ||||
| 90301-C0043 | ||||
| 90467-07215 | ||||
| 91626-B0614 | ||||
| 91673-A1025 | ||||
| Linked diagrams | ||||
| 8401 | ||||

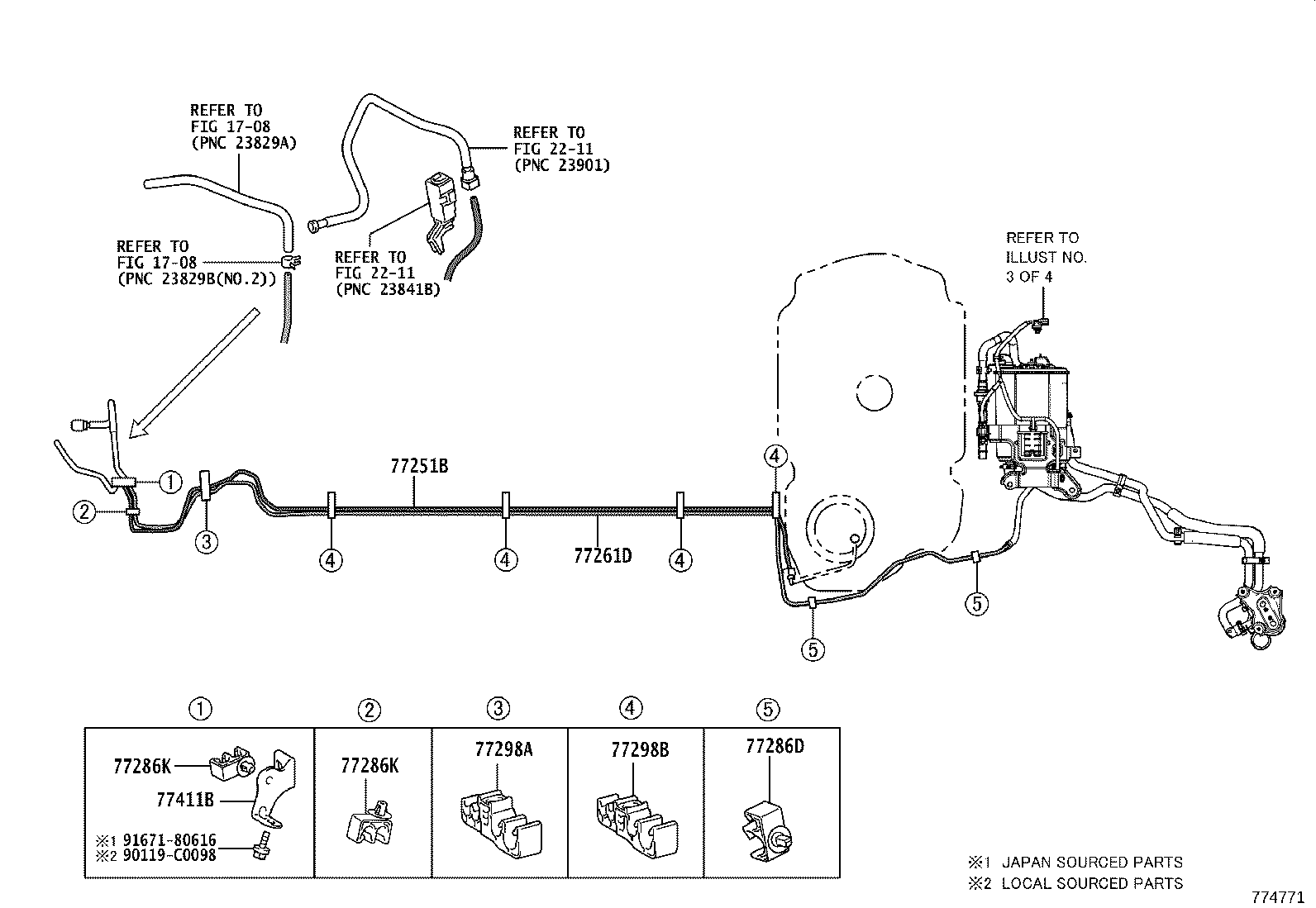

ILLUST NO. 2 OF 4(1904- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02870 |
ZWE183 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02710 |
ZWE183 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75020 |
ZWE183 |
2 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75010 |
ZWE183 |
2 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75010 |
ZWE183 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-75010 |
ZWE183 |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12150 |
ZWE183 |
4 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-47010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0098 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

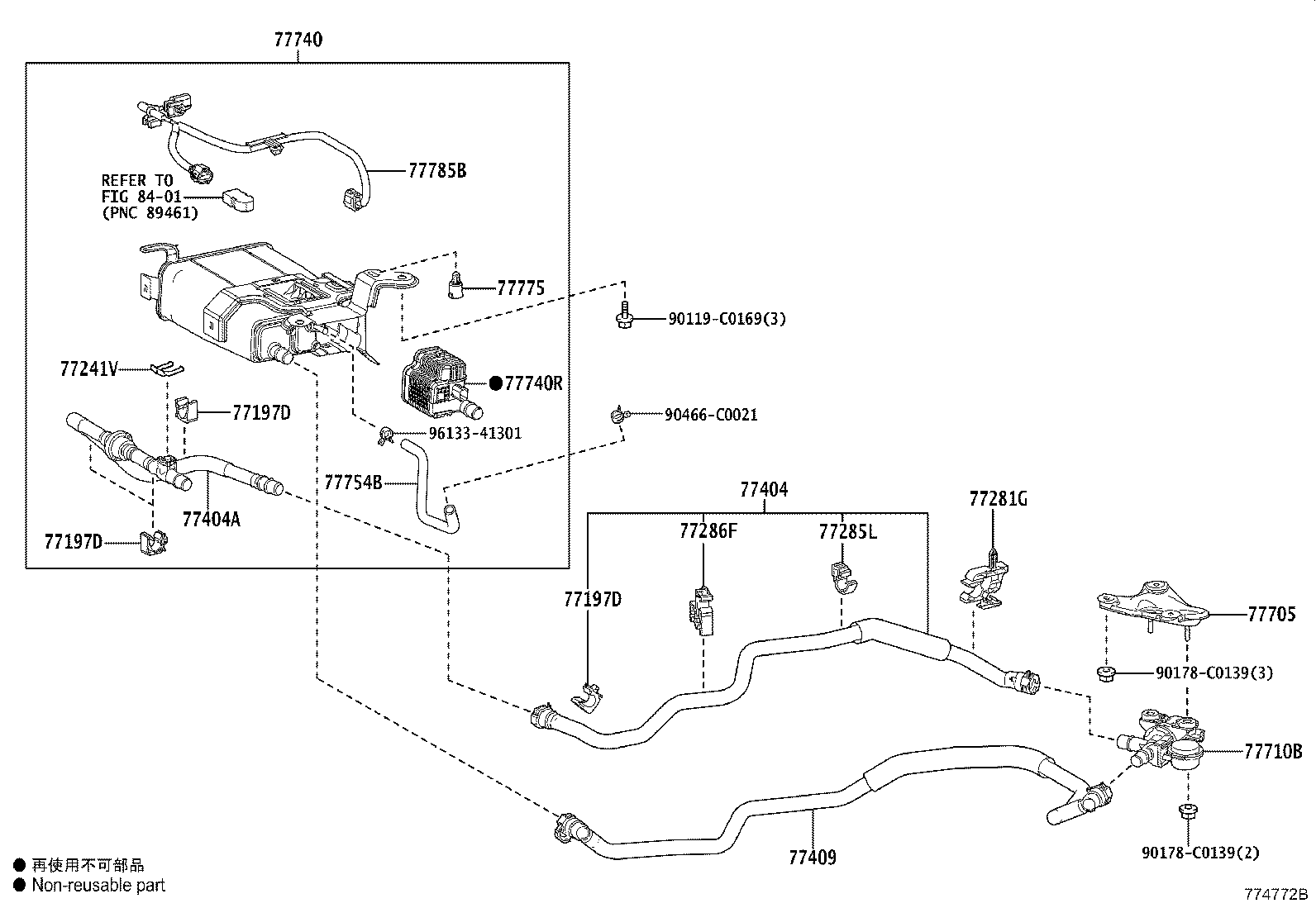

ILLUST NO. 3 OF 4(1904- )
Click highlighted areas on diagram
CHARCOAL CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77197D - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
ZWE183 |
4 | ||
| 77197D - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
ZWE183 |
4 | ||
| 77197D - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
ZWE183 |
4 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZWE183 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-02230 |
ZWE183 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30310 |
ZWE183 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-47040 |
ZWE183 |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-02220 |
ZWE183 |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-12180 |
ZWE183 |
1 | ||
| 77409 - HOSE SUB-ASSY, FUEL, NO.3 | ||||
| 77409-02030 |
ZWE183 |
1 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-02090 |
ZWE183 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-47020 |
ZWE183 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12810 |
ZWE183 |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-14008 |
ZWE183 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-12240 |
ZWE183 |
1 | ||
| 77775 - GUIDE, CHARCOAL CANISTER OUTLET | ||||
| 77775-47010 |
ZWE183 |
1 | ||
| 77785B - HARNESS, FUEL PUMP, NO.2 | ||||
| 77785-47040 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0169 | ||||
| 90178-C0139 | ||||
| 90466-C0021 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 8401 | ||||

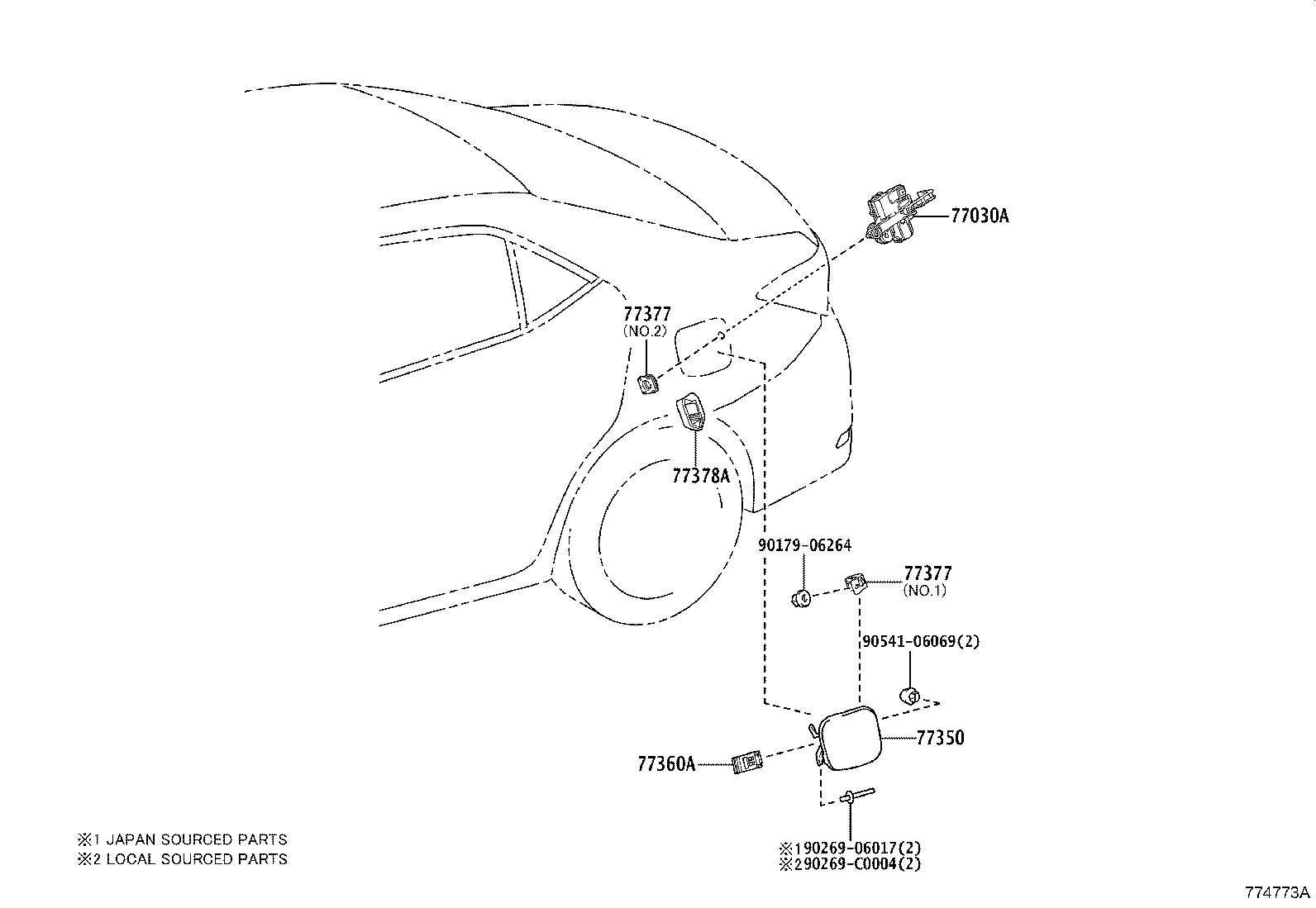

ILLUST NO. 4 OF 4(1904- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-02051 |
ZWE183 |
1 | ||
| 77030-02050 |
ZWE183 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02280 |
ZWE183 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ZWE183 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02130 |
ZWE183 NO.1:REFER ILLUST. |
1 | ||
| 77377-02200 |
ZWE183 NO.2:REFER ILLUST. |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02130 |
ZWE183 NO.1:REFER ILLUST. |
1 | ||
| 77377-02200 |
ZWE183 NO.2:REFER ILLUST. |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-02020 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90179-06264 | ||||
| 90269-06017 | ||||
| 90269-C0004 | ||||
| 90541-06069 | ||||
