ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

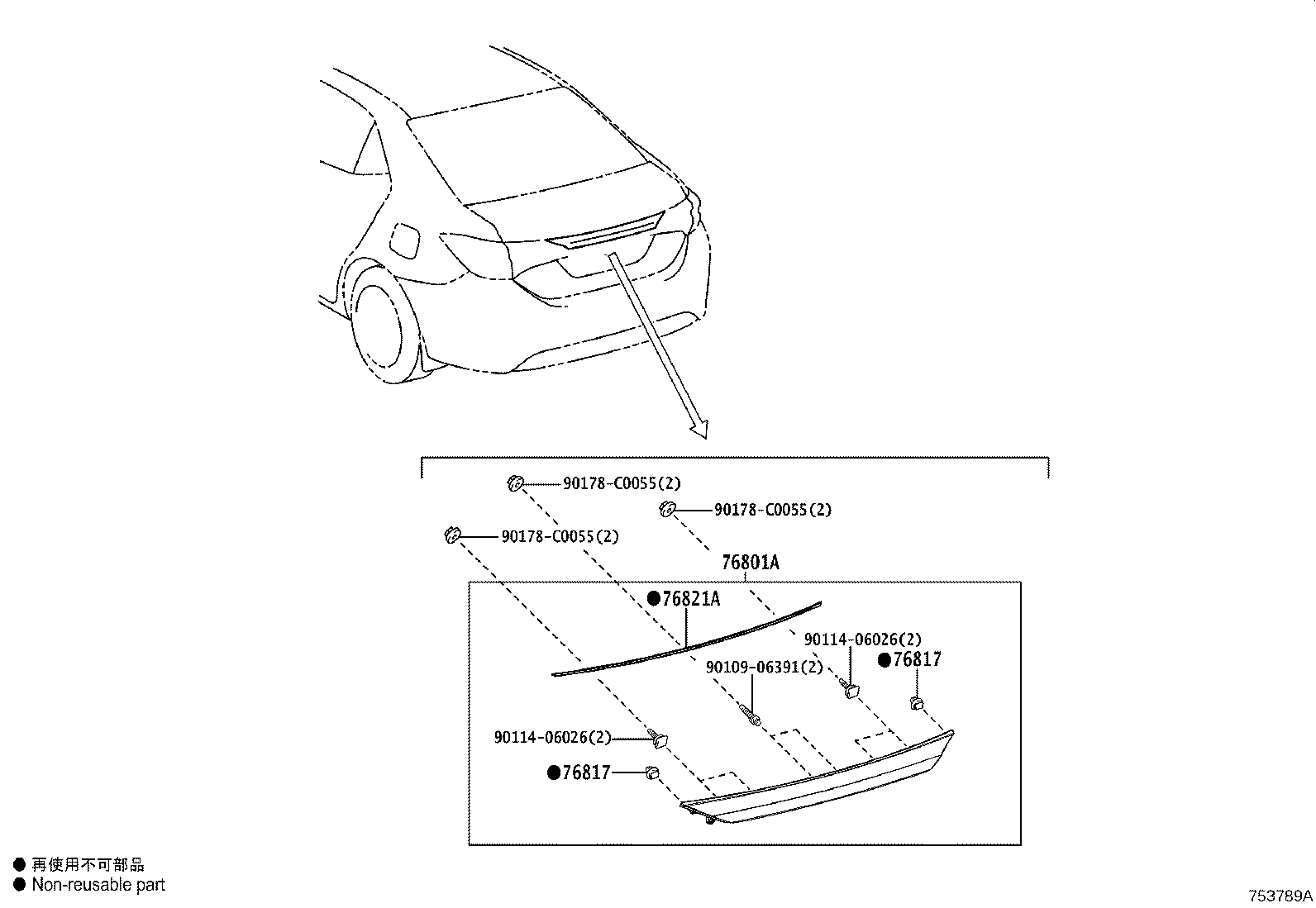

Click highlighted areas on diagram

diagram 76801A 76817 76817 76821A 9010906391 9011406026 9011406026 90178C0055 90178C0055 90178C0055
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02M60

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
76801-02M50

ZWE183

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

ZWE183

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12050

ZWE183

 2
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02280

ZWE183

 1
Common parts
90109-06391
90114-06026
90178-C0055
