ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

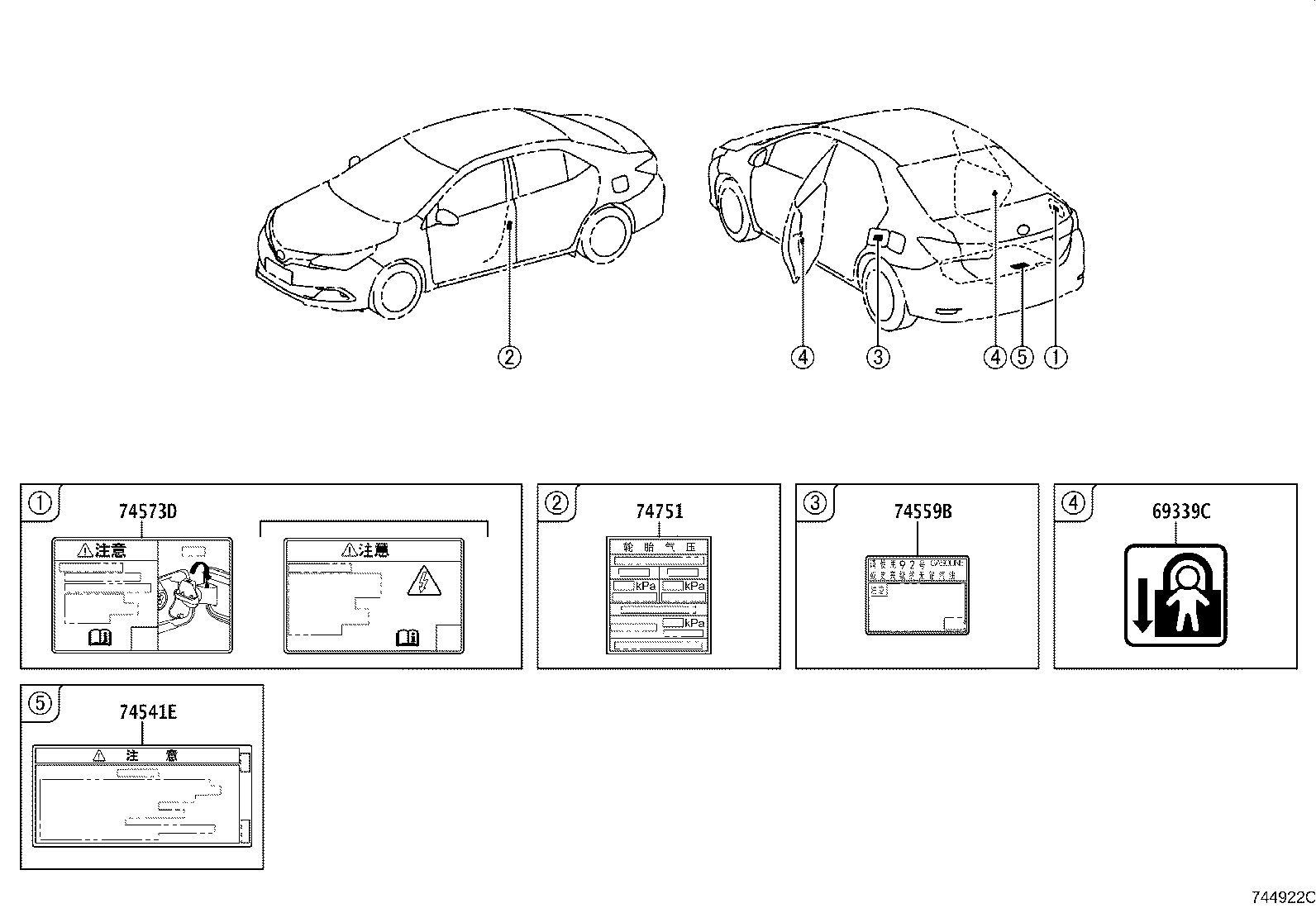

ILLUST NO. 2 OF 3(1904- )
Click highlighted areas on diagram
EXTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-06080 |
ZWE183 |
2 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-0D100 |
ZWE183 |
1 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-33040 |
ZWE183 |
1 | ||
| 74573D - LABEL, ELECTRIC VEHICLE BATTERY CAUTION | ||||
| 74573-02020 |
ZWE183 |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-02Q70 |
ZWE183 |
1 | ||

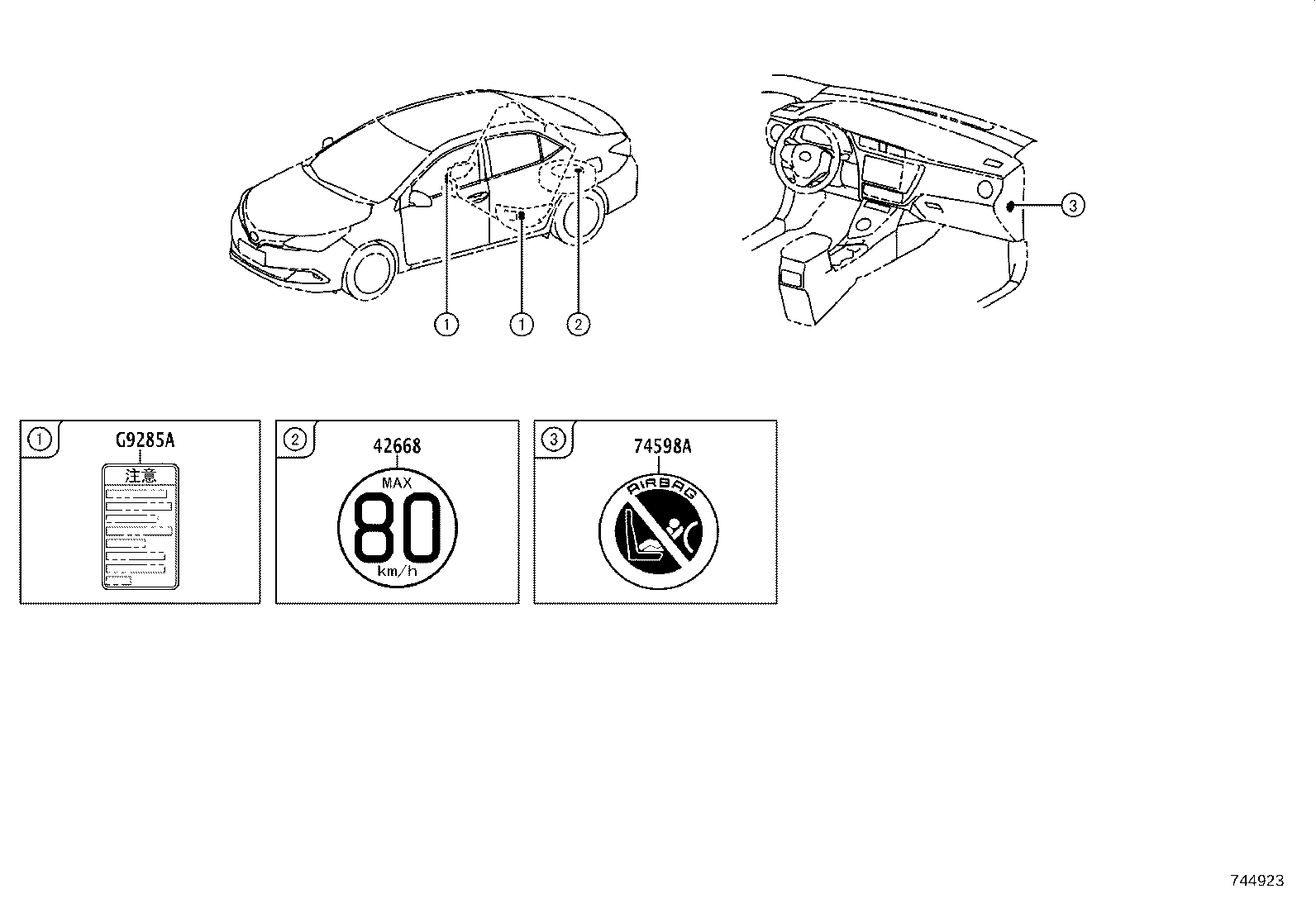

ILLUST NO. 3 OF 3(1904- )
Click highlighted areas on diagram
INTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42668 - LABEL, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
ZWE183 |
1 | ||
| 74598A - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-06040 |
ZWE183 |
1 | ||
| G9285A - LABEL, HV BATTERY CAUTION, NO.1 | ||||
| G928L-02010 |
ZWE183 |
2 | ||

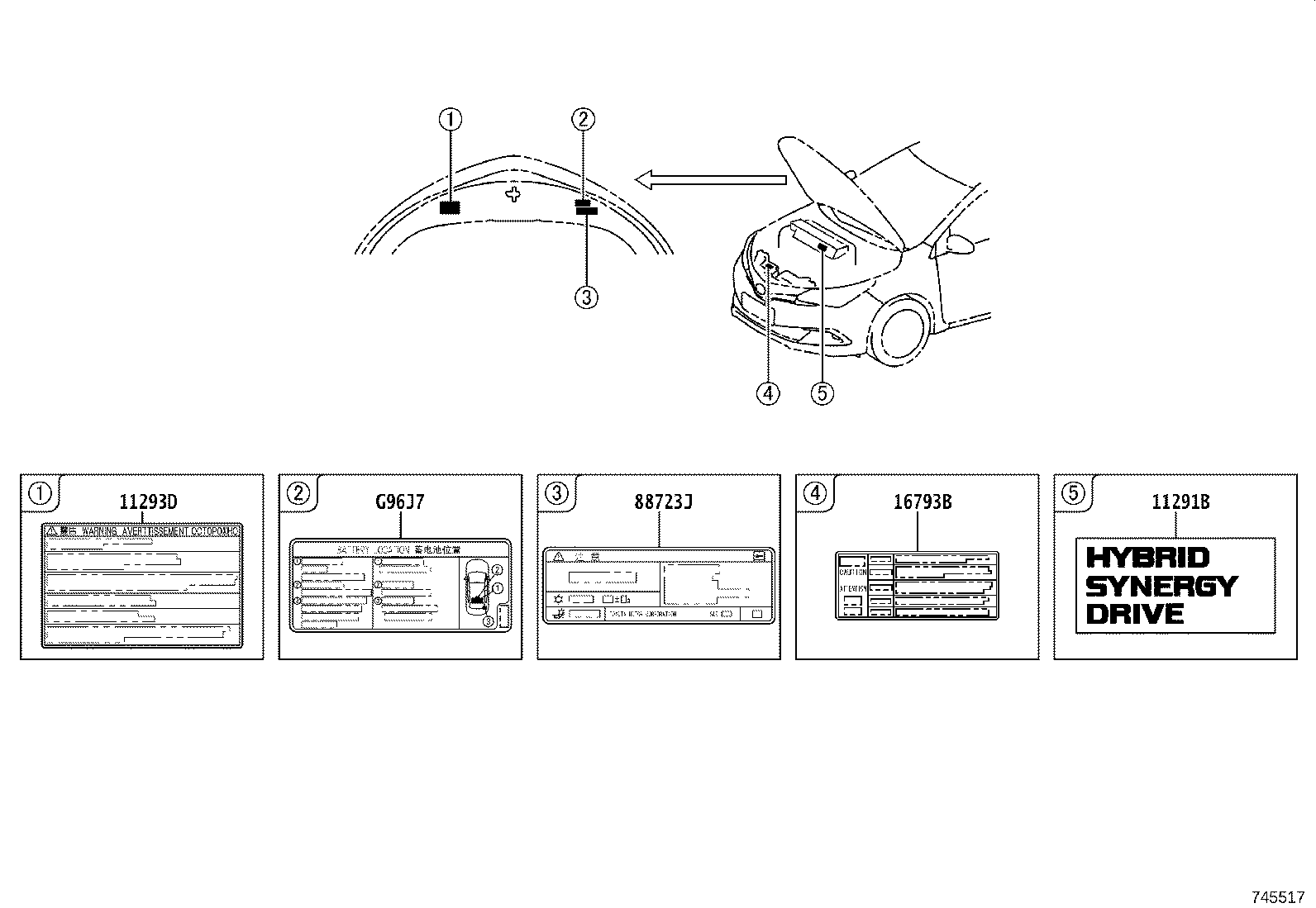

ILLUST NO. 1 OF 3(1904- )
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11291B - PLATE, ENGINE NAME | ||||
| 11291-37060 |
8ZRFXE..ZWE183 |
1 | ||
| 11293D - LABEL, ENGINE CAUTION | ||||
| 11293-36070 |
8ZRFXE..ZWE183 |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-31040 |
8ZRFXE..ZWE183 |
1 | ||
| 88723J - LABEL, COOLER SERVICE CAUTION, NO.2 | ||||
| 88723-02390 |
ZWE183 |
1 | ||
| G96J7 - LABEL, TRACTION BATTERY INFORMATION, NO.1 | ||||
| G96J7-02020 |
ZWE183 |
1 | ||
