ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

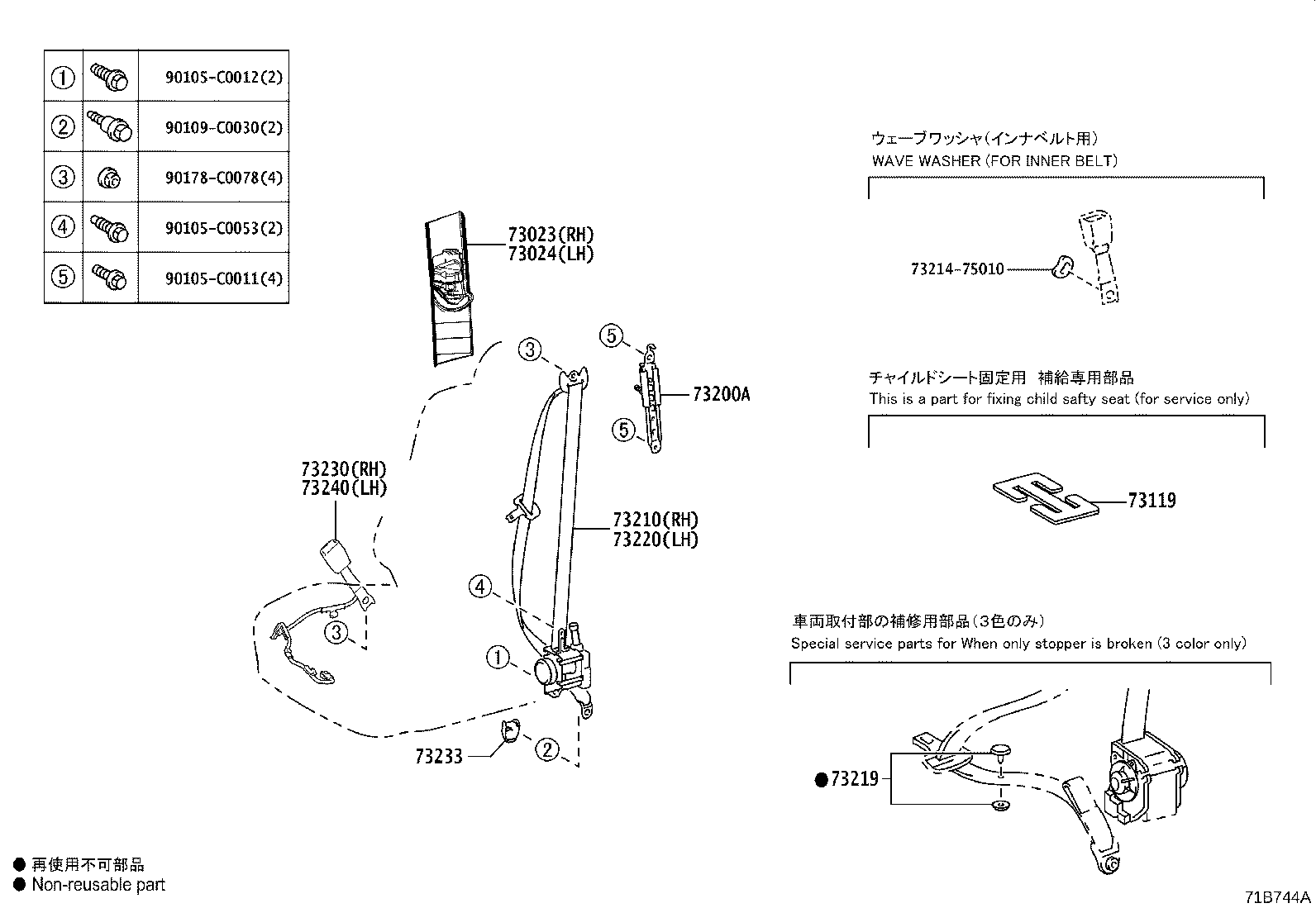

ILLUST NO. 1 OF 2(1904- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-02090B0 |
ZWE183 LT.GRAY,TRIM2#,4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-02090B0 |
ZWE183 LT.GRAY,TRIM2#,4# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZWE183 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0G020 |
ZWE183 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02620C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZWE183 GRAY |
1 | ||
| 73219-33030 |
ZWE183 BEIGE |
1 | ||
| 73219-33010 |
ZWE183 BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02440C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02A80C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-0F010C0 |
ZWE183..E,G BLACK,TRIM0#,2#,4# |
2 | ||
| 73233-0F010C0 |
ZWE183..V BLACK,TRIM2#,4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02A70C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-C0011 | ||||
| 90105-C0012 | ||||
| 90105-C0053 | ||||
| 90109-C0030 | ||||
| 90178-C0078 | ||||

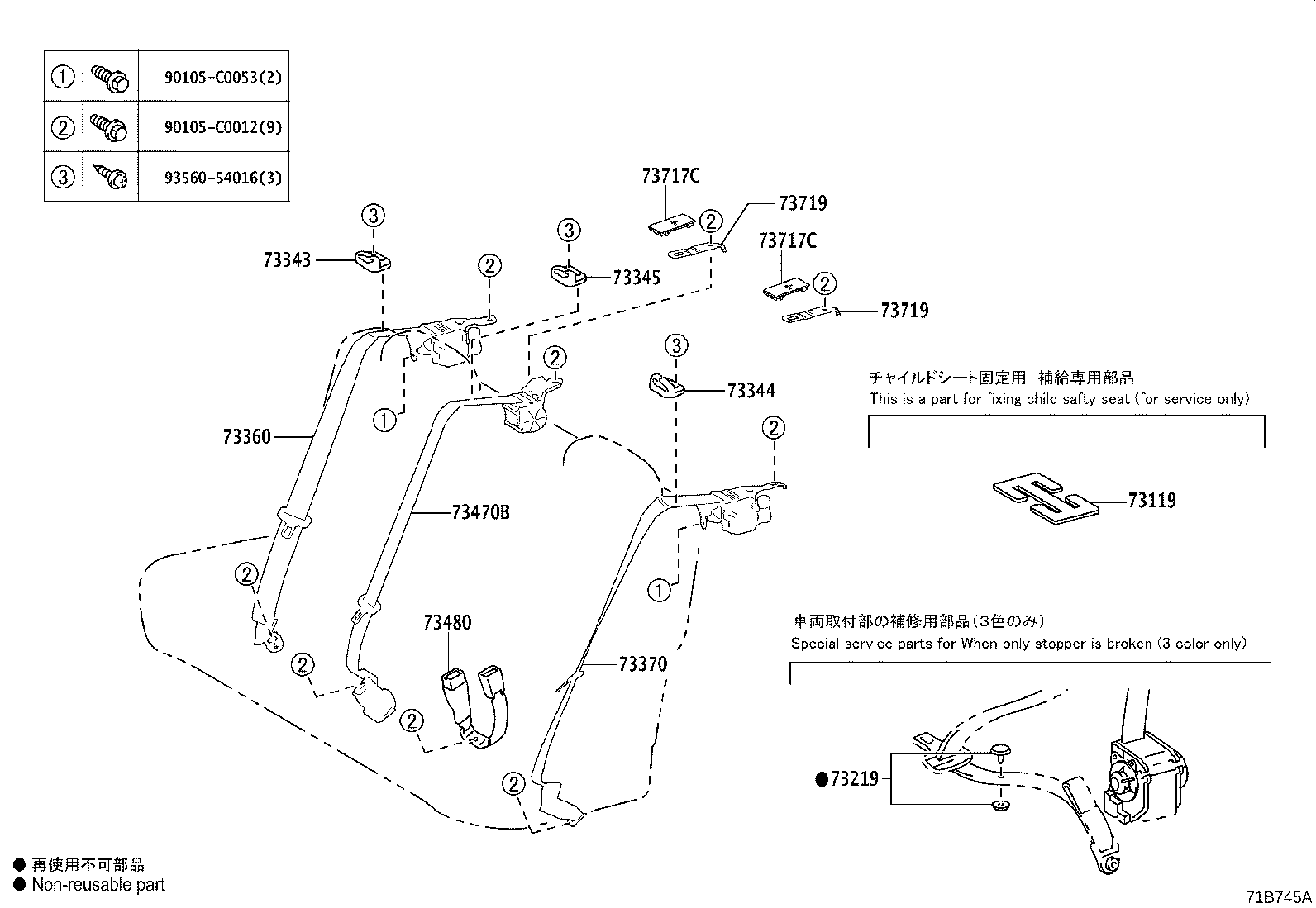

ILLUST NO. 2 OF 2(1904- )
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZWE183 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZWE183 GRAY |
1 | ||
| 73219-33030 |
ZWE183 BEIGE |
1 | ||
| 73219-33010 |
ZWE183 BLACK |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-02111C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-02071C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73343-02111C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-02820C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-02310C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-02510C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02800C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 73717C - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR, CENTER | ||||
| 73717-02700C0 |
ZWE183 BLACK,TRIM2#,4# |
2 | ||
| 73717C - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR, CENTER | ||||
| 73717-02700C0 |
ZWE183 BLACK,TRIM2#,4# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02160 |
ZWE183 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02160 |
ZWE183 |
2 | ||
| Common parts | ||||
| 90105-C0012 | ||||
| 90105-C0053 | ||||
| 93560-54016 | ||||
