ZWE183L-CEXVBC (2019)
Toyota Levin
ILLUST NO. 2 OF 2(1904- )
SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

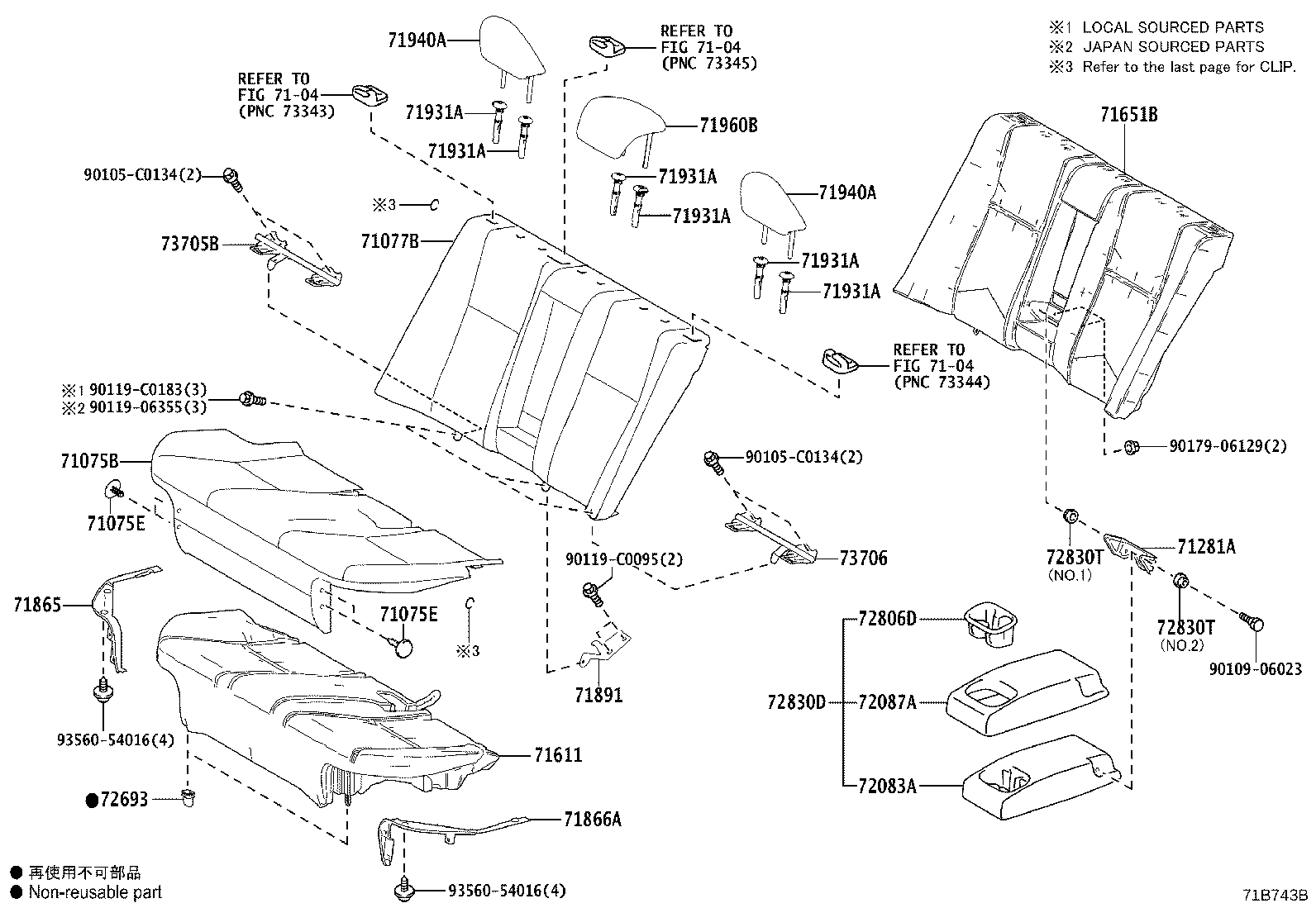

ILLUST NO. 1 OF 2(1904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0Z760C1 |
ZWE183..E,G BLACK,TRIM2# |
1 | ||
| 71075-0Z770E2 |
ZWE183..V SADLLE TAN,TRIM4# |
1 | ||
| 71075-0Z760E0 |
ZWE183..E,G SADDLE TAN,TRIM4# |
1 | ||
| 71075-0Z770C1 |
ZWE183..V BLACK,TRIM2# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-C0012C0 |
ZWE183 BLACK |
4 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-C0012C0 |
ZWE183 BLACK |
4 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-0ZM40C0 |
ZWE183..E,G BLACK,TRIM2# |
1 | ||
| 71077-0ZG60E2 |
ZWE183..V SADLLE TAN,TRIM4# |
1 | ||
| 71077-0ZM40E0 |
ZWE183..E,G SADDLE TAN,TRIM4# |
1 | ||
| 71077-0ZG60C1 |
ZWE183..V BLACK,TRIM2# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-02100 |
ZWE183 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02790 |
ZWE183 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-02460 |
ZWE183 |
1 | ||
| 71865 - BEZEL, REAR SEAT COVER, NO.1 | ||||
| 71865-02050C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 71866A - BEZEL, REAR SEAT COVER, NO.2 | ||||
| 71866-02020C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 71891 - BRACKET, REAR SEAT BACK SET, NO.1 | ||||
| 71891-02030 |
ZWE183 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360C0 |
ZWE183 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931-02120C0 |
ZWE183 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360C0 |
ZWE183 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931-02120C0 |
ZWE183 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360C0 |
ZWE183 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931-02120C0 |
ZWE183 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360C0 |
ZWE183 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931-02120C0 |
ZWE183 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360C0 |
ZWE183 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931-02120C0 |
ZWE183 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02360C0 |
ZWE183 W(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71931-02120C0 |
ZWE183 W/O(LOCK),BLACK,TRIM2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02S60C1 |
ZWE183..V BLACK,TRIM2# |
2 | ||
| 71940-02T90C0 |
ZWE183..E,G BLACK,TRIM2# |
2 | ||
| 71940-02S60E2 |
ZWE183..V SADDLE TAN,TRIM4# |
2 | ||
| 71940-02T90B0 |
ZWE183..E,G GRAY,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02S60C1 |
ZWE183..V BLACK,TRIM2# |
2 | ||
| 71940-02T90C0 |
ZWE183..E,G BLACK,TRIM2# |
2 | ||
| 71940-02S60E2 |
ZWE183..V SADDLE TAN,TRIM4# |
2 | ||
| 71940-02T90B0 |
ZWE183..E,G GRAY,TRIM4# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02K10B0 |
ZWE183..E,G GRAY,TRIM4# |
1 | ||
| 71960-02K10C0 |
ZWE183..E,G BLACK,TRIM2# |
1 | ||
| 71960-02K20C1 |
ZWE183..V BLACK,TRIM2# |
1 | ||
| 71960-02K20E2 |
ZWE183..V SADDLE TAN,TRIM4# |
1 | ||
| 72083A - PAD SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72083-02590 |
ZWE183 |
1 | ||
| 72087A - COVER SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72087-02K50C0 |
ZWE183..V BLACK,TRIM2# |
1 | ||
| 72087-02K30C0 |
ZWE183..E,G BLACK,TRIM2# |
1 | ||
| 72087-02K30B0 |
ZWE183..E,G GRAY,TRIM4# |
1 | ||
| 72087-02K50E0 |
ZWE183..V SADDLE TAN,TRIM4# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-02030 |
ZWE183 |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-02320C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-02Q10C1 |
ZWE183..E,G BLACK,TRIM2# |
1 | ||
| 72830-02Q30E1 |
ZWE183..V SADDLE TAN,TRIM4# |
1 | ||
| 72830-02Q30C1 |
ZWE183..V BLACK,TRIM2# |
1 | ||
| 72830-02Q10B1 |
ZWE183..E,G GRAY,TRIM4# |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06011 |
ZWE183 NO.1:REFER ILLUST. |
1 | ||
| 90386-08077 |
ZWE183 NO.2:REFER ILLUST. |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06011 |
ZWE183 NO.1:REFER ILLUST. |
1 | ||
| 90386-08077 |
ZWE183 NO.2:REFER ILLUST. |
1 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02560 |
ZWE183 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-02110 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0134 | ||||
| 90109-06023 | ||||
| 90119-06355 | ||||
| 90119-C0095 | ||||
| 90119-C0183 | ||||
| 90179-06129 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
