ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

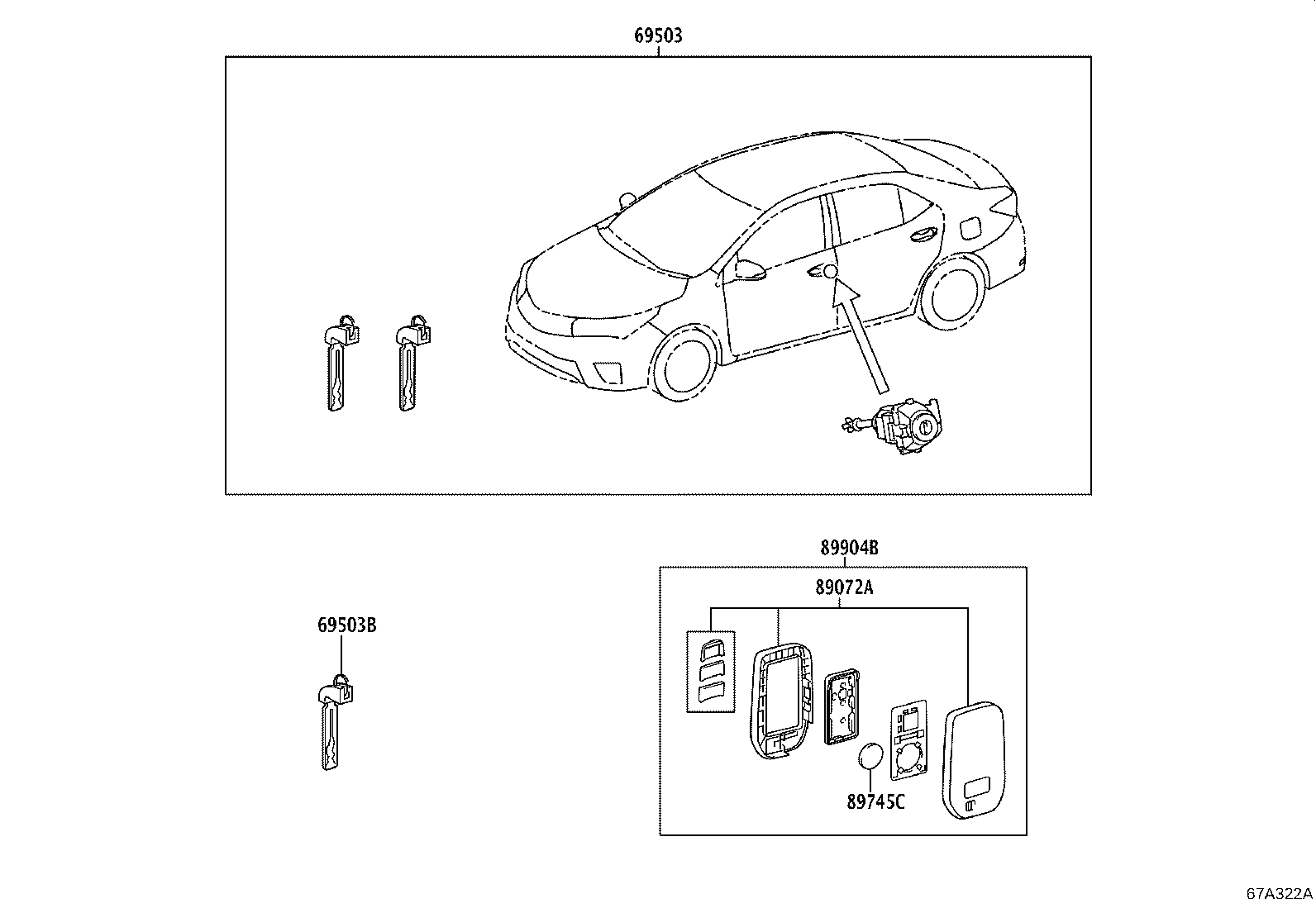

Click highlighted areas on diagram

diagram 69503 69503B 89072A 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-02E70

ZWE183

 1
69503B - KEY, CUT
69515-33110

ZWE183

MASTER KEY,W(*68)

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-02180

ZWE183

 2
89745C - BATTERY, TRANSMITTER
89745-50020

ZWE183

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-02200

ZWE183

 2
