ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

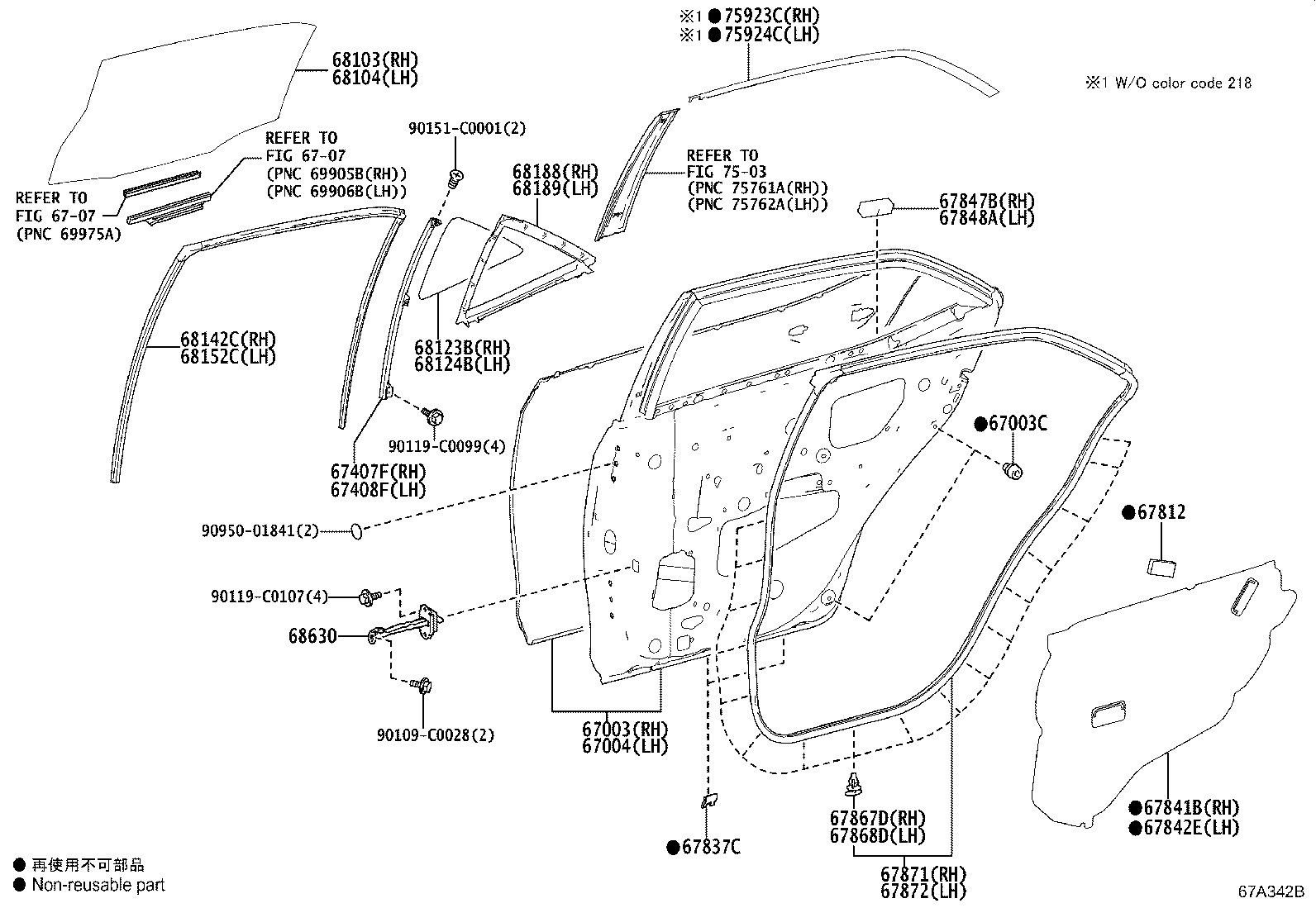

ILLUST NO. 1 OF 2(1904- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02630 |
ZWE183 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-C0003 |
ZWE183 (L) |
4 | ||
| 90541-09124 |
ZWE183 (J) |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02640 |
ZWE183 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-02180 |
ZWE183 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-02180 |
ZWE183 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-02400 |
ZWE183 60 X 120 |
2 | ||
| 67811-0D010 |
ZWE183 70 X 120 |
2 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-02230 |
ZWE183 (L) |
4 | ||
| 67837-48050 |
ZWE183 (J) |
4 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-02390 |
ZWE183 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02360 |
ZWE183 |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-02090 |
ZWE183 |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67847-02090 |
ZWE183 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZWE183 |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZWE183 |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02280 |
ZWE183 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02280 |
ZWE183 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-02500 |
ZWE183 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-02510 |
ZWE183 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-02450 |
ZWE183 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-02450 |
ZWE183 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02330 |
ZWE183 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02330 |
ZWE183 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-02220 |
ZWE183 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-02220 |
ZWE183 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-02320 |
ZWE183 |
2 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-02280 |
ZWE183 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-02280 |
ZWE183 0 OR 1PIECE,REF.ILL. |
1 | ||
| Common parts | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0107 | ||||
| 90151-C0001 | ||||
| 90950-01841 | ||||
| Linked diagrams | ||||
| 6707 | ||||
| 7503 | ||||

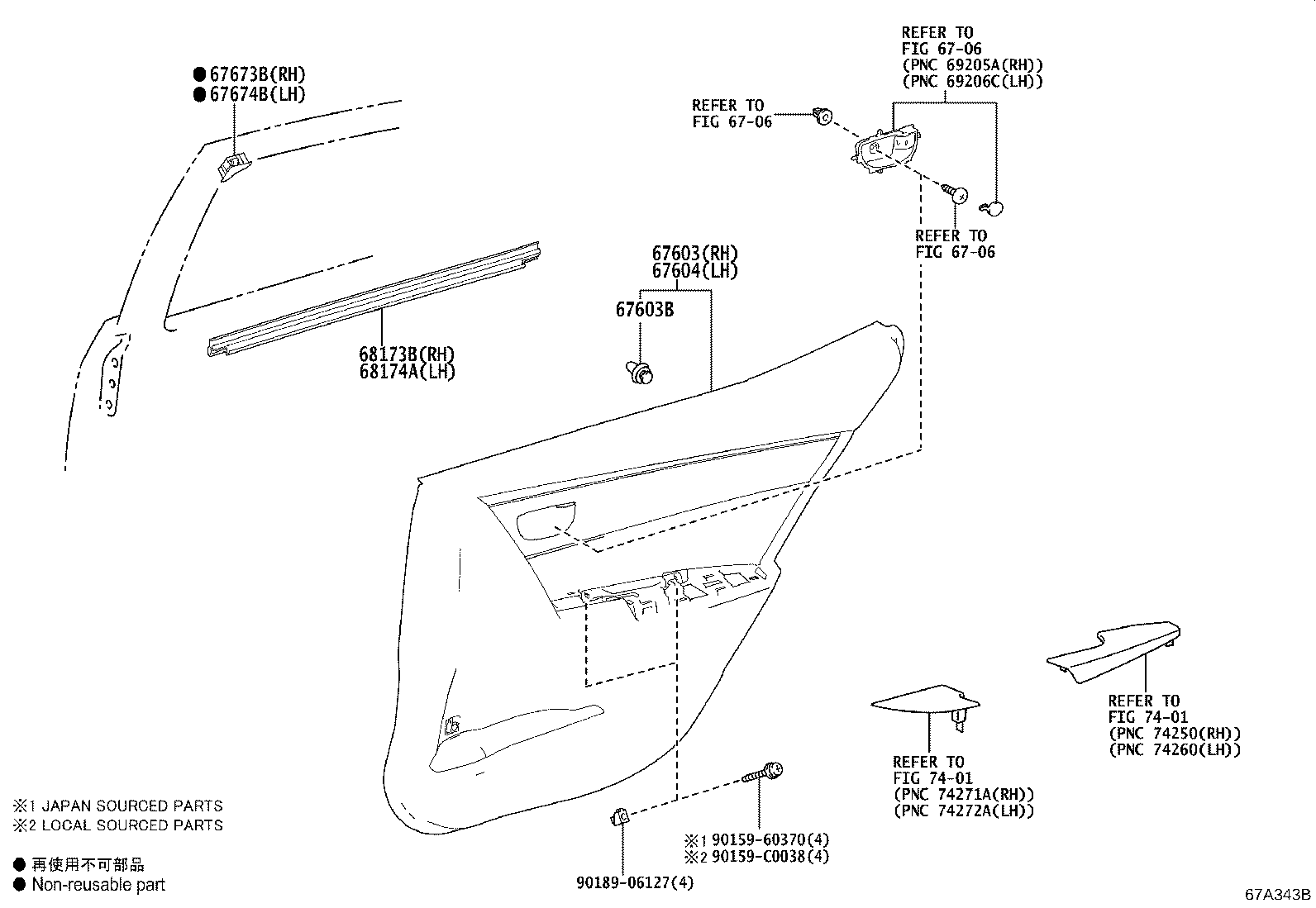

ILLUST NO. 2 OF 2(1904- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0Z380C0 |
ZWE183..V BLACK/BLACK/SILVER,TRIM2#,4# |
1 | ||
| 67630-0Z370C0 |
ZWE183..E,G BLACK/BLACK/SILVER,TRIM2#,4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZWE183 |
18 | ||
| 90467-C0033 |
ZWE183 |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0Z360C0 |
ZWE183..E,G BLACK/BLACK/SILVER,TRIM2#,4# |
1 | ||
| 67640-0Z370C0 |
ZWE183..V BLACK/BLACK/SILVER,TRIM2#,4# |
1 | ||
| 67673B - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0E030 |
ZWE183 |
1 | ||
| 67674B - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0E030 |
ZWE183 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-02300 |
ZWE183 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-02270 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90159-C0038 | ||||
| 90189-06127 | ||||
| Linked diagrams | ||||
| 6706 | ||||
| 7401 | ||||
