ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

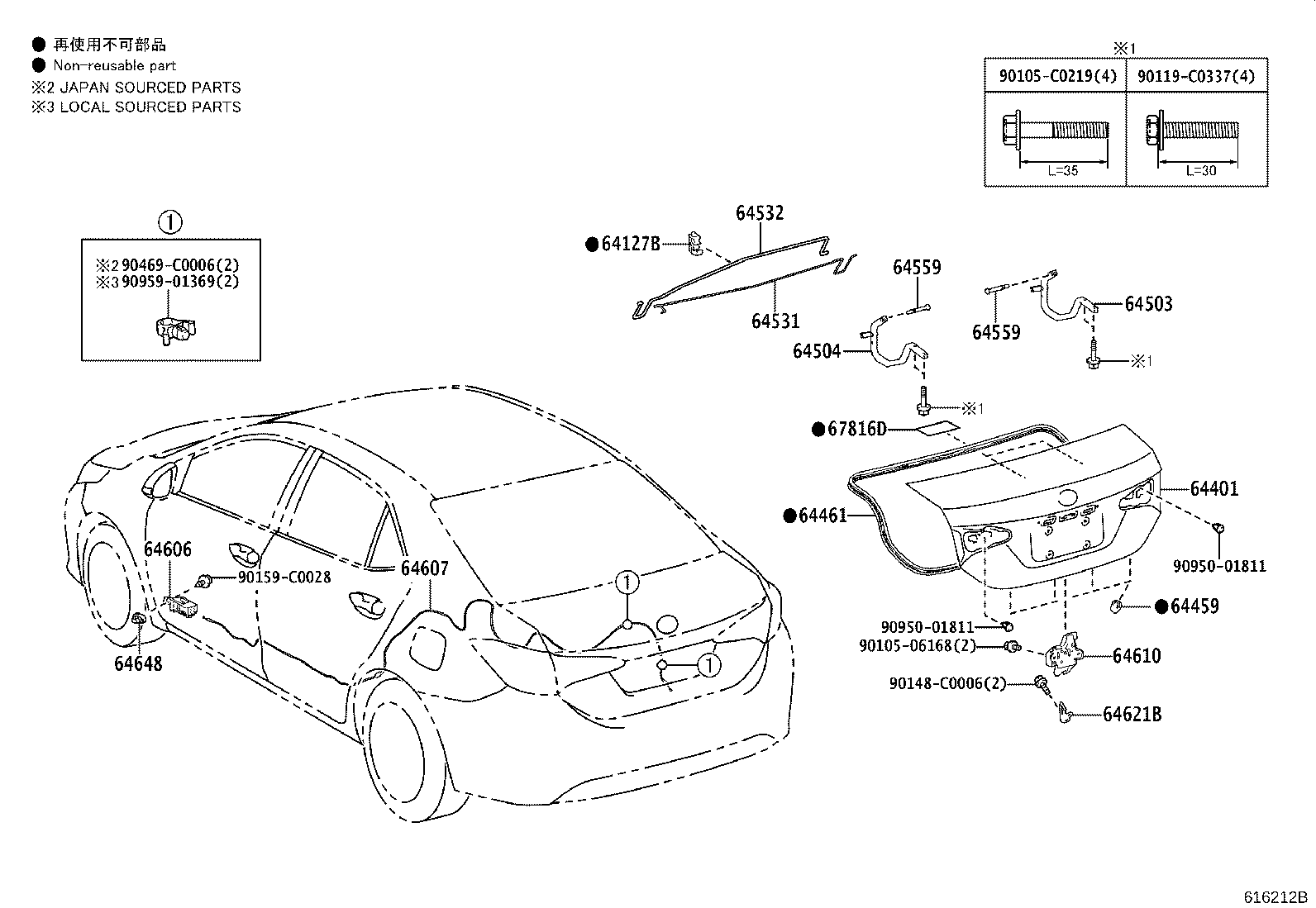

Click highlighted areas on diagram

diagram 64127B 64401 64459 64461 64503 64504 64531 64532 64559 64559 64606 64607 64610 64621B 64648 67816D 9010506168 90105C0219 90119C0337 90148C0006 90159C0028 90469C0006 9095001811 9095001811 9095901369
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-0D080

ZWE183

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-02A80

ZWE183

 1
64401-02D71

ZWE183..G,V

AUDIO-AVN(ACCESSORY) & 4SPEAKER

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

ZWE183

 4
90541-C0009

ZWE183

(L)

 4
90541-09069

ZWE183

(J)

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-02240

ZWE183

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-02201

ZWE183

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-02201

ZWE183

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-02361

ZWE183

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-02361

ZWE183

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ZWE183

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

ZWE183

 2
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-02150

ZWE183

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-02470

ZWE183

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-02111

ZWE183

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-06070

ZWE183

 1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32010

ZWE183

 1
67816D - SHEET, BACK DOOR PANEL SILENCER
67816-02061

ZWE183

 2
Common parts
90105-06168
90105-C0219
90119-C0337
90148-C0006
90159-C0028
90469-C0006
90950-01811
90959-01369
