ZWE183L-CEXVBC (2019)
Toyota Levin

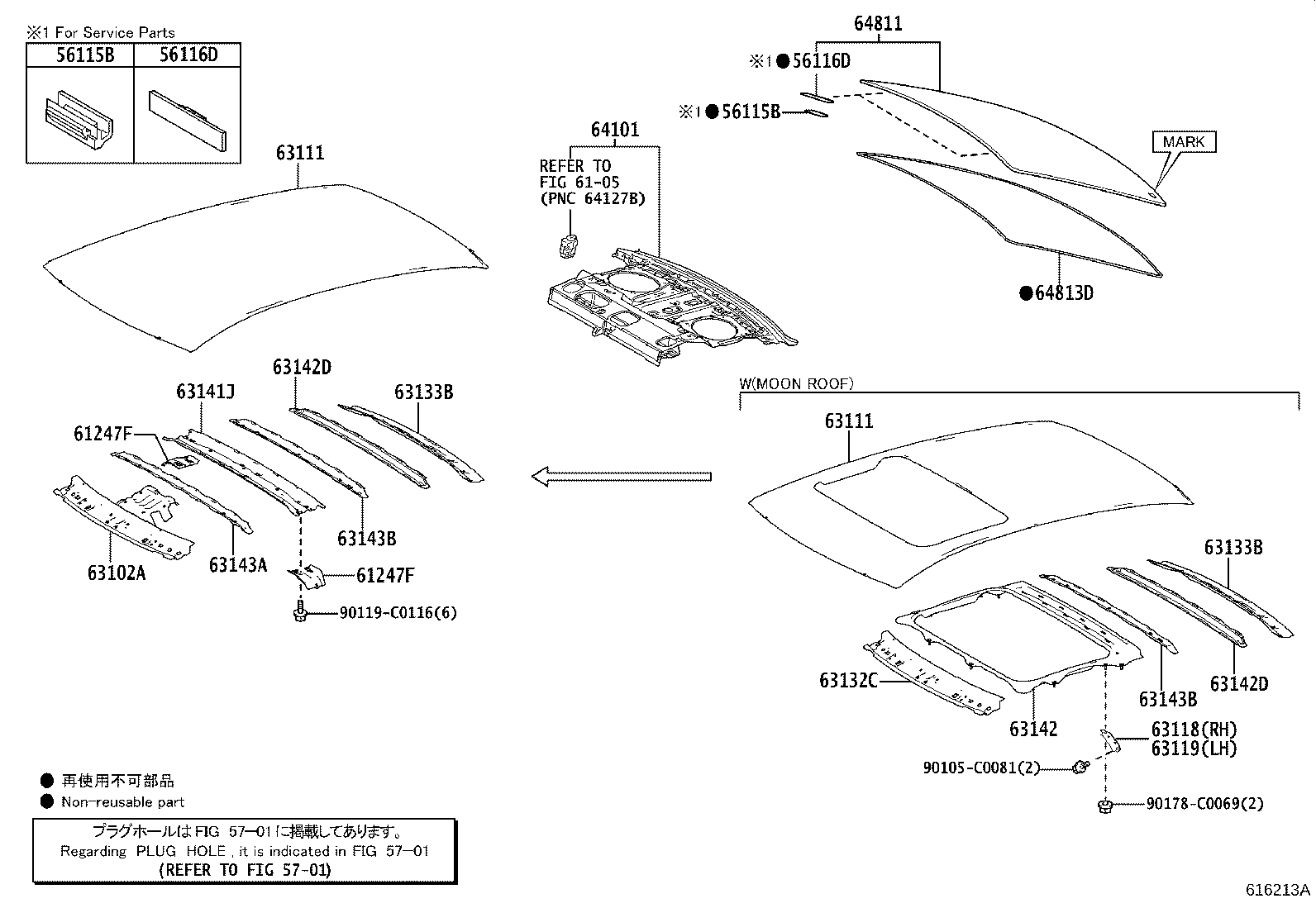

ILLUST NO. 1 OF 2(1904- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
ZWE183 |
2 | ||
| 56115B - STOPPER, BACK WINDOW GLASS, NO.1 | ||||
| 56115-30120 |
ZWE183 |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
ZWE183 |
2 | ||
| 56116D - STOPPER, BACK WINDOW GLASS, NO.2 | ||||
| 56116-22050 |
ZWE183 |
2 | ||
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-02210 |
ZWE183..E |
2 | ||
| 61247-02210 |
ZWE183..G,V MOON ROOF-WITHOUT |
2 | ||
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-02210 |
ZWE183..E |
2 | ||
| 61247-02210 |
ZWE183..G,V MOON ROOF-WITHOUT |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02400 |
ZWE183..E |
1 | ||
| 63102-02400 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02550 |
ZWE183..G,V |
1 | ||
| 63111-02610 |
ZWE183..E |
1 | ||
| 63111-02610 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02550 |
ZWE183..G,V |
1 | ||
| 63111-02610 |
ZWE183..E |
1 | ||
| 63111-02610 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-02100 |
ZWE183..G,V |
1 | ||
| 63118-02100 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-02100 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63118-02100 |
ZWE183..G,V |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-02230 |
ZWE183..G,V |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-02180 |
ZWE183 |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-02180 |
ZWE183 |
1 | ||
| 63141J - REINFORCEMENT, ROOF PANEL | ||||
| 63141-02220 |
ZWE183..E |
1 | ||
| 63141-02220 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-02110 |
ZWE183..G,V |
1 | ||
| 63142D - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63127-02130 |
ZWE183 |
1 | ||
| 63142D - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63127-02130 |
ZWE183 |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-02200 |
ZWE183..E |
1 | ||
| 63143-02200 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-02230 |
ZWE183..E |
1 | ||
| 63148-02100 |
ZWE183..G,V |
1 | ||
| 63144-02230 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-02230 |
ZWE183..E |
1 | ||
| 63148-02100 |
ZWE183..G,V |
1 | ||
| 63144-02230 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-02660 |
ZWE183 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64801-02320 |
ZWE183 GLASS MARK=E001084 |
1 | ||
| 64801-02350 |
ZWE183 GLASS MARK=E005771 |
1 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 64813-02230 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0081 | ||||
| 90119-C0116 | ||||
| 90178-C0069 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6105 | ||||

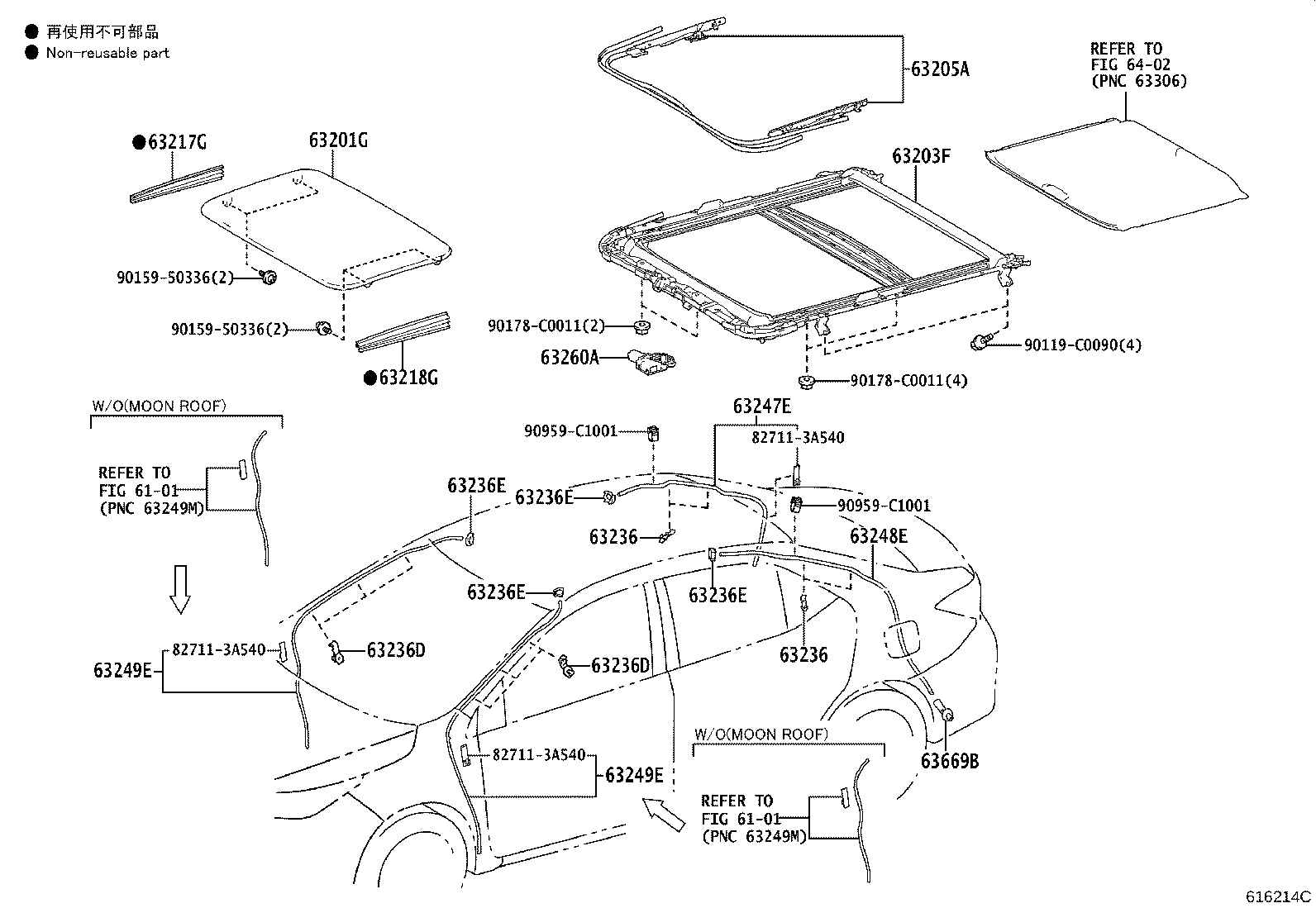

ILLUST NO. 2 OF 2(1904- )
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-02180 |
ZWE183..G,V |
1 | ||
| 63201-02180 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-02120 |
ZWE183..G,V |
1 | ||
| 63203-02120 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-02071 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63205-02071 |
ZWE183..G,V |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-30100 |
ZWE183..G,V |
1 | ||
| 63217-30100 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-30100 |
ZWE183..G,V |
1 | ||
| 63217-30100 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-06040 |
ZWE183..G,V |
4 | ||
| 63236-06040 |
ZWE183..G,V MOON ROOF-WITHOUT |
4 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-06040 |
ZWE183..G,V |
4 | ||
| 63236-06040 |
ZWE183..G,V MOON ROOF-WITHOUT |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02050 |
ZWE183..G,V |
6 | ||
| 63236-02050 |
ZWE183..G,V MOON ROOF-WITHOUT |
6 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02050 |
ZWE183..G,V |
6 | ||
| 63236-02050 |
ZWE183..G,V MOON ROOF-WITHOUT |
6 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02030 |
ZWE183..G,V |
4 | ||
| 63236-02030 |
ZWE183..G,V MOON ROOF-WITHOUT |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02030 |
ZWE183..G,V |
4 | ||
| 63236-02030 |
ZWE183..G,V MOON ROOF-WITHOUT |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02030 |
ZWE183..G,V |
4 | ||
| 63236-02030 |
ZWE183..G,V MOON ROOF-WITHOUT |
4 | ||
| 63236E - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-02030 |
ZWE183..G,V |
4 | ||
| 63236-02030 |
ZWE183..G,V MOON ROOF-WITHOUT |
4 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63249-02500 |
ZWE183..G,V |
1 | ||
| 63249-02500 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63249-02380 |
ZWE183..G,V |
1 | ||
| 63249-02380 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-02700 |
ZWE183..G,V |
2 | ||
| 63249-02700 |
ZWE183..G,V MOON ROOF-WITHOUT |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-02700 |
ZWE183..G,V |
2 | ||
| 63249-02700 |
ZWE183..G,V MOON ROOF-WITHOUT |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02150 |
ZWE183..G,V MOON ROOF-WITHOUT |
1 | ||
| 63260-02150 |
ZWE183..G,V |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-C0011 |
ZWE183..G,V |
1 | ||
| Common parts | ||||
| 82711-3A540 | ||||
| 90119-C0090 | ||||
| 90159-50336 | ||||
| 90178-C0011 | ||||
| 90959-C1001 | ||||
| Linked diagrams | ||||
| 6101 | ||||
| 6402 | ||||
