ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

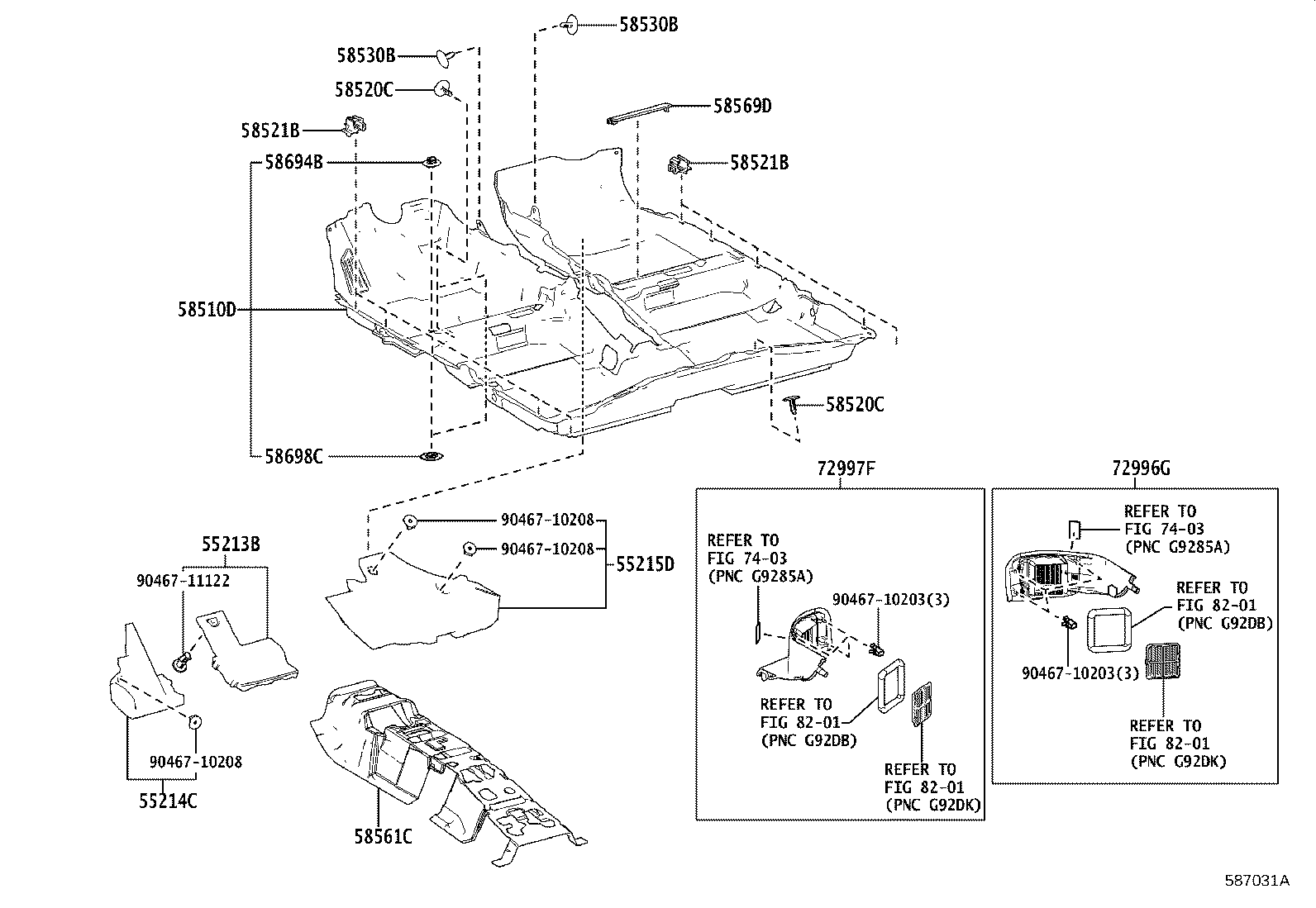

ILLUST NO. 1 OF 2(1904- )

Click highlighted areas on diagram

FLOOR CARPET

diagram 55213B 55214C 55215D 58510D 58520C 58520C 58521B 58521B 58530B 58530B 58561C 58569D 58694B 58698C 72996G 72997F 7403 7403 8201 8201 8201 8201 9046710203 9046710203 9046710208 9046710208 9046710208 9046711122
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-02260

ZWE183

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-02160

ZWE183

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-0F010

ZWE183

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-02M10C0

ZWE183

BLACK,TRIM2#,4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ZWE183

BLACK

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

ZWE183

BLACK

 2
58521B - HOOK, FLOOR CARPET
58521-02190

ZWE183

 10
58521B - HOOK, FLOOR CARPET
58521-02190

ZWE183

 10
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-C0016C1

ZWE183

BLACK,(L)

 2
90467-05164C7

ZWE183

BLACK,(J)

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-C0016C1

ZWE183

BLACK,(L)

 2
90467-05164C7

ZWE183

BLACK,(J)

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-02410

ZWE183

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-0F020C0

ZWE183

BLACK,TRIM0#,2#,4#

 1
58694B - PLATE, MAT SET, UPPER
58694-76010

ZWE183

 2
58698C - PLATE, MAT SET, LOWER
58698-76010

ZWE183

 2
72996G - COVER, REAR SEAT, NO.2 RH
72996-02180C0

ZWE183

BLACK,TRIM2#,4#

 1
72997F - COVER, REAR SEAT, NO.2 LH
72997-02090C0

ZWE183

BLACK,TRIM2#,4#

 1
Common parts
90467-10203
90467-10208
90467-11122
Linked diagrams
7403
8201

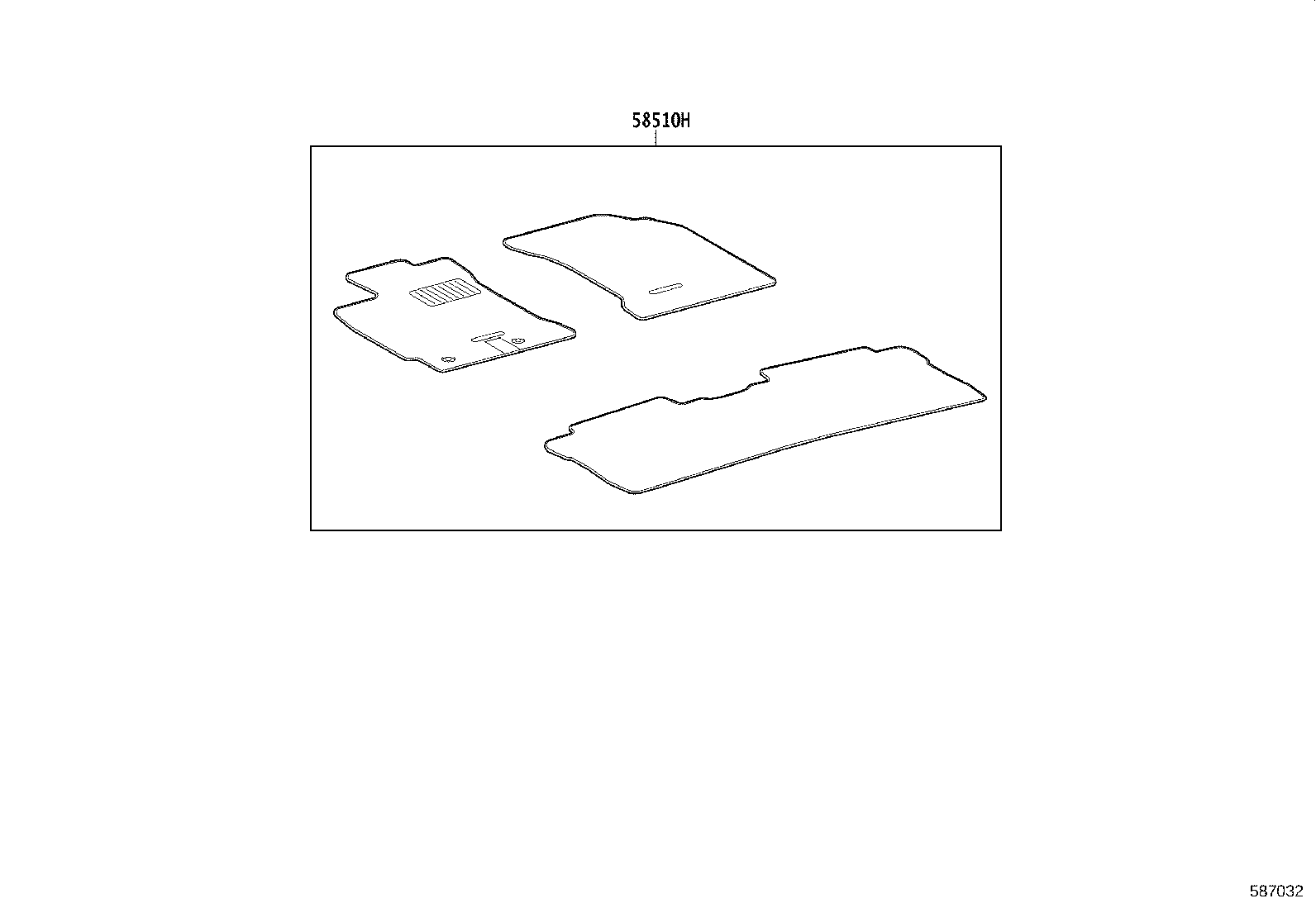

ILLUST NO. 2 OF 2(1904- )

Click highlighted areas on diagram

FLOOR MAT

diagram 58510H
Part # Description Qty Price
58510H - MAT ASSY, FLOOR
58510-YY740C0

ZWE183

FLOOR MAT(*417)-TEXTILE,BLACK,TRIM0#,2#,4#

 1
