ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

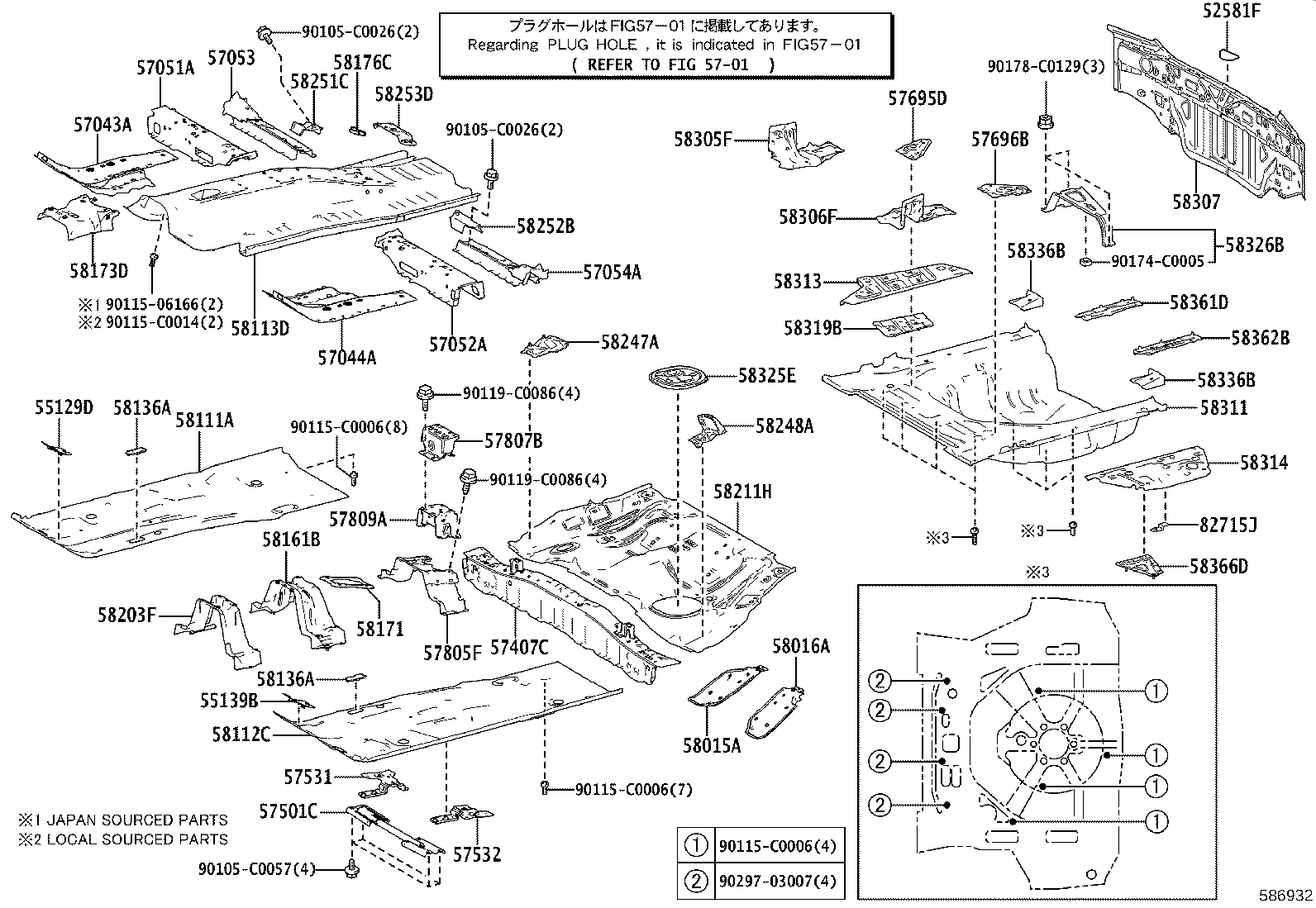

ILLUST NO. 1 OF 2(1904- )
Click highlighted areas on diagram
FLOOR PANEL & LOWER BACK PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52581F - PROTECTOR, REAR BUMPER | ||||
| 52581-0F010 |
ZWE183 |
1 | ||
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-02040 |
ZWE183 |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-02030 |
ZWE183 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-02020 |
ZWE183 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-02020 |
ZWE183 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-02040 |
ZWE183 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-02030 |
ZWE183 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-0F010 |
ZWE183 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-0F010 |
ZWE183 |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-02210 |
ZWE183 |
1 | ||
| 57501C - BRACE SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57501-0F010 |
ZWE183 |
1 | ||
| 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH | ||||
| 57531-02020 |
ZWE183 |
1 | ||
| 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH | ||||
| 57532-02020 |
ZWE183 |
1 | ||
| 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH | ||||
| 57695-02080 |
ZWE183 |
1 | ||
| 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH | ||||
| 57696-02060 |
ZWE183 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-0F010 |
ZWE183 |
1 | ||
| 57807B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2 | ||||
| 57807-02060 |
ZWE183 |
1 | ||
| 57809A - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3 | ||||
| 57809-02070 |
ZWE183 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-02221 |
ZWE183 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-02181 |
ZWE183 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-02938 |
ZWE183 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-02907 |
ZWE183 |
1 | ||
| 58113D - PANEL, FRONT FLOOR SIDE, NO.1 RH | ||||
| 58113-02914 |
ZWE183 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-0F020 |
ZWE183 |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-0F020 |
ZWE183 |
2 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-0F020 |
ZWE183 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-02071 |
ZWE183 |
1 | ||
| 58173D - BRACKET, COMPUTER MOUNTING, NO.4 | ||||
| 58173-02020 |
ZWE183 |
1 | ||
| 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 | ||||
| 58176-02030 |
ZWE183 |
1 | ||
| 58203F - BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING | ||||
| 58203-0F020 |
ZWE183 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-02470 |
ZWE183 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-02200 |
ZWE183 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58248-02050 |
ZWE183 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-02040 |
ZWE183 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-02020 |
ZWE183 |
1 | ||
| 58253D - BRACKET, PARKING BRAKE CABLE | ||||
| 58253-02070 |
ZWE183 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-02160 |
ZWE183 |
1 | ||
| 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 58306-02170 |
ZWE183 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-02440 |
ZWE183 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-02323 |
ZWE183 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-02280 |
ZWE183 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-02173 |
ZWE183 |
1 | ||
| 58319B - BRACKET, REAR FLOOR SIDE PANEL | ||||
| 58319-02080 |
ZWE183 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-02200 |
ZWE183 |
1 | ||
| 58326B - BRACKET, FLEXIBLE HOSE MOUNTING | ||||
| 58326-02020 |
ZWE183 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-0F010 |
ZWE183 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-0F010 |
ZWE183 |
2 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58361-02030 |
ZWE183 |
1 | ||
| 58362B - REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH | ||||
| 58362-02020 |
ZWE183 |
1 | ||
| 58366D - REINFORCEMENT, FUEL TANK SUPPORT, REAR | ||||
| 58366-02040 |
ZWE183 |
1 | ||
| 82715J - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-02M40 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0026 | ||||
| 90105-C0057 | ||||
| 90115-06166 | ||||
| 90115-C0006 | ||||
| 90115-C0014 | ||||
| 90119-C0086 | ||||
| 90174-C0005 | ||||
| 90178-C0129 | ||||
| 90297-03007 | ||||
| Linked diagrams | ||||
| 5701 | ||||

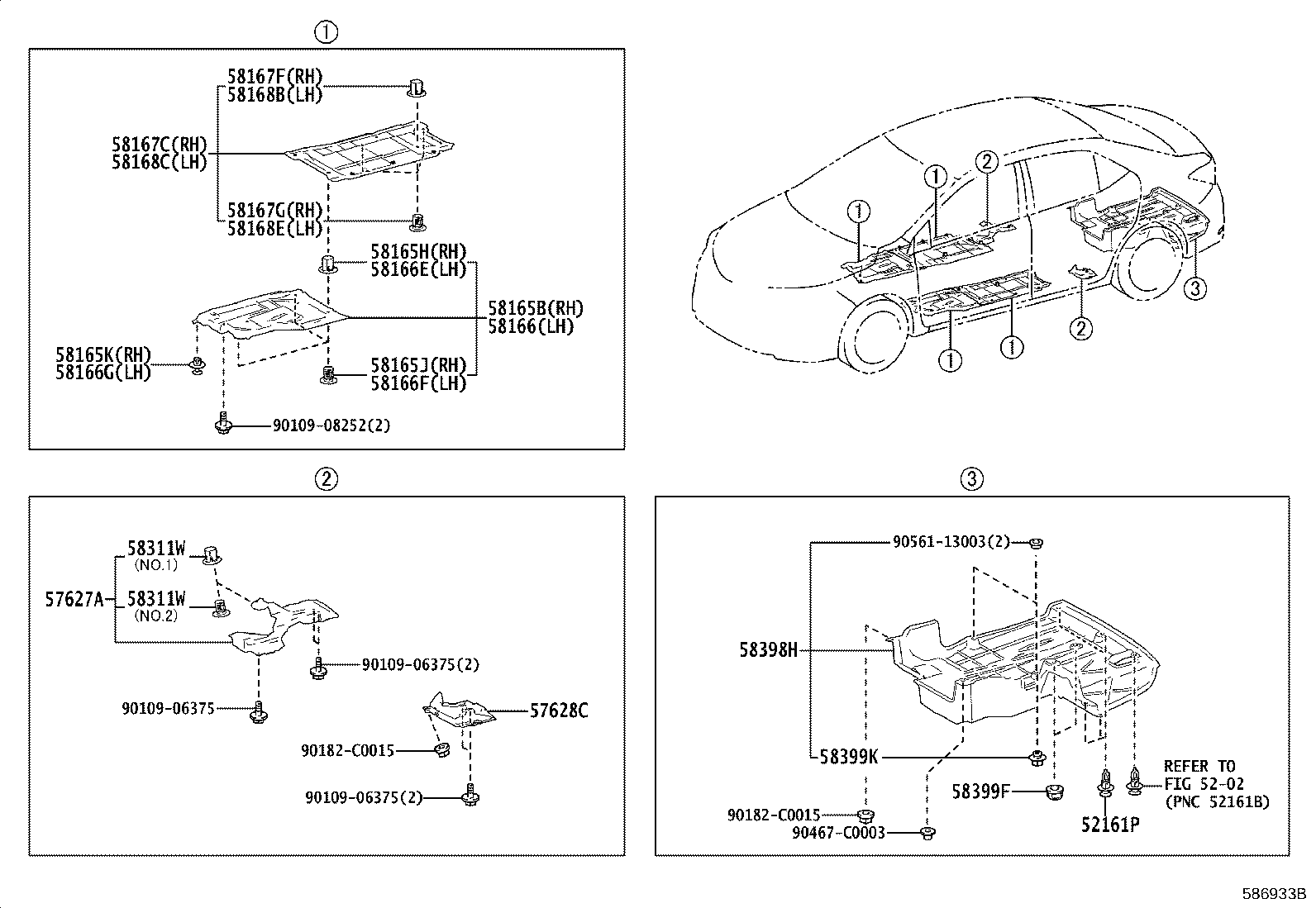

ILLUST NO. 2 OF 2(1904- )
Click highlighted areas on diagram
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161P - PIECE, REAR BUMPER | ||||
| 52161-02040 |
ZWE183 (L) |
4 | ||
| 52161-16010 |
ZWE183 (J) |
4 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-02130 |
ZWE183 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-02120 |
ZWE183 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-02100 |
ZWE183 |
1 | ||
| 58165H - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
ZWE183 SUPER WHITE 2 |
3 | ||
| 58165J - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
ZWE183 BLACK |
3 | ||
| 58165K - CLIP, FRONT FLOOR COVER, NO.3 RH | ||||
| 90467-07215 |
ZWE183 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-02080 |
ZWE183 |
1 | ||
| 58166E - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
ZWE183 SUPER WHITE 2 |
3 | ||
| 58166F - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
ZWE183 BLACK |
3 | ||
| 58166G - CLIP, FRONT FLOOR COVER, NO.3 LH | ||||
| 90467-07215 |
ZWE183 |
1 | ||
| 58167C - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-02140 |
ZWE183 |
1 | ||
| 58167F - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZWE183 SUPER WHITE 2 |
3 | ||
| 58167G - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWE183 BLACK |
3 | ||
| 58168B - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026A0 |
ZWE183 SUPER WHITE 2 |
3 | ||
| 58168C - COVER, FRONT FLOOR, CENTER LH | ||||
| 58168-02130 |
ZWE183 |
1 | ||
| 58168E - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027C0 |
ZWE183 BLACK |
3 | ||
| 58311W - CLIP(FOR REAR FLOOR) | ||||
| 90467-17027C0 |
ZWE183 BLACK,NO.2:REFER ILLUST. |
1 | ||
| 90467-17026A0 |
ZWE183 SUPER WHITE 2,NO.1:REFER ILLUST. |
1 | ||
| 58311W - CLIP(FOR REAR FLOOR) | ||||
| 90467-17027C0 |
ZWE183 BLACK,NO.2:REFER ILLUST. |
1 | ||
| 90467-17026A0 |
ZWE183 SUPER WHITE 2,NO.1:REFER ILLUST. |
1 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-02151 |
ZWE183 |
1 | ||
| 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-06121 |
ZWE183 (J) |
2 | ||
| 90467-C0055 |
ZWE183 (L) |
2 | ||
| 58399K - CLIP, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-14053 |
ZWE183 |
2 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90109-08252 | ||||
| 90182-C0015 | ||||
| 90467-C0003 | ||||
| 90561-13003 | ||||
| Linked diagrams | ||||
| 5202 | ||||
