ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

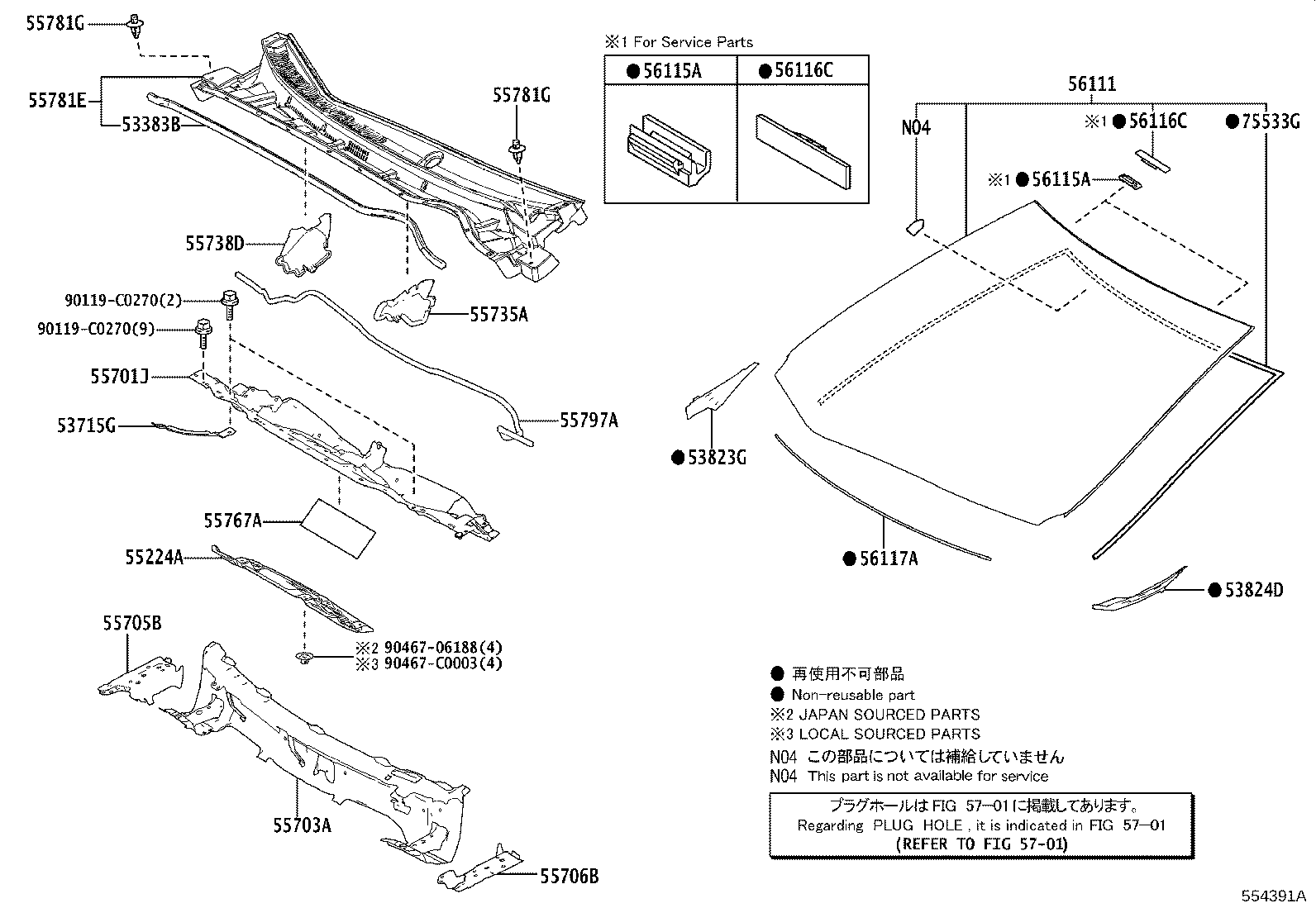

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-02250 |
ZWE183 |
1 | ||
| 53715G - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-02080 |
ZWE183 |
1 | ||
| 53823G - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-02140 |
ZWE183 |
1 | ||
| 53824D - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-02140 |
ZWE183 |
1 | ||
| 55224A - INSULATOR, DASH PANEL, OUTER NO.2 | ||||
| 55224-02280 |
ZWE183 |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-02660 |
ZWE183 |
1 | ||
| 55703A - PANEL SUB-ASSY, COWL TOP, INNER | ||||
| 55703-02480 |
ZWE183 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-02190 |
ZWE183 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-02190 |
ZWE183 |
1 | ||
| 55735A - PLATE, WATER GUARD, LH | ||||
| 55734-02360 |
ZWE183 |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55737-02210 |
ZWE183 |
1 | ||
| 55767A - SHEET, COWL TOP INSULATOR, NO.5 | ||||
| 55767-02050 |
ZWE183 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-02700 |
ZWE183 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-C0013C1 |
ZWE183 BLACK,(L) |
2 | ||
| 90467-07076C7 |
ZWE183 BLACK,(J) |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-C0013C1 |
ZWE183 BLACK,(L) |
2 | ||
| 90467-07076C7 |
ZWE183 BLACK,(J) |
2 | ||
| 55797A - SEAL, COWL WATER EXTRACT | ||||
| 55797-02160 |
ZWE183 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-02J01 |
ZWE183 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
ZWE183 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
ZWE183 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
ZWE183 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
ZWE183 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-02240 |
ZWE183 L=1262.5 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-02190 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0270 | ||||
| 90467-06188 | ||||
| 90467-C0003 | ||||
| Linked diagrams | ||||
| 5701 | ||||
