ZWE183L-CEXVBC (2019)
Toyota Levin

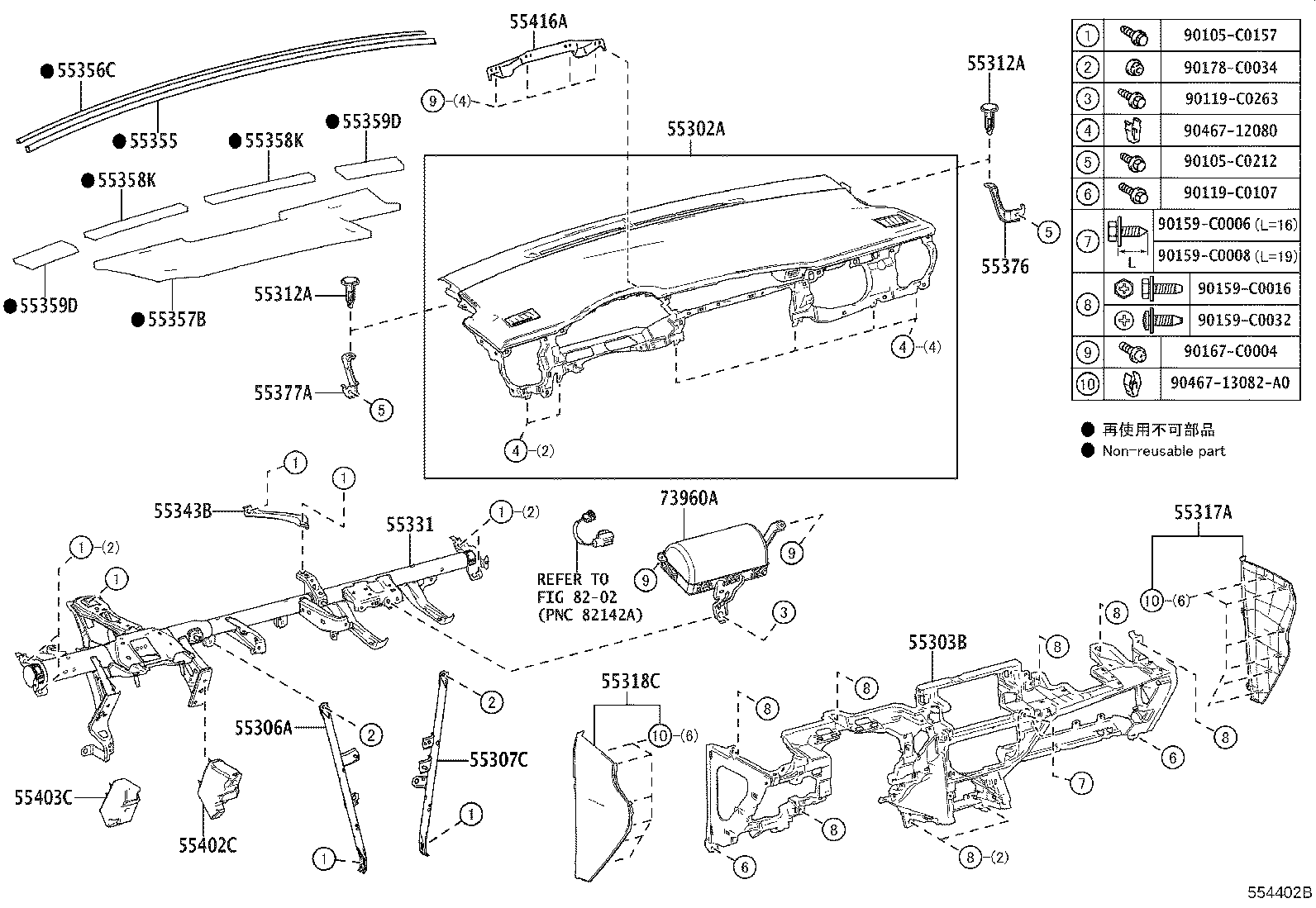

ILLUST NO. 1 OF 2(1904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02620C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55302-02620C1 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02471C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02760 |
ZWE183 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02600 |
ZWE183 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02040 |
ZWE183 |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02040 |
ZWE183 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02770C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02400C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-02B60 |
ZWE183 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02250 |
ZWE183 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02410 |
ZWE183 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55355-02460 |
ZWE183 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55356-02500 |
ZWE183 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02180 |
ZWE183 |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02180 |
ZWE183 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02180 |
ZWE183 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02180 |
ZWE183 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02170 |
ZWE183 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02160 |
ZWE183 |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-02090 |
ZWE183 |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-02190 |
ZWE183 |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-02260 |
ZWE183 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02241 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90105-C0157 | ||||
| 90105-C0212 | ||||
| 90119-C0107 | ||||
| 90119-C0263 | ||||
| 90159-C0006 | ||||
| 90159-C0008 | ||||
| 90159-C0016 | ||||
| 90159-C0032 | ||||
| 90167-C0004 | ||||
| 90178-C0034 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| Linked diagrams | ||||
| 8202 | ||||

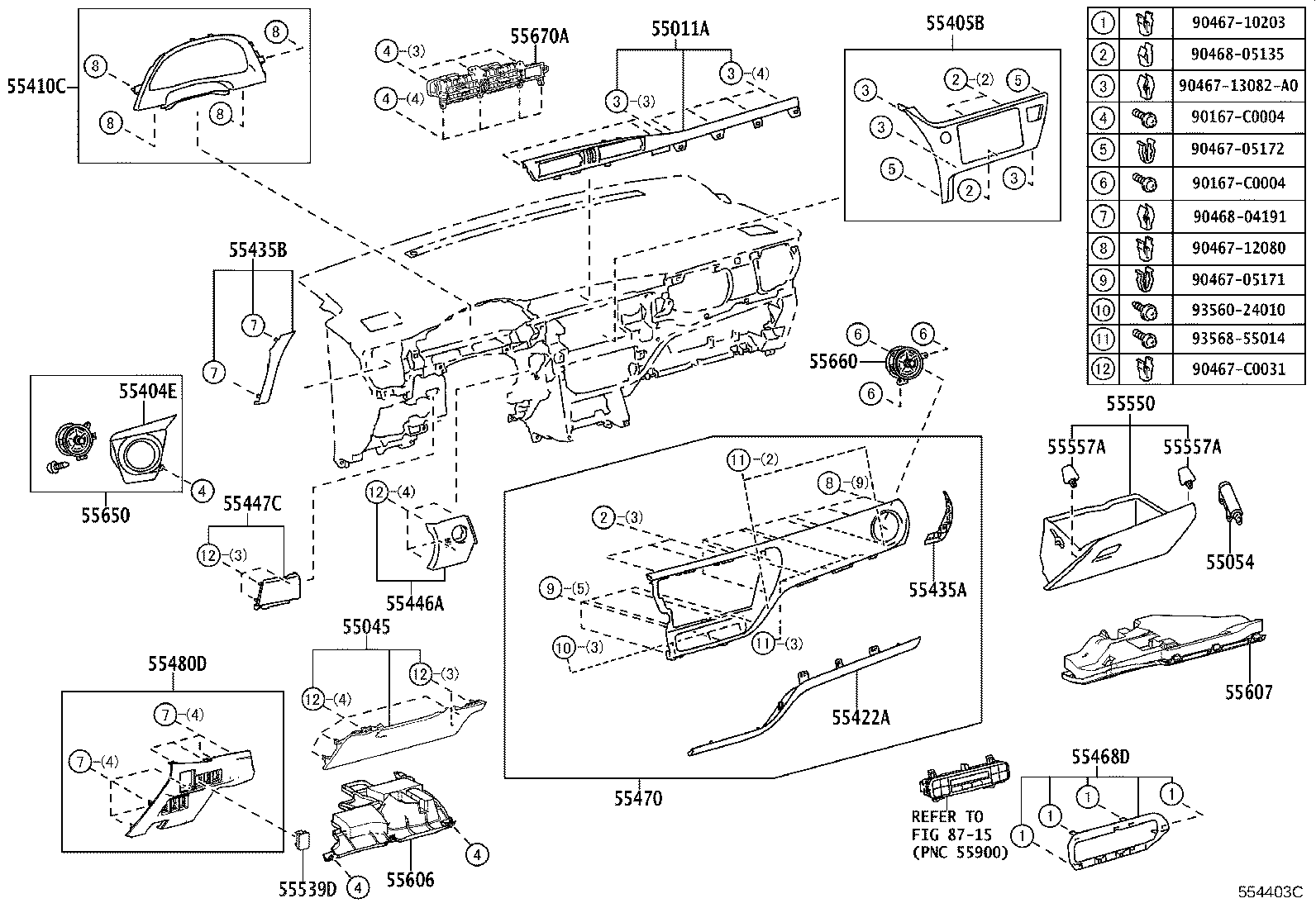

ILLUST NO. 2 OF 2(1904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02170C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02481C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ZWE183 |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02381C5 |
ZWE183 INSTRUMENT FINISH PANEL-*DRS LEATHER & *PAS LEATHER(WITH STITCH),BLACK,TRIM2# |
1 | ||
| 55404-02621E0 |
ZWE183 SADDLE TAN,TRIM4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02D10 |
ZWE183 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02551C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02660C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-02760C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02751C0 |
ZWE183 BLACK,TRIM2#,4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02530C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02290C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02160 |
ZWE183 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02820C2 |
ZWE183 BLACK,TRIM2# |
1 | ||
| 55470-02820E2 |
ZWE183 SADDLE TAN,TRIM4# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-02190C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D100C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02610C0 |
ZWE183 BLACK,TRIM0#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZWE183 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZWE183 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02380 |
ZWE183 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02390 |
ZWE183 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02701E0 |
ZWE183..E,G SADDLE TAN,TRIM4# |
1 | ||
| 55650-02781C4 |
ZWE183..E,G INSTRUMENT FINISH PANEL-*DRS LEATHER & *PAS LEATHER(WITH STITCH),BLACK,TRIM2# |
1 | ||
| 55650-02711E1 |
ZWE183..V SADDLE TAN,TRIM4# |
1 | ||
| 55650-02791C8 |
ZWE183..V INSTRUMENT FINISH PANEL-*DRS LEATHER & *PAS LEATHER(WITH STITCH),BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02440 |
ZWE183..V |
1 | ||
| 55660-02400C0 |
ZWE183..E,G BLACK,TRIM2#,4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02740 |
ZWE183..V |
1 | ||
| 55670-02730 |
ZWE183..E,G |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 90467-C0031 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| 93560-24010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8715 | ||||
