ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

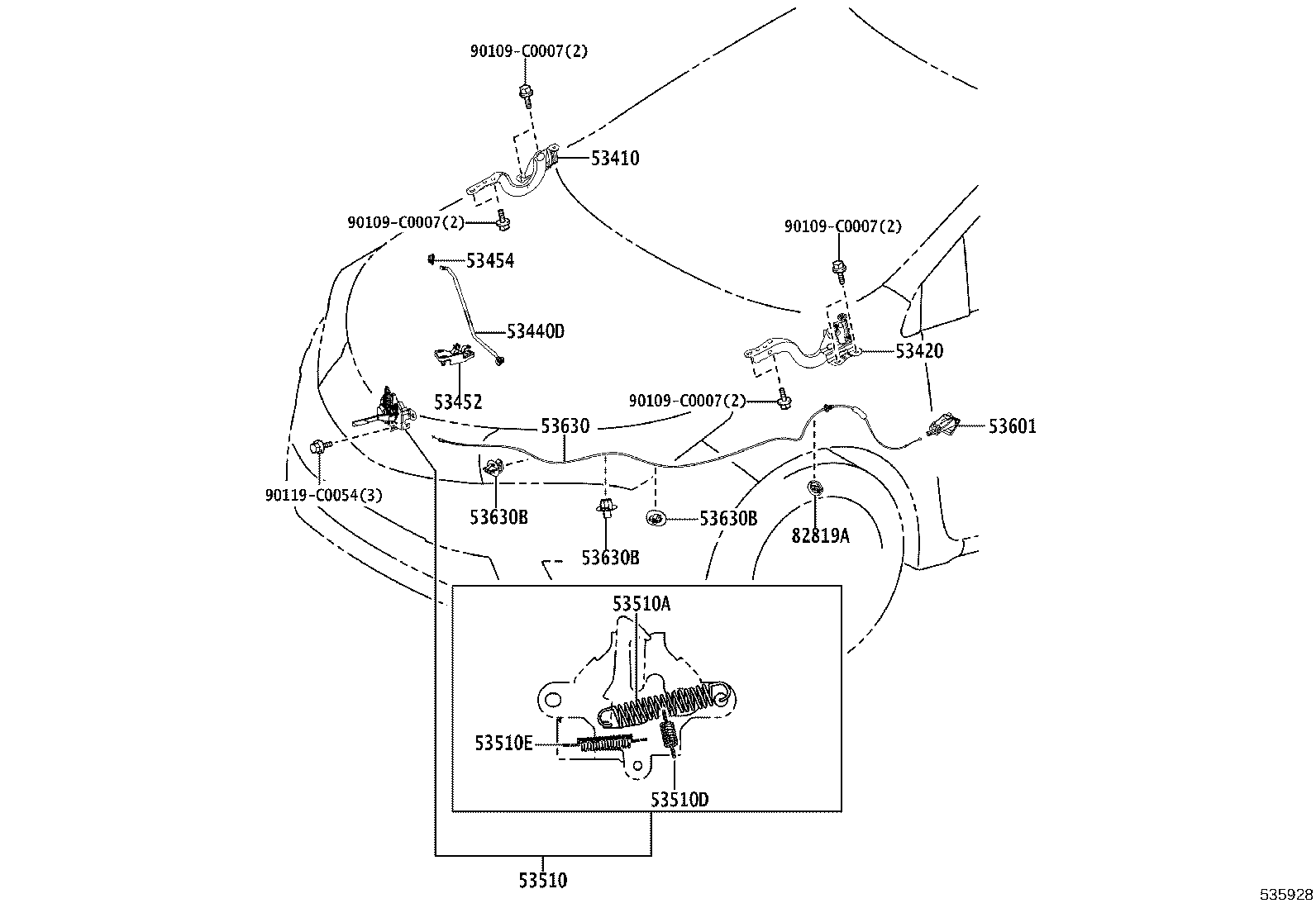

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53454 53510 53510A 53510D 53510E 53601 53630 53630B 53630B 53630B 82819A 90109C0007 90109C0007 90109C0007 90109C0007 90119C0054
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-02450

ZWE183

 1
53420 - HINGE ASSY, HOOD, LH
53420-02450

ZWE183

 1
53440D - SUPPORT ASSY, HOOD
53440-02251

ZWE183

 1
53452 - HOLDER, HOOD STAY
53452-02210

ZWE183

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-02040

ZWE183

 1
53510 - LOCK ASSY, HOOD
53510-02760

ZWE183

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

ZWE183

WD=1.8,CW=13

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

ZWE183

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

ZWE183

WD=0.9,CW=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0D061C0

ZWE183

BLACK,TRIM2#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-02441

ZWE183

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-C0008

ZWE183

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-C0008

ZWE183

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-C0008

ZWE183

 3
82819A - GROMMET, WIRE
82817-02T80

ZWE183

 1
Common parts
90109-C0007
90119-C0054
