ZWE183L-CEXVBC (2019)

Toyota Levin

Production Apr 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )

Click highlighted areas on diagram

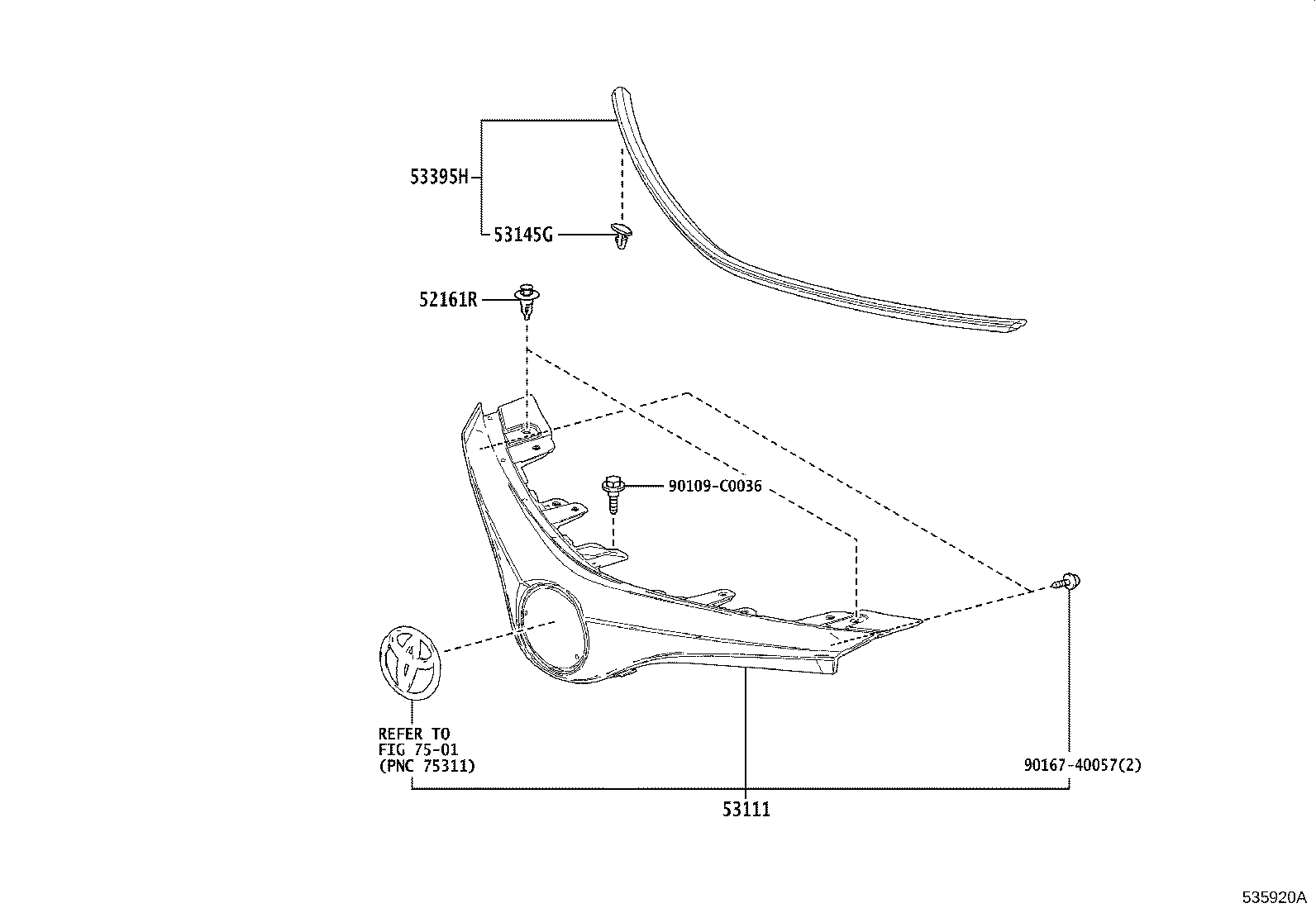

diagram 52161R 53111 53145G 53395H 7501 90109C0036 9016740057
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZWE183

(J)

 2
52161-02040

ZWE183

(L)

 2
53111 - GRILLE, RADIATOR
53100-02870

ZWE183

 1
53145G - CLIP, RADIATOR GRILLE
53145-60030

ZWE183

 9
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-02150

ZWE183

 1
Common parts
90109-C0036
90167-40057
Linked diagrams
7501
