ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

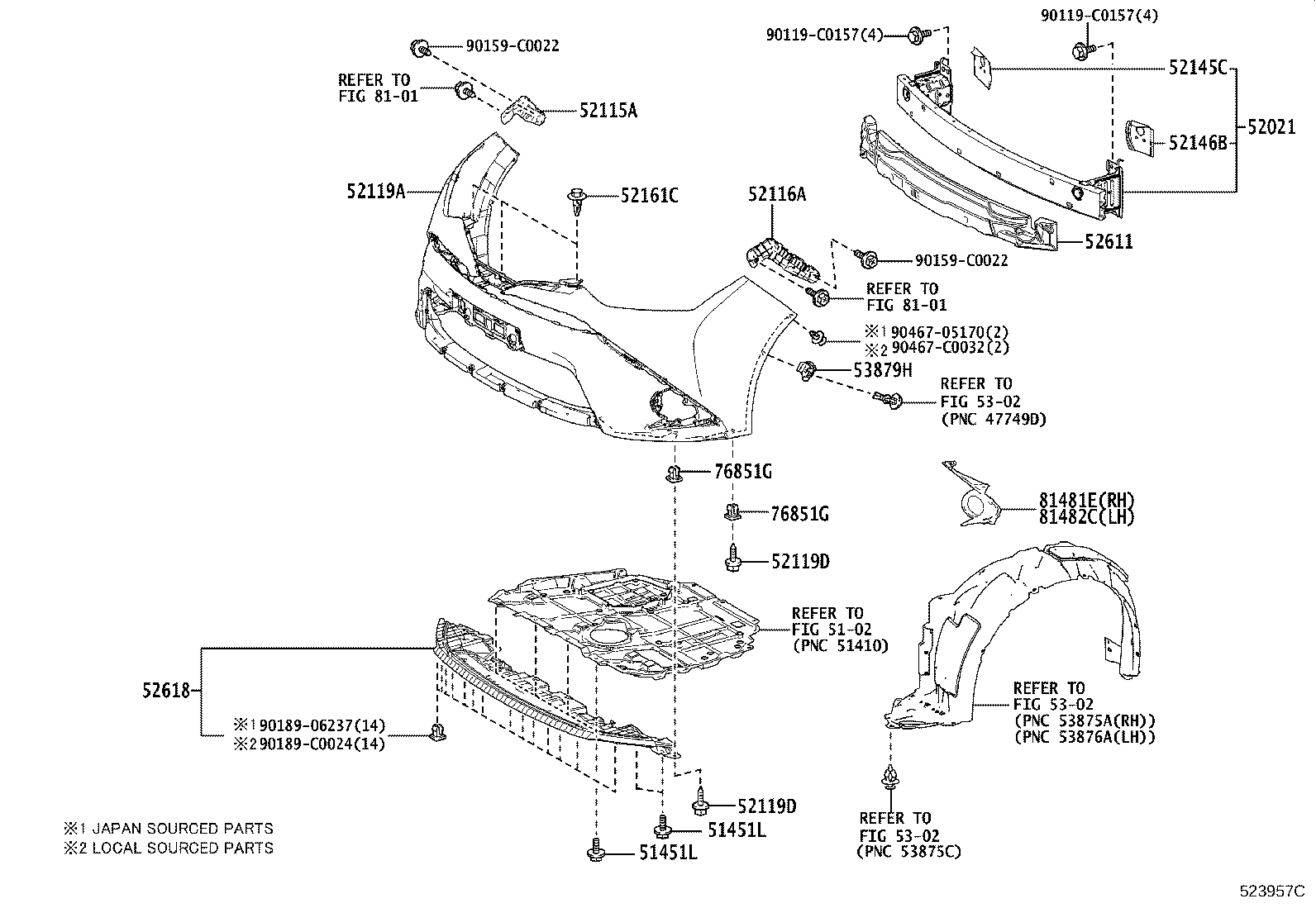

ILLUST NO. 1 OF 2(1904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-C0186 |
ZWE183 |
8 | ||
| 51451L - BOLT, NO.1 | ||||
| 90119-C0186 |
ZWE183 |
8 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02290 |
ZWE183 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02300 |
ZWE183 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02300 |
ZWE183 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2923 |
ZWE183 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60477 |
ZWE183 |
8 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60477 |
ZWE183 |
8 | ||
| 52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-02180 |
ZWE183 |
1 | ||
| 52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-02160 |
ZWE183 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02040 |
ZWE183 |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02480 |
ZWE183 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02120 |
ZWE183 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-06080 |
ZWE183 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
ZWE183 |
4 | ||
| 90189-06237 |
ZWE183 (J) |
4 | ||
| 90189-C0024 |
ZWE183 (L) |
4 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
ZWE183 |
4 | ||
| 90189-06237 |
ZWE183 (J) |
4 | ||
| 90189-C0024 |
ZWE183 (L) |
4 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-02550 |
ZWE183 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-02540 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-C0157 | ||||
| 90159-C0022 | ||||
| 90189-06237 | ||||
| 90189-C0024 | ||||
| 90467-05170 | ||||
| 90467-C0032 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

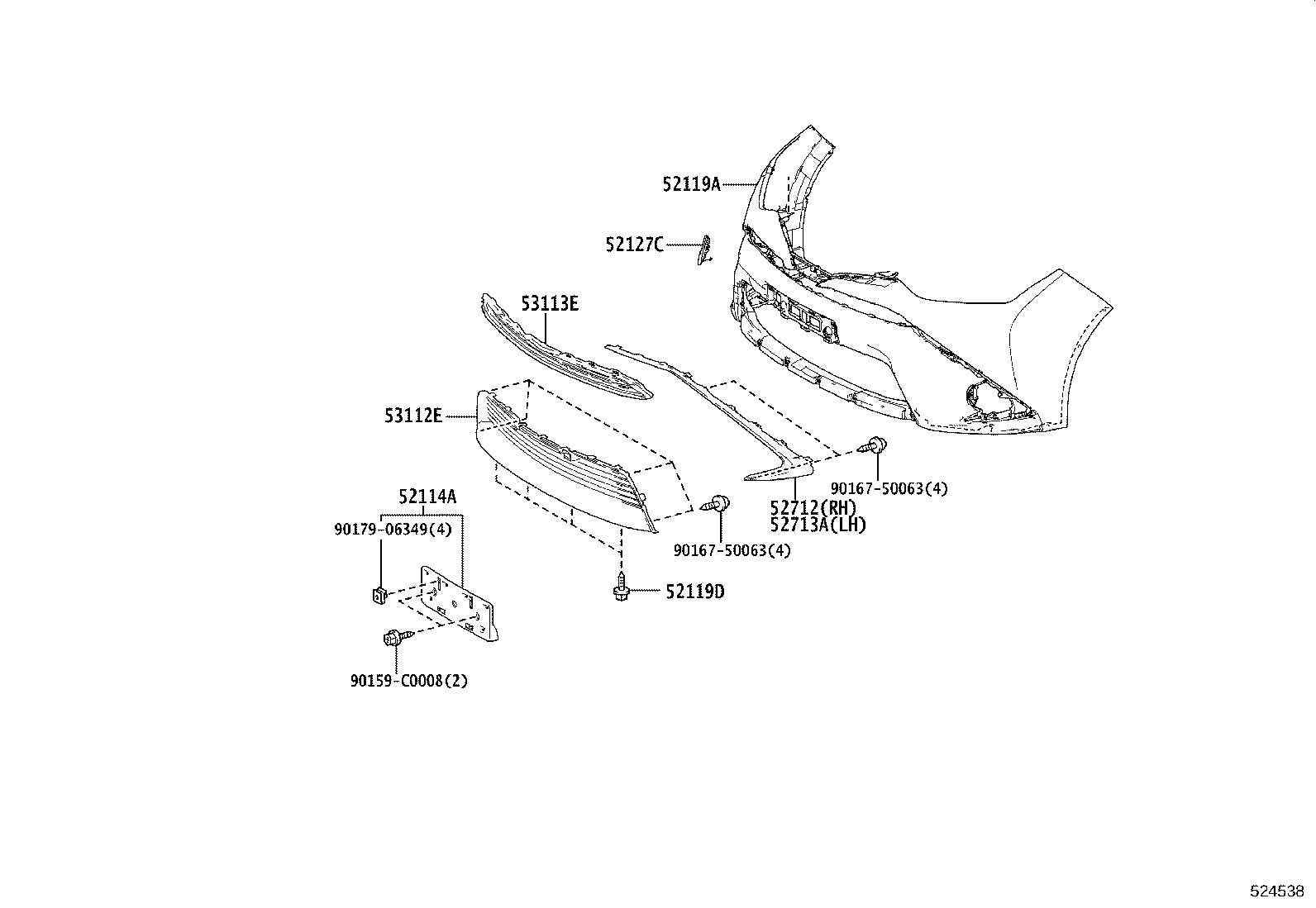

ILLUST NO. 2 OF 2(1904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-02260 |
ZWE183 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2923 |
ZWE183 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60477 |
ZWE183 |
8 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-02925 |
ZWE183 |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-02150 |
ZWE183 |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-02130 |
ZWE183 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02D50 |
ZWE183 |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-02120 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90159-C0008 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
