ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

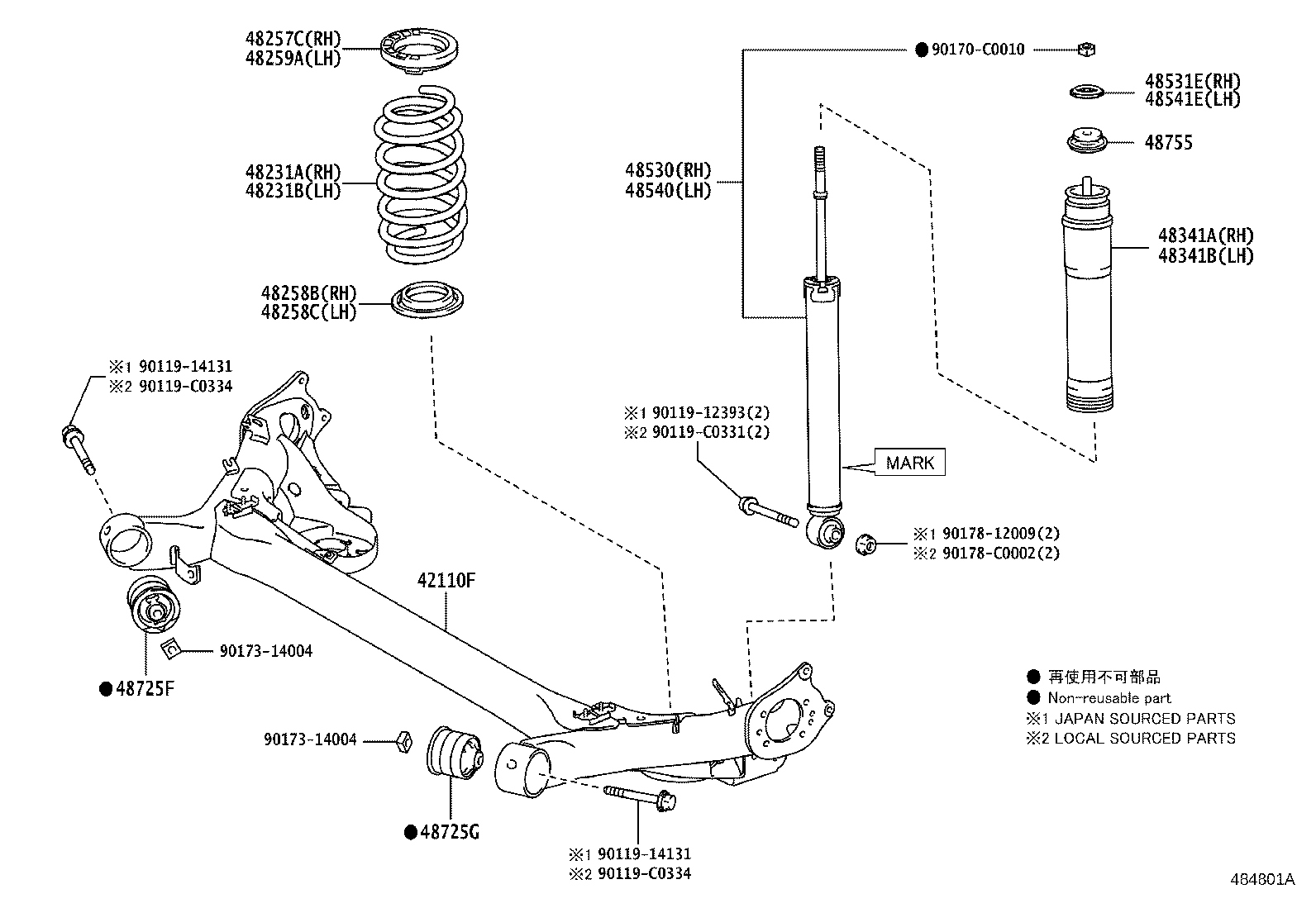

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-02380 |
ZWE183 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-02R10 |
ZWE183 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-02R10 |
ZWE183 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-0D070 |
ZWE183 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-0D090 |
ZWE183 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-0D090 |
ZWE183 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-0D070 |
ZWE183 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-02090 |
ZWE183 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-02090 |
ZWE183 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-8Z129 |
ZWE183 MARK 48530-02Q90 |
1 | ||
| 48530-8Z163 |
ZWE183 MARK 48530-02Q91 |
1 | ||
| 48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH) | ||||
| 90948-C2005 |
ZWE183 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-8Z129 |
ZWE183 MARK 48530-02Q90 |
1 | ||
| 48530-8Z163 |
ZWE183 MARK 48530-02Q91 |
1 | ||
| 48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH) | ||||
| 90948-C2005 |
ZWE183 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-0F020 |
ZWE183 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-0F020 |
ZWE183 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-02140 |
ZWE183 |
2 | ||
| Common parts | ||||
| 90119-12393 | ||||
| 90119-14131 | ||||
| 90119-C0331 | ||||
| 90119-C0334 | ||||
| 90170-C0010 | ||||
| 90173-14004 | ||||
| 90178-12009 | ||||
| 90178-C0002 | ||||
