ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

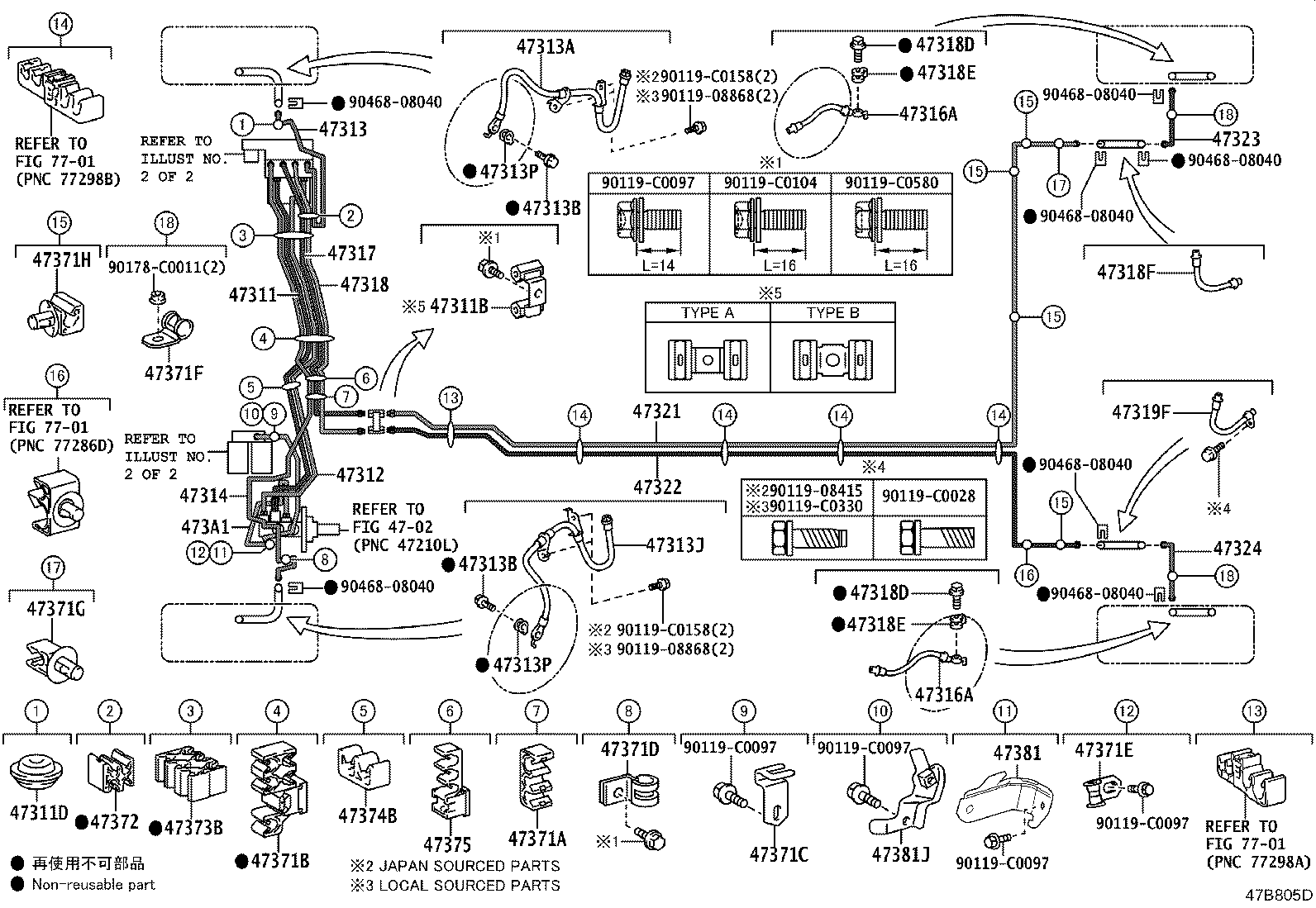

ILLUST NO. 1 OF 2(1904- )
Click highlighted areas on diagram
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02F60 |
ZWE183 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-C0001 |
ZWE183 TYPE A:REFER ILLUST. |
1 | ||
| 90412-C0004 |
ZWE183 TYPE B:REFER ILLUST. |
1 | ||
| 90412-C0001 |
ZWE183 |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
ZWE183 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02E00 |
ZWE183 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02G30 |
ZWE183 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2049 |
ZWE183 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZWE183 (J) |
2 | ||
| 90401-C0001 |
ZWE183 (L) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZWE183 (J) |
2 | ||
| 90401-C0001 |
ZWE183 (L) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2050 |
ZWE183 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZWE183 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZWE183 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02E20 |
ZWE183 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-C2052 |
ZWE183 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-C2052 |
ZWE183 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02F10 |
ZWE183 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02F30 |
ZWE183 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZWE183 (J) |
2 | ||
| 90401-C0001 |
ZWE183 (L) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZWE183 (J) |
2 | ||
| 90401-C0001 |
ZWE183 (L) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZWE183 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZWE183 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2051 |
ZWE183 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2053 |
ZWE183 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02570 |
ZWE183 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02570 |
ZWE183 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-02200 |
ZWE183 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-02210 |
ZWE183 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00857 |
ZWE183 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01E60 |
ZWE183 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-47060 |
ZWE183 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-10781 |
ZWE183 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90461-10840 |
ZWE183 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90461-C0002 |
ZWE183 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-C1002 |
ZWE183 |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-C1003 |
ZWE183 |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00876 |
ZWE183 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90464-00880 |
ZWE183 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00903 |
ZWE183 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D08 |
ZWE183 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-02160 |
ZWE183 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 47381-75010 |
ZWE183 |
1 | ||
| 473A1 - TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER | ||||
| 473A1-02090 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90119-08415 | ||||
| 90119-08868 | ||||
| 90119-C0028 | ||||
| 90119-C0097 | ||||
| 90119-C0104 | ||||
| 90119-C0158 | ||||
| 90119-C0330 | ||||
| 90119-C0580 | ||||
| 90178-C0011 | ||||
| 90468-08040 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

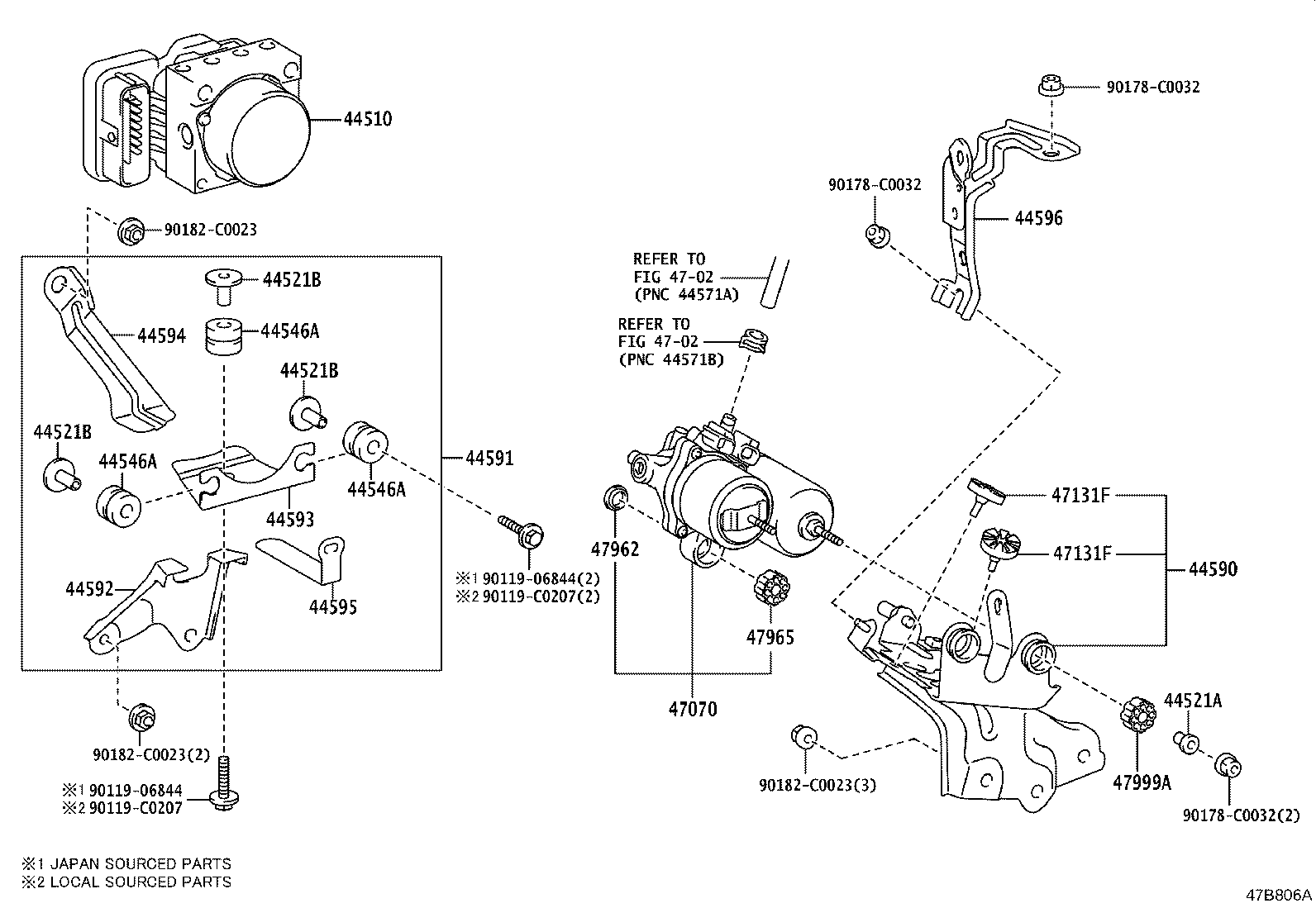

ILLUST NO. 2 OF 2(1904- )
Click highlighted areas on diagram
BRAKE ACTUATOR & BRAKE BOOSTER PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-47060 |
ZWE183 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-02030 |
ZWE183 |
2 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-12050 |
ZWE183 |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-12050 |
ZWE183 |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-12050 |
ZWE183 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE183 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE183 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE183 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02460 |
ZWE183 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-02590 |
ZWE183 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44591-02550 |
ZWE183 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44592-02410 |
ZWE183 |
1 | ||
| 44594 - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44593-02270 |
ZWE183 |
1 | ||
| 44595 - BRACKET, BRAKE ACTUATOR, NO.5 | ||||
| 44594-02140 |
ZWE183 |
1 | ||
| 44596 - BRACKET, BRAKE ACTUATOR, NO.6 | ||||
| 44595-02030 |
ZWE183 |
1 | ||
| 47070 - PUMP ASSY, BRAKE BOOSTER | ||||
| 47070-12020 |
ZWE183 |
1 | ||
| 47131F - CUSHION, BRAKE ACTUATOR BRACKET, NO.3 | ||||
| 47131-47070 |
ZWE183 |
2 | ||
| 47131F - CUSHION, BRAKE ACTUATOR BRACKET, NO.3 | ||||
| 47131-47070 |
ZWE183 |
2 | ||
| 47962 - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
ZWE183 |
1 | ||
| 47965 - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
ZWE183 |
1 | ||
| 47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 47965-30010 |
ZWE183 |
2 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-C0207 | ||||
| 90178-C0032 | ||||
| 90182-C0023 | ||||
| Linked diagrams | ||||
| 4702 | ||||
