ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

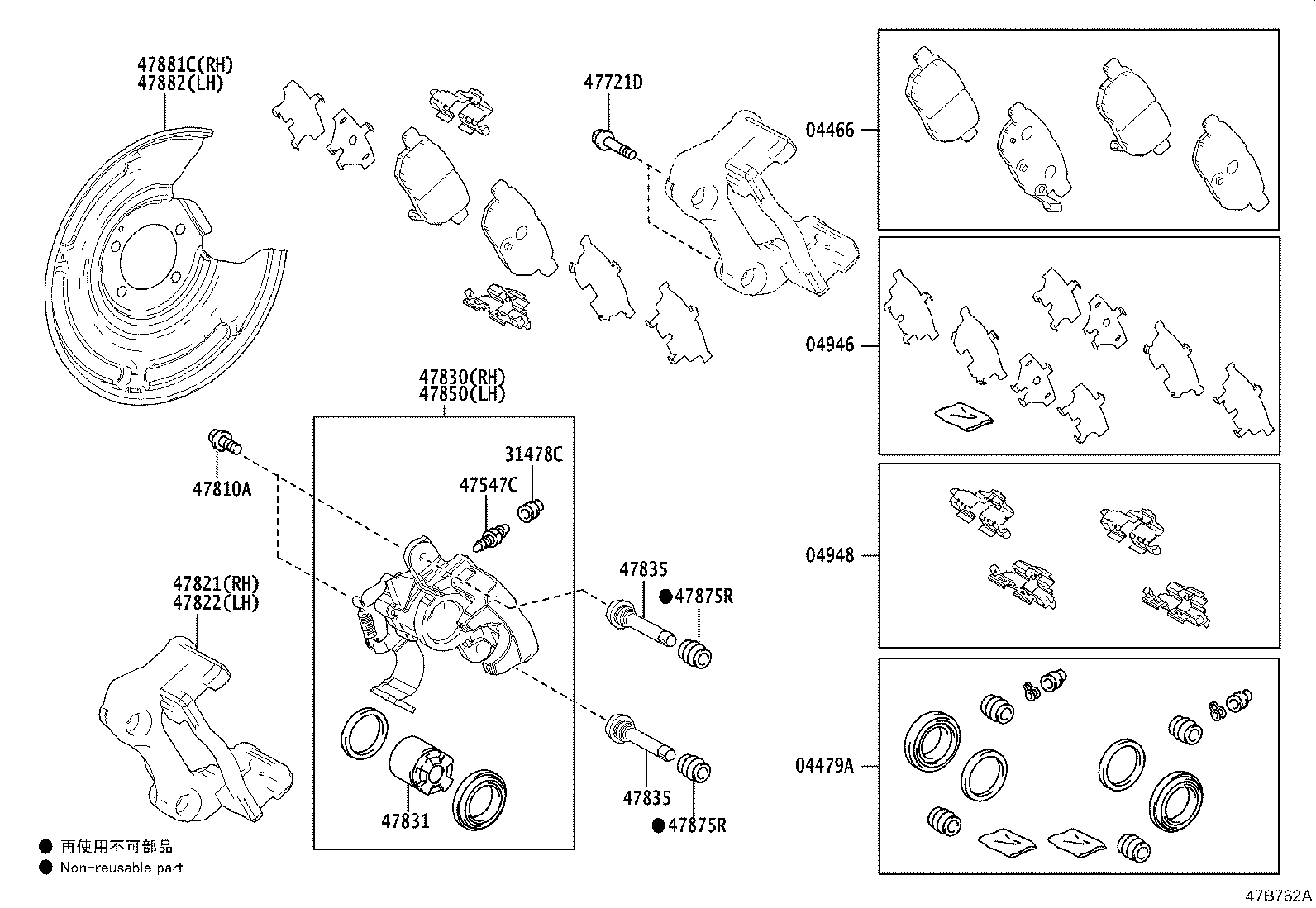

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-47101 |
ZWE183 MARK AK NS254 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-12230 |
ZWE183 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-12110 |
ZWE183 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12050 |
ZWE183 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-52010 |
ZWE183 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-52050 |
ZWE183 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-C0162 |
ZWE183 *10-1.25PX19-15.25 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90015-AA102 |
ZWE183 |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12231 |
ZWE183 |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-12231 |
ZWE183 |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-12230 |
ZWE183 |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-52050 |
ZWE183 |
2 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
ZWE183 |
4 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
ZWE183 |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-12230 |
ZWE183 |
1 | ||
| 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
ZWE183 |
4 | ||
| 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
ZWE183 |
4 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02280 |
ZWE183 |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02280 |
ZWE183 |
1 | ||
