ZWE183L-CEXVBC (2019)
Toyota Levin
Production
Apr 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1904- )

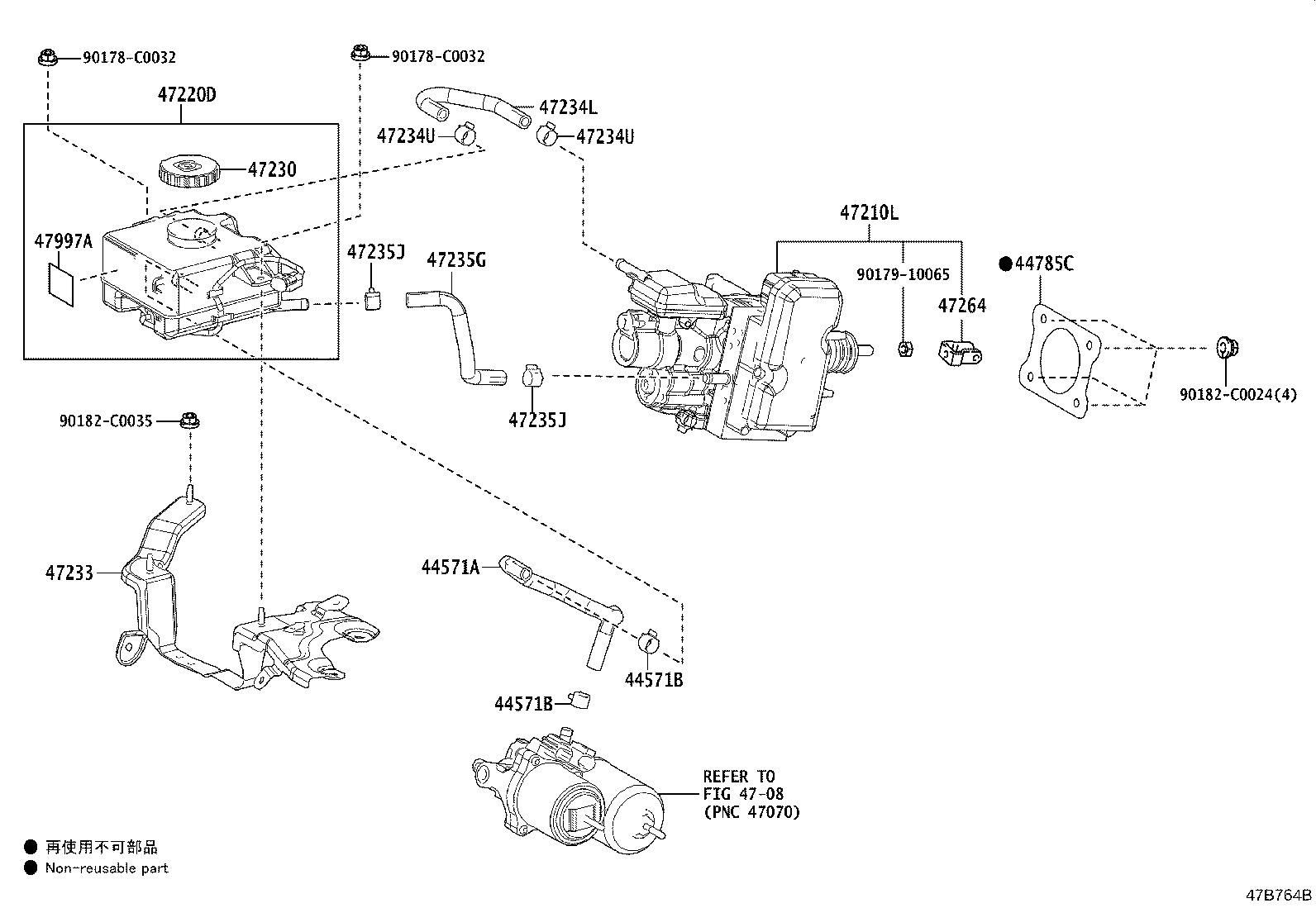

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-02100 |
ZWE183 |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 90466-C0026 |
ZWE183 |
2 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 90466-C0026 |
ZWE183 |
2 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-02050 |
ZWE183 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-12C30 |
ZWE183 |
1 | ||
| 47050-02100 |
ZWE183 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12380 |
ZWE183 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
ZWE183 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-02050 |
ZWE183 |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-02050 |
ZWE183 |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 90466-C0026 |
ZWE183 |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 90466-C0026 |
ZWE183 |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-02050 |
ZWE183 |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 90466-C0026 |
ZWE183 |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 90466-C0026 |
ZWE183 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
ZWE183 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
ZWE183 |
1 | ||
| Common parts | ||||
| 90178-C0032 | ||||
| 90179-10065 | ||||
| 90182-C0024 | ||||
| 90182-C0035 | ||||
| Linked diagrams | ||||
| 4708 | ||||
